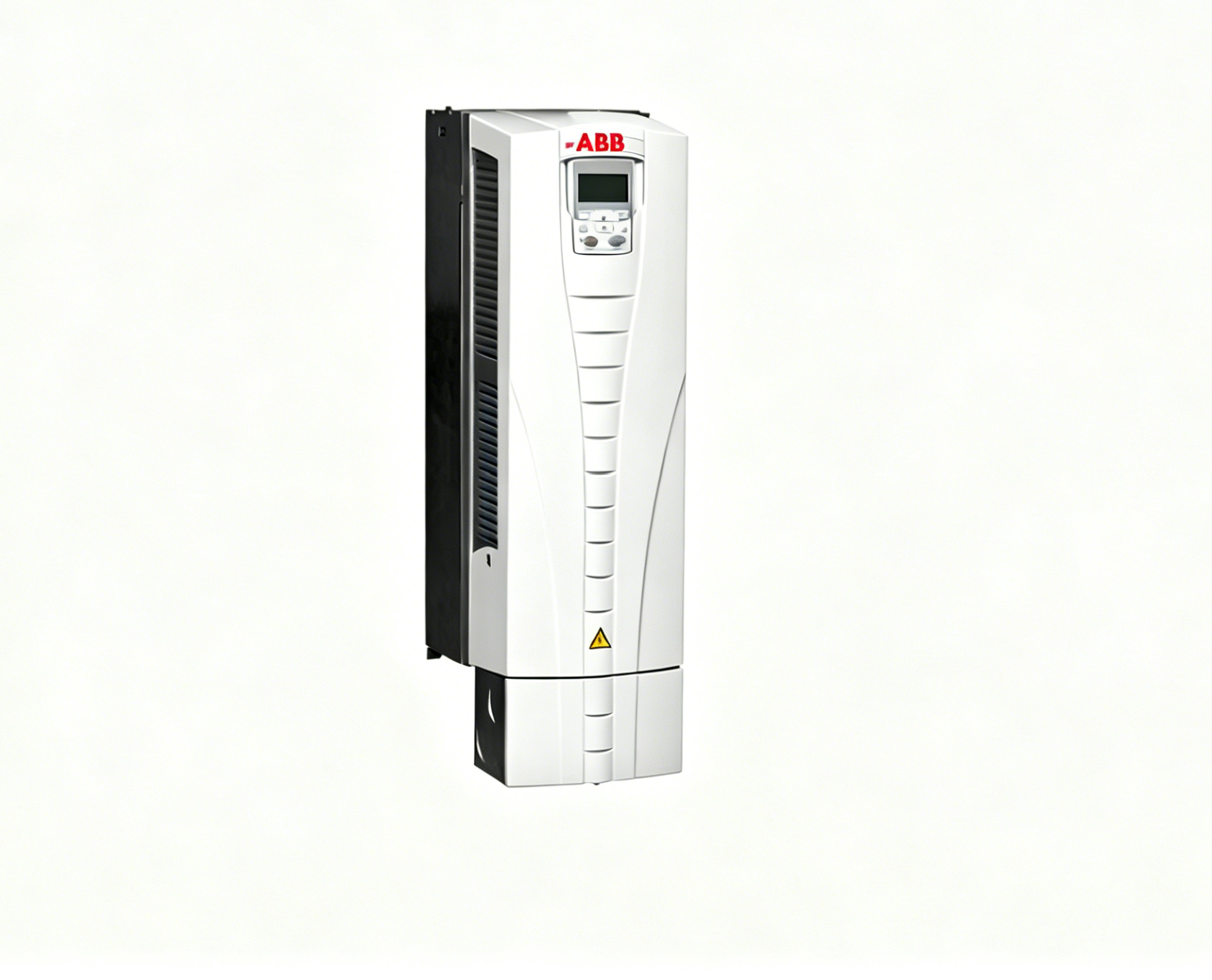

ABB ACS550-U1-059A-4 Industrial AC Drive Overview

The ABB ACS550-U1-059A-4 is a general purpose industrial AC drive designed for efficient motor speed control and reliable performance in a wide range of automation applications. It belongs to the ABB ACS550 drive family, which is widely used in industrial environments requiring stable variable frequency control, energy optimization, and robust motor management. The drive is engineered for three-phase 380–480V systems and is commonly applied in medium-power industrial machinery.

According to technical specifications, the ABB ACS550-U1-059A-4 supports a rated output current of approximately 59A in normal duty and is capable of driving motors up to 40 HP (30 kW) depending on load conditions. It is designed with an IP21 / UL Type 1 enclosure suitable for indoor industrial control cabinet installations. :contentReference[oaicite:0]{index=0}

Variable frequency drives (VFDs) such as the ACS550 series are essential in modern industrial automation because they allow precise control of motor speed by adjusting output frequency and voltage. The ABB ACS550-U1-059A-4 enables smooth acceleration and deceleration, reducing mechanical stress on equipment and improving overall system stability.

This drive is widely used in pump systems, fan control, conveyor lines, compressors, mixers, and general manufacturing automation equipment. These applications require stable torque control and adjustable speed performance to match varying process demands and optimize energy consumption.

One of the key advantages of the ABB ACS550-U1-059A-4 is its ability to improve energy efficiency in industrial systems. Instead of operating motors at constant speed, the drive adjusts motor output based on real-time load requirements. This helps reduce unnecessary power usage and improves operational cost efficiency in long-term industrial operation.

The ACS550 drive also provides stable motor protection functions. It supports monitoring of operating conditions such as overcurrent, overvoltage, undervoltage, and thermal conditions. These protective functions help prevent motor damage and improve system reliability in continuous production environments.

From a system integration perspective, the ABB ACS550-U1-059A-4 is designed for easy installation in industrial control cabinets. Its compact wall-mount structure and standardized interface design make it suitable for retrofitting existing systems or building new automation architectures.

Industrial environments often present challenges such as electrical noise, load variation, and long operating cycles. The ACS550 series is engineered to maintain stable performance under these conditions, ensuring consistent motor operation even in demanding applications.

Another important feature of the ABB ACS550-U1-059A-4 is its user-friendly configuration and control interface. It supports straightforward setup and commissioning, allowing engineers to quickly adjust parameters for different industrial applications without complex programming requirements.

The drive also supports sensorless vector control, which improves torque accuracy at low speeds and enhances overall motor performance. This makes it suitable for applications requiring both precise speed control and reliable torque output.

Maintenance efficiency is another benefit of using ABB ACS550 drives. By providing stable operation and diagnostic functions, the system helps reduce unexpected downtime and supports predictive maintenance strategies in industrial facilities.

In conclusion, the ABB ACS550-U1-059A-4 is a reliable and widely used industrial AC drive that delivers stable variable frequency control, strong motor protection, and energy-efficient performance. Its combination of durability, flexibility, and ease of integration makes it suitable for pumps, fans, conveyors, and a wide range of industrial automation applications.
