ABB ACS550-01-03A3-4 Drive Overview

The ACS550-01-03A3-4 belongs to ABB’s ACS550 series of general purpose drives. Its type designation identifies the drive configuration, voltage class and current rating required for a specific motor control application. The model is intended for three-phase electrical systems with an input voltage range of 380 to 480 V. The drive has a nominal output current of 3.3 A and a nominal output power of 1.1 kW under normal use.

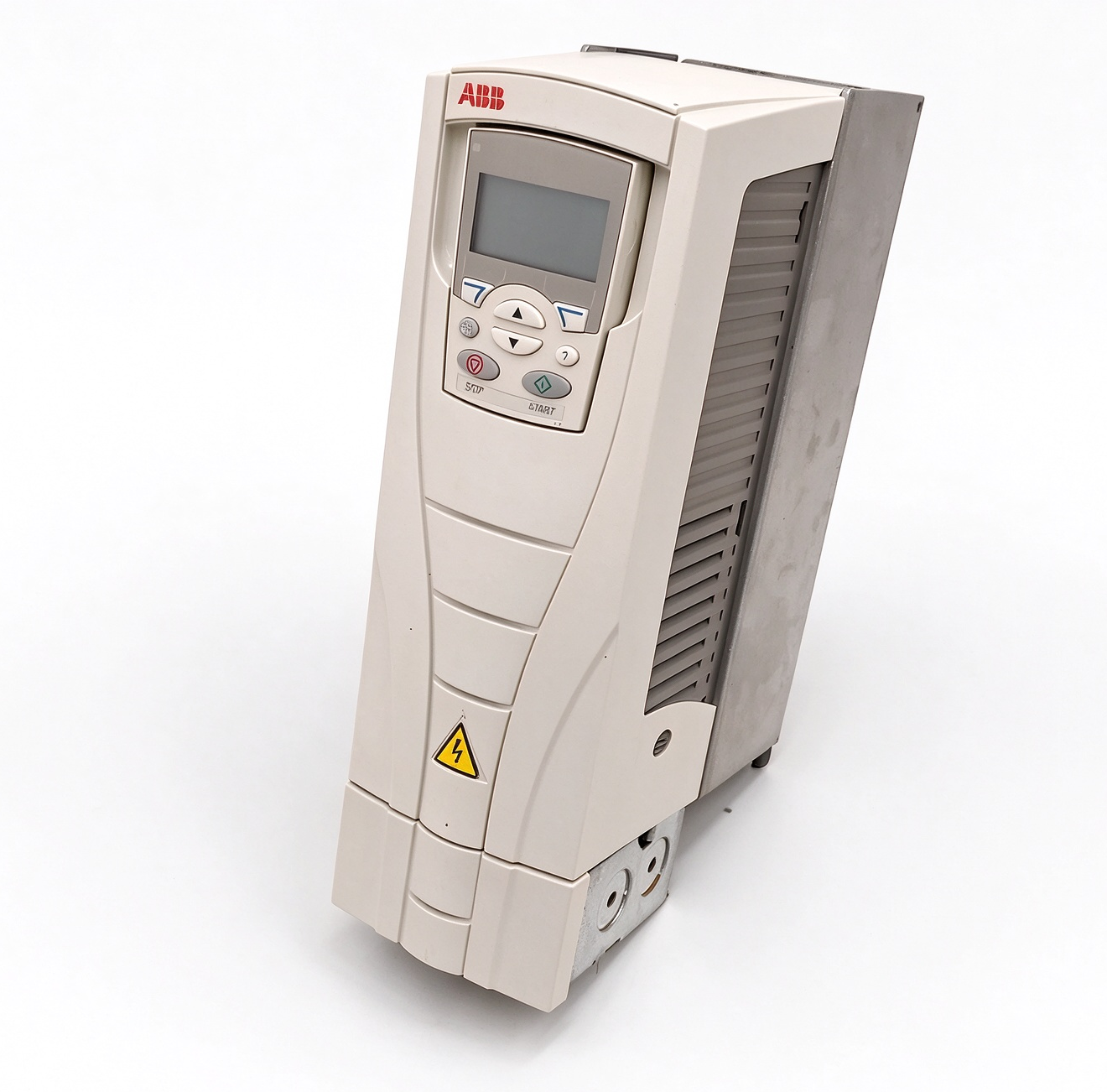

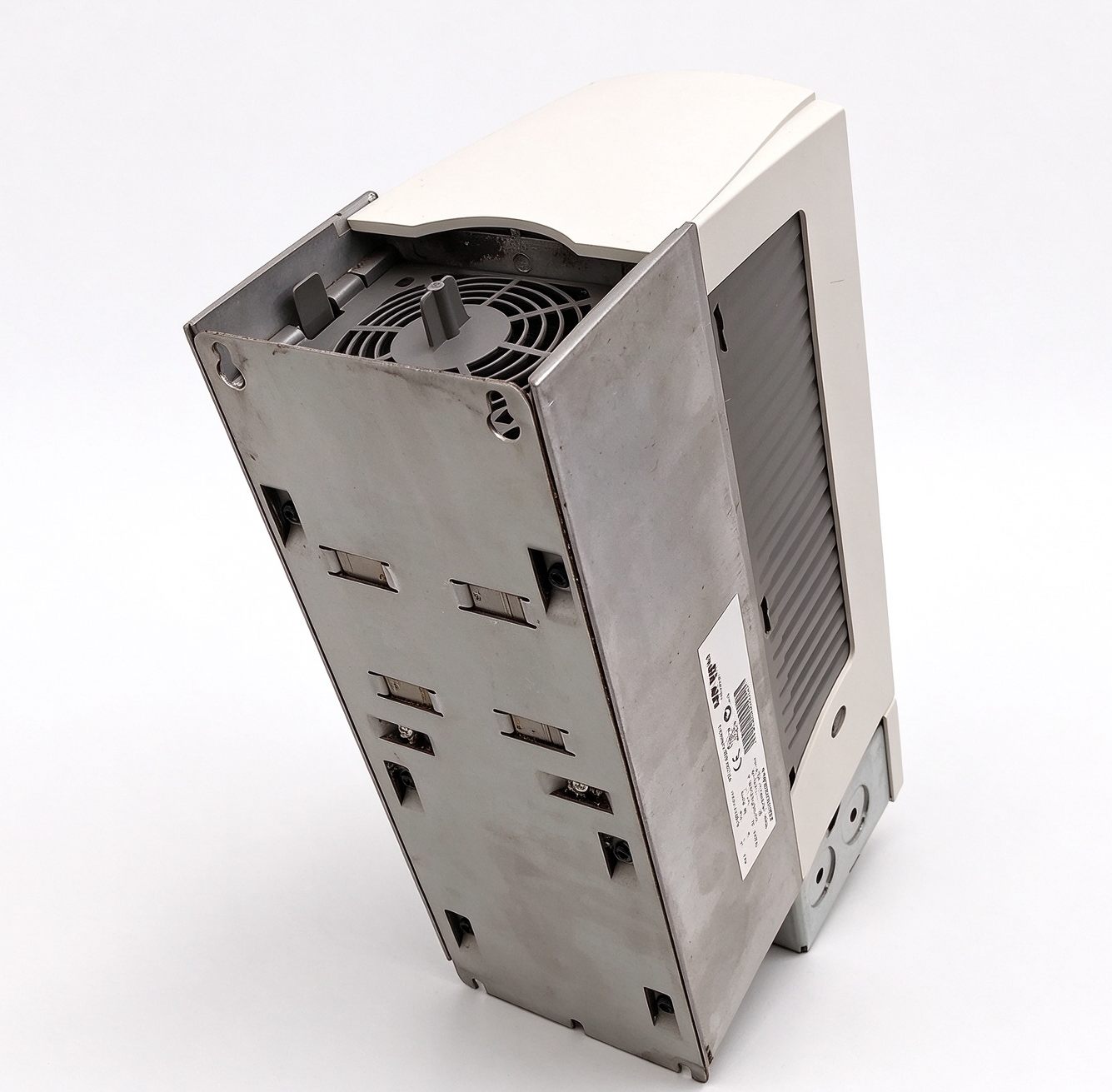

Designed as a wall-mounted drive, the ACS550-01-03A3-4 uses an IP21 enclosure and an R1 frame size. The compact drive format allows it to be integrated into control cabinets and industrial electrical installations where variable-speed motor control is required. Its design combines motor control functions, programmable inputs and outputs, and communication capability in one drive platform.

Electrical Characteristics

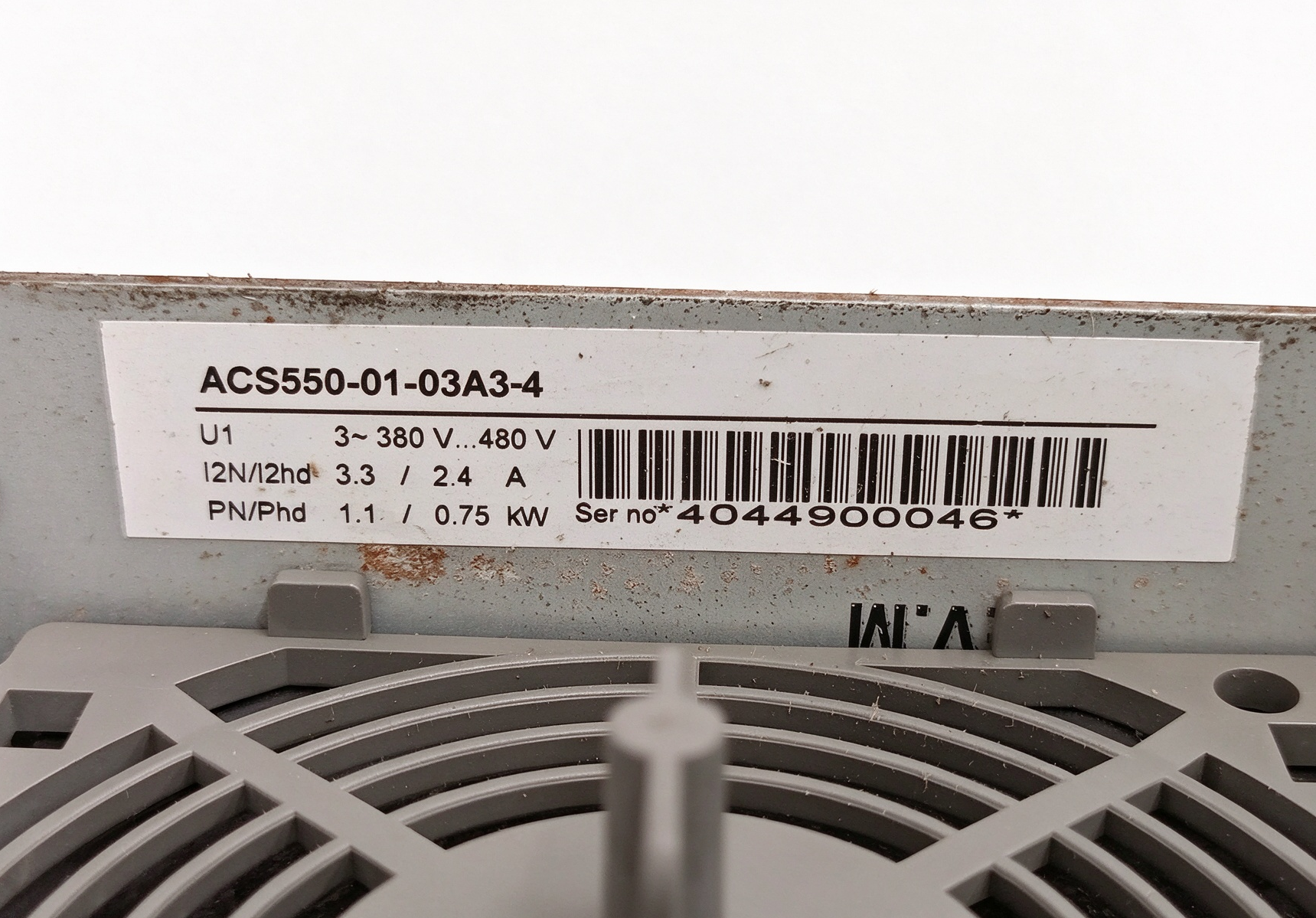

The ABB ACS550-01-03A3-4 operates from a three-phase 380-480 V AC supply. The corresponding drive output is suitable for three-phase AC motor applications, with output voltage controlled according to the motor and supply requirements. The nominal output current is 3.3 A, while the heavy-duty output current rating is 2.4 A. The nominal output power is 1.1 kW for normal operation, while the heavy-duty power rating is 0.75 kW.

The ACS550 platform supports an input frequency range suitable for industrial power systems and provides adjustable motor output frequency. The drive architecture allows motor speed to be controlled by changing the frequency and voltage supplied to the motor. This makes the ACS550-01-03A3-4 suitable for applications where motor speed needs to correspond with process demand rather than remain fixed at the supply frequency.

Motor Control and Drive Functions

The ACS550 series is designed to provide flexible control of standard AC motors. The drive can regulate motor speed and support acceleration and deceleration according to programmed operating parameters. Adjustable acceleration and deceleration times help coordinate motor operation with mechanical and process requirements.

Motor control parameters can be configured through the drive control interface. The ACS550 platform includes functions for motor identification, operating limits, frequency references and protective settings. These functions allow the drive to be adapted to different motor characteristics and application requirements while maintaining consistent control behavior.

For applications involving pumps, fans, conveyors, machine tools and other industrial motor-driven equipment, variable-frequency operation can provide more precise speed control than direct-on-line motor starting. The ACS550-01-03A3-4 can therefore be integrated into automation systems where controlled motor operation is an important part of the overall process.

Control Connections and I/O

A major feature of the ACS550 platform is its programmable control interface. The ACS550-01-03A3-4 provides two analog inputs and two analog outputs for connection to sensors, reference signals and external control equipment. Analog signals can be used for speed references, process measurements or other continuously variable control functions.

The drive also provides six digital inputs for switching and logic-based control functions. Digital inputs can be assigned to functions such as start, stop, direction selection, fault reset and reference selection according to the application configuration. A 24 V DC auxiliary supply is available for suitable control circuit requirements.

These programmable connections allow the drive to communicate with external automation equipment without requiring every control function to be handled directly through the drive keypad. The result is a flexible interface for machine control panels, process controllers and industrial automation systems.

Communication and System Integration

The ABB ACS550 drive family supports serial communication and can be integrated with higher-level automation systems. The ACS550-01-03A3-4 includes an RS-485 interface and can be used with compatible communication arrangements for monitoring and controlling drive operation.

Communication can provide access to operating information, drive parameters, control commands and status information. Depending on the selected communication solution and system architecture, the drive can become part of a larger automation network rather than operating as an isolated motor controller.

This capability is particularly useful in industrial installations where multiple drives, programmable controllers and supervisory systems need to exchange operating information. The communication structure can reduce the need for extensive hardwired control connections while providing centralized access to important drive functions.

Protection and Operating Environment

The ACS550-01-03A3-4 uses an IP21 enclosure. This enclosure classification is intended for appropriate indoor electrical installation environments and provides protection against access to hazardous parts and vertically falling water under the conditions defined by the relevant protection standard.

The ACS550 design also incorporates drive protection and monitoring functions intended to help manage abnormal operating conditions. Parameters related to motor current, frequency, acceleration, deceleration and other operating limits can be configured according to the application. Correct parameter selection is important because drive settings should correspond to the motor nameplate information and the requirements of the controlled machine.

Installation should provide suitable ventilation and electrical clearances. The drive should be mounted according to the applicable ACS550 installation instructions, with attention to ambient temperature, cabinet construction, grounding, cable routing and electromagnetic compatibility requirements.

Typical Industrial Applications

The ACS550-01-03A3-4 can be applied to many general-purpose motor control tasks. Typical applications include pumps, fans, conveyors, compressors, material handling equipment and industrial machinery where adjustable motor speed is required.

In pump applications, variable-speed operation can help match motor output to changing process requirements. In fan systems, adjustable frequency control can provide controlled airflow without relying solely on mechanical adjustment. For conveyors and material handling systems, controlled acceleration and speed regulation can help coordinate motor movement with the production process.

The drive can also be used in general machine automation where a 1.1 kW motor and 380-480 V three-phase supply are appropriate. Its programmable I/O and communication capability make it suitable for integration with control panels and broader automation architectures.

Installation and Configuration Considerations

Before installing an ACS550-01-03A3-4, the electrical characteristics of the motor and incoming power supply should be compared with the drive ratings. Motor voltage, nominal current, frequency and power should be entered into the appropriate drive parameters. The control method and reference source should then be selected according to the machine’s operating requirements.

Wiring should be completed according to the applicable ABB ACS550 installation documentation. Power cables, motor cables, control wiring and grounding conductors should be routed in a suitable manner. Particular attention should be given to protective grounding and electromagnetic compatibility when the drive is installed alongside sensitive automation equipment.

After installation, the programmed operating parameters should be reviewed before the motor is placed into service. Acceleration, deceleration, minimum and maximum frequency, current limits and control references should correspond with the mechanical characteristics of the connected equipment.

Technical Specifications

ABB ACS550-01-03A3-4 in Automation Systems

The ABB ACS550-01-03A3-4 combines variable-frequency motor control, programmable I/O and communication functions in a compact industrial drive platform. Its 3.3 A nominal current rating and 1.1 kW output rating make it suitable for smaller three-phase motor applications within the 380-480 V supply class.

When incorporated into an automation system, the drive can operate as the motor control layer between the electrical supply and the mechanical equipment. External signals can provide speed references and operating commands, while the drive can return status and process-related information to the control system. This architecture supports coordinated operation between motors, controllers and other industrial equipment.

For engineers, maintenance personnel and system integrators, the ACS550-01-03A3-4 is identified by its specific type designation and product ID, making it easier to distinguish the required drive configuration from other ACS550 models. Proper selection should always be based on supply voltage, motor current, power rating, enclosure requirements and the intended control method.

Conclusion

The ABB ACS550-01-03A3-4 is a 380-480 V, three-phase general purpose drive with a 3.3 A nominal output current and 1.1 kW nominal output power. Its IP21 enclosure, R1 frame size, programmable I/O and RS-485 communication interface provide a flexible foundation for industrial motor control applications. With configurable acceleration, deceleration, speed references and motor control parameters, the drive can be incorporated into a wide range of automation and process-control systems.

The ACS550-01-03A3-4 is best suited to applications where controlled motor speed, programmable control signals and integration with industrial automation equipment are required. Correct electrical sizing, parameter configuration, installation and grounding should be carried out according to the applicable ABB technical documentation and the requirements of the complete motor-driven system.
