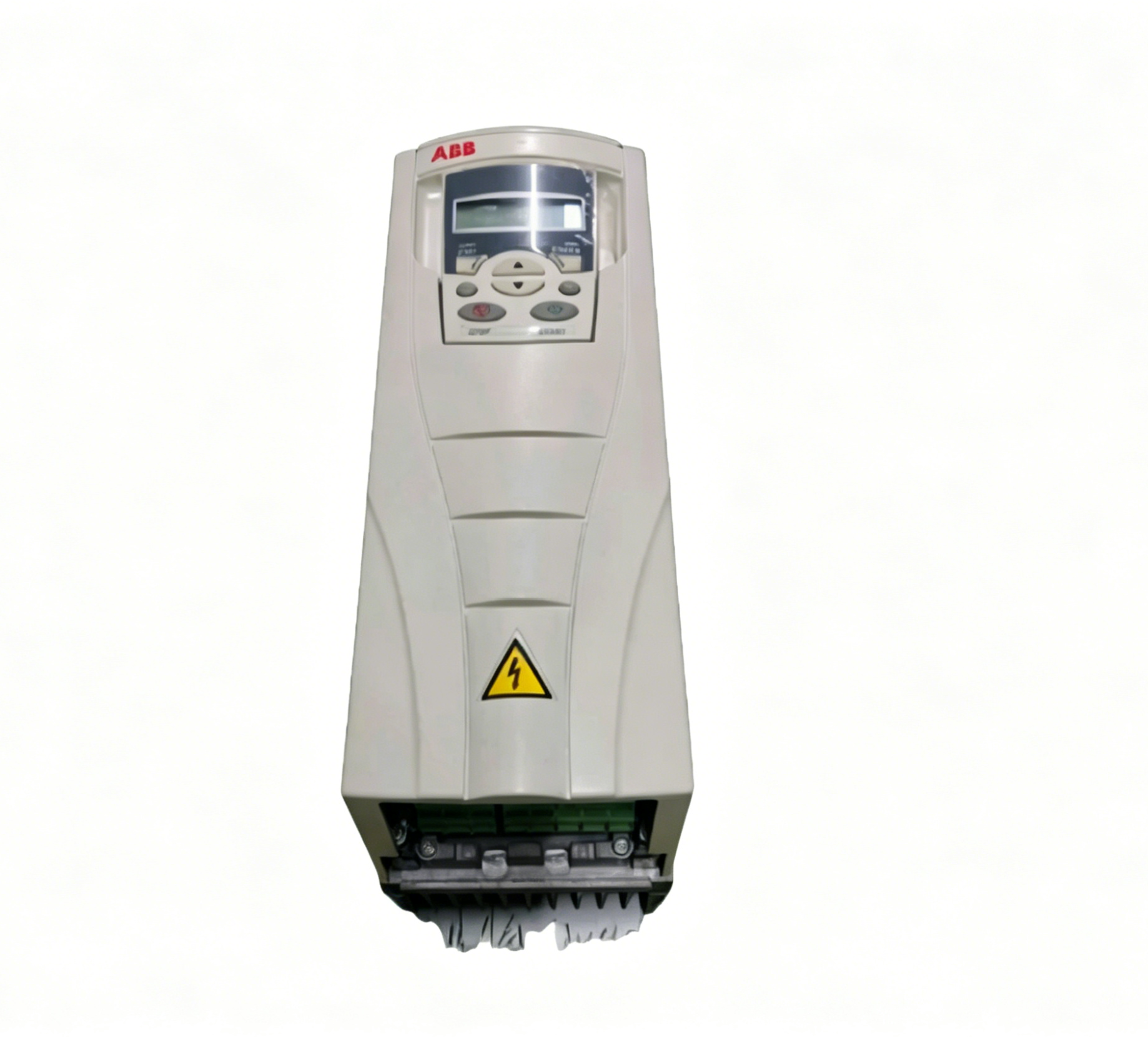

ABB ACS550-01-012A-4 3 Phase Industrial AC Drive

The ABB ACS550-01-012A-4 is a three-phase industrial AC drive designed for precise motor control in a wide range of automation and industrial applications. It belongs to ABB’s ACS550 series of variable frequency drives, which are widely used for controlling the speed and torque of standard AC induction motors. By adjusting output frequency and voltage, the drive enables efficient motor operation across varying load conditions, improving energy efficiency and process control stability.

Overview of ABB ACS550-01-012A-4

This drive operates with a three-phase input voltage range of 380 to 480 volts, making it suitable for standard industrial power systems. It is designed as a wall-mounted unit and integrates easily into control cabinets and automation panels. The ACS550 series is known for its simplicity, reliability, and wide applicability in general-purpose motor control environments.

The ACS550-01-012A-4 is commonly used in applications where consistent motor speed regulation is required. It supports both variable torque and constant torque loads, making it suitable for fans, pumps, conveyors, mixers, and other industrial machinery.

Working Principle of the AC Drive

The ABB ACS550-01-012A-4 operates by converting fixed-frequency AC input power into variable-frequency output power. This process allows precise control of motor speed and torque by adjusting the frequency supplied to the motor. The internal rectifier converts AC to DC, and an inverter stage then generates a controlled AC output with adjustable frequency and voltage.

This control method enables smooth acceleration and deceleration of motors, reducing mechanical stress and improving equipment lifespan. It also provides better process control compared to direct-on-line motor starting methods.

Motor Control and Performance Features

The ACS550 drive is designed to support induction motor control using V/f control and sensorless vector control modes. These control methods ensure stable motor operation under varying load conditions. The drive automatically adjusts output parameters to maintain optimal performance and energy efficiency.

With a rated current of approximately 11.9A and power capability around 5.5kW depending on load type, the drive is suitable for medium-duty industrial applications. It is capable of handling overload conditions during motor startup, ensuring reliable performance in dynamic industrial environments.

Industrial Application Areas

The ABB ACS550-01-012A-4 is widely used in industrial automation and process control systems. In HVAC systems, it is used to regulate fan and compressor speeds, improving energy efficiency and temperature control accuracy. In water treatment plants, it controls pump speed to maintain stable flow and pressure levels.

In manufacturing environments, the drive is used for conveyor systems, mixing equipment, and production machinery where variable speed control is essential. It is also used in agricultural systems, textile machinery, and material handling systems where smooth motor operation is required.

Energy Efficiency and System Optimization

One of the key advantages of the ABB ACS550 series is its ability to reduce energy consumption by optimizing motor operation. Instead of running motors at full speed continuously, the drive adjusts output frequency based on real-time demand. This results in significant energy savings, especially in pump and fan applications where load conditions vary frequently.

The drive also supports controlled acceleration and deceleration, which reduces mechanical wear and improves system reliability. By eliminating sudden starting currents, it helps reduce stress on both electrical and mechanical components.

Control Interface and Usability

The ACS550-01-012A-4 is designed with user-friendly control features, including a built-in keypad for parameter configuration and monitoring. Operators can easily adjust motor speed, set operating parameters, and monitor system status in real time.

It supports multiple digital and analog input/output options, allowing integration with PLC systems and industrial automation networks. This flexibility makes it suitable for both standalone applications and complex automated systems.

Protection and Reliability

The drive includes built-in protection features to ensure safe operation in industrial environments. These protections include overcurrent protection, overvoltage protection, undervoltage detection, and thermal monitoring. These functions help prevent system damage and ensure long-term operational stability.

Its robust design allows it to operate reliably under standard industrial conditions, including environments with electrical noise and temperature variations. The IP21 enclosure provides protection against solid objects and ensures safe installation inside control cabinets.

System Integration

The ABB ACS550-01-012A-4 is designed for easy integration into industrial automation systems. It supports standard communication interfaces for connection with PLCs and control systems. This enables centralized control of multiple drives within a production environment.

Its modular design allows it to be used in both new installations and system upgrades. It can replace older motor control systems to improve efficiency and operational flexibility.

Conclusion

The ABB ACS550-01-012A-4 3-phase industrial AC drive is a reliable and efficient solution for motor speed control and automation applications. It provides stable frequency conversion, precise torque regulation, and energy-efficient operation across a wide range of industrial systems. With its robust design, flexible control features, and broad application compatibility, it remains a widely used solution in modern industrial automation and process control environments.
