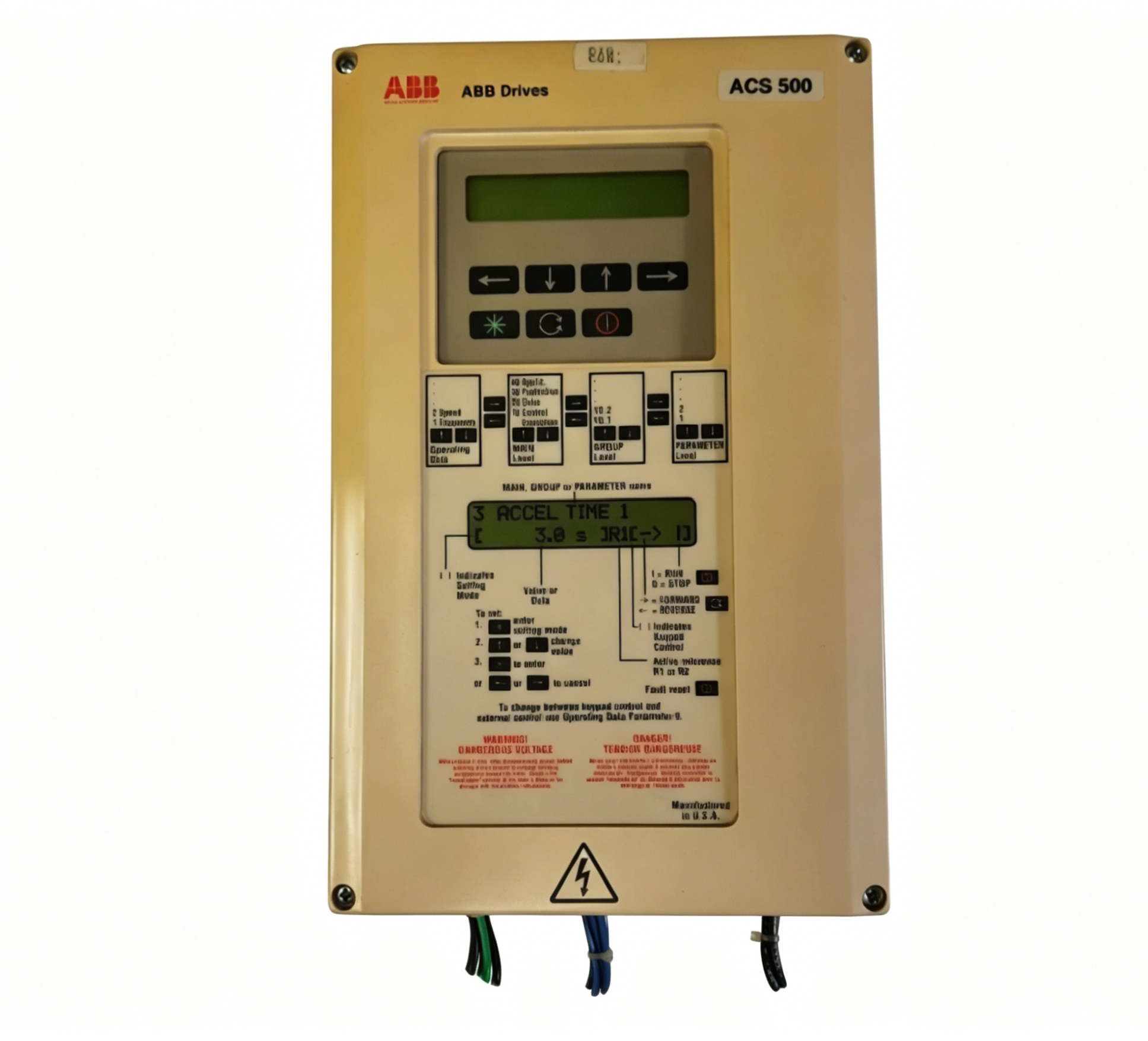

ABB ACS501-020-4-00P2 Industrial AC Drive Overview

The ABB ACS501-020-4-00P2 is a general purpose industrial AC drive designed for reliable motor speed control and energy-efficient operation in industrial automation systems. It belongs to the ABB ACS500 series of variable frequency drives, which are widely used in applications requiring stable torque control and adjustable motor speed performance. The drive is engineered for 440–500V three-phase industrial power systems and is commonly installed in motor control cabinets for medium-power applications.

According to technical specifications, the ABB ACS501-020-4-00P2 provides a rated output power of approximately 20HP and is designed for wall-mounted installation with a NEMA 1 (IP21) enclosure. This protection level indicates that the drive is suitable for indoor environments such as electrical rooms and industrial control panels where dust exposure and water ingress are limited. The enclosure design also supports adequate airflow for heat dissipation during continuous operation. :contentReference[oaicite:0]{index=0}

Variable frequency drive (VFD) technology is the core function of the ACS501 series. The ABB ACS501-020-4-00P2 controls motor speed by adjusting output frequency and voltage, allowing motors to operate only at the required speed based on process demand. This improves energy efficiency and reduces mechanical stress compared to traditional fixed-speed motor systems.

The drive is commonly used in industrial applications such as water pumps, ventilation fans, conveyor systems, compressors, and general manufacturing machinery. These applications require stable motor control and smooth acceleration and deceleration to maintain process stability and equipment reliability.

One of the key benefits of the ABB ACS501-020-4-00P2 is energy optimization. By dynamically adjusting motor speed, the drive reduces unnecessary energy consumption during partial-load conditions. This makes it particularly suitable for systems that operate continuously but experience variable load demand, such as HVAC and pumping systems.

The ACS501 series also includes built-in motor protection functions designed to improve operational safety. These functions typically protect against overcurrent, overvoltage, undervoltage, and thermal overload conditions, helping to reduce equipment failure risks and extend motor service life in industrial environments.

Another important feature is smooth motor control performance. The ABB ACS501-020-4-00P2 supports controlled acceleration and deceleration, reducing mechanical shock on connected equipment such as belts, shafts, and pump impellers. This improves system durability and reduces maintenance requirements over time.

From a system integration perspective, the drive is designed for compatibility with standard industrial automation systems. It can be integrated into PLC-based control systems and industrial motor control architectures, enabling centralized monitoring and coordinated operation of multiple drives within a facility.

Industrial environments often present challenges such as electrical noise, voltage fluctuation, and long duty cycles. The ABB ACS501-020-4-00P2 is engineered to maintain stable performance under these conditions, ensuring consistent motor operation in demanding industrial applications.

Maintenance efficiency is also improved through the stable operation and diagnostic capabilities of the drive. Early detection of abnormal operating conditions helps reduce unexpected downtime and supports preventive maintenance strategies in industrial plants.

It is also important to note that the ACS500 series, including this model, is considered an older generation ABB drive platform. In many industrial cases, it is still widely used due to its reliability and robust design, although newer drive platforms have since been introduced by ABB for enhanced performance and extended lifecycle support. :contentReference[oaicite:1]{index=1}

In conclusion, the ABB ACS501-020-4-00P2 is a reliable industrial AC drive designed for stable variable frequency motor control in medium-power applications. Its 20HP capacity, 440–500V input range, IP21/NEMA 1 enclosure, and proven industrial performance make it suitable for pumps, fans, conveyors, and general automation systems requiring dependable motor speed regulation and energy-efficient operation.
