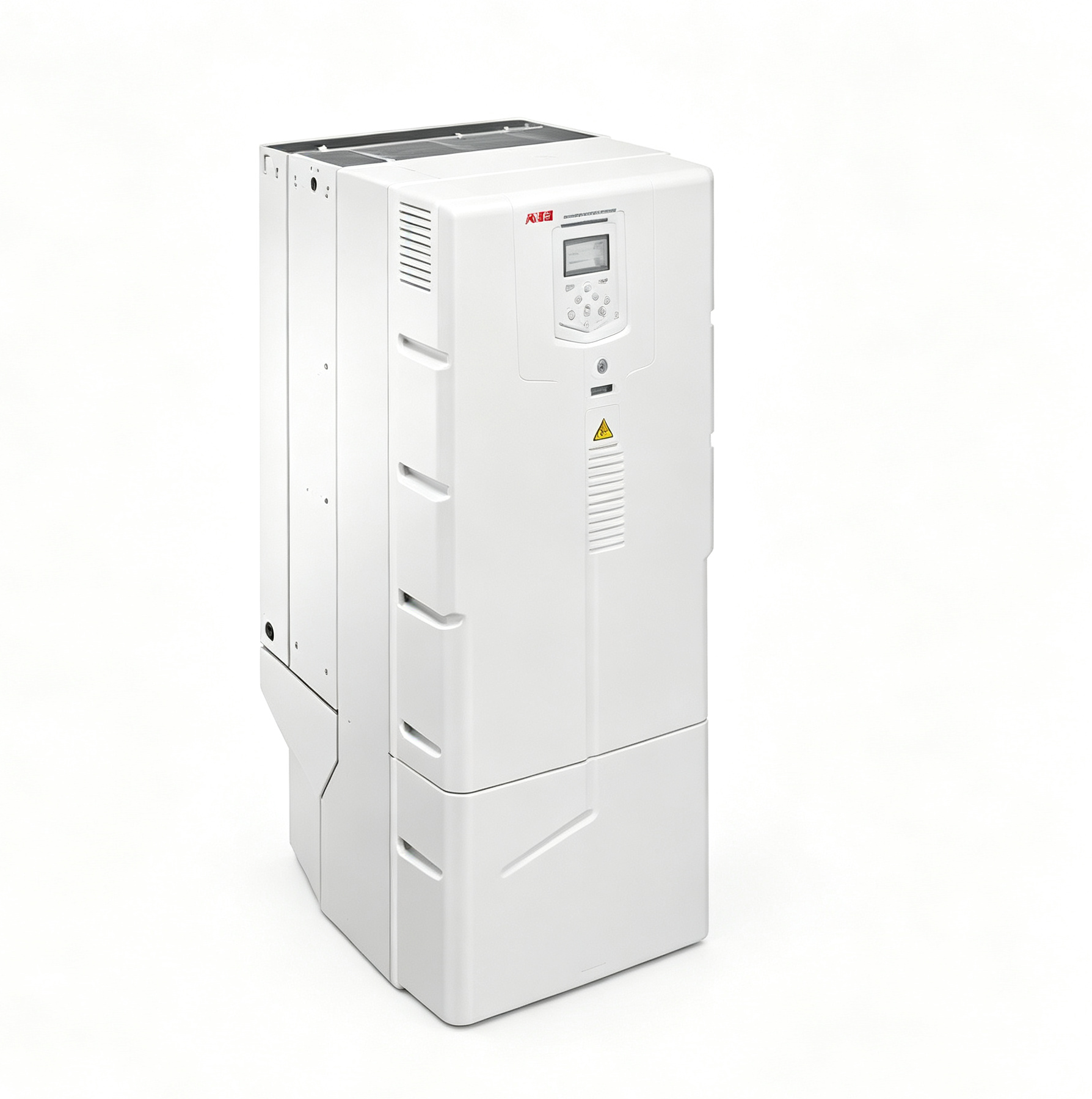

ABB ACH580-01-363A-4 HVAC Variable Frequency Drive Overview

The ABB ACH580-01-363A-4 is a premium variable frequency drive developed specifically for heating, ventilation, and air conditioning applications. As a member of ABB’s ACH580 HVAC drive family, this model combines advanced motor control technology with intelligent building automation functions to provide outstanding energy efficiency, operational reliability, and simplified commissioning. Designed for demanding commercial and industrial environments, the drive delivers precise speed regulation for fans, pumps, compressors, and air handling equipment while reducing overall energy consumption.

According to ABB technical specifications, the ACH580-01-363A-4 operates on a three-phase 380–480 V AC power supply with a rated output of 200 kW and a continuous output current of 363 A. The drive is wall-mounted and supplied with dedicated HVAC control software, integrated EMC filtering, and a user-friendly control panel that simplifies installation and commissioning. :contentReference[oaicite:2]{index=2}

Unlike general-purpose drives, the ACH580 series is engineered specifically for HVAC equipment. It includes application-specific control functions that reduce engineering effort while improving operating efficiency in building management systems.

Purpose of the ACH580 HVAC Drive

The primary purpose of the ABB ACH580-01-363A-4 is to regulate motor speed according to actual building demand instead of operating motors continuously at full speed. Variable speed operation significantly reduces electrical energy consumption while improving equipment life and reducing mechanical stress.

By continuously adjusting motor speed, the drive maintains stable airflow, water circulation, pressure, and temperature control throughout HVAC installations.

Its intelligent algorithms optimize motor performance while minimizing unnecessary energy losses during partial-load operation.

These characteristics make the drive an ideal solution for modern energy-efficient buildings.

Technical Specifications

The ACH580-01-363A-4 provides a nominal motor power rating of 200 kW with a rated output current of 363 A under normal duty conditions. It operates from a three-phase 380–480 V AC supply at 50/60 Hz and is available in a wall-mounted R9 frame design.

The drive incorporates integrated EMC filtering, braking chopper options, programmable digital and analog inputs, relay outputs, USB connectivity, and RS-485 communication as standard.

Its robust industrial design supports long-term continuous operation in demanding HVAC installations.

ABB also provides optional fieldbus modules to support a wide range of industrial communication protocols. :contentReference[oaicite:3]{index=3}

Dedicated HVAC Control Functions

Unlike conventional variable frequency drives, the ACH580 includes software specifically developed for HVAC applications.

Built-in control functions support supply fans, return fans, chilled water pumps, condenser pumps, booster pumps, cooling towers, compressors, and air handling units without requiring extensive external programming.

The integrated HVAC menus simplify parameter configuration, reducing commissioning time while improving operational consistency.

Application assistants guide engineers through setup procedures, making installation more efficient.

Energy Efficiency

Energy efficiency is one of the primary advantages of the ABB ACH580 series. Variable speed motor control allows significant reductions in electrical consumption compared with fixed-speed motor operation.

The drive continuously matches motor speed to actual building demand, reducing unnecessary energy usage during partial-load operation.

Integrated energy monitoring functions help facility managers evaluate consumption trends and optimize building performance.

These capabilities contribute directly to lower operating costs and improved sustainability.

Communication and Building Automation

The ABB ACH580-01-363A-4 is designed for seamless integration with modern building automation systems.

Standard communication interfaces and optional fieldbus adapters support protocols including BACnet, Modbus RTU, Modbus TCP, EtherNet/IP, PROFINET, PROFIBUS, DeviceNet, CAN, and other industrial networks depending on the selected communication option.

This flexibility enables efficient communication between the drive and building management systems for centralized monitoring and control.

Remote diagnostics and parameter management further simplify facility maintenance. :contentReference[oaicite:4]{index=4}

Applications

The ABB ACH580-01-363A-4 is widely used in commercial buildings, hospitals, airports, hotels, shopping centers, office complexes, universities, manufacturing facilities, pharmaceutical plants, data centers, and infrastructure projects.

Typical controlled equipment includes centrifugal fans, booster pumps, circulation pumps, cooling towers, ventilation systems, air handling units, exhaust systems, and refrigeration compressors.

Its application-specific functionality ensures dependable operation across a broad range of HVAC systems.

The drive is particularly suitable for facilities seeking improved energy efficiency and intelligent building management.

Protection Features

The ACH580 incorporates comprehensive protection functions including overcurrent protection, overvoltage protection, undervoltage monitoring, motor overload protection, thermal supervision, short-circuit protection, and fault diagnostics.

Integrated monitoring continuously evaluates operating conditions and generates diagnostic information when abnormal events occur.

These protection functions enhance equipment safety while minimizing unplanned downtime.

Predictive maintenance capabilities further improve long-term operational reliability.

Installation and Maintenance

The wall-mounted enclosure simplifies installation while minimizing cabinet space requirements.

The intuitive control panel, USB interface, and application assistants reduce commissioning complexity and support rapid parameter configuration.

Routine maintenance typically includes inspection of ventilation paths, cooling fans, electrical terminals, and environmental conditions.

Proper maintenance helps maximize equipment life and maintain optimum drive efficiency.

Advantages of ABB ACH580-01-363A-4

The ABB ACH580-01-363A-4 combines high-performance motor control, HVAC-specific functionality, integrated energy optimization, flexible communication options, robust industrial construction, and ABB reliability into a single intelligent drive solution.

Its dedicated HVAC software minimizes engineering effort while improving operational efficiency, making it an excellent choice for modern building automation projects.

The drive supports long-term energy savings, reliable operation, and simplified maintenance throughout its service life.

Conclusion

The ABB ACH580-01-363A-4 is a professional HVAC variable frequency drive engineered for intelligent motor control in commercial and industrial building automation systems. With its 200 kW power rating, 363 A continuous output current, advanced HVAC control software, integrated communication capabilities, and comprehensive protection features, it provides an efficient and reliable solution for modern ventilation, pumping, and air conditioning applications.

Its combination of energy efficiency, application-specific functionality, flexible networking, and ABB engineering excellence makes the ACH580-01-363A-4 an outstanding choice for high-performance HVAC installations requiring dependable variable speed control and long-term operational reliability.
