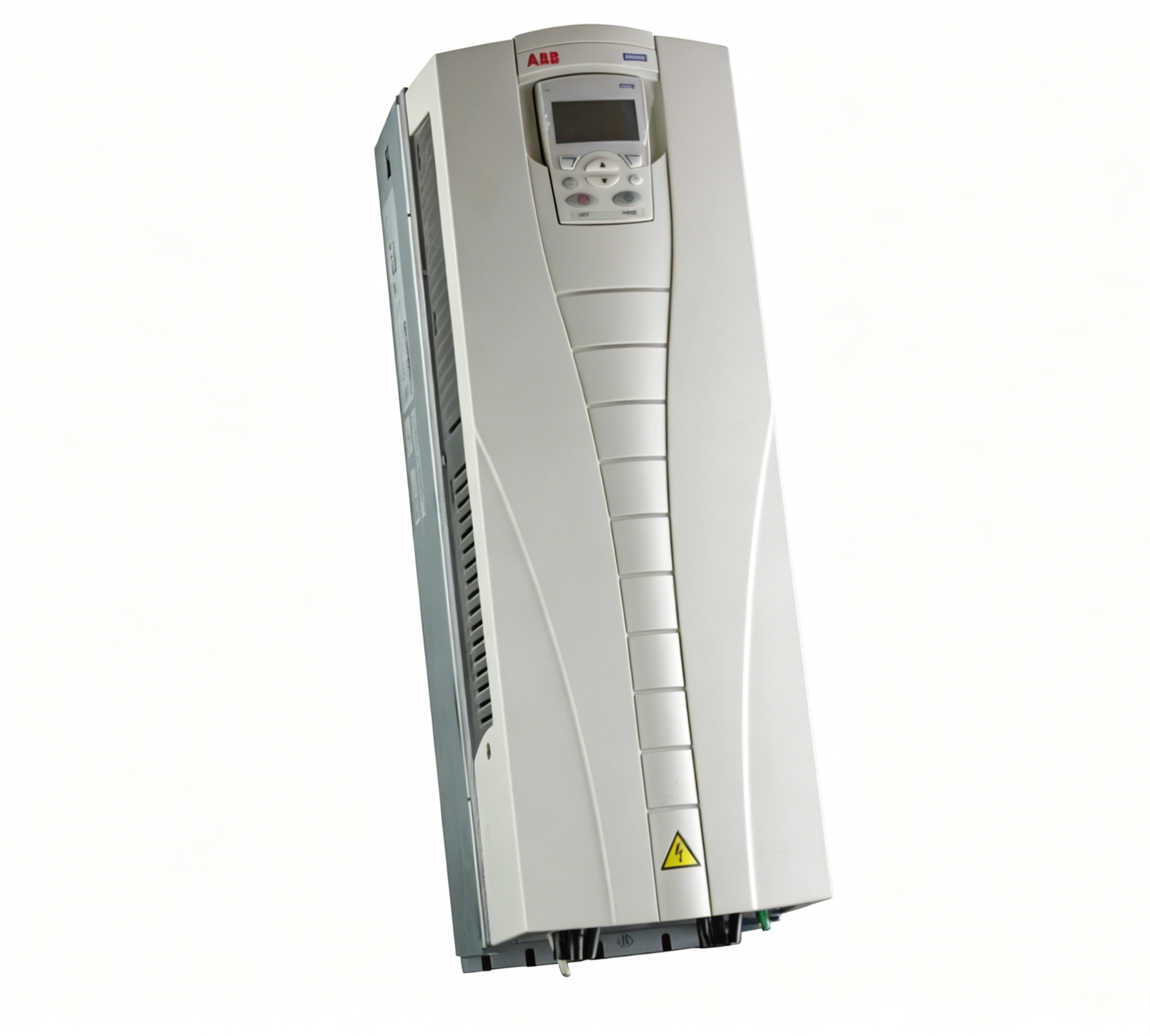

ABB ACH550-UH-072A-4 HVAC Variable Frequency Drive

The ABB ACH550-UH-072A-4 is a high-performance HVAC variable frequency drive specifically engineered for commercial and industrial building automation applications. As part of ABB’s widely deployed ACH550 drive family, this model combines advanced motor control technology, energy-saving functionality, and operational reliability to meet the demanding requirements of modern HVAC systems.

Building operators continuously seek solutions that improve energy efficiency while maintaining occupant comfort and system reliability. The ABB ACH550-UH-072A-4 addresses these objectives through intelligent variable frequency control, allowing motors to operate according to actual system demand rather than running continuously at full speed. This approach significantly improves operational efficiency while reducing energy consumption and equipment wear.

Designed for three-phase power systems operating between 380 and 480 VAC, the drive provides a rated output current of 72A and supports motors up to 50 HP. These capabilities make it suitable for a broad range of HVAC applications including air handling units, chilled water pumps, condenser pumps, cooling tower fans, and ventilation systems.

ABB ACH550-UH-072A-4 Overview

The ACH550 product family was developed specifically for heating, ventilation, and air conditioning applications. Unlike general-purpose drives, HVAC drives incorporate application-specific functions that simplify installation, commissioning, operation, and maintenance. The ABB ACH550-UH-072A-4 includes integrated HVAC control features designed to improve system performance while reducing operational complexity.

The drive supports variable torque applications commonly found in HVAC environments. By adjusting motor speed according to changing airflow and pressure requirements, it helps maintain optimal operating conditions throughout the facility while reducing unnecessary energy usage.

Key Features

• Dedicated HVAC variable frequency drive platform
• 380–480 VAC three-phase operation
• 72A rated output current
• 50 HP motor capacity
• Variable speed fan and pump control
• Integrated HVAC application functions
• Advanced motor protection capabilities
• Energy optimization technology
• User-friendly operator interface
• Reliable continuous-duty operation
• Support for building automation integration
• Reduced mechanical stress on equipment

Energy Efficiency Benefits

Energy efficiency remains one of the most important considerations in modern building management. HVAC systems often account for a significant percentage of total facility energy consumption. Traditional fixed-speed motors operate continuously at maximum speed regardless of actual system demand, resulting in unnecessary energy usage and increased operating costs.

The ABB ACH550-UH-072A-4 utilizes variable frequency drive technology to match motor speed precisely to system requirements. By reducing motor speed when full capacity is not required, the drive can substantially lower energy consumption while maintaining proper airflow, temperature control, and pressure regulation.

This intelligent operating approach not only reduces utility costs but also supports sustainability objectives and environmental performance targets across commercial and industrial facilities.

Applications in Building Automation Systems

The ABB ACH550-UH-072A-4 is specifically optimized for HVAC applications and building automation environments. Its flexibility allows integration into a wide range of facility management systems where efficient motor control is essential.

• Air handling units (AHUs)
• Supply and return ventilation fans
• Cooling tower fan systems
• Chilled water pumps
• Condenser water pumps
• Commercial office buildings
• Hospitals and healthcare facilities
• Educational institutions
• Hotels and hospitality facilities
• Industrial ventilation systems
• Data center cooling infrastructure
• Large-scale climate control installations

These applications benefit from accurate motor speed control, reduced maintenance requirements, and improved operational efficiency.

Motor Control Performance

Reliable motor control is essential for maintaining stable HVAC operation. The ABB ACH550-UH-072A-4 continuously adjusts output voltage and frequency to optimize motor performance under changing load conditions. This capability allows equipment to operate smoothly while maintaining consistent environmental conditions.

Precise motor control helps reduce mechanical stress on motors, bearings, belts, pumps, and fan assemblies. As a result, equipment lifespan can be extended while maintenance costs are reduced.

The drive also improves system responsiveness by adapting quickly to changing building demands, ensuring efficient operation throughout varying occupancy levels and environmental conditions.

Building Automation Integration

Modern facilities increasingly depend on intelligent building management systems to optimize performance and reduce operating costs. The ABB ACH550-UH-072A-4 is designed to integrate effectively into these automation environments, supporting centralized monitoring and control strategies.

Facility managers can utilize drive data and control capabilities to improve system visibility, optimize energy usage, and maintain consistent building performance. This integration supports proactive maintenance planning and enhanced operational decision-making.

Reliability and Equipment Protection

Continuous HVAC operation requires dependable equipment capable of performing under demanding conditions. The ABB ACH550-UH-072A-4 incorporates advanced protection functions designed to safeguard motors and drive components from electrical and operational stress.

Protective features help reduce unexpected downtime, improve equipment availability, and maintain operational continuity. These benefits are particularly valuable in mission-critical facilities where environmental control systems must remain operational at all times.

ABB’s extensive experience in motor control technology is reflected in the drive’s robust design and long-term reliability within commercial and industrial applications.

Lifecycle Value and Operational Benefits

Organizations investing in HVAC infrastructure seek solutions that provide long-term value and operational efficiency. The ABB ACH550-UH-072A-4 supports these objectives through energy savings, reduced maintenance requirements, and dependable performance throughout the system lifecycle.

Its combination of HVAC-specific functionality, advanced motor control, and proven ABB engineering makes it a valuable component for new installations, modernization projects, and building automation upgrades.

Conclusion

The ABB ACH550-UH-072A-4 HVAC Variable Frequency Drive is a reliable and energy-efficient solution for commercial and industrial HVAC applications. With its 72A output rating, 50 HP motor capability, 380–480 VAC operating range, and advanced HVAC-focused design, it delivers the performance required for modern building automation environments.

By providing precise motor control, reduced energy consumption, enhanced equipment protection, and seamless system integration, the ABB ACH550-UH-072A-4 continues to be a trusted choice for facility operators seeking improved efficiency, reliability, and long-term operational value.
