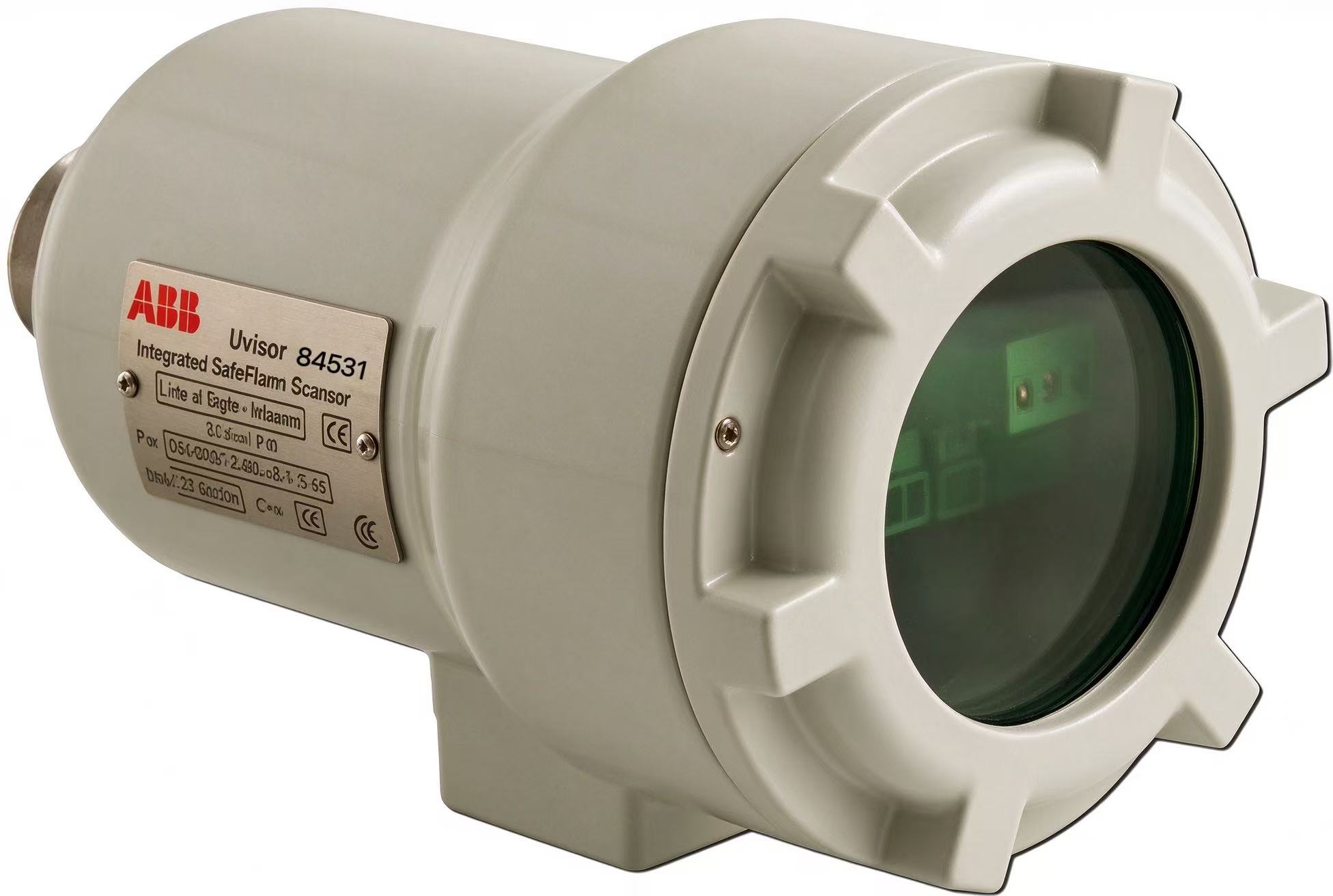

ABB 84531-S-3270000 Uvisor UR600 IR Mod. 1000 Flame Scanner Detector Head

Product Overview

The ABB 84531-S-3270000 is the detector head for the MeasureIT Uvisor UR600 IR Mod. 1000 flame scanner. It is designed for industrial combustion monitoring applications involving fuel oil and pulverized coal burners. As part of a flame detection system, the detector head senses infrared radiation associated with combustion and supplies a raw flame signal to compatible Uvisor control equipment for further evaluation.

Flame detection is an important function in industrial boilers and burner management systems. Reliable identification of an individual burner flame helps control equipment distinguish the intended combustion source from background radiation and neighboring flames. The UR600 IR system uses infrared flicker characteristics as part of its detection approach, allowing the control unit to evaluate the signal generated by the detector head.

The ordering code 84531-S-3270000 identifies the detector head in the ABB product documentation. It represents the basic detector-head configuration, rather than the complete range of optional assemblies and installation accessories. When specifying the product, engineers should distinguish this part number from configurations that include purge-air provisions, swivel flanges, isolation valves or extended optical probe assemblies.

Technical Specifications

The following specifications are taken from the ABB UR600 IR Mod. 1000 product data sheet. Scanner-level technical characteristics should be interpreted in the context of the complete compatible system.

Operating Principle

The UR600 IR Mod. 1000 detects infrared radiation generated by the combustion process. Its PbS sensor responds to radiation within the specified sensitivity range of 0.6 to 3 micrometres. Rather than relying solely on the presence of infrared energy, the system evaluates the amplitude and frequency characteristics of the detected flame flicker.

The detector head supplies the resulting raw flame signal to the Uvisor MFD control unit. The control unit processes this information using its flame-analysis algorithm to identify the target flame and distinguish it from background radiation and adjacent burners. This arrangement is particularly relevant in installations where several burners operate within the same furnace or boiler.

Continuous self-checking is one of the stated features of the UR600 IR system. In a combustion monitoring installation, self-checking supports the monitoring architecture by helping the control equipment evaluate detector operation. The precise diagnostic functions and system responses depend on the complete control configuration and its associated documentation.

Industrial Applications

The ABB UR600 IR Mod. 1000 is intended for flame detection in industrial and utility boiler applications involving oil and pulverized coal combustion. According to the product data sheet, its application areas include wall-fired, corner-fired and down-shot boiler arrangements. These combustion configurations place different demands on flame observation and detector positioning.

In wall-fired boilers, burners are installed along the furnace walls. Correct detector alignment is important when the system must identify a particular burner flame while rejecting radiation from neighboring combustion zones. The UR600 IR approach uses the characteristics of infrared flicker to support target-flame discrimination in multi-burner installations.

Corner-fired boilers and tilting-burner arrangements may require an extended optical configuration to provide an appropriate viewing path. The UR600 IR product family supports different installation arrangements, including direct-view assemblies and fiber-optic extended probes. The correct arrangement depends on furnace geometry, burner movement, access requirements and the specified system design.

These applications are related to the UR600 IR Mod. 1000 product family. The exact suitability of the basic detector head must be assessed alongside the required mounting hardware, optical arrangement and compatible control equipment.

Installation Configurations and Accessories

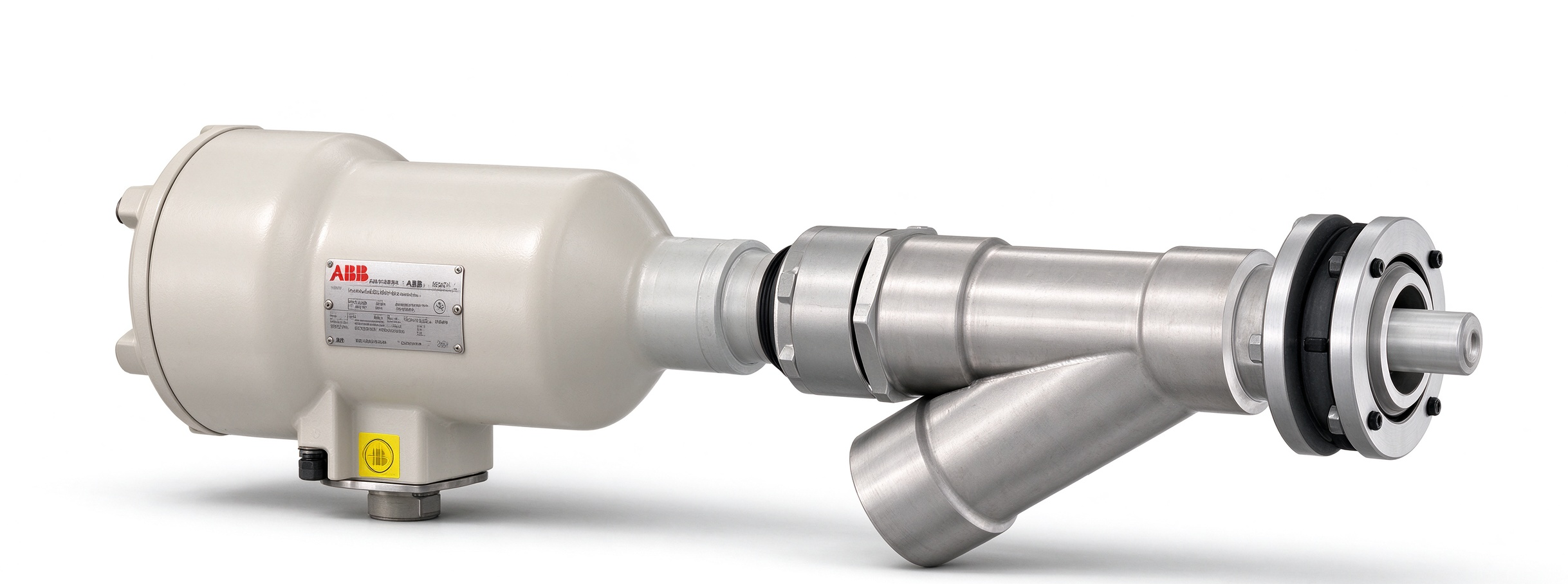

The basic detector head identified by ordering code 84531-S-3270000 is distinct from several optional configurations described in the ABB ordering information. Additional assemblies are available for installations requiring purge-air provisions, a swivel flange or an isolation valve. These options can address different mounting and maintenance requirements.

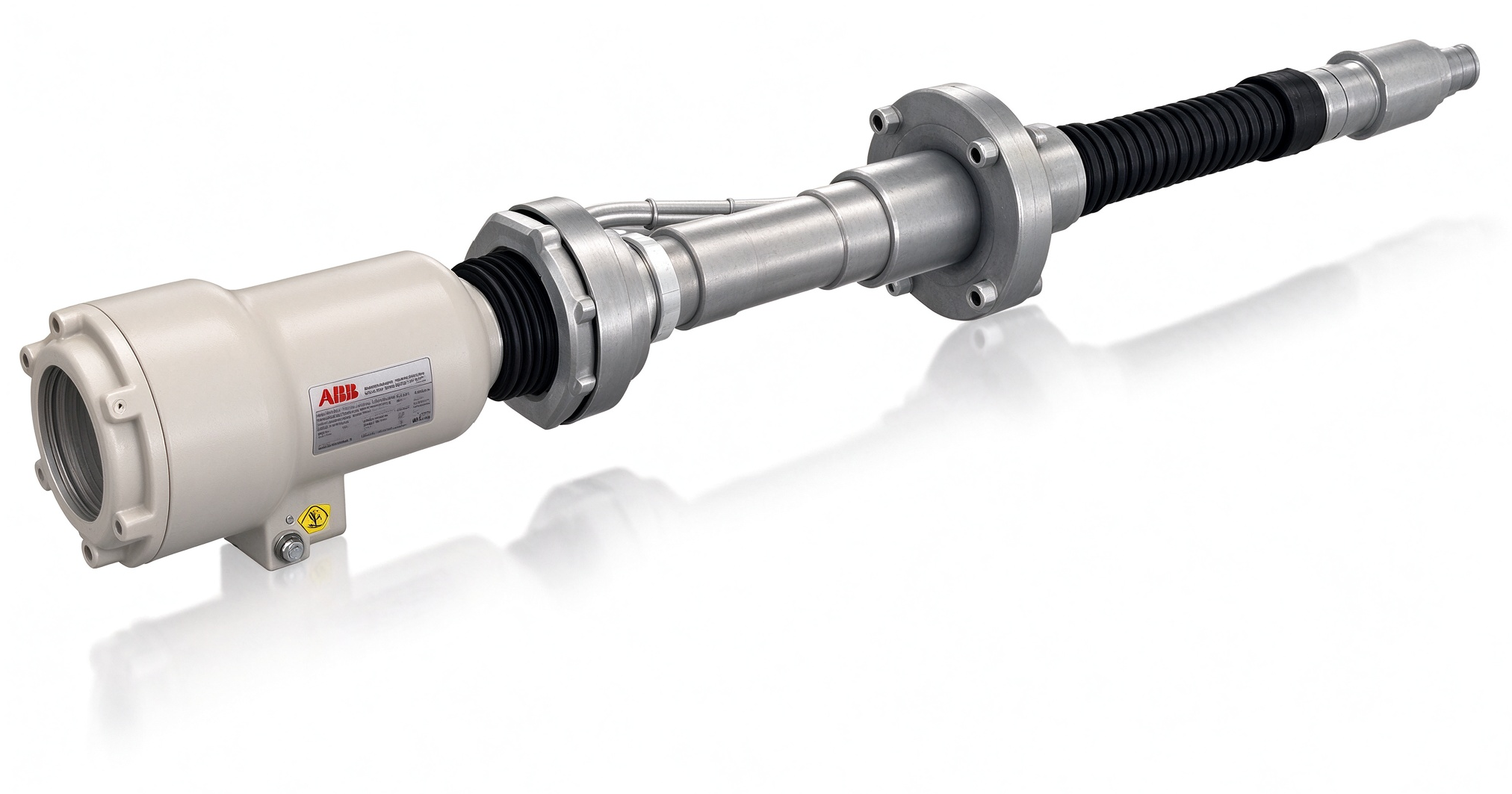

Direct-view installations allow the detector to observe the target flame through a suitable optical path. Where direct access is unsuitable, extended configurations can use an inner fiber-optic carrier and an outer guide pipe. The product family documentation identifies flexible and rigid extended assemblies for different boiler arrangements. These assemblies require their corresponding accessories and mechanical interfaces.

The data sheet also specifies a cooling cylinder as an optional component and identifies air hoses and counter-flange accessories for relevant arrangements. These items should not be assumed to be included with the basic detector-head ordering code. The complete bill of materials should be checked against the intended installation before equipment is specified.

Environmental and Electrical Considerations

The UR600 IR detector head is designed for industrial environments. The published enclosure rating is IP66, with NEMA 4X protection also identified in the product data sheet. The cited hazardous-area classification is EEx-d IIC T6, and the documentation lists ATEX-related approval information. Applicable certification and installation conditions must be confirmed for the specific equipment and the requirements of the installation site.

The published ambient operating temperature range is -10 to +80 degrees Celsius, with a maximum of +60 degrees Celsius for the specified T6 classified area. The fiber-optic extension has a stated maximum continuous operating temperature of 350 degrees Celsius. This fiber-optic temperature limit must not be interpreted as the allowable ambient temperature of the detector head itself.

The scanner documentation identifies a shielded four-conductor cable with a recommended maximum length of 300 metres. Electrical connections use screw-type terminations. The detector is supplied by compatible Uvisor series control equipment, so the required wiring and power arrangements must follow the approved system drawings rather than an assumed independent supply connection.

Maintenance and System Verification

Maintaining a clear optical path is important for dependable flame detection. The product documentation describes lens-cleaning air arrangements for direct-view and extended-probe installations. The required airflow and pressure depend on the selected configuration and furnace conditions. Air quality and the integrity of the purge or cleaning arrangement should therefore be checked according to the applicable installation instructions.

Routine inspection should also consider mounting security, cable condition, electrical terminations and any signs of excessive heat exposure or environmental damage. If the flame signal becomes unstable, the investigation should include detector alignment, optical-path condition, cleaning-air supply, wiring and the associated control unit.

Because flame detection forms part of a safety-related combustion control arrangement, commissioning, testing and replacement must follow the approved burner management procedures. Work should be carried out by qualified personnel, with appropriate isolation and verification measures. A detector head should not be considered interchangeable with another model solely because the mounting dimensions appear similar.

Model Identification and Selection

When selecting ABB 84531-S-3270000, confirm that the intended application requires the basic Uvisor UR600 IR Mod. 1000 detector head. Compare the ordering code with the equipment records and determine whether the installation requires additional purge-air, flange, isolation or optical extension components.

Also verify compatibility with the installed Uvisor control equipment, the intended burner fuel, the furnace geometry and the environmental classification. Where an existing detector is being replaced, the complete system arrangement should be reviewed before the replacement is approved. Correct identification of both the detector head and its associated accessories helps maintain the intended flame monitoring function.

Product Summary

The ABB 84531-S-3270000 Uvisor UR600 IR Mod. 1000 is an infrared flame scanner detector head intended for industrial oil and pulverized coal combustion monitoring. Its PbS sensor detects infrared flame flicker and provides a raw signal for evaluation by compatible Uvisor control equipment. With documented industrial enclosure protection, hazardous-area classification and support for different installation arrangements across the product family, it is designed for integration into appropriate boiler burner monitoring systems. Correct configuration selection, optical alignment, system compatibility and maintenance are essential for reliable operation.
