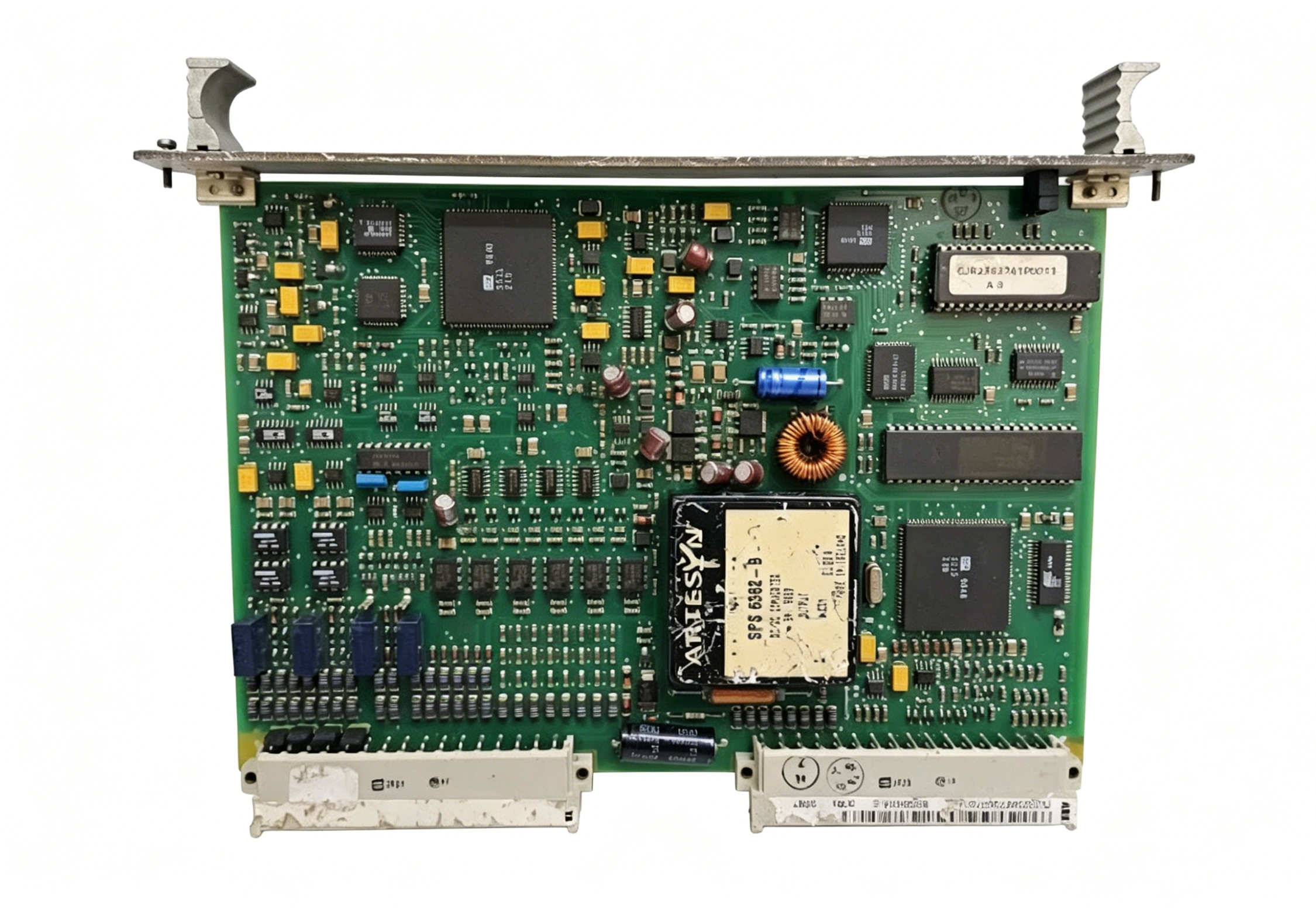

ABB 83SR07 Analog Control Module Overview

The ABB 83SR07 analog control module is a high-performance industrial automation component designed for use within ABB PROCONTROL P distributed control systems. It functions as a stored-program process controller capable of managing continuous industrial variables with high precision and reliability. The module is widely used in large-scale industrial automation environments where stable closed-loop control is required for critical process variables such as temperature, pressure, flow, and level. Its architecture is designed to support long-term continuous operation in demanding industrial conditions.

In industrial process automation systems, the ABB 83SR07 plays a central role in executing control algorithms directly within the module. It is not merely a signal processing unit but a fully functional control device capable of performing real-time computation and control decisions. According to system architecture documentation, the module is part of the PROCONTROL P control platform and is integrated through the station bus, enabling communication with other control and I/O modules within the distributed system. This allows centralized coordination of complex industrial processes. ([controltech-supply.com](https://www.controltech-supply.com/products/abb-83sr07-analog-control-module))

One of the most important features of the ABB 83SR07 is its ability to perform single-loop and dual-loop process control. In single-loop mode, the module regulates one process variable using feedback from a field sensor and adjusts output signals to maintain the desired setpoint. In dual-loop mode, it can simultaneously manage two independent control loops, which is particularly useful in industrial systems requiring coordinated regulation of multiple variables. This capability significantly increases system efficiency and reduces the need for additional control hardware.

The module is designed to execute stored-program control logic internally. This means that control strategies are pre-defined and stored within the module memory, allowing it to operate autonomously without requiring continuous external computation from a central controller. The stored-program architecture includes PID control algorithms, signal conditioning functions, limit checking, and alarm handling mechanisms. This structure ensures deterministic execution and consistent control performance in real-time industrial environments.

PID (Proportional-Integral-Derivative) control is one of the core functions of the ABB 83SR07. The module continuously compares process variable values with setpoints and calculates corrective output signals based on proportional, integral, and derivative terms. This allows precise regulation of dynamic industrial processes, minimizing overshoot and maintaining system stability even under changing load conditions. The PID parameters can be adjusted to match specific process requirements, enabling flexible control tuning.

The ABB 83SR07 outputs analog control signals that are used to drive actuators such as control valves, dampers, and motorized positioning devices. These outputs are essential for implementing closed-loop control in industrial systems, where real-time adjustments are required to maintain optimal process conditions. The module ensures that output signals are smooth, stable, and accurately reflect control calculations.

Another significant advantage of the ABB 83SR07 is its deterministic cycle time operation. The module executes control logic at fixed intervals, typically in the range of 100 milliseconds for single-loop control and slightly longer for multi-loop configurations. This predictable timing ensures consistent response behavior, which is critical in industrial environments where timing variations can lead to process instability or inefficiency.

The module also supports redundancy configurations in advanced industrial systems. In mission-critical applications, a standby control module can be configured to take over operations in case of primary module failure. This redundancy mechanism significantly enhances system reliability and ensures uninterrupted process control in industries where downtime is not acceptable, such as power generation and chemical processing.

From a system integration perspective, the ABB 83SR07 is tightly coupled with the PROCONTROL P architecture. It communicates with other modules via the station bus, allowing seamless data exchange between controllers, I/O units, and monitoring systems. This distributed control approach enables scalable system design, where additional modules can be added without major redesign of the existing control infrastructure.

The module is widely used in continuous process industries including oil and gas refining, chemical production, power plants, pulp and paper manufacturing, and metallurgical processing. In these environments, precise and stable process control is essential for maintaining product quality, operational safety, and energy efficiency. The ABB 83SR07 contributes directly to achieving these operational goals by providing reliable control logic execution.

Maintenance and diagnostic capabilities are also integrated into the module design. The ABB 83SR07 continuously monitors its internal functions and control performance, enabling early detection of faults or abnormal conditions. This supports predictive maintenance strategies, reduces unexpected system downtime, and improves overall plant operational efficiency. Engineers can access diagnostic information to quickly identify and resolve system issues.

The module is engineered for harsh industrial environments where electrical noise, vibration, and temperature variation are common. Its robust design ensures long-term operational stability and resistance to environmental stress. This makes it suitable for 24/7 continuous operation in critical industrial automation systems.

In addition, the ABB 83SR07 provides engineering flexibility through configuration tools that allow parameter adjustment, control logic definition, and performance monitoring. This makes it adaptable to a wide range of industrial applications without requiring hardware modifications.

In conclusion, the ABB 83SR07 analog control module is a highly reliable and advanced process control solution designed for ABB PROCONTROL P systems. Its stored-program architecture, single and dual loop PID control capability, deterministic execution, redundancy support, and strong industrial robustness make it an essential component in modern industrial automation and distributed control systems. It delivers stable, accurate, and efficient process regulation in complex industrial environments where performance and reliability are critical.
