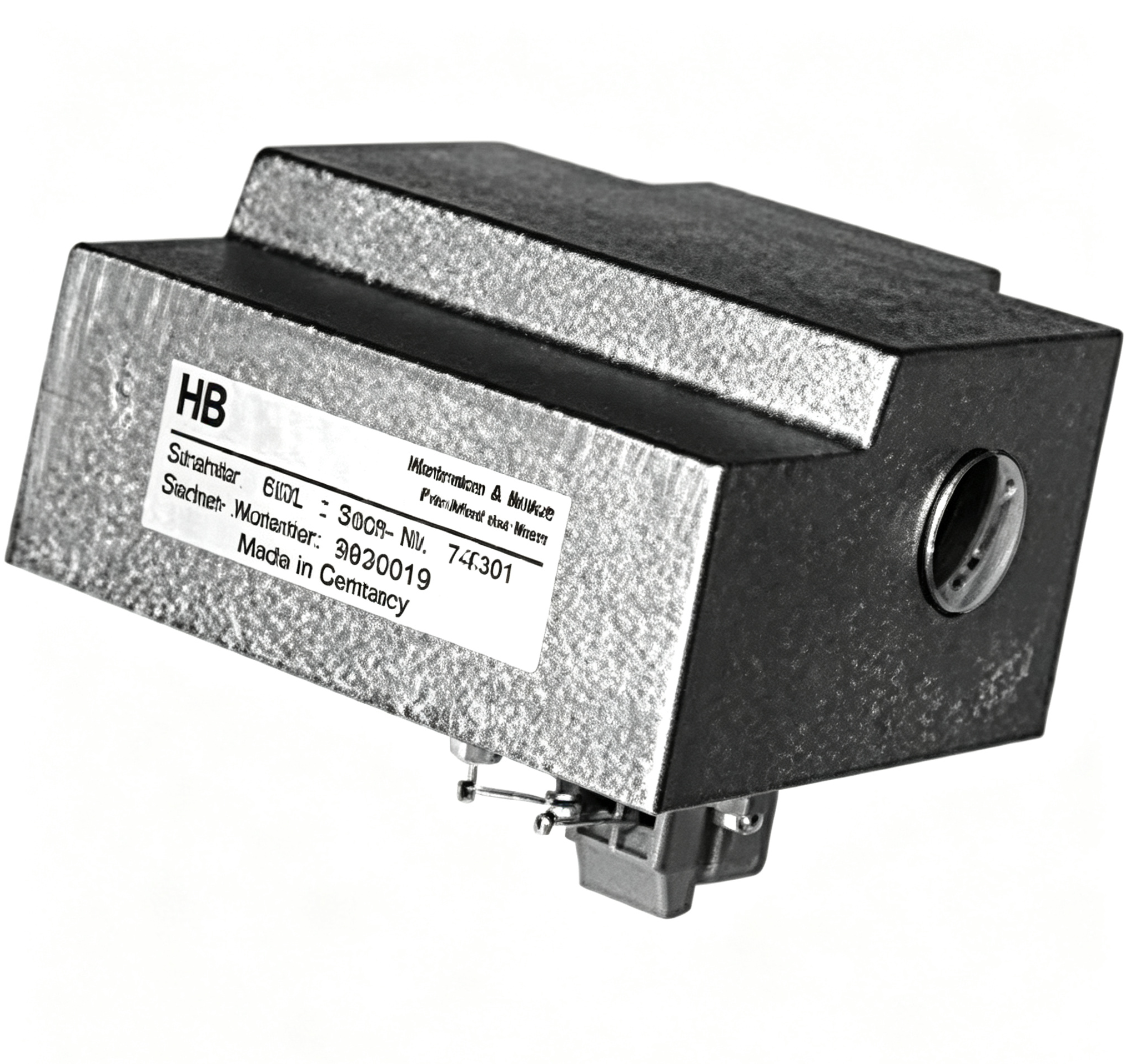

ABB 746931 EDL Radiator EDL High Power

ABB 746931 is an EDL Radiator (EDL-high power) used as an ultraviolet radiation source in ABB analytical measurement systems. The component is associated with ABB continuous gas analyzers and UV-based measurement technologies. Within the analyzer, the EDL radiator provides the ultraviolet radiation required by the optical measurement system.

Ultraviolet light sources are important components in gas analyzers that determine gas concentrations through optical absorption. The stability and characteristics of the radiation source directly influence the optical measurement path. ABB 746931 is designed as a dedicated EDL high-power radiator for this type of analytical equipment.

Product Overview

The ABB 746931 is identified as an EDL Radiator (EDL-high power). EDL refers to an electrodeless discharge lamp technology used as a radiation source in analytical instruments. The component belongs to ABB’s analytical measurement spare-part portfolio and is associated with UV measurement applications.

The product is not a complete gas analyzer or an independent measurement module. Instead, it is a specialized optical component installed within compatible ABB analytical equipment. Its function is to provide the ultraviolet radiation required by the analyzer’s optical measurement arrangement.

ABB product information identifies 746931 as an EDL radiator, while related analyzer documentation associates this component with UV analytical measurement systems. The exact analyzer configuration should be checked before selecting the component for replacement.

EDL Radiation Principle

An electrodeless discharge lamp produces radiation through an electrical discharge process without conventional electrodes directly forming part of the discharge structure. The resulting radiation can be used as a stable optical source for analytical measurement.

In an ultraviolet gas analyzer, the radiation from the lamp passes through an optical path containing the sample gas. Specific gas components absorb ultraviolet radiation at characteristic wavelengths. The analyzer can evaluate changes in transmitted radiation to determine the concentration of the measured component.

The EDL radiator therefore forms an important part of the optical measurement chain. The radiation source works together with the sample cell, optical components, detector, and analyzer electronics to produce the final measurement.

Application in UV Gas Analysis

UV gas analysis is based on the interaction between ultraviolet radiation and the gas being measured. Different gas molecules absorb radiation differently depending on wavelength. By selecting suitable optical characteristics, an analyzer can use this absorption behavior to determine the concentration of specific gas components.

ABB analytical systems include UV-based analyzer configurations designed for continuous gas measurement. In these systems, the EDL radiator serves as the radiation source for the ultraviolet optical path.

The 746931 high-power EDL radiator is therefore an instrument-level component rather than a general-purpose ultraviolet lamp. Its application depends on the optical configuration of the ABB analyzer in which it is installed.

Role in the Optical Measurement Path

A typical optical gas measurement path contains several functional elements. The radiation source generates the required light, the optical system directs the radiation through the measurement cell, the gas sample interacts with the radiation, and the detector measures the resulting optical signal.

ABB 746931 performs the radiation-source function within this arrangement. The quality and stability of the UV radiation are important because the detector signal is ultimately related to the amount of radiation transmitted through the sample.

Other optical components may include a sample cell, beam splitter, optical filters, reference elements, and detectors. The exact arrangement depends on the analyzer model and measurement configuration. For this reason, the EDL radiator should always be matched to the analyzer documentation rather than treated as a universal UV source.

High-Power EDL Configuration

The ABB product designation identifies 746931 as an EDL-high power radiator. The high-power designation distinguishes this component from other EDL radiator configurations that may be used in ABB analytical equipment.

Different analyzer configurations can require different optical source characteristics. When replacing an EDL radiator, the complete ABB part number should therefore be checked against the existing component and the analyzer documentation.

Using the correct radiation source helps maintain compatibility with the optical design of the instrument. A visually similar lamp or an EDL component with a different specification should not automatically be considered interchangeable.

Relationship with ABB Gas Analyzers

ABB 746931 is associated with analytical measurement equipment including continuous gas analyzer configurations. ABB analyzer families use different measurement technologies depending on the gases being measured and the required analytical principle.

UV-based systems require an appropriate ultraviolet radiation source as part of their optical arrangement. The EDL radiator provides this source while the rest of the analyzer performs sample handling, optical detection, signal processing, and concentration calculation.

This modular approach allows the analyzer to combine dedicated optical and electronic components within a complete measurement system. The EDL radiator is consequently one part of the overall analytical measurement chain.

Maintenance and Replacement

Because the EDL radiator is a radiation-source component, its condition can affect analyzer operation. If the optical signal becomes insufficient or the analyzer reports a problem associated with the UV measurement path, the radiation source may need to be evaluated together with the other optical components.

Troubleshooting should not assume that the EDL radiator is the only possible source of an optical measurement problem. The sample cell, optical path, detector, electrical connections, and analyzer electronics can also influence the measured signal.

When replacing the component, the complete identification number 746931 should be checked carefully. The physical component should also be compared with the existing installation and the applicable ABB documentation.

Product Identification

The primary ABB product identification is 746931. ABB product information describes this reference as an EDL Radiator (EDL-high power). The component may also be described in analyzer documentation as an EDL radiator or UV lamp, depending on the documentation format.

Maintaining the exact product reference is important when searching for technical documentation or identifying an installed analyzer component. Similar ABB analytical products may use different EDL radiator references, so the complete part number should be retained.

Installation Considerations

The EDL radiator should be installed according to the procedures applicable to the corresponding ABB analytical instrument. Because the component forms part of an optical measurement system, correct positioning and compatibility with the optical assembly are important.

Maintenance personnel should consult the analyzer documentation before removing or installing the radiation source. The analyzer should also be handled according to its applicable safety and maintenance procedures because UV analytical equipment contains optical and electrical components that require appropriate service practices.

After replacement, the analyzer’s applicable startup, calibration, and measurement procedures should be followed according to the relevant equipment documentation.

Analytical Measurement Applications

EDL-based ultraviolet radiation sources can support analytical measurements where gas absorption in the UV region is used to determine concentration. This type of optical measurement is particularly useful when the target gas has suitable absorption characteristics within the wavelength range of the analyzer.

In a continuous gas analyzer, the measurement system continuously receives or conditions a gas sample and passes it through the optical measurement path. The radiation source and detector provide the optical signal from which the analyzer calculates the measurement result.

ABB 746931 contributes to this process by providing the high-power EDL radiation required by the compatible UV measurement configuration.

Conclusion

ABB 746931 is an EDL Radiator (EDL-high power) used as a UV radiation source in ABB analytical measurement equipment. It forms part of the optical measurement path of compatible gas analyzer systems, where ultraviolet radiation interacts with the sample gas and the resulting optical signal is evaluated by the analyzer.

The component should be identified by its complete ABB product number, 746931. Because different analytical configurations can use different radiation-source components, compatibility should be confirmed against the specific ABB analyzer model and optical configuration before replacement. Proper identification helps maintain the intended relationship between the EDL radiator and the analyzer’s complete UV measurement system.
