ABB 730682 Ceramic Filter Stone Overview

The ABB 730682 is a ceramic filter stone designed for industrial analytical systems and gas measurement applications. It is used as a sample gas filtration element to remove unwanted particles and impurities before the gas enters the analyzer measurement section. As an important part of the sample conditioning process, the filter stone helps maintain measurement accuracy, protect sensitive analyzer components, and improve the stability of industrial process analysis systems.

In industrial production environments, gas analyzers are widely used for monitoring combustion processes, emissions, chemical reactions, and process conditions. The quality of the gas sample directly affects the accuracy of analysis results. Dust, solid particles, and contaminants contained in the sample gas can interfere with measurement performance or damage internal analyzer components. Therefore, effective filtration is an essential requirement for reliable gas analysis.

The ABB 730682 ceramic filter stone provides a durable filtration solution for ABB analytical equipment. According to ABB product information, this component is classified as a filter stone and belongs to ABB spare parts for analytical instrumentation applications. The product dimensions are approximately 135mm in length, 50mm outer diameter, and 20mm inner diameter, with a ceramic filter structure designed for sample gas filtration. :contentReference[oaicite:1]{index=1}

Function of ABB 730682 Filter Stone

The main function of the ABB 730682 is to filter solid particles from gas samples before measurement. During industrial gas analysis, the sample gas may contain dust, process residues, or other suspended particles generated from production processes. These contaminants must be removed before reaching the analyzer measurement chamber.

The ceramic filter structure allows gas to pass through while retaining unwanted particles. This filtration process protects optical measurement components, sensors, and internal analyzer mechanisms from contamination.

By improving sample gas cleanliness, the ABB 730682 helps maintain stable measurement conditions and contributes to reliable analytical results. A clean and consistent gas sample is essential for accurate monitoring of industrial processes.

Application in ABB Gas Analyzer Systems

The ABB 730682 is commonly associated with ABB gas analysis equipment and sample preparation systems. Industrial gas analyzers require carefully prepared samples because measurement accuracy depends not only on analyzer technology but also on the quality of the gas entering the instrument.

Sample conditioning systems normally include filtration, regulation, cooling, and flow control components. The filter stone is an important first-stage protection component that helps ensure the analyzer receives a suitable sample.

In applications such as combustion monitoring, emission measurement, and process control, reliable filtration helps extend analyzer operating stability and reduces the influence of external contaminants.

Ceramic Filter Structure and Design Characteristics

The ABB 730682 uses a ceramic filter element design. Ceramic materials are commonly used in industrial filtration applications because they provide good mechanical strength, temperature resistance, and stable filtration performance.

The porous structure of the ceramic material allows controlled gas flow while capturing solid particles. This makes the filter suitable for industrial environments where sample gases may contain high levels of dust or process-related contaminants.

The cylindrical structure with defined dimensions allows the component to be installed within compatible sample gas conditioning assemblies. Its design supports efficient filtration while maintaining appropriate gas flow characteristics.

Technical Dimensions and Specifications

The ABB 730682 ceramic filter stone features a compact cylindrical structure designed for industrial analyzer applications. Product information indicates the following main dimensional characteristics:

• Length: approximately 135 mm
• Outer diameter: approximately 50 mm
• Inner diameter: approximately 20 mm
• Filter material: ceramic element
• Filter fineness: approximately 0.3 μm

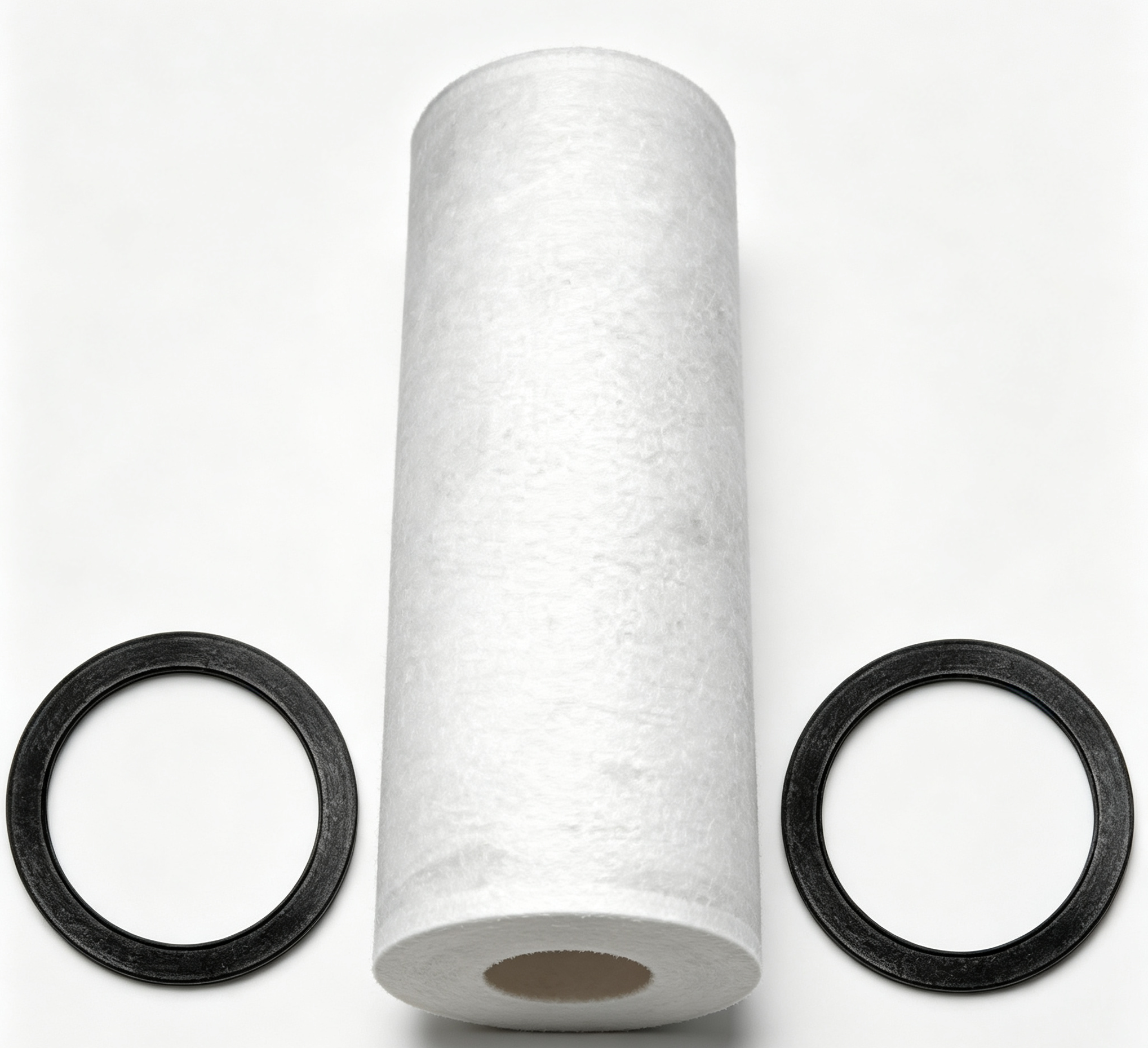

The component is also supplied with sealing elements according to product descriptions, supporting reliable installation within the analyzer sample preparation system. :contentReference[oaicite:2]{index=2}

Importance in Industrial Process Measurement

Accurate process measurement is critical in industries such as power generation, chemical production, metallurgy, cement manufacturing, and environmental monitoring. Gas analysis systems provide important information used for process optimization, safety management, and regulatory control.

The ABB 730682 supports these applications by helping maintain a clean and stable sample gas path. Without effective filtration, particles may accumulate inside measurement equipment, causing signal deviation, maintenance requirements, or reduced analyzer reliability.

By improving sample quality, the filter stone contributes to more consistent measurement performance and better process control.

Industrial Application Areas

The ABB 730682 can be applied in various industrial environments where continuous gas measurement is required. Typical applications include combustion analysis systems, emission monitoring equipment, industrial furnaces, process control systems, and chemical production facilities.

In power plants, gas analyzers are used to monitor combustion efficiency and control emissions. In chemical and petrochemical industries, gas measurement supports process optimization and production safety.

In these environments, reliable sample filtration is necessary because process gases often contain particles that can affect analyzer operation.

Role in Sample Conditioning Systems

Before a gas sample reaches the analyzer, it normally passes through a sample conditioning process. This process prepares the gas by removing impurities and controlling measurement conditions.

The ABB 730682 acts as a filtration component within this preparation process. It helps protect downstream analyzer components and improves the consistency of measurement conditions.

A properly functioning filter system reduces contamination risks and supports long-term analyzer reliability.

Maintenance Considerations

Regular inspection of filter components is important for maintaining analytical system performance. Over time, dust accumulation may reduce gas flow or affect filtration efficiency.

Maintenance requirements depend on the application environment, sample gas characteristics, and operating conditions. Periodic checking of the filter condition helps ensure stable analyzer operation.

Replacing or servicing filtration components when necessary helps maintain measurement accuracy and reduces unexpected system interruptions.

Advantages of ABB Analytical Components

ABB analytical systems are designed for demanding industrial measurement applications where reliability and accuracy are essential. Components such as the ABB 730682 filter stone support the performance of complete analyzer solutions by maintaining proper sample preparation conditions.

The ceramic construction, defined dimensions, and compatibility with ABB analytical equipment make this component suitable for professional industrial applications requiring dependable filtration performance.

Conclusion

The ABB 730682 ceramic filter stone is an important component for industrial gas analyzer sample conditioning systems. With its ceramic filtration structure, precise dimensions, and ability to remove particles from measurement gas streams, it helps protect analyzer equipment and maintain accurate process measurements.

Through reliable filtration performance and compatibility with ABB analytical solutions, the ABB 730682 supports stable operation of industrial gas analysis systems and contributes to improved process control, measurement accuracy, and equipment reliability.
