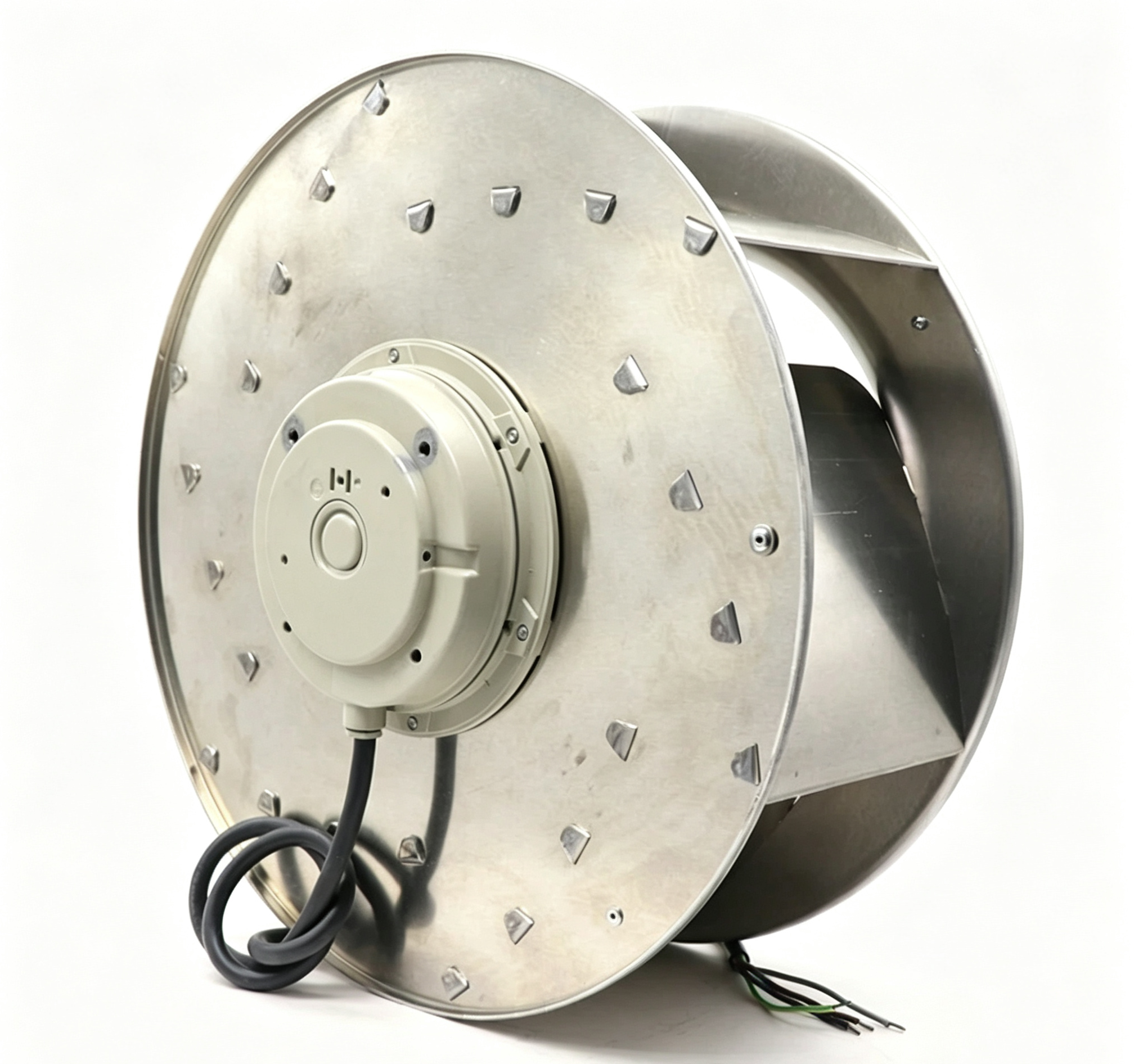

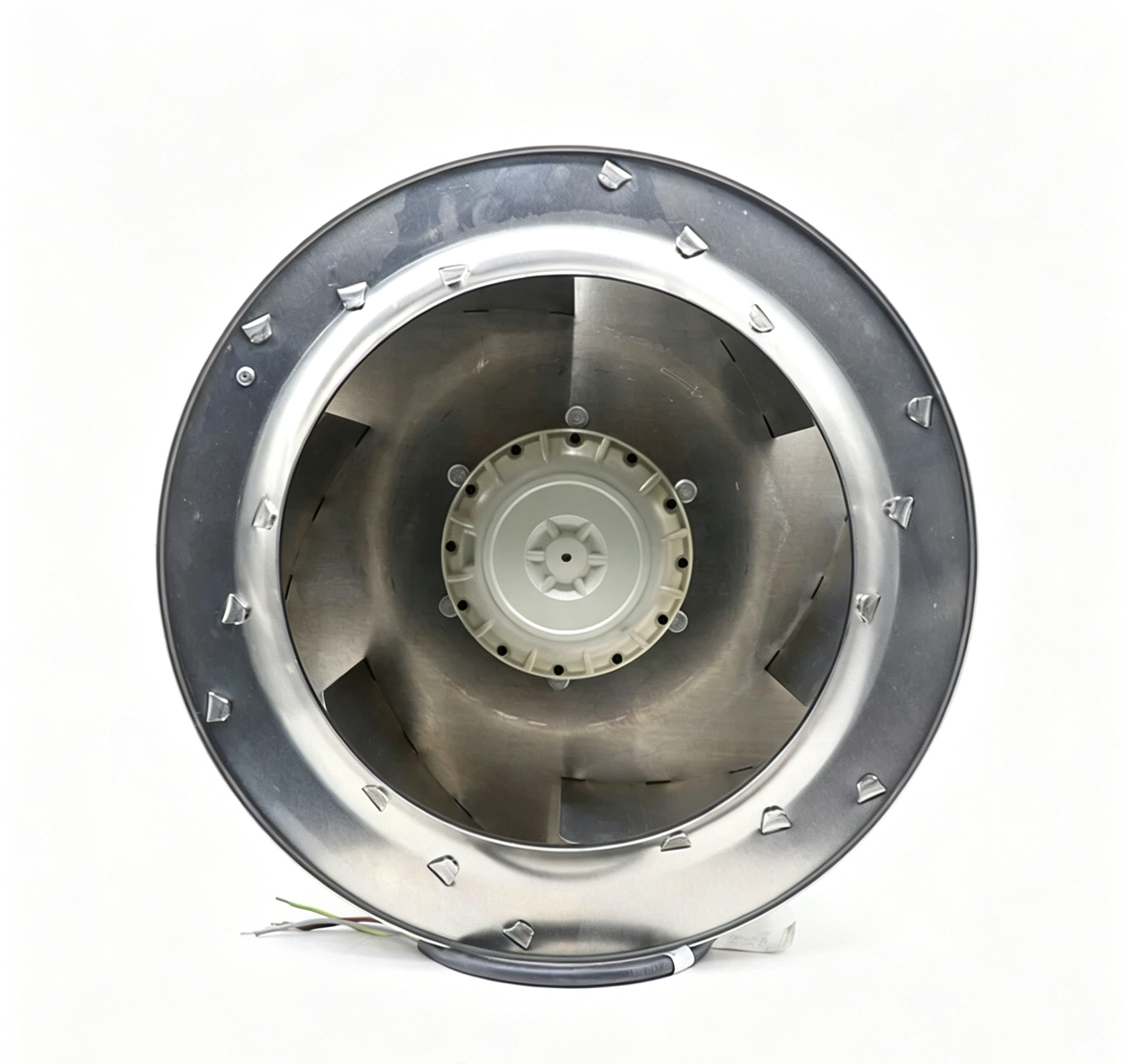

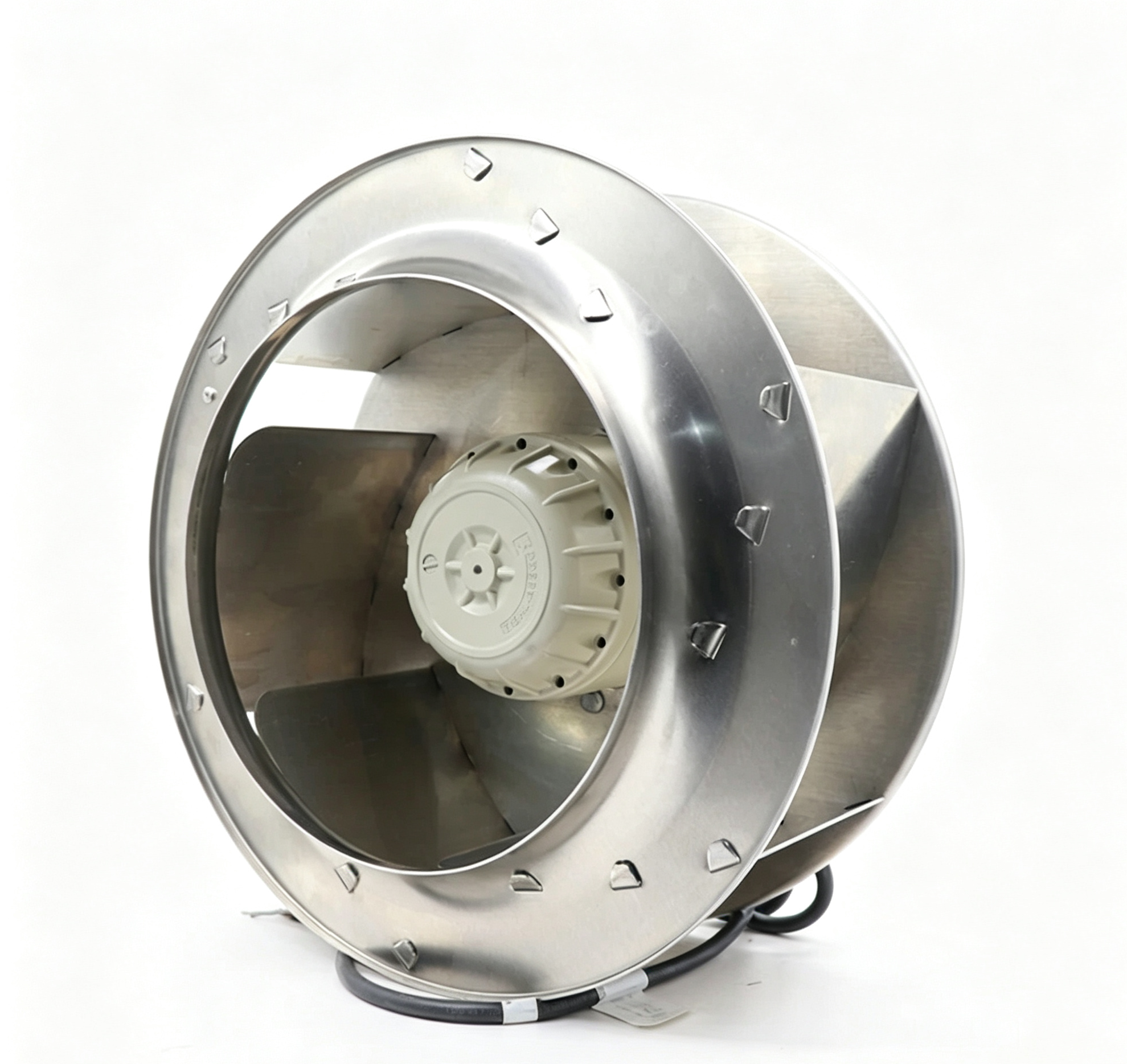

ABB 64750071 RH40M-4EK.4I.1R 230V Radial Fan for ACS800 Drive Cooling System

The component is used to provide forced-air movement through industrial electrical equipment. Proper airflow is important for removing heat generated by power electronic components, control equipment and other heat-producing assemblies inside drive cabinets.

Product Identification

• Manufacturer: ABB
• Product ID: 64750071
• Fan Designation: RH40M-4EK.4I.1R
• Voltage: 230 V
• Component Type: Radial Fan
• Cooling Function: Forced-Air Cooling
• Typical Application: ABB Drive and Cabinet Cooling
• Associated Equipment: ABB ACS800 Systems
• Fan Manufacturer Reference: Ziehl-Abegg RH40M Series
• Protection Rating: IP54

ABB 64750071 Overview

ABB 64750071 is a radial fan assembly used within industrial electrical equipment. The fan is designed to move cooling air through an equipment enclosure or air channel, helping remove heat from components during operation.

Product references identify ABB 64750071 as RH40M-4EK.4I.1R (230V). ABB documentation also lists the part under the description “FAN, RADIAL.” :contentReference[oaicite:2]{index=2}

The part is associated with ABB ACS800 drive equipment and can be used as a cooling component in drive cabinets and power-electronic systems. :contentReference[oaicite:3]{index=3}

Radial Fan Design

A radial fan, also known as a centrifugal fan, moves air by drawing air into the fan assembly and directing it outward through the fan outlet. This construction is suitable for applications where airflow needs to pass through ducts, channels or equipment cooling paths.

In industrial drive cabinets, the airflow generated by the fan can be directed through heat-producing assemblies and exhausted from the enclosure.

The radial configuration allows the fan to be integrated into equipment where a controlled airflow path is required.

Electrical Characteristics

Available product references identify ABB 64750071 as a 230 V fan. A detailed equipment listing identifies the assembly with approximately 0.52 kW power, 1370 RPM rotational speed and 2.4 A current. :contentReference[oaicite:4]{index=4}

These parameters are useful when identifying the correct replacement fan, but the complete nameplate should be checked before electrical connection because installation conditions and product revisions can affect the applicable specifications.

Fan Motor

The fan assembly incorporates an electric motor designed to drive the radial impeller. The motor converts electrical energy into mechanical rotation, allowing the impeller to generate the required airflow.

The available identification information associates the ABB part with a Ziehl-Abegg RH40M fan configuration. :contentReference[oaicite:5]{index=5}

For replacement identification, both the ABB part number and the RH40M-4EK.4I.1R designation are useful.

230 V Power Supply

The ABB 64750071 configuration is identified as a 230 V fan. :contentReference[oaicite:6]{index=6}

The supply voltage should be verified against the fan nameplate and the drive cabinet wiring diagram before installation. Applying an incorrect voltage can cause abnormal motor operation or equipment damage.

Cooling Function in ABB Drives

Power electronic drives generate heat during operation. Semiconductor switching devices, rectifier sections, capacitors, reactors and other electrical components can contribute to the thermal load inside a drive system.

The cooling fan helps maintain the designed airflow through the equipment. Adequate airflow supports thermal management and helps keep internal components within their specified operating temperature range.

ABB 64750071 is therefore a functional cooling component rather than an electrical control module.

Application with ACS800 Equipment

ABB 64750071 is listed among spare parts associated with ABB ACS800 equipment and cabinet cooling applications. Product references specifically describe it as a fan for ABB drive systems. :contentReference[oaicite:7]{index=7}

The exact ACS800 model compatibility should nevertheless be confirmed from the drive’s spare-parts list and the original fan identification.

Different ACS800 frame sizes can use different cooling fans, so the ABB part number should be matched carefully.

Cabinet Cooling

In a drive cabinet, the fan can form part of the overall ventilation system. Air enters through the designed intake path, passes through heat-producing components and is discharged through the corresponding outlet.

The cooling arrangement can include several fans depending on the cabinet size and drive power rating.

Correct airflow direction is important because reversing the intended airflow can change the thermal performance of the equipment.

IP54 Protection

Available equipment references identify the RH40M fan associated with ABB 64750071 with IP54 protection. :contentReference[oaicite:8]{index=8}

An IP54 enclosure rating generally indicates protection against limited dust ingress and protection against water splashes from different directions under the applicable test conditions.

The environmental suitability of the complete fan installation also depends on the cabinet and surrounding installation conditions.

Technical Specification Summary

Airflow and Thermal Management

The main purpose of the ABB 64750071 fan is to maintain the airflow required by the equipment cooling system. The fan removes heat from internal components by forcing air through designated cooling passages.

Airflow performance depends not only on fan speed but also on the resistance of the cooling path, filters, ducts and equipment enclosure.

A blocked air path can reduce cooling effectiveness even when the fan motor continues to operate.

Fan Rotation

Correct fan rotation is important for achieving the intended airflow direction. The installation should correspond to the airflow direction specified by the equipment manufacturer.

After installation, the fan should be checked to confirm that the air is moving through the intended cooling path.

The airflow direction should not be inferred solely from the physical appearance of the impeller.

Maintenance Considerations

Cooling fans are mechanical components and can be affected by dust accumulation, bearing wear, electrical faults and mechanical vibration.

Maintenance can include inspection of the impeller, motor, bearings, electrical connections and airflow path.

Dust or debris accumulated around the fan or air intake can reduce airflow and increase the thermal load on the drive system.

Fan Bearing Condition

The fan motor and bearing system operate continuously in many drive applications. Bearing wear can produce abnormal noise, vibration or changes in rotational performance.

A fan showing abnormal mechanical noise or vibration should be evaluated as part of the drive cooling system maintenance process.

The applicable maintenance or replacement interval depends on the operating environment and duty cycle.

Electrical Connection

Before connecting ABB 64750071, the supply voltage and wiring arrangement should be verified against the original equipment documentation.

The fan should be connected according to the designated terminals and applicable electrical safety requirements.

The 230 V identification is particularly important because industrial drive cabinets can contain multiple control and auxiliary voltage levels.

Compatibility Considerations

When selecting ABB 64750071 as a replacement cooling fan, the following parameters should be checked:

• ABB part number 64750071
• Fan designation RH40M-4EK.4I.1R
• Rated voltage
• Power rating
• Rated current
• Rotational speed
• Airflow direction
• Fan dimensions
• Mounting arrangement
• Electrical terminal configuration
• Protection rating
• Drive cabinet compatibility

The complete fan identification should be compared with the original installed component before replacement.

Use in ABB ACS800 Systems

ABB 64750071 appears in equipment references associated with ABB ACS800 drive systems and cabinet cooling applications. :contentReference[oaicite:9]{index=9}

The cooling fan can be used in systems where forced airflow is required for power electronic equipment. Because ACS800 systems are available in different frame sizes and configurations, the specific drive model should be checked before selecting the fan.

Industrial Drive Cooling

Industrial frequency converters and drives depend on controlled thermal conditions for reliable operation. Cooling fans provide the airflow necessary to transfer heat away from internal components.

Fan performance can therefore have a direct relationship with the thermal management of the drive cabinet.

A cooling fan replacement should match the original electrical and mechanical characteristics so that the intended airflow system remains unchanged.

Product Identification for Inventory

For industrial inventory records, the recommended product description is ABB 64750071 RH40M-4EK.4I.1R 230V Radial Fan.

The ABB part number 64750071 should be retained as the primary inventory identifier. The RH40M-4EK.4I.1R designation can be stored as the corresponding fan model reference. ABB’s product sheet identifies the part using both the product ID and fan designation. :contentReference[oaicite:10]{index=10}

Replacement Identification

When replacing a fan in an existing ABB drive system, the original ABB part number should be compared with the installed fan’s model, voltage, current, power, speed and physical dimensions.

Similar-looking radial fans may have different motor characteristics or airflow performance and should not automatically be considered interchangeable.

The ABB 64750071 identification provides a useful reference for matching the correct cooling component.

Application Summary

ABB 64750071 is a radial cooling fan assembly identified as RH40M-4EK.4I.1R (230V). Available product references associate the part with ABB drive cooling applications, including ACS800 equipment. :contentReference[oaicite:11]{index=11}

The fan is identified with approximately 0.52 kW power, 1370 RPM speed, 2.4 A current and IP54 protection in available equipment records. :contentReference[oaicite:12]{index=12}

Its primary role is to provide forced airflow for thermal management within industrial drive and cabinet systems.

Conclusion

ABB 64750071 is an ABB radial cooling fan identified as RH40M-4EK.4I.1R (230V). It is associated with industrial drive and cabinet cooling systems and is referenced as a spare part for ABB ACS800 equipment. :contentReference[oaicite:13]{index=13}

For technical inventory purposes, the recommended product name is ABB 64750071 RH40M-4EK.4I.1R 230V Radial Fan. When selecting the component for a drive system, the complete ABB part number, electrical characteristics, fan model, airflow direction, mounting dimensions and original equipment configuration should be verified.
