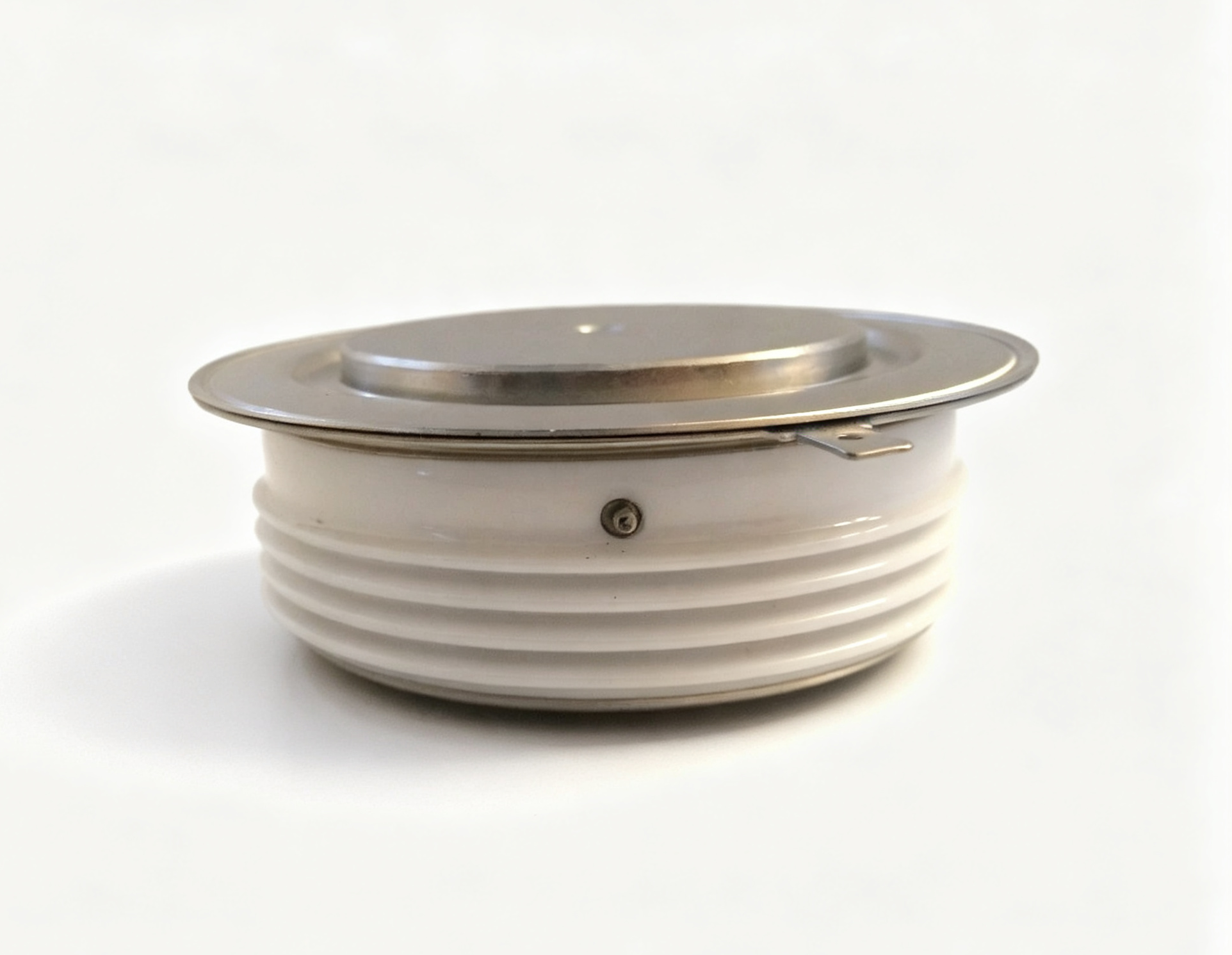

ABB 61513582 5STP 3328L0003 Thyristor Module Kit

ABB 61513582 is identified as the 5STP 3328L0003 thyristor module kit and belongs to ABB’s range of high-power semiconductor components for industrial power conversion systems. The product is listed as a THYR.MOD. KIT 330 and as a 5STP 3328L0003 MD KIT, providing an important identification relationship between the ABB ordering reference and the semiconductor device designation. Available ABB-related product records associate 61513582 directly with the 5STP 3328L0003 thyristor module kit. :contentReference[oaicite:1]{index=1}

The 5STP 3328L0003 designation indicates a high-current, high-voltage thyristor device intended for power electronic applications. Thyristor modules of this type are used in controlled power conversion circuits where semiconductor switching is required to regulate electrical power. The combination of a 330 A class current designation and 2800 V class voltage designation places this component within the high-power semiconductor category.

ABB 61513582 should therefore be considered as a power semiconductor module rather than a conventional control component. Its technical characteristics make accurate electrical configuration and circuit design particularly important when integrating it into an industrial power conversion assembly.

Product Identification

The primary ABB reference for this component is 61513582. The corresponding semiconductor designation is 5STP 3328L0003, while ABB-related product listings describe the item as a THYR.MOD. KIT 330 and 5STP 3328L0003 MD KIT. :contentReference[oaicite:2]{index=2}

These identification references are useful because industrial power semiconductor products can be specified through both an internal ordering number and a semiconductor type designation. When documenting equipment, the complete reference should be retained to distinguish this module from other members of the 5STP family.

The 5STP family contains devices with different electrical ratings and semiconductor configurations. A visually similar module from the same family should not automatically be considered an equivalent replacement without checking the complete type designation and electrical specifications.

Technical Characteristics

• Manufacturer: ABB
• ABB reference: 61513582
• Semiconductor designation: 5STP 3328L0003
• Product type: Thyristor module kit
• Product description: THYR.MOD. KIT 330
• Module designation: 5STP 3328L0003 MD KIT
• Current class: 330 A
• Voltage class: 2800 V
• Semiconductor technology: Thyristor
• Application category: High-power power conversion
• Component family: 5STP power semiconductor series

The 330 and 2800 designations are important when interpreting the semiconductor reference. The available product listing identifies 5STP 3328L0003 as a THYR.MOD. KIT 330, while the part number itself contains the 28 designation associated with the 2800 V class. :contentReference[oaicite:3]{index=3}

The precise electrical limits of the installed semiconductor depend on the complete device specification, cooling arrangement, switching conditions, gate control and circuit topology. The nominal current and voltage classes should therefore be considered together with the manufacturer’s technical data when designing or servicing the complete power electronic system.

Thyristor Operating Principle

A thyristor is a semiconductor switching device designed to control electrical current in power circuits. Unlike a simple passive semiconductor component, a thyristor can be triggered into conduction by an appropriate gate signal when the main terminals are correctly biased.

Once triggered, the thyristor can conduct substantial current through its main semiconductor path. In many power conversion circuits, current continues to flow until the circuit conditions allow the thyristor to turn off. This behavior makes thyristors particularly useful in controlled rectifiers, converters and other high-power electrical systems.

The operating principle is different from that of an insulated-gate transistor. Thyristors are especially valuable where high current and high voltage switching capability are required and where the circuit naturally provides suitable commutation conditions.

High-Power Semiconductor Applications

The ABB 5STP 3328L0003 belongs to a class of semiconductor devices intended for high-power electrical conversion. Thyristor modules can be incorporated into circuits that regulate the transfer of electrical energy between an alternating-current supply and a direct-current system or between different electrical sections.

Typical circuit applications can include controlled rectification, industrial power supplies, excitation systems, motor control equipment, power converters and other large-scale electrical conversion systems. The exact application depends on the electrical topology and the number of semiconductor devices used in the complete converter.

A single thyristor module normally forms only one part of the complete power conversion system. Gate-control electronics, heat dissipation, electrical protection, bus connections and other semiconductor modules may all be required.

330 A Current Class

The product listing identifies ABB 61513582 as a THYR.MOD. KIT 330, indicating a 330 A class designation for the 5STP 3328L0003 module. :contentReference[oaicite:4]{index=4}

High-current semiconductor modules require careful thermal and electrical design. The actual permissible current depends on factors such as junction temperature, case temperature, cooling method, current waveform, conduction angle, switching conditions and the surrounding circuit.

For this reason, the 330 A designation should not be interpreted as an unrestricted current value under every operating condition. Engineering calculations should use the appropriate semiconductor data and application-specific derating requirements.

2800 V Voltage Class

The 5STP 3328L0003 designation corresponds to a 2800 V class thyristor device. High-voltage semiconductor components are designed to withstand substantial electrical stress, but the complete application must still provide appropriate voltage margins and transient protection.

Power converters can generate voltage transients during switching and during abnormal operating conditions. Snubber circuits, surge protection, appropriate circuit inductance and correct system design can therefore be important when applying high-voltage thyristor devices.

The actual repetitive and non-repetitive voltage limits must be obtained from the applicable technical specification rather than inferred solely from the nominal product designation.

Power Conversion Function

In a controlled rectifier, thyristors can regulate the portion of an alternating-current waveform that is allowed to conduct into the direct-current side of the converter. By controlling the triggering angle, the converter can influence the resulting average direct-current voltage.

In larger industrial systems, multiple thyristors are arranged in bridge or other converter topologies. The semiconductor modules operate together under coordinated gate-control signals to produce the desired electrical output.

The ABB 5STP 3328L0003 can therefore serve as a high-power switching element within a larger controlled conversion assembly. The complete performance depends on the topology, control system and other semiconductor components.

Thermal Management

Thermal management is one of the most important considerations when applying high-current thyristor modules. Semiconductor losses generate heat during conduction and switching, and excessive junction temperature can reduce operating reliability and semiconductor life.

The module must be mounted with an appropriate cooling arrangement according to the applicable mechanical and thermal requirements. Depending on the converter design, cooling may involve forced air, liquid cooling or a dedicated heat sink arrangement.

Thermal interface conditions are also important. Mounting pressure, surface flatness, thermal compound requirements and mechanical fastening can influence the heat transfer between the semiconductor module and its cooling structure.

Gate Control

A thyristor is triggered through its gate control circuit. The gate signal must have suitable electrical characteristics and timing for the specific semiconductor device and converter design.

In a multi-device power converter, gate signals must be coordinated with the electrical phase and operating state of the converter. Incorrect gate timing can result in abnormal current distribution, improper commutation or unwanted converter behavior.

The gate circuit should therefore be designed according to the electrical characteristics specified for the complete 5STP 3328L0003 device and the converter in which it is installed.

Electrical Protection

High-power thyristor modules require protection against abnormal electrical conditions. Overcurrent, overvoltage, excessive temperature and rapid transient events can place significant stress on semiconductor junctions.

Depending on the converter design, protective measures can include semiconductor fuses, snubber networks, surge suppression, current monitoring and thermal supervision. Protection components should be selected according to the actual semiconductor characteristics and system fault levels.

The protection strategy should also consider the behavior of the complete converter. A semiconductor module should not be evaluated independently from its busbars, switching circuit, cooling system and control electronics.

Industrial Drive Applications

High-power thyristor modules are frequently associated with industrial drive and power-conversion equipment. In large motor systems, controlled semiconductor converters can regulate electrical power supplied to the motor or provide excitation and other controlled electrical functions.

The 5STP 3328L0003 can be relevant to systems where high current and high voltage semiconductor switching are required. Its use in a particular ABB drive or converter should be verified from the equipment’s circuit diagram and component documentation.

The 61513582 reference is therefore particularly useful when identifying semiconductor components installed within larger ABB power electronic assemblies.

System-Level Integration

A thyristor module operates as part of a larger electrical circuit. The surrounding system normally contains control electronics, power connections, cooling equipment and protective components.

Electrical current must be distributed correctly across the semiconductor modules, and the mechanical installation must provide appropriate thermal transfer. The gate control system must also be synchronized with the converter’s operating sequence.

For high-power systems, the layout of electrical conductors is important because stray inductance can contribute to switching transients. Proper busbar arrangement and circuit protection can help maintain the electrical conditions required by the semiconductor devices.

Maintenance and Technical Evaluation

When evaluating an ABB 61513582 thyristor module, the complete type designation should be checked before any technical work. The 5STP 3328L0003 designation identifies the semiconductor type, while 61513582 identifies the ABB ordering reference.

Visual inspection can include examination of the module housing, terminals, mounting surfaces and electrical connections. However, semiconductor evaluation should also consider electrical test procedures appropriate to thyristor devices and the manufacturer’s technical requirements.

The surrounding converter should be inspected as well because semiconductor failures can be associated with abnormal current, voltage transients, cooling problems, gate-control faults or other system conditions.

Product Compatibility

Correct identification is essential when selecting a semiconductor module for an existing power conversion system. Devices within the 5STP family may have different voltage, current and mechanical characteristics.

The ABB 61513582 reference should therefore be matched against the complete equipment documentation, semiconductor designation, electrical rating and mechanical installation arrangement. Substituting a module based only on a similar physical appearance can result in incorrect electrical performance.

The gate characteristics, voltage rating, current rating, mounting configuration and cooling requirements should all be considered during compatibility evaluation.

Typical Applications

ABB 61513582 5STP 3328L0003 can be associated with high-power semiconductor applications such as:

• Controlled rectifier systems
• Industrial power converters
• High-power motor drive systems
• Industrial excitation equipment
• Large electrical power supplies
• High-current power conversion assemblies
• Industrial semiconductor converter systems
• High-voltage controlled power circuits
• Large-scale electrical control equipment

The exact application depends on the converter topology and equipment configuration. The component should therefore be evaluated according to the complete electrical system rather than by the semiconductor designation alone.

Conclusion

ABB 61513582 is identified as the 5STP 3328L0003 thyristor module kit, also described in ABB-related product listings as a THYR.MOD. KIT 330 and 5STP 3328L0003 MD KIT. :contentReference[oaicite:5]{index=5} The component belongs to the high-power semiconductor category and is intended for controlled power conversion applications requiring substantial current and voltage capability.

The 330 A class and 2800 V class characteristics make the device suitable for demanding industrial power electronic systems when the electrical, thermal and mechanical requirements are correctly matched. Thyristor technology allows controlled semiconductor conduction and is widely applicable to industrial rectification and power conversion architectures.

For accurate identification of ABB 61513582, the complete reference should be considered together with the 5STP 3328L0003 semiconductor designation and the surrounding converter documentation. Electrical rating, gate-control requirements, cooling arrangement, protection circuit and mechanical installation must all be verified when integrating the module into a high-power industrial system.
