Product Overview

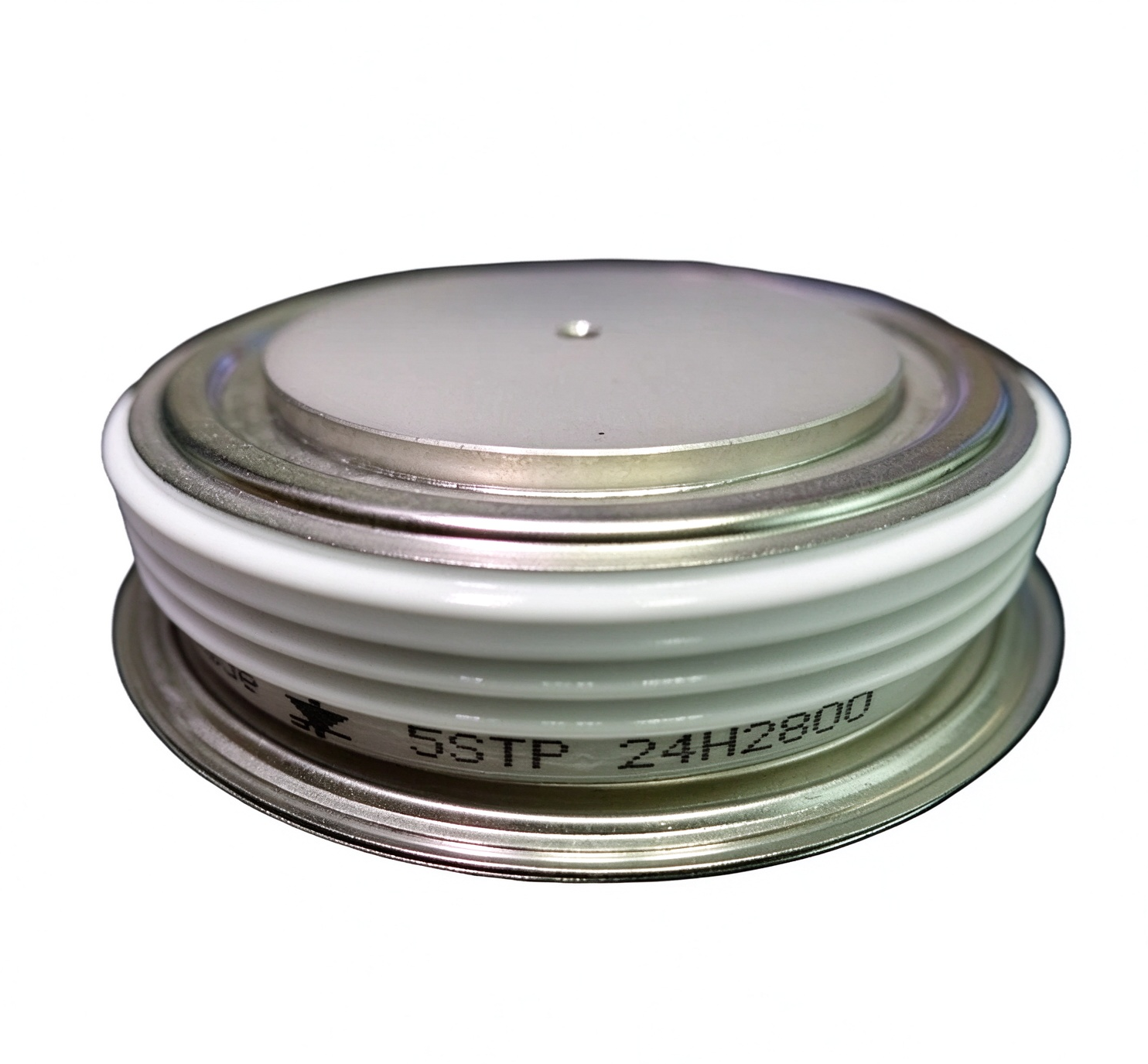

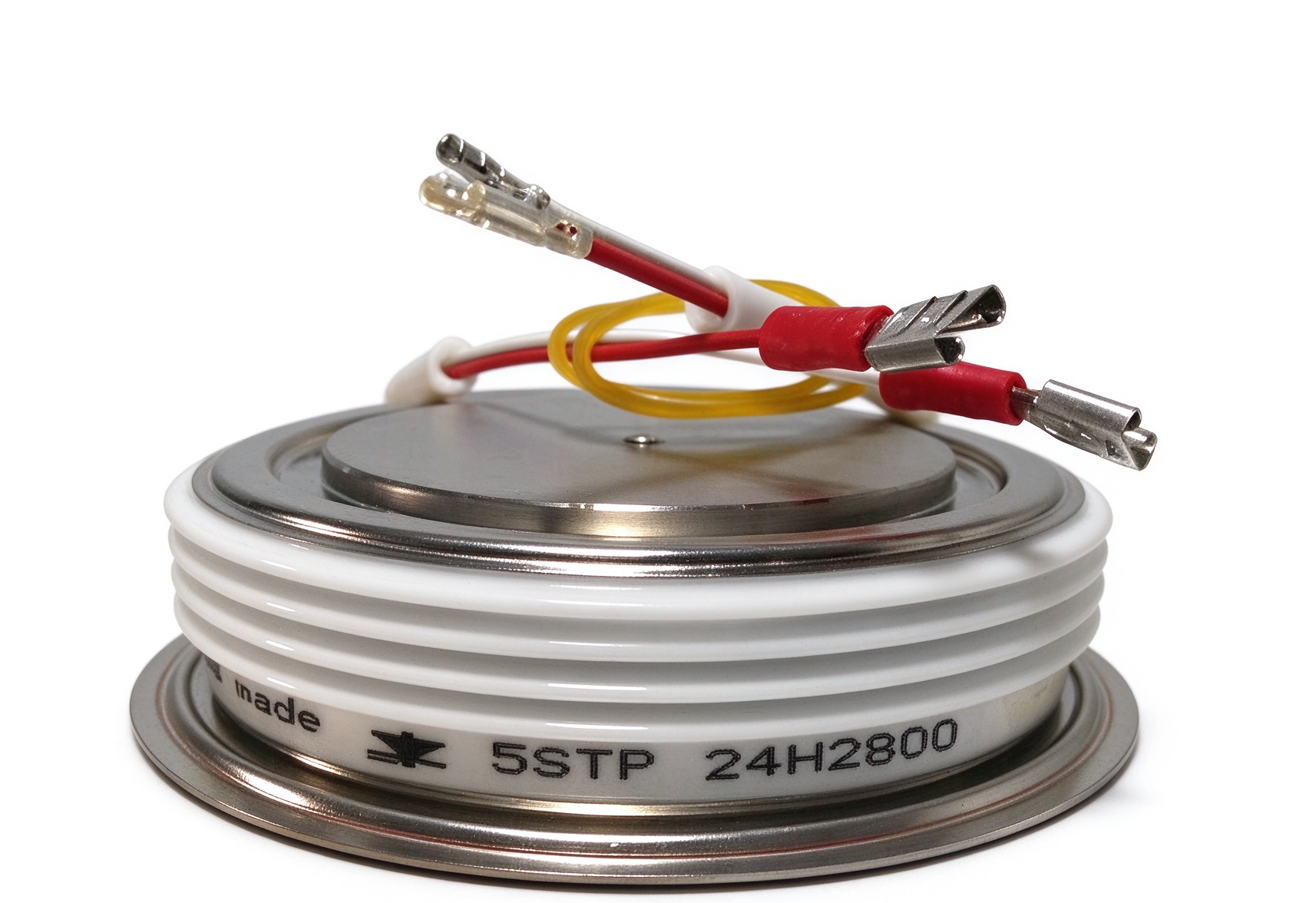

The ABB 5STP24H2800 is a high-power phase control thyristor designed for demanding electrical power conversion and control applications. As a semiconductor switching device, it controls the conduction of current in a power circuit when an appropriate gate signal is applied. Its high current-handling capability and voltage-blocking characteristics make it suitable for integration into engineered industrial power electronic assemblies.

The device belongs to ABB’s 5STP family of phase control thyristors. Its repetitive peak forward and reverse blocking voltage is rated at 2800 V, while its average on-state current rating is 2780 A at a case temperature of 70°C under the specified datasheet conditions. These values describe different aspects of its operation and should be evaluated together with the thermal, electrical, and mechanical requirements of the complete system.

The 5STP24H2800 is a power semiconductor component rather than a complete converter or control unit. Its operation depends on the surrounding circuit, gate-drive arrangement, cooling system, and mounting structure. Appropriate system design is necessary to manage current, voltage transients, heat generation, and switching behavior.

Key Product Specifications

• Manufacturer: ABB
• Model: 5STP24H2800
• Product type: Phase control thyristor (PCT)
• Repetitive peak forward and reverse blocking voltage: 2800 V
• Average on-state current: 2780 A at a case temperature of 70°C, under specified conditions
• RMS on-state current: 4360 A, according to the referenced datasheet
• Surge on-state current: 43 kA, according to the referenced datasheet conditions
• Typical package designation: H
• Approximate dimensions: 102 mm outer diameter, 63 mm inner diameter, and 26 mm housing thickness
• Approximate device weight: 0.9 kg
• Mounting force: A nominal 50 kN, subject to the manufacturer’s specified range and mounting instructions

Electrical ratings are dependent on defined operating and test conditions. They should not be interpreted as interchangeable continuous operating limits. The current rating, surge rating, blocking voltage, and thermal characteristics must be checked against the applicable technical datasheet before the device is incorporated into an assembly.

Operating Principle of a Phase Control Thyristor

A thyristor is a semiconductor switching device that can control the flow of current through a power circuit. In its forward-blocking state, it prevents substantial current flow until the appropriate triggering conditions are met. Applying a suitable gate pulse can initiate conduction when the device is correctly forward-biased. Once conducting, the thyristor generally remains on until the current falls below its holding level or the circuit provides an appropriate commutation condition.

Phase control uses the timing of thyristor triggering within an AC cycle to regulate the portion of each cycle during which current flows. By adjusting the firing angle, a power conversion circuit can control the effective power delivered to a load. The precise relationship between firing angle and output depends on the topology, supply characteristics, load, and control strategy.

In high-power equipment, thyristors may operate in rectifier bridges, controlled converters, and other power electronic configurations. Their performance depends on gate triggering, current rise rate, voltage rise rate, commutation conditions, and the electrical characteristics of the surrounding circuit. The 5STP24H2800 must therefore be used with a suitable gate-drive and protection design.

Voltage Blocking and Current Handling

The 2800 V repetitive peak blocking rating describes the maximum specified repetitive peak forward and reverse voltage under the conditions defined in the datasheet. It is not a general statement that the device can tolerate any transient above this level. Circuit inductance, switching behavior, commutation, and supply disturbances can produce voltage spikes that must be controlled through suitable circuit design and protection measures.

The average on-state current rating of 2780 A is specified at a case temperature of 70°C. This rating is linked to the thermal conditions under which the semiconductor operates. Higher case temperatures can reduce the allowable current, while inadequate cooling can cause excessive junction temperature and compromise device reliability.

The RMS current rating and surge current rating describe other operating limits. Surge capability applies only under the waveform, duration, initial temperature, and repetition conditions specified by the manufacturer. It should not be interpreted as a permissible continuous current rating. System designers must evaluate normal current, transient current, fault conditions, and protection coordination separately.

Thermal Management and Mechanical Mounting

High-power thyristors generate heat while conducting current. Effective thermal management is therefore essential to maintain the semiconductor junction within its permitted temperature range. The heat path normally extends from the semiconductor junction through the device housing and mounting interfaces to the cooling structure. Depending on the assembly, the cooling arrangement may use suitable air-cooled or liquid-cooled heat sinks.

The 5STP24H2800 uses a press-pack style package. Mechanical clamping is an important part of the thermal and electrical interface. The manufacturer specifies a nominal mounting force of 50 kN, with the exact acceptable range and procedure defined in the datasheet. The mounting assembly must apply the required force evenly and maintain the specified contact conditions.

Incorrect clamping force, uneven contact surfaces, contamination, or unsuitable cooling interfaces can increase thermal resistance and affect performance. Before installation, confirm the dimensions, contact surfaces, mounting hardware, and cooling arrangement against the manufacturer’s mechanical instructions. Do not determine clamping force solely from visual inspection or the dimensions of a similar device.

Thermal calculations should account for on-state losses, cooling performance, ambient conditions, and the operating duty cycle. Adequate cooling and correct mounting are essential when the device is used in high-current conversion equipment.

Industrial Applications

Phase control thyristors are used in high-power electrical systems that require controlled conversion of electrical energy. Typical application areas for this device category include industrial rectifiers, controlled power converters, traction power equipment, and energy conversion installations. The suitability of the 5STP24H2800 for a particular application depends on the circuit topology and the electrical and thermal requirements of the system.

In a controlled rectifier, thyristors regulate current flow by controlling their firing points. Such systems may be used where adjustable DC output or controlled power transfer is required. In industrial equipment, the converter may work alongside transformers, reactors, busbars, cooling assemblies, sensors, gate-drive circuits, and protection devices.

Traction and energy systems can impose demanding electrical and thermal operating conditions. Device selection must consider repetitive voltage stress, current waveform, switching and commutation behavior, cooling capability, and expected service duty. The use of a high-rated thyristor alone does not determine the power rating or reliability of the complete converter.

Gate Drive and Circuit Protection

Reliable operation requires a gate-drive circuit designed for the thyristor’s triggering characteristics. The gate pulse must provide suitable amplitude, duration, and timing under the specified conditions. Triggering must be coordinated with the converter topology and the intended firing-control strategy.

Power semiconductor assemblies also require protection against electrical stresses that may exceed the device ratings. Depending on the system design, protection measures can include coordinated overcurrent protection, transient voltage suppression, snubber networks, appropriate gate-drive supervision, and thermal monitoring. The exact protection scheme should be designed from the electrical characteristics of the complete assembly.

Engineers should consult the manufacturer’s datasheet for gate-trigger requirements, critical voltage rise rate, critical current rise rate, leakage current, turn-off behavior, and thermal limits. These parameters help determine whether the device is suitable for the operating frequency and circuit conditions. A substitute should not be selected on the basis of voltage and current ratings alone.

Model Identification and Replacement Selection

When sourcing the ABB 5STP24H2800, verify the complete model number and compare it with the markings on the existing component. Check the voltage rating, current ratings, package dimensions, mounting requirements, and electrical characteristics. Similar thyristors may share a comparable housing but differ in blocking voltage, current capability, gate sensitivity, or thermal performance.

For replacement work, inspect the converter’s technical documentation and bill of materials. Confirm that the replacement matches the original device’s electrical ratings and the assembly’s mounting and cooling arrangements. Gate-drive compatibility and commutation behavior should also be reviewed before commissioning.

If the original part number is not fully legible, obtain additional information from the equipment manufacturer or the approved component documentation. A visually similar press-pack device should not be assumed to be an equivalent replacement without technical verification.

Installation and Maintenance Considerations

Installation and maintenance should be performed by qualified personnel using procedures appropriate for high-power electrical equipment. The power circuit must be isolated and verified safe before work begins. Stored energy in capacitors and other circuit components must be addressed according to the equipment’s safety procedures.

Inspect the semiconductor, mounting surfaces, cooling equipment, busbar interfaces, and associated gate-drive connections for signs of damage or deterioration. Check that the specified mounting force and assembly procedure are followed. Avoid contamination or mechanical impact to the device’s contact surfaces and housing.

If a thyristor fails, investigate possible causes before installing a replacement. Relevant checks may include the gate-drive signal, transient overvoltage, excessive current, cooling performance, commutation conditions, and faults elsewhere in the converter. Replacing the component without identifying the failure mechanism can lead to repeated damage.

Conclusion

The ABB 5STP24H2800 is a high-power phase control thyristor designed for demanding power conversion applications. Its specified repetitive peak blocking voltage is 2800 V, and its average on-state current rating is 2780 A at a case temperature of 70°C under defined conditions. The press-pack construction requires appropriate mechanical clamping and thermal management. Correct gate-drive design, electrical protection, cooling, and verification of the full technical specification are essential for dependable operation in industrial power electronic systems.
