ABB 5STB24Q2800 Bi-Directional Control Thyristor 2800V 2630A

The ABB 5STB24Q2800 is a high-power Bi-Directional Control Thyristor (BCT) designed for demanding power semiconductor applications. Manufactured as part of ABB’s high-power semiconductor portfolio, the device combines two thyristors into one wafer and is intended for applications requiring controlled high-current switching and high-voltage blocking capability. ABB documentation identifies the device as 5STB 24Q2800 and specifies a 2800 V maximum off-state voltage, 2630 A average on-state current, and 4130 A RMS on-state current.

The 5STB24Q2800 is particularly notable for its combination of high current capability and high voltage rating. Its semiconductor structure is designed around ABB’s free-floating silicon technology and an interdigitated amplifying gate. These characteristics allow the device to address power conversion requirements in traction, energy, and industrial applications where conventional low-power thyristor components are not suitable.

Product Identification

The complete product designation is ABB 5STB24Q2800, also written as 5STB 24Q2800. The product belongs to the 5STB family of bi-directional control thyristors. In ABB’s semiconductor documentation, the 5STB 24Q2800 is identified as a Bi-Directional Control Thyristor and is specified with a VSM rating of 2800 V and an ITAVM rating of 2630 A.

The model number contains important information about the semiconductor device and its electrical class. When documenting this component, the complete 5STB24Q2800 designation should be retained because similar ABB thyristor products can have different voltage classes, current ratings, housing configurations, and electrical characteristics.

Bi-Directional Control Thyristor Technology

The 5STB24Q2800 uses a bi-directional control thyristor structure in which two thyristors are integrated into one wafer. This arrangement allows the semiconductor device to provide controlled current conduction in both directions while maintaining the characteristics required for high-power electrical conversion.

The integrated structure is useful in power-electronic systems where bidirectional control is required within a compact high-power semiconductor assembly. Rather than using two completely separate semiconductor devices, the BCT configuration integrates the two thyristor structures into one device, providing a coordinated solution for high-current switching applications.

ABB documentation also identifies patented free-floating silicon technology as one of the design features of the device. The semiconductor structure is intended to provide suitable electrical and thermal characteristics for demanding power applications.

2800 V Blocking Capability

One of the primary electrical characteristics of the ABB 5STB24Q2800 is its 2800 V maximum off-state voltage. The device is specified with VSM of 2800 V, while the repetitive reverse blocking voltage VRM is also identified as 2800 V under the conditions stated in the ABB documentation.

This voltage class allows the device to be considered for high-voltage power conversion circuits where significant blocking voltage is required during the non-conducting portion of the semiconductor operating cycle. Voltage selection must always be based on the actual electrical topology, supply conditions, transient environment, and required design margin.

The 2800 V rating should therefore not be interpreted as a universal operating voltage for an entire system. It represents a semiconductor device rating established under specified conditions. System designers must evaluate voltage transients, switching behavior, protection networks, and thermal conditions when applying the component.

2630 A Average On-State Current

The ITAVM rating of the 5STB24Q2800 is 2630 A. This high average on-state current capability makes the device suitable for power-conversion systems where substantial current must be controlled through the semiconductor path.

The current rating is one of the defining characteristics of the device and distinguishes it from lower-current members of the ABB thyristor portfolio. Actual allowable current depends on the specified cooling arrangement, case temperature, conduction waveform, mounting conditions, and other thermal parameters.

ABB semiconductor documentation provides electrical and thermal data for the individual thyristor half of the BCT device. Engineers should therefore evaluate the current rating together with the applicable thermal curves and operating conditions rather than treating the nominal current as an unrestricted continuous system value.

High RMS and Surge Current Capability

In addition to the 2630 A average on-state current, the ABB 5STB24Q2800 has an ITRMS rating of 4130 A. The specified ITSM surge on-state current is 43 kA for a 10 ms condition. These characteristics provide important information about the device’s ability to withstand substantial current during defined operating and transient conditions.

Surge current capability is particularly relevant in power-electronic systems where temporary high-current events can occur during switching or abnormal operating conditions. The surge rating is defined for specific test conditions and must not be interpreted as a continuous operating current. Proper semiconductor protection remains essential in the complete power circuit.

On-State Characteristics

The ABB documentation specifies a threshold voltage of approximately 0.85 V and an on-state slope resistance of approximately 0.160 mΩ. These parameters are important when evaluating conduction losses and the thermal behavior of the semiconductor during operation.

When a high-current thyristor conducts, its electrical losses contribute directly to heat generation. Consequently, the on-state voltage characteristics and slope resistance must be considered when calculating semiconductor losses, heat-sink requirements, junction temperature, and overall converter efficiency.

The actual thermal design depends on the conduction waveform, cooling method, mounting pressure, heat-sink characteristics, ambient conditions, and application duty cycle. These factors should be evaluated together using the manufacturer’s electrical and thermal data.

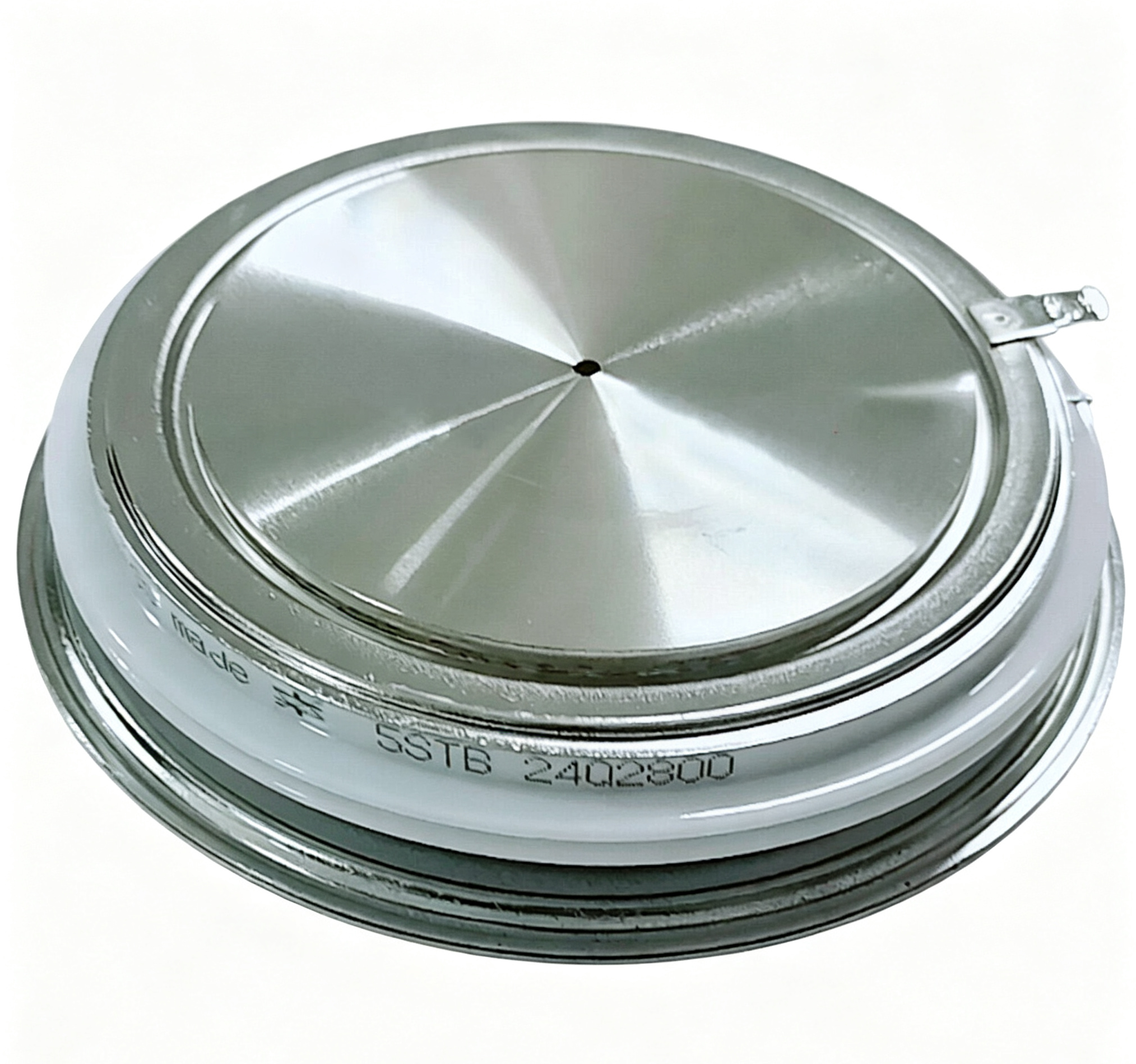

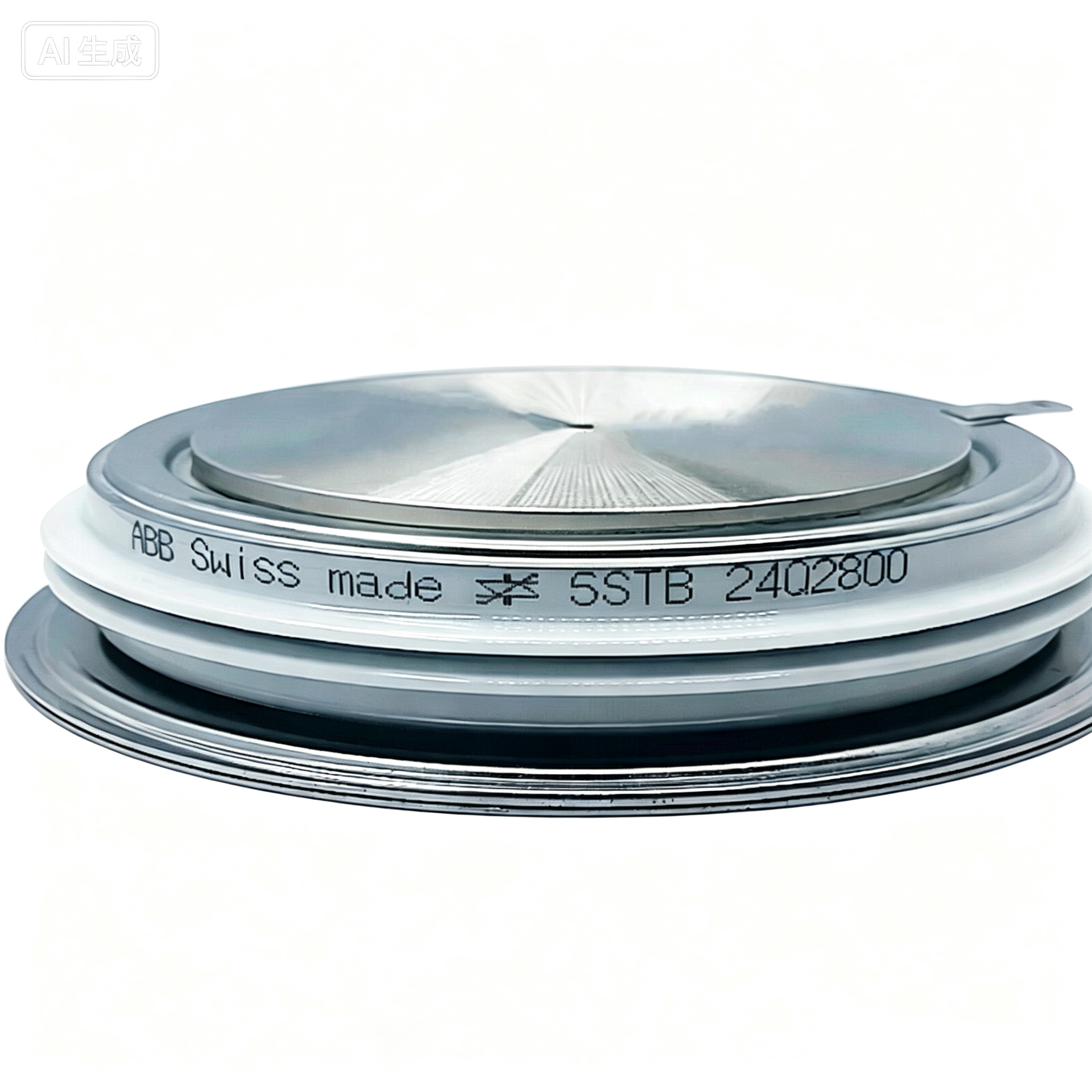

Press-Pack Construction

The 5STB24Q2800 uses a press-pack semiconductor construction. High-power press-pack devices are designed for mounting between suitable electrical and thermal interfaces, allowing substantial current to pass through the device while providing a defined mechanical clamping force.

ABB documentation specifies a nominal mounting force of approximately 90 kN, with minimum and maximum values defined in the technical documentation. Correct mechanical mounting is therefore an important part of the electrical and thermal performance of the device.

The press-pack structure also makes mounting geometry and cooling arrangement important engineering considerations. The semiconductor should be installed using the appropriate mechanical procedure and specified mounting conditions to achieve the intended electrical and thermal characteristics.

Thermal Performance

Thermal management is critical for a high-power semiconductor such as the ABB 5STB24Q2800. ABB documentation provides thermal resistance information for different cooling configurations, including single-side and double-side cooling arrangements.

The operating junction temperature range is specified from approximately -40 °C to 125 °C. Storage temperature information extends to approximately 150 °C. These limits establish the environmental boundaries for the semiconductor device and should be considered together with the actual cooling design.

For high-current applications, heat dissipation directly affects semiconductor reliability. The heat sink, mounting force, thermal interface, current waveform, and operating environment should therefore be incorporated into the overall design calculation.

Gate Control

The 5STB24Q2800 incorporates an interdigitated amplifying gate. The gate structure is an important part of the thyristor’s controlled switching behavior because the gate signal initiates conduction when the device is forward biased and the applicable triggering conditions are met.

The gate circuit should be designed according to the electrical characteristics specified for the device. Trigger current, gate voltage, pulse characteristics, isolation, and the associated firing circuit all influence reliable thyristor operation.

Because the device is intended for high-power applications, the gate-drive circuit should be evaluated together with the power stage and system control architecture rather than treated as a simple low-power switching input.

Industrial and Energy Applications

ABB identifies the 5STB family as being designed for traction, energy, and industrial applications. The high-current and high-voltage characteristics of the 5STB24Q2800 make it appropriate for power-conversion architectures where controlled high-power semiconductor switching is required.

Potential application areas include large industrial converters, controlled rectification systems, energy conversion equipment, traction-related power electronics, and other high-power installations. The exact application depends on the electrical topology and the required voltage, current, thermal, and switching characteristics.

Engineering Considerations

When selecting the ABB 5STB24Q2800, engineers should consider more than the nominal 2800 V and 2630 A ratings. The complete electrical system must be evaluated, including peak voltage, repetitive voltage, transient conditions, average current, RMS current, surge current, switching frequency, gate-drive requirements, and cooling arrangement.

Mechanical installation is equally important because the press-pack design requires an appropriate mounting force and suitable thermal interfaces. Improper mechanical installation can influence both electrical performance and heat transfer.

Protection components such as appropriate fuses, snubber networks, voltage protection, and current-limiting elements may also be required depending on the converter topology. These components should be selected according to the specific application and applicable engineering standards.

Technical Reference

ABB semiconductor documentation identifies the 5STB24Q2800 under document number 5SYA1053-01. The published data includes electrical characteristics, thermal information, mechanical data, gate-trigger characteristics, and graphical performance information for the device.

The documentation also specifies that the electrical and thermal data are valid for one thyristor half of the device. This is an important consideration when interpreting the technical specifications because the BCT contains two integrated thyristor structures.

Conclusion

The ABB 5STB24Q2800 is a high-power Bi-Directional Control Thyristor designed for demanding traction, energy, and industrial power-electronic applications. Its key characteristics include a 2800 V maximum off-state voltage, 2630 A average on-state current, 4130 A RMS on-state current, and 43 kA surge on-state current.

The device integrates two thyristors into one wafer and uses ABB’s free-floating silicon technology together with an interdigitated amplifying gate. Its press-pack construction, high mounting-force requirement, and thermal characteristics make mechanical and thermal engineering important parts of the complete application design.

For product identification, the preferred designation is ABB 5STB24Q2800, also written as ABB 5STB 24Q2800. When evaluating this semiconductor for a high-power converter or industrial electrical system, the voltage rating, current characteristics, gate requirements, mounting force, cooling method, and complete protection architecture should be considered together.
