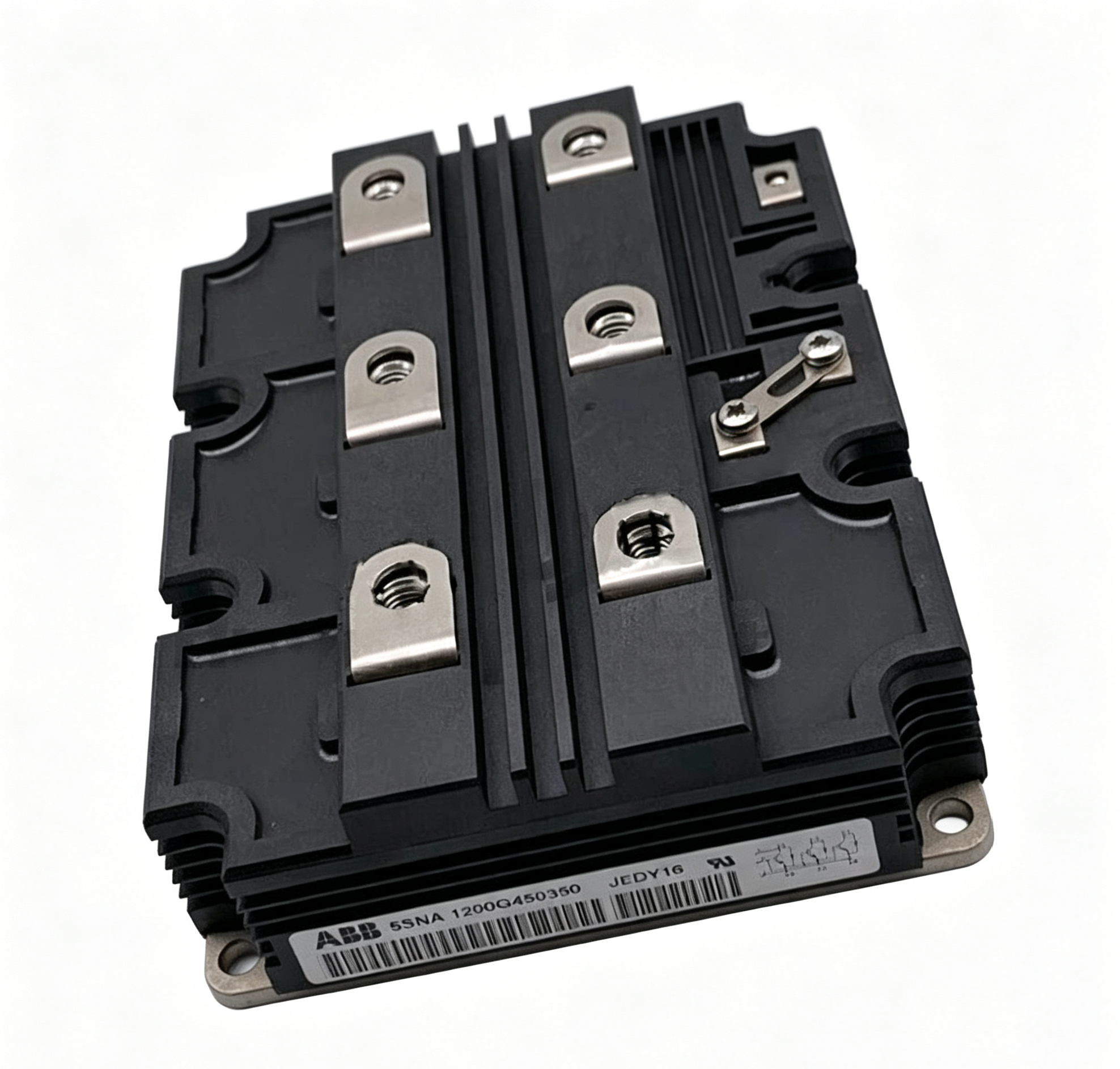

ABB 5SNA1200G450350 4500 V 1200 A HiPak IGBT Module for High Power Industrial Applications

The 5SNA1200G450350 is identified in ABB technical documentation as a 4500 V, 1200 A HiPak IGBT module. Its design incorporates an AlSiC base plate and a high-power-density construction intended to support demanding power cycling conditions. The combination of the semiconductor technology and mechanical structure makes the module suitable for high-power converter architectures used in industrial and electrical energy systems.

ABB 5SNA1200G450350 IGBT Technology

Insulated gate bipolar transistors combine voltage-controlled gate operation with the high-current conduction characteristics required by power semiconductor applications. In a converter system, an IGBT module functions as a controlled semiconductor switching element, allowing electrical energy to be converted between different voltage, current and frequency conditions. The ABB 5SNA1200G450350 is designed for this type of high-power switching environment and provides a high-voltage platform for converter topologies requiring substantial electrical capacity.

The module uses ABB SPT+ technology. The SPT+ chip-set is designed to provide low-loss switching characteristics together with rugged electrical behavior. The technology is also associated with smooth switching performance that can help support electromagnetic compatibility requirements in power electronic equipment. These characteristics are particularly relevant in converter systems where switching losses, electrical stress and electromagnetic behavior must be considered during system design.

4500 V Voltage and 1200 A Current Capability

One of the defining characteristics of the ABB 5SNA1200G450350 is its 4500 V collector-emitter voltage rating combined with a 1200 A collector current rating. This combination places the module within the high-power IGBT category and makes it suitable for electrical systems that require substantial voltage blocking and current-handling capability.

Technical references for the 5SNA1200G450350 specify a maximum off-state voltage of 4.5 kV and a collector current of 1.2 kA. The specified pulsed collector current is 2.4 kA, while the gate-emitter voltage specification is ±20 V. Actual operating conditions, switching frequency, thermal conditions and electrical limitations must be evaluated according to the applicable ABB technical documentation and the complete converter design.

HiPak Package and Mechanical Construction

The ABB 5SNA1200G450350 uses the HiPak package concept developed for high-power semiconductor applications. The module is designed around a rugged industrial package that supports the mechanical and thermal requirements associated with high-current switching devices. The package uses screw-based electrical and mechanical mounting, providing a practical installation approach for power converter assemblies.

A key element of the module construction is the AlSiC base plate. Aluminum silicon carbide provides characteristics suited to high-power semiconductor applications, particularly where thermal performance, mechanical stability and power cycling capability are important. The base-plate design helps provide a suitable thermal interface between the semiconductor module and the converter cooling structure.

High Power Density and Power Cycling

High power density is an important consideration when designing modern power electronic equipment. A converter system must accommodate semiconductor devices, cooling structures, electrical connections and control components within a defined mechanical space. The ABB 5SNA1200G450350 is designed with high power density as one of its characteristics, allowing substantial electrical switching capability to be integrated into a compact HiPak module format.

Power cycling capability is also important in applications where semiconductor temperature changes repeatedly during operation. Repeated thermal expansion and contraction can place mechanical stress on semiconductor assemblies and their internal interfaces. The AlSiC base-plate construction of the 5SNA1200G450350 is intended to support high-power cycling requirements and contribute to the mechanical robustness of the module in demanding converter environments.

IGBT Half-Bridge Configuration

Product specifications identify the 5SNA1200G450350 with an IGBT half-bridge topology arrangement. The module is described as IGBT half-bridge x3, providing a configuration intended for integration into advanced power converter circuits. This type of semiconductor arrangement can be used as part of multilevel and other high-power converter architectures where several controlled switching elements are combined to achieve the required electrical waveform.

The module’s topology and electrical characteristics make the 5SNA1200G450350 suitable for system designers working with high-voltage converter platforms. The exact electrical configuration and number of modules required depend on the converter topology, voltage level, current requirement, switching strategy and system control architecture.

Applications of ABB 5SNA1200G450350

High-power IGBT modules such as the ABB 5SNA1200G450350 can be used in a wide variety of power conversion systems. Typical application areas associated with this class of ABB HiPak module include industrial drives, medium-voltage converters, railway power systems, traction equipment, wind power converters, high-voltage direct current systems and flexible alternating current transmission systems.

In industrial drives, high-power IGBT modules can be used in converter stages that control motor voltage, current and frequency. In renewable energy systems, IGBT technology can form an important part of power conversion equipment connecting generators to electrical networks. In railway and traction systems, high-voltage and high-current semiconductor modules are used where electrical conversion and controlled motor operation are required.

Technical Characteristics of ABB 5SNA1200G450350

• Product type: HiPak IGBT module
• Manufacturer: ABB
• Model: 5SNA1200G450350
• Collector-emitter voltage: 4500 V
• Collector current: 1200 A
• Pulsed collector current: 2400 A
• Gate-emitter voltage: ±20 V
• Semiconductor technology: SPT+
• Topology: IGBT half-bridge x3
• Package: HiPak
• Base plate: AlSiC
• Electrical mounting: Screw mounting
• Mechanical mounting: Screw mounting
• Design characteristics: High power density and high power cycling capability

Integration of ABB 5SNA1200G450350 into Power Converter Systems

When integrating the ABB 5SNA1200G450350 into a power converter, engineers need to consider the complete electrical and thermal environment rather than evaluating the IGBT module only by its voltage and current ratings. Gate-driver characteristics, switching frequency, DC-link voltage, cooling conditions, stray inductance, protection functions and converter topology all influence the actual operating conditions of the semiconductor device.

The 5SNA1200G450350 is also compatible with dedicated high-power IGBT driver solutions designed for this module family. Driver systems provide the gate-control interface required to operate the IGBT and can incorporate functions such as short-circuit protection, gate-voltage monitoring and active clamping. The exact driver selection should correspond to the electrical characteristics and application requirements of the complete converter system.

ABB 5SNA1200G450350 for High-Power Electronics

The ABB 5SNA1200G450350 combines high voltage blocking capability, high current handling, SPT+ semiconductor technology and a robust HiPak mechanical design. Its 4500 V and 1200 A ratings provide a substantial electrical capacity for high-power switching applications, while the AlSiC base plate and high-power-density construction address important thermal and mechanical considerations.

For engineers, maintenance specialists and power electronics system designers, the complete ABB ordering code should be used when identifying the required semiconductor module. Electrical ratings, topology, package configuration and the associated gate-driver arrangement should be checked against the converter design and applicable technical documentation before installation.

Overall, ABB 5SNA1200G450350 is a high-power HiPak IGBT module designed for demanding power conversion environments. Its SPT+ chip-set, 4500 V voltage capability, 1200 A collector current rating, high power density, AlSiC base plate and power cycling characteristics make it a significant semiconductor component for industrial and energy conversion systems. The combination of electrical performance and mechanical construction provides a foundation for high-power converter designs where controlled switching, thermal management and long-term system reliability are essential.
