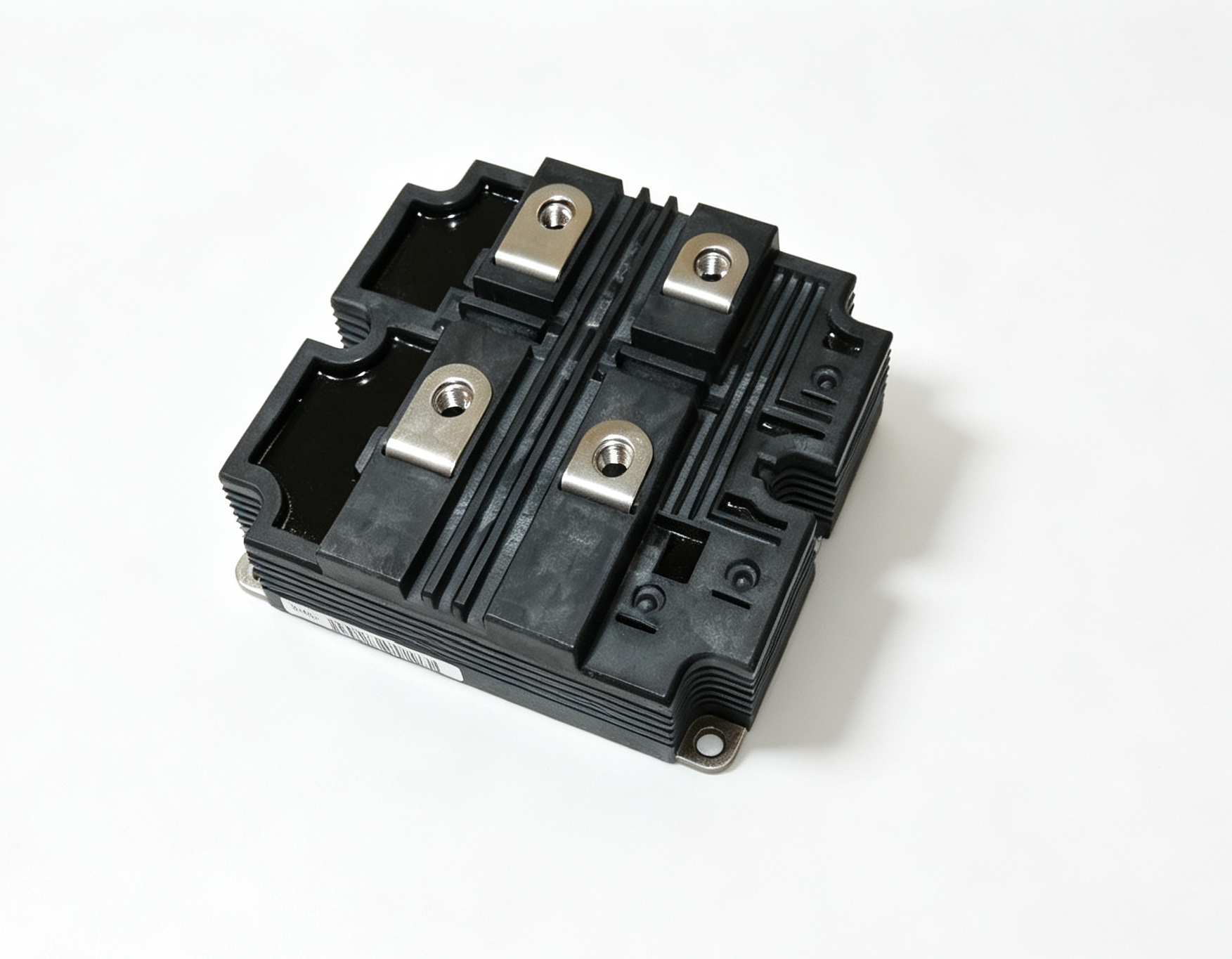

ABB 5SLD1200J450350 HiPak Diode Module

The ABB 5SLD1200J450350 is a high-performance HiPak diode module developed for demanding industrial power electronics applications. It incorporates two independent SPT+ rectifier diodes within a single module package, providing excellent electrical performance, low switching losses and high reliability for modern power conversion systems. The module is engineered for applications requiring high voltage capability, excellent thermal performance and long operational life.

With a repetitive peak reverse voltage of 4500 V and two independent diodes rated at 1200 A continuous forward current each, the module is suitable for high-power rectifier circuits, converter systems, renewable energy installations, railway traction equipment and heavy industrial motor drives. ABB’s SPT+ diode technology offers smooth switching characteristics, helping improve electromagnetic compatibility while reducing switching losses. :contentReference[oaicite:2]{index=2}

The HiPak package combines an AlSiC baseplate with an AlN ceramic substrate, providing excellent thermal conductivity and superior power cycling capability. This advanced package design enables the module to operate reliably under demanding thermal and mechanical conditions commonly encountered in industrial converter systems. :contentReference[oaicite:3]{index=3}

Product Features

• Manufacturer: ABB
• Model: 5SLD1200J450350
• Product Type: HiPak Diode Module
• Technology: SPT+ Diode
• Configuration: Two Independent Diodes
• Repetitive Peak Reverse Voltage: 4500 V
• Continuous Forward Current: 2 × 1200 A
• Peak Forward Current: 2400 A per diode
• HiPak Industrial Package
• Designed for High Power Conversion Applications

Technical Specifications

HiPak Power Semiconductor Technology

ABB HiPak semiconductor modules are developed for applications requiring exceptional electrical reliability and thermal performance. Their robust mechanical construction allows operation under demanding environmental conditions while supporting long-term industrial service.

The SPT+ diode technology used in the ABB 5SLD1200J450350 combines low forward losses with smooth switching characteristics. These features help reduce converter losses, improve overall efficiency and contribute to better electromagnetic compatibility in high-power electrical systems.

Thermal Performance and Reliability

Effective thermal management is essential for high-power semiconductor modules. The ABB 5SLD1200J450350 utilizes an aluminum silicon carbide baseplate together with an aluminum nitride substrate to reduce thermal resistance and improve heat transfer efficiency. This design enhances reliability during continuous operation and repeated thermal cycling. :contentReference[oaicite:4]{index=4}

Installation and Mounting

The ABB 5SLD1200J450350 HiPak diode module should be installed by qualified personnel familiar with high-power semiconductor equipment and industrial power conversion systems. Correct installation is essential to achieve the expected electrical performance, thermal efficiency and long-term operational reliability.

Before mounting the module, the heatsink surface should be clean, flat and free from contamination. A suitable thermal interface material should be applied according to the equipment manufacturer’s recommendations to minimize thermal resistance between the module baseplate and the cooling system.

Mechanical mounting bolts should be tightened using the specified tightening sequence and recommended torque values provided in the equipment documentation. Uniform mounting pressure helps ensure effective heat transfer while preventing unnecessary mechanical stress on the semiconductor package.

Power terminals should be connected using appropriate busbars or conductors designed for high-current applications. Secure electrical connections help minimize contact resistance, reduce heat generation and improve the overall reliability of the converter system.

After installation, engineers should verify insulation, electrical continuity, cooling system operation and mechanical fastening before placing the equipment into normal service. Proper commissioning helps ensure safe and reliable operation under full load conditions.

Industrial Applications

The ABB 5SLD1200J450350 is designed for demanding high-power applications where efficient rectification and reliable semiconductor performance are required. Its high blocking voltage and current capability make it suitable for a wide range of industrial power conversion systems.

In railway traction systems, the diode module is used within traction converters and auxiliary power equipment to provide dependable rectification under continuously changing operating conditions. Its robust construction supports the demanding electrical and mechanical requirements of transportation applications.

Renewable energy systems such as wind power converters and large photovoltaic power conversion equipment benefit from the module’s high efficiency and thermal stability. Reliable semiconductor operation contributes to improved energy conversion efficiency and system availability.

Industrial motor drives, medium-voltage converters and high-power variable speed drive systems also utilize HiPak semiconductor modules to achieve stable rectification and efficient power management. These applications require components capable of operating continuously in demanding production environments.

The module is also suitable for heavy industrial rectifiers, static power converters, energy storage systems, research laboratories and other high-power electrical equipment where long service life and dependable performance are essential.

Advantages of ABB 5SLD1200J450350

• SPT+ diode technology provides low conduction losses.
• 4500 V repetitive peak reverse voltage supports high-voltage applications.
• Dual independent 1200 A diode configuration.
• Excellent thermal performance using AlSiC baseplate and AlN substrate.
• High surge current capability for demanding operating conditions.
• Designed for long service life and high power cycling capability.
• Suitable for industrial converters, rectifiers and traction equipment.
• Optimized for efficient heat dissipation.
• Supports reliable continuous industrial operation.
• Manufactured according to ABB high-power semiconductor quality standards.

Maintenance and Inspection

Although the ABB 5SLD1200J450350 is designed for long-term industrial operation, regular inspection is recommended to maintain maximum system reliability. Preventive maintenance helps identify potential issues before they affect converter performance.

Maintenance activities should include inspection of power terminals, mounting hardware, cooling surfaces and thermal interface materials. Loose electrical connections or inadequate cooling may increase operating temperature and reduce semiconductor lifetime.

Cooling systems, including heatsinks, liquid cooling assemblies or forced-air ventilation, should be inspected regularly to ensure efficient heat removal. Maintaining proper operating temperature is one of the most important factors influencing semiconductor reliability.

Electrical testing during scheduled maintenance should verify insulation integrity and confirm that the module continues to operate within the specified electrical characteristics of the overall converter system.

Maintaining detailed maintenance records and following recommended service intervals helps improve equipment availability and supports long-term operational stability.

Frequently Asked Questions

What is ABB 5SLD1200J450350 used for?

The ABB 5SLD1200J450350 is a HiPak dual diode module designed for high-power rectification and industrial power conversion applications.

What voltage rating does the module provide?

The module has a repetitive peak reverse voltage (VRRM) rating of 4500 V.

How many diodes are integrated inside the module?

The ABB 5SLD1200J450350 contains two independent SPT+ rectifier diodes, each rated for 1200 A continuous forward current.

Which industries commonly use this module?

It is widely used in railway traction systems, renewable energy converters, industrial motor drives, medium-voltage power converters, heavy industrial rectifiers and other high-power electronic applications.

Conclusion

The ABB 5SLD1200J450350 HiPak diode module combines advanced SPT+ semiconductor technology, high voltage capability and excellent thermal performance in a robust industrial package. Designed for demanding power conversion applications, it delivers dependable rectification performance while supporting efficient and reliable system operation.

With its dual independent diode configuration, 4500 V blocking capability and industrial-grade HiPak construction, the ABB 5SLD1200J450350 is an excellent choice for engineers designing or maintaining high-power converters, traction systems, renewable energy installations and industrial electrical equipment where efficiency, durability and long-term reliability are critical.
