ABB 3HAC048500-001 Overview

ABB 3HAC048500-001 is a Contactor Set designed for compatible ABB industrial robot controller systems. The part is associated with ABB robotic controller power and motor-control circuitry and provides a complete contactor arrangement together with its required auxiliary contact blocks.

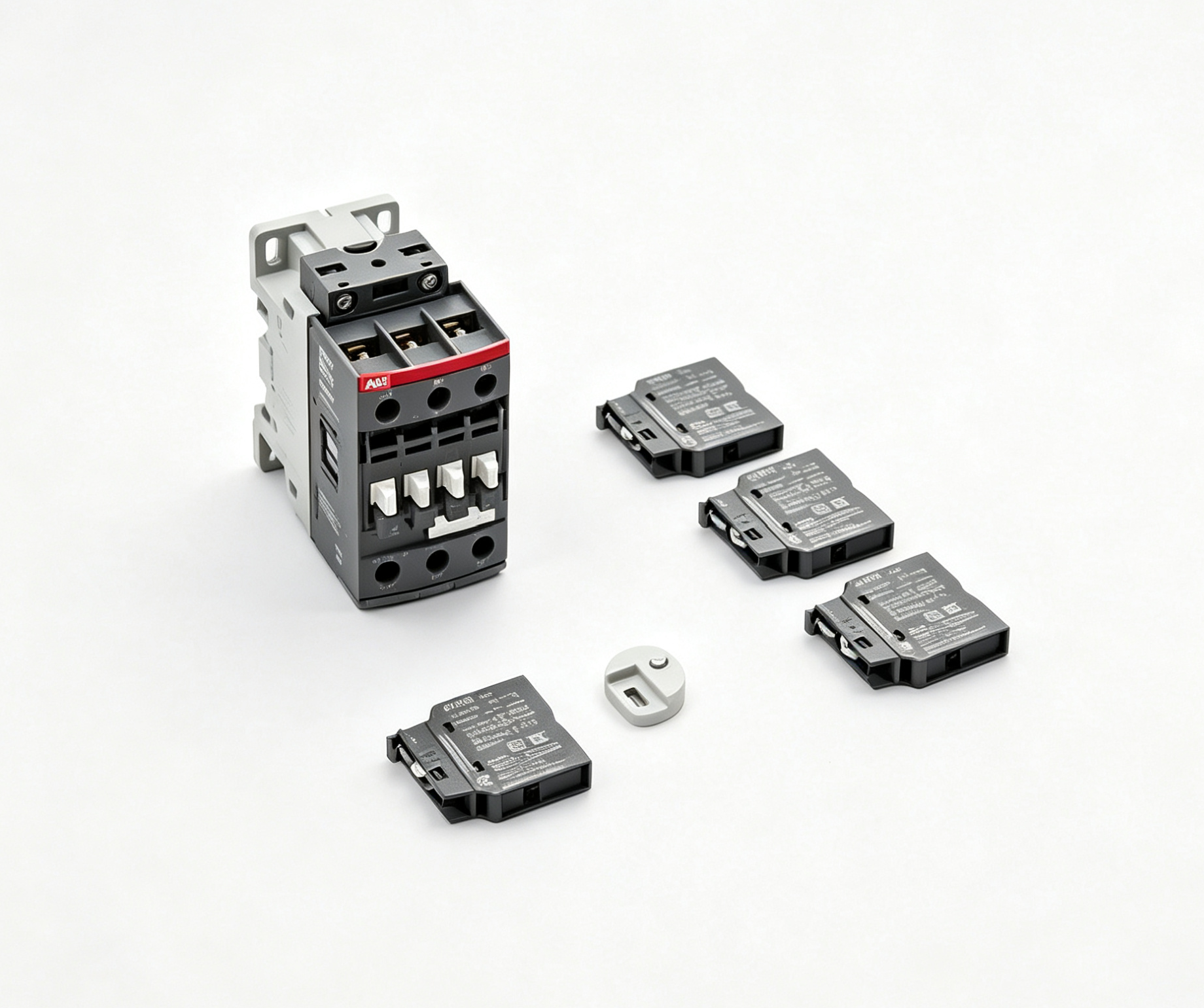

According to ABB technical documentation, the 3HAC048500-001 kit includes one Motor On Contactor, three normally open auxiliary contact blocks, and one normally closed auxiliary contact block. This configuration provides both the main contactor function and the auxiliary feedback contacts required by the associated controller circuit.

The complete kit is particularly relevant to ABB robot controller maintenance because the main contactor and auxiliary contacts work together as part of the controller’s switching and monitoring architecture. The article number 3HAC048500-001 should therefore be used as the primary identification reference when sourcing this particular contactor assembly.

Product Identification

Contactor Set Configuration

The configuration of ABB 3HAC048500-001 is an important part of its identification. ABB specifies that the kit contains one Motor On Contactor together with four auxiliary contact blocks. Three of the auxiliary contacts are normally open and one is normally closed.

The combination is arranged in a specific sequence within the contactor assembly. ABB’s technical note specifies the auxiliary contact arrangement as NO, NC, NO, NO. This arrangement provides the required contact states for the associated robot controller circuit and allows the controller to monitor or control the relevant electrical functions.

The main contactor and auxiliary blocks should therefore be regarded as one defined kit configuration rather than as unrelated individual components. When the complete 3HAC048500-001 article is specified, the auxiliary contact arrangement should correspond to the ABB documented configuration.

Motor On Contactor Function

The Motor On Contactor is the principal switching component within the kit. In an ABB robot controller, the contactor forms part of the electrical switching architecture associated with enabling the robot motor power system.

A contactor allows a control circuit to operate a higher-power electrical circuit through an electrically controlled switching mechanism. Within the robot controller, this arrangement helps separate the control function from the power switching function while providing the electrical interlocking and feedback required by the system.

The 3HAC048500-001 kit is therefore more than a conventional standalone contactor. Its auxiliary contact configuration is specifically arranged for the intended ABB robot controller application and should be maintained when the component is replaced.

Auxiliary Contact Arrangement

The auxiliary contacts provide additional electrical states that can be used by the controller’s monitoring and control circuits. ABB specifies three normally open contacts and one normally closed contact within the 3HAC048500-001 kit.

The auxiliary terminals follow standard contact numbering conventions. ABB’s technical note identifies normally closed terminals using the 1 and 2 numbering pattern and normally open terminals using the 3 and 4 numbering pattern. As a result, the documented terminal numbers for the complete arrangement include 13-14, 21-22, 33-34, and 43-44.

These auxiliary signals allow the associated control system to determine the switching state of the contactor and support the electrical logic used by the robot controller. Correct placement of the auxiliary blocks is therefore important when installing the complete kit.

Application in ABB Robot Controllers

ABB 3HAC048500-001 is associated with ABB robot controller systems and is documented in relation to M2000 and IRC5 controller applications. The component is used within the electrical control architecture of compatible robotic systems.

ABB robot controllers contain multiple electrical switching, protection, control, and monitoring components. The contactor assembly provides an important interface between the controller’s command logic and the power switching circuit associated with the robot motors.

The correct contactor arrangement is especially important in robotic applications because motor power must be controlled according to the controller’s operating state and safety logic. The auxiliary contacts provide additional electrical feedback that supports the controller’s monitoring functions.

Installation and Maintenance Considerations

When replacing ABB 3HAC048500-001, the complete article number should be checked against the controller’s spare-parts documentation. The contactor set contains several individual contact components, and the correct arrangement must be preserved during installation.

ABB’s technical documentation specifically illustrates how the auxiliary contacts are mounted and how the connection terminals are identified. The documented sequence is NO, NC, NO, NO. This sequence should be maintained when installing the auxiliary contact blocks.

Before servicing the contactor assembly, the robot controller should be placed in the appropriate safe service condition according to the applicable ABB maintenance procedure. Electrical power must be isolated in accordance with the relevant safety requirements, and qualified personnel should perform work on the controller’s electrical circuits.

After installation, the contactor operation and auxiliary contact states should be checked according to the applicable robot controller service procedure. Correct electrical feedback is important for reliable controller operation.

Identification for Procurement

For procurement and maintenance records, the complete designation should be recorded as ABB 3HAC048500-001 Contactor Set. The part number identifies the complete kit rather than only one individual contact block.

The kit can also be described as an ABB Robot Contactor Kit or Motor On Contactor Set. However, the ABB article number remains the most precise identification reference. Using the complete number helps distinguish this kit from other ABB contactors, auxiliary contact blocks, and robot controller electrical components.

When checking an existing installation, the physical contactor arrangement and auxiliary contact configuration can be compared with the ABB documentation. This is particularly useful when identifying replacement components for older ABB robot controllers.

Technical Summary

Importance of the Contactor Set in Robot Control

The contactor assembly is an important element of the ABB robot controller’s electrical architecture. While the robot controller’s computer system provides the control logic, the contactor performs the physical switching function required by the electrical power circuit.

The auxiliary contacts provide additional states that can be monitored by the control system. This combination of power switching and auxiliary feedback enables the controller to coordinate its electrical state with the robot’s operating logic.

For maintenance teams, using the correct complete contactor set helps maintain the intended electrical configuration. The defined arrangement of one Motor On Contactor, three normally open auxiliary contacts, and one normally closed auxiliary contact is an important characteristic of ABB 3HAC048500-001.

Conclusion

ABB 3HAC048500-001 is a Contactor Set designed for compatible ABB robot controller systems. ABB’s official technical documentation identifies the kit as containing one Motor On Contactor together with three normally open auxiliary contact blocks and one normally closed auxiliary contact block.

The documented auxiliary arrangement is NO, NC, NO, NO, with terminal numbering including 13-14, 21-22, 33-34, and 43-44. This defined configuration allows the contactor and auxiliary contacts to work together within the electrical switching and monitoring architecture of the robot controller.

For procurement, maintenance, and technical identification, the complete article number ABB 3HAC048500-001 should be used. The associated ABB controller model and electrical configuration should also be verified before installation to ensure that the correct contactor assembly and auxiliary contact arrangement are maintained.
