ABB 3HAC046686-002 SMB Replacement Set for IRC5 Robot Systems

The 3HAC046686-002 is associated with ABB IRC5 robot systems and is documented for selected robot configurations within the ABB robotics product family. The replacement set is relevant to service work involving the SMB assembly and its associated battery and connection hardware. Because ABB robots use different mechanical and electrical configurations, the complete article number should be checked against the robot documentation before installation.

Product Overview

The ABB 3HAC046686-002 belongs to the SMB replacement-set category for ABB robotics equipment. SMB refers to the serial measurement board or related serial measurement assembly used in ABB robot systems. This assembly is an important part of the robot’s position feedback and axis reference architecture.

During robot operation, accurate axis position information is essential for coordinated movement. The SMB assembly works together with the robot’s measurement system to retain and communicate relevant position information. A replacement set is therefore used as part of a defined service procedure rather than as a general-purpose electronic board.

The exact configuration associated with 3HAC046686-002 should be determined from the robot model, serial number, installed SMB assembly and ABB technical documentation. Similar-looking SMB components may have different hardware configurations or mounting arrangements.

ABB 3HAC046686-002 Identification

The primary identification reference is 3HAC046686-002. The complete article number should be retained when searching documentation, preparing maintenance records, or identifying a replacement component. Omitting the final “-002” suffix can lead to confusion with other members of the same 3HAC046686 replacement-set family.

• Manufacturer: ABB
• Part Number: 3HAC046686-002
• Product Type: SMB Replacement Set
• Product Category: ABB Robotics
• Robot Platform: Compatible ABB IRC5 systems
• System Area: SMB / Serial Measurement System
• Application: Robot service and SMB assembly replacement

SMB System Function

The SMB assembly is associated with the serial measurement system of ABB industrial robots. The robot controller needs reliable information about the position of each robot axis in order to calculate and control coordinated movements. The measurement system provides the controller with information required for position management.

The SMB assembly works within this broader measurement architecture. Depending on the robot generation and configuration, the assembly may include a measurement board together with battery-related components, cables, connectors, and mechanical mounting hardware.

For service applications, the replacement of an SMB assembly should therefore be performed as part of the applicable ABB robot maintenance procedure. The correct replacement set depends on the specific robot configuration rather than simply the general robot family.

IRC5 Robot Compatibility

The 3HAC046686-002 is associated with ABB IRC5 robot systems. Public documentation for this article identifies applications within several ABB robot configurations, including selected IRB 6600, IRB 6650, IRB 6640, IRB 6660, IRB 760 and IRB 7600 variants.

These robot families contain multiple configurations, payloads, arm lengths, revisions and mechanical arrangements. Consequently, the presence of an IRC5 controller alone is not sufficient to establish compatibility. The exact robot model and configuration should be compared with the ABB parts list or service documentation.

For example, documentation associates the 3HAC046686-002 with specific IRB 6600 and IRB 6650 configurations as well as other robot variants. This indicates that the suffix is significant and that replacement selection should be based on the complete article number and robot configuration.

Replacement Set Configuration

An SMB replacement set is intended to coordinate the components required for the relevant SMB service configuration. Available documentation identifies the 3HAC046686-002 as an SMB replacement set rather than simply an isolated circuit board.

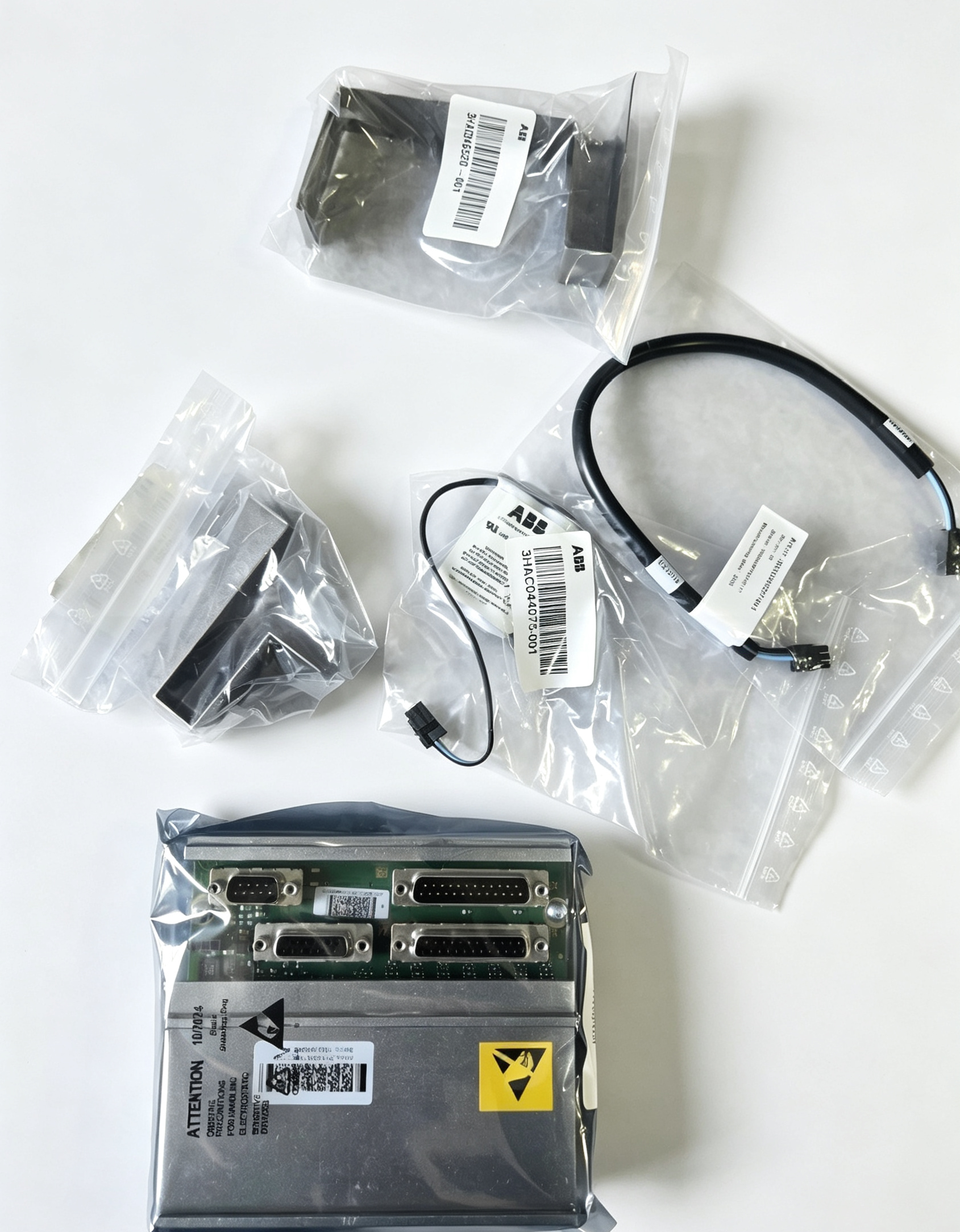

Depending on the documented configuration, the set can involve the SMB measurement hardware together with associated battery, cable, holder, and mounting components. The purpose of providing these components as a defined replacement set is to maintain the required relationship between the measurement board and its supporting hardware.

When preparing for replacement, the contents of the particular kit should be compared with the applicable ABB parts documentation. Individual components should not be substituted solely on the basis of similar dimensions or connector appearance.

Robot Position Measurement

Robot position measurement is a fundamental function of an industrial robot control system. Each controlled axis requires accurate position information so that the controller can coordinate the robot’s movement according to the programmed path.

The SMB-related hardware forms part of the system responsible for maintaining this position information. If the measurement system is serviced or replaced, the controller may require additional procedures to establish the correct axis reference information.

For this reason, replacement of the 3HAC046686-002 should be treated as a technical service operation. After installation, the applicable ABB commissioning and calibration procedures should be followed for the specific robot and controller configuration.

Battery-Backed Measurement Assembly

The SMB arrangement can include battery-supported components used to retain measurement-related information when the robot system is not powered. The battery system is therefore an important part of the service configuration associated with certain ABB robot installations.

When servicing an SMB replacement set, the battery connection and associated cable routing should be checked carefully. The exact battery type, mounting arrangement and connection configuration should be confirmed from the applicable ABB documentation for the robot.

Battery-related service work should also follow the relevant safety and handling requirements. The robot should be electrically isolated according to the applicable service procedure before internal components are disconnected or replaced.

Installation Considerations

Before installing an ABB 3HAC046686-002, the complete part number should be compared with the existing SMB assembly and the robot’s technical documentation. The robot model, serial number, installed board, connectors, mounting position and associated battery hardware are useful references for confirming compatibility.

The physical installation should follow the ABB service instructions for the applicable robot. Connector orientation, cable routing, fastening points and grounding arrangements should be checked before the robot is returned to operation.

Because the SMB assembly participates in the robot’s position measurement system, installation should not be treated as a simple plug-in replacement without following the corresponding service procedure. Any required revolution-counter, calibration, or axis-reference procedure should be completed according to the robot documentation.

Post-Replacement Procedure

After replacement of an SMB-related assembly, the robot controller may require position reference information to be verified or restored. The exact procedure depends on the robot generation, controller configuration, and service documentation.

For applicable ABB robot systems, revolution counters and axis reference information are important because the controller uses these values as part of the robot’s position management. After an SMB replacement, the relevant ABB procedure should therefore be completed before normal automatic operation is resumed.

The replacement process should also include verification of all electrical connections and mechanical fasteners. A service record should retain the installed part number, robot model, serial number, and relevant configuration information for future maintenance.

Maintenance and Identification

Correct identification is particularly important for ABB robot spare parts because multiple components can have similar physical designs while serving different robot configurations. The full reference 3HAC046686-002 should therefore be used rather than a shortened 3HAC046686 reference.

When requesting technical information, useful identification information includes the robot model, controller type, robot serial number, existing SMB part number, hardware revision, connector arrangement and installed location. These details allow the applicable replacement configuration to be checked more accurately.

A photograph of the existing component can provide additional visual information, but photographs alone should not be considered sufficient evidence of compatibility. The complete ABB article number and equipment documentation remain the primary references for replacement selection.

Applications

The ABB 3HAC046686-002 is intended for service applications involving compatible ABB industrial robot systems. Its documented application area is the SMB and serial measurement section of the robot, particularly within compatible IRC5-controlled robot configurations.

The component may therefore be relevant to robot maintenance departments, automation service engineers, system integrators, and industrial facilities operating compatible ABB robots. It can be used when the existing SMB-related assembly requires replacement according to the applicable ABB service documentation.

Summary

The ABB 3HAC046686-002 is an SMB replacement set for compatible ABB robot systems. It is associated with ABB IRC5 installations and selected robot configurations including variants of the IRB 6600, IRB 6650, IRB 6640, IRB 6660, IRB 760 and IRB 7600 families.

The complete article number is important because SMB replacement sets are configuration-specific. The set is related to the robot serial measurement system and may include associated measurement, battery, cable, holder, and mounting components according to the documented configuration. Before installation, the robot model, serial number, existing SMB assembly, connectors and applicable ABB service documentation should be checked carefully.

For maintenance and replacement work, the 3HAC046686-002 should be treated as a defined ABB robotics service component rather than a generic SMB board. Following the correct installation, position-reference and commissioning procedures helps maintain the intended measurement system configuration of the compatible ABB robot.
