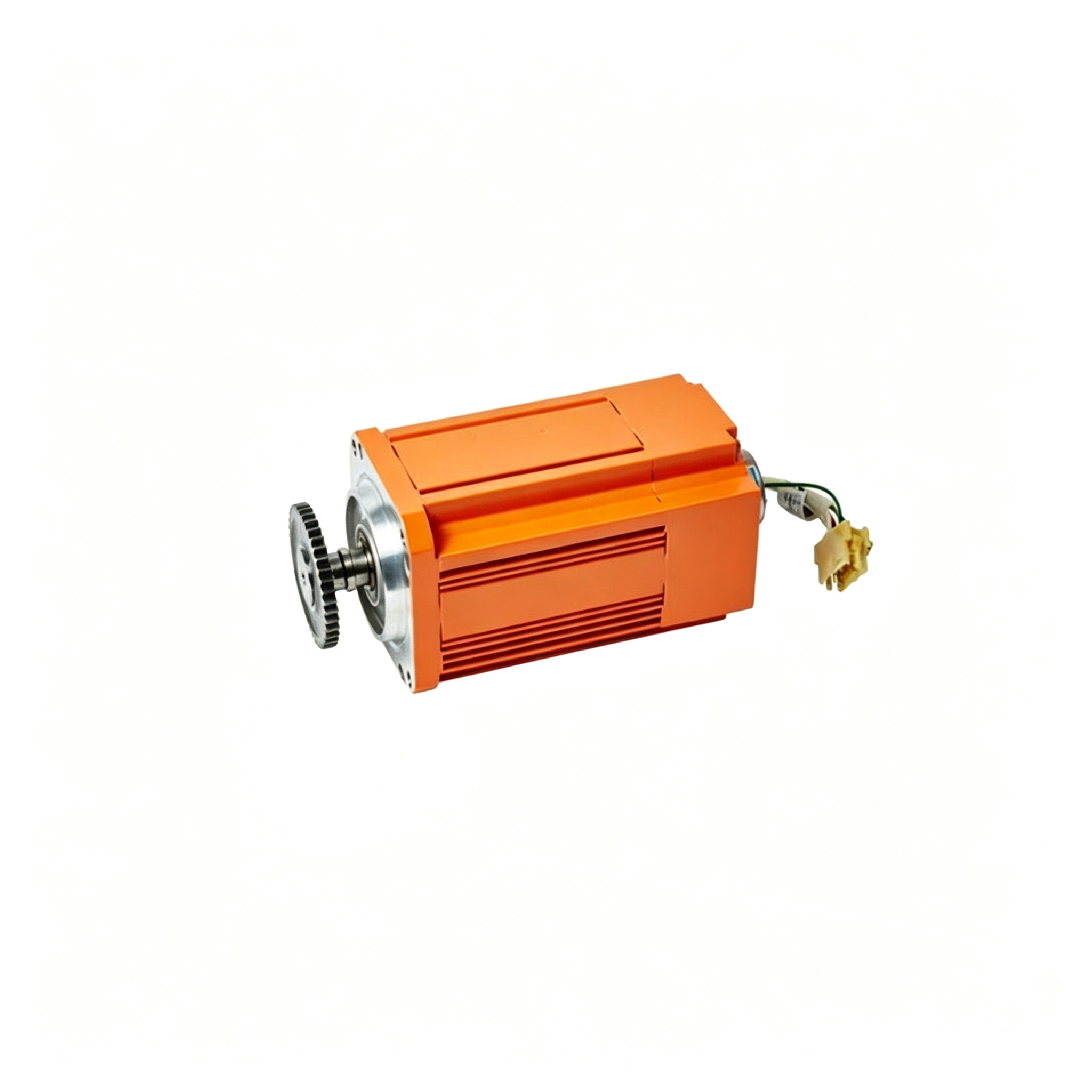

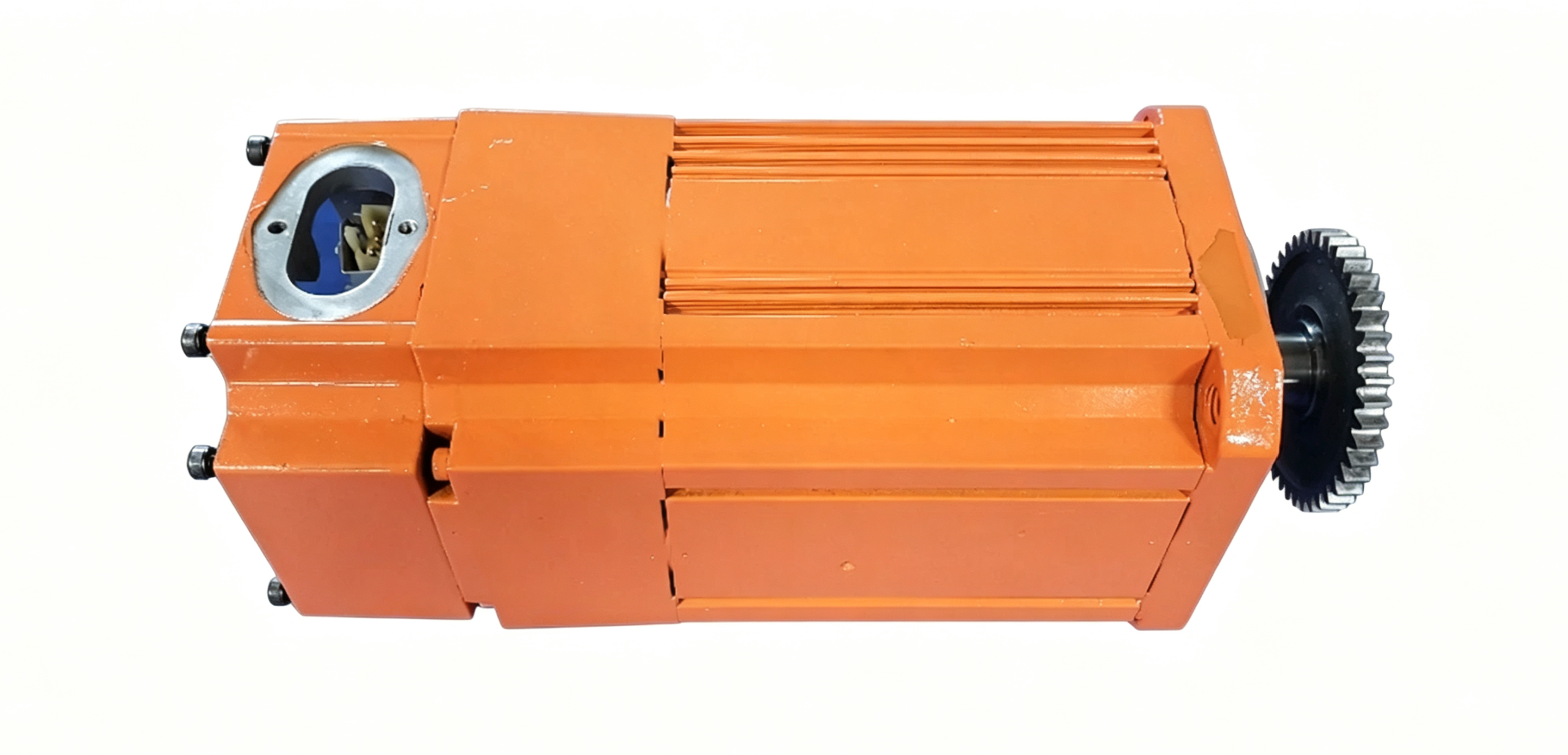

ABB 3HAC034644-003 IRB 2600 Axis-1 AC Motor with Pinion

The ABB 3HAC034644-003 is an AC motor with pinion designed for ABB IRB 2600 industrial robot systems. As an important robot motion component, this motor assembly provides accurate mechanical movement and reliable power transmission for robotic axis operation. It is mainly used for Axis-1 motion control in ABB IRB 2600 robot configurations and plays an essential role in maintaining precise positioning and smooth robotic movement.

ABB develops robotic drive components with high requirements for accuracy, durability, and operational stability. The 3HAC034644-003 combines an AC motor and integrated pinion mechanism, allowing efficient transmission of motor power to the robot joint structure. This design supports demanding industrial automation applications where repeatability, speed control, and mechanical precision are critical factors. :contentReference[oaicite:2]{index=2}

ABB 3HAC034644-003 Product Overview

The ABB 3HAC034644-003 belongs to the ABB Robotics spare parts portfolio and is identified as an AC motor with pinion for the IRB 2600 robot family. According to ABB IRB 2600 spare parts documentation, this component is listed as a Type A Axis-1 AC motor with pinion assembly. :contentReference[oaicite:3]{index=3}

Industrial robots depend on high-performance servo motors to achieve accurate movement across multiple axes. The motor system controls the rotation of robot joints and directly affects positioning accuracy, cycle time, and overall production efficiency.

The ABB 3HAC034644-003 provides a dedicated mechanical solution for IRB 2600 robot motion systems. Its integrated pinion design simplifies the connection between the motor and mechanical transmission system, ensuring efficient torque transfer and stable operation.

Technical Features of ABB 3HAC034644-003

The ABB 3HAC034644-003 is engineered specifically for robotic motion applications. Its design combines electrical drive performance with mechanical transmission capability, making it suitable for precision industrial robot operation.

• Product type: AC Motor with Pinion
• Part number: ABB 3HAC034644-003
• Robot platform: ABB IRB 2600
• Application position: Axis-1 motor
• Motor type: AC servo motor
• Integrated pinion gear structure
• Designed for industrial robotic motion systems
• Suitable for precise joint movement control

The motor assembly is designed to work with ABB robotic control and mechanical systems, providing coordinated movement between electrical control commands and physical robot positioning.

Motion Control Performance

The primary function of ABB 3HAC034644-003 is to provide controlled rotational movement for the first axis of the IRB 2600 robot. Robot Axis-1 is responsible for the main rotational movement of the robot base, which determines the overall working range and positioning capability of the robot arm.

Accurate motor operation is essential for industrial robots performing welding, material handling, assembly, machining, and other automated processes. The AC motor design provides smooth rotation and stable torque output, helping maintain consistent robot performance.

The integrated pinion mechanism improves mechanical transmission efficiency by directly transferring motor power into robot joint movement. This contributes to precise positioning and reliable operation during repeated production cycles.

Application Areas of ABB 3HAC034644-003

The ABB 3HAC034644-003 is mainly applied in ABB IRB 2600 industrial robotic systems. The IRB 2600 series is widely used in manufacturing environments requiring high-speed operation, accurate positioning, and flexible automation capability.

Typical applications include:

• Automotive manufacturing
• Welding automation
• Material handling systems
• Machine tending applications
• Assembly production lines
• Industrial processing equipment
• General robotic automation systems

In these applications, robot motion components must maintain high reliability because any reduction in positioning accuracy can affect production quality and efficiency.

ABB IRB 2600 Robot Integration

The ABB 3HAC034644-003 is designed specifically for integration with ABB IRB 2600 robot platforms. ABB IRB 2600 robots use multiple coordinated servo motors to control different mechanical axes, and each motor must match the specific axis requirements of the robot structure. :contentReference[oaicite:4]{index=4}

The motor with pinion design allows the component to work together with the robot gearbox and mechanical transmission system. This ensures accurate movement control while maintaining the structural performance required for industrial automation.

Using the correct motor model is important because different robot configurations may use different motor types. ABB documentation emphasizes that different motor versions are not interchangeable and replacement components should match the installed motor type. :contentReference[oaicite:5]{index=5}

Mechanical Reliability and Industrial Design

Industrial robot motors operate under continuous acceleration, deceleration, and load changes. The ABB 3HAC034644-003 is designed to withstand these demanding operating conditions while maintaining stable mechanical performance.

The integrated motor and pinion structure reduces installation complexity and provides a compact solution for robot joint drive systems. This design supports easier integration within the limited space available inside robotic mechanisms.

ABB robotic components are developed with focus on precision engineering, allowing robots to maintain repeatable motion accuracy during long production cycles.

Advantages of ABB 3HAC034644-003

The ABB 3HAC034644-003 provides several advantages for industrial robot applications:

• Designed specifically for ABB IRB 2600 robots
• Provides accurate Axis-1 motion control
• Integrated AC motor and pinion structure
• Supports stable robotic positioning
• Improves motion reliability in automation systems
• Suitable for demanding industrial production environments

By using a dedicated ABB robotic motor component, users can maintain the original motion characteristics and performance of the robot system.

Maintenance Considerations

Regular inspection of robot motion components is important to maintain automation system performance. The condition of motors, gear systems, and mechanical transmission parts directly affects robot accuracy and operational stability.

When replacing robot axis motors, engineers should confirm compatibility with the specific robot model and axis configuration. Correct component selection ensures proper mechanical integration and reliable operation.

Conclusion

The ABB 3HAC034644-003 IRB 2600 Axis-1 AC Motor with Pinion is a key robotic motion component designed to provide accurate and reliable movement control for ABB industrial robots. With its integrated motor and pinion structure, it delivers efficient power transmission and stable operation for demanding automation applications.

Designed for ABB IRB 2600 robot systems, the 3HAC034644-003 supports precise axis movement, improved production reliability, and consistent robotic performance in industrial environments.
