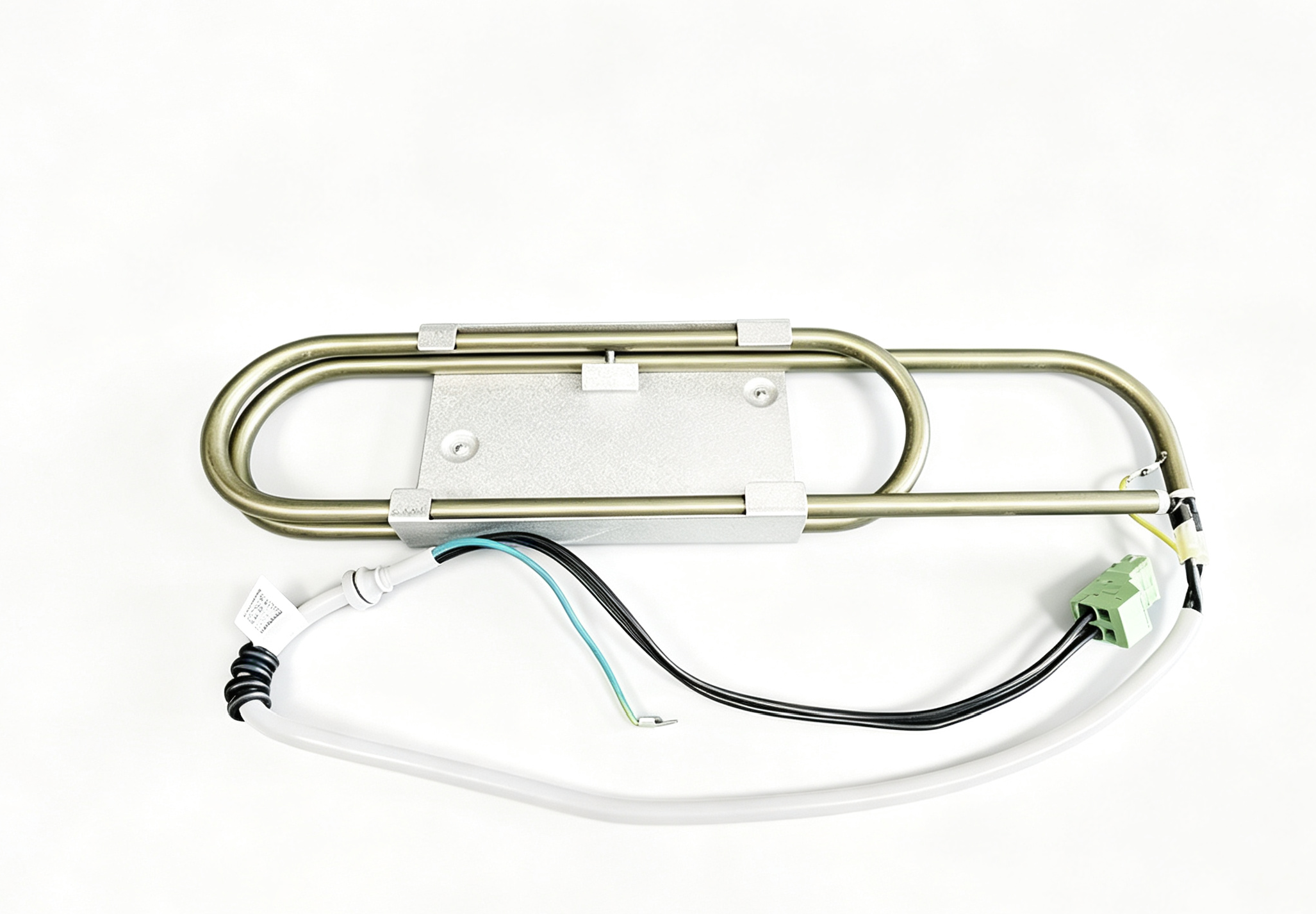

ABB 3HAC032586-001 Bleeder Unit

Product Overview

ABB 3HAC032586-001 is a Bleeder Unit designed for ABB IRC5 industrial robot controller systems and high-voltage drive applications. As an important power management component inside robotic drive systems, this unit provides controlled energy dissipation functions to help manage electrical energy generated during robot operation, braking processes, and system shutdown conditions.

Industrial robots operate through advanced servo drive systems that require accurate control of motors, acceleration, deceleration, and positioning movements. During dynamic operation, motors may generate regenerative energy when slowing down or changing direction. This energy needs to be properly handled to maintain system stability and protect drive components. ABB 3HAC032586-001 provides a dedicated solution for managing this type of electrical energy within ABB robotic systems.

The ABB 3HAC032586-001 product is identified as a Bleeder Unit and belongs to ABB IRC5 robot controller spare parts. It is designed for use with high-voltage drive system applications and is associated with IRC5 controller configurations. The component uses a two-pole connector interface and is part of ABB’s industrial robotics power management architecture. :contentReference[oaicite:2]{index=2}

Technical Characteristics

ABB 3HAC032586-001 is designed according to ABB industrial robotics requirements, focusing on reliable electrical performance, compact integration, and compatibility with ABB robot controller systems. The main function of the unit is related to energy dissipation within the drive system, especially during conditions where regenerated electrical energy needs to be controlled.

The unit is categorized as a Bleeder Unit and is designed for ABB high-voltage drive system applications. It is used together with compatible drive configurations to provide a controlled discharge path for stored electrical energy. The component has a compact structure suitable for installation inside industrial robot controller environments. :contentReference[oaicite:3]{index=3}

According to available technical information, ABB 3HAC032586-001 has an ABB type designation of 54×13.5×5 and a product net weight of approximately 1.64 kg. The unit includes a 2-pole connector connection designed for integration with the corresponding ABB drive system. :contentReference[oaicite:4]{index=4}

The design of ABB Bleeder Units allows robotic systems to maintain proper voltage control by converting excess electrical energy into thermal energy through the resistor assembly. This process helps prevent unwanted voltage increases in the drive circuit.

Functional Description

The primary function of ABB 3HAC032586-001 is to dissipate regenerative energy produced by the robot drive system. When robot axes decelerate, servo motors can operate temporarily as generators, feeding electrical energy back into the drive circuit. Without an appropriate energy management component, this regenerated energy may increase the DC bus voltage beyond acceptable limits.

The Bleeder Unit provides a controlled method for releasing this excess energy. By converting electrical energy into heat, the unit helps maintain stable voltage levels and supports the safe operation of drive electronics.

In ABB IRC5 robot controller systems, stable energy management is essential because robotic applications often involve rapid acceleration, frequent positioning changes, and continuous motion cycles. These operating conditions create repeated energy variations that must be effectively controlled.

ABB 3HAC032586-001 works as a supporting component within the robot drive architecture. Although it does not directly control robot movement, it contributes significantly to the reliability and protection of the overall servo drive system.

Application Areas

ABB 3HAC032586-001 is mainly used in ABB industrial robot systems equipped with IRC5 controllers and high-voltage drive configurations. It is suitable for automation environments where precise motion control and reliable energy management are required.

Typical application areas include automotive manufacturing, welding systems, assembly lines, material handling, painting applications, and industrial production automation.

In automotive manufacturing, robots frequently perform high-speed repetitive movements. Rapid acceleration and braking cycles create significant regenerative energy conditions. The ABB Bleeder Unit helps maintain drive system stability during these operations.

In production environments requiring continuous robot operation, reliable power management components are essential. ABB 3HAC032586-001 supports long-term system performance by helping protect drive circuits from excessive voltage conditions.

Integration with ABB IRC5 Robot Controllers

ABB IRC5 controllers are widely used in industrial robotics applications due to their advanced motion control capabilities and flexible system architecture. The controller system includes multiple electronic and power components that work together to achieve precise robot movement.

ABB 3HAC032586-001 is integrated as part of the drive system supporting the IRC5 controller platform. Its role is to assist with electrical energy handling and maintain proper operating conditions for the robot’s servo drive system.

Proper integration requires compatibility with the corresponding ABB drive configuration, connector arrangement, and system architecture. Engineers must consider controller type, drive system design, and application requirements when selecting suitable components.

The modular design of ABB robot controller components allows maintenance teams and system engineers to manage individual functional units efficiently while maintaining the overall performance of the robotic system.

Engineering Advantages

ABB has extensive experience in industrial robotics, automation control, and motion technology. ABB components are designed to provide reliable performance in demanding manufacturing environments where precision and availability are critical.

The main advantages of ABB 3HAC032586-001 include dedicated compatibility with IRC5 robotic systems, efficient regenerative energy management, compact installation design, and reliable operation within industrial drive environments.

By using a dedicated ABB Bleeder Unit, engineers can maintain the original electrical design principles of the robot controller system. This helps ensure proper interaction between drive components and supports stable robot operation.

Effective energy management also contributes to improved system reliability by reducing electrical stress on sensitive drive components. This is particularly important in industrial robots that operate continuously with frequent motion cycles.

Importance in Industrial Robotics

Modern industrial robots require highly reliable drive systems because production processes depend on accurate and uninterrupted operation. Every component inside the controller and drive system contributes to overall robot performance.

Energy dissipation components such as ABB 3HAC032586-001 play an important role in maintaining electrical stability. They support the protection of power electronics and help ensure that robotic systems can operate safely under changing load conditions.

For automation engineers, understanding the function of supporting components is essential when designing, maintaining, and optimizing robotic systems. ABB 3HAC032586-001 represents an important part of the energy management structure within ABB IRC5 robot platforms.

Conclusion

ABB 3HAC032586-001 Bleeder Unit is a specialized energy dissipation component designed for ABB IRC5 robot controller high-voltage drive systems. It provides controlled handling of regenerative energy and supports stable operation of industrial robotic equipment.

With ABB engineering design, reliable electrical performance, and compatibility with IRC5 automation platforms, ABB 3HAC032586-001 helps improve drive system stability and contributes to efficient operation of advanced industrial robot applications.
