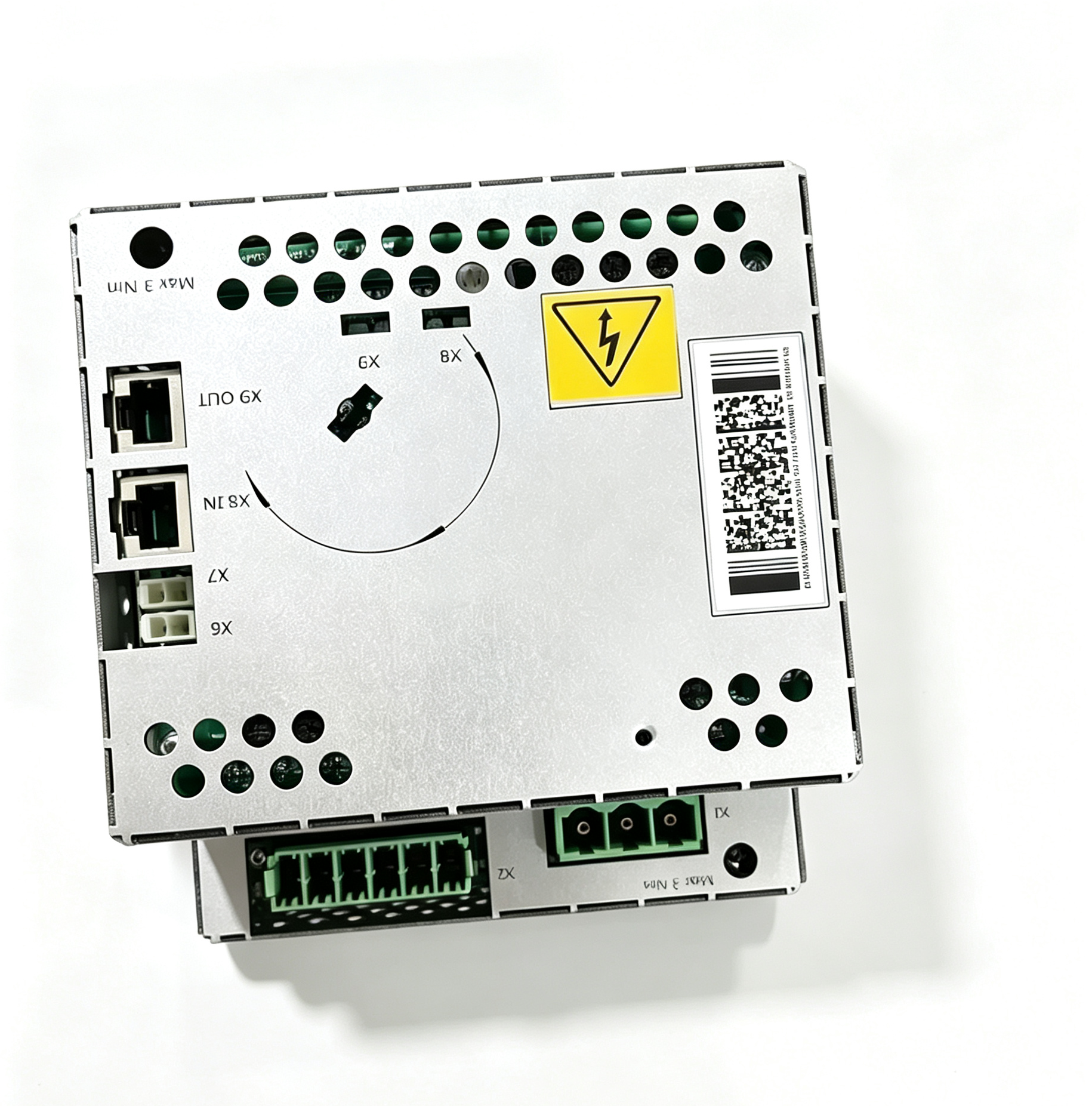

ABB 3HAC030923-001 DSQC 664 Drive Unit ADU HV for IRC5 Robot Controller Additional Drive Axis Technical Guide

The ABB 3HAC030923-001 is the DSQC 664 Drive Unit, also designated as the ADU HV (Additional Drive Unit High Voltage), developed for ABB IRC5 robotic controller systems. It extends the motion control capability of the IRC5 platform by providing drive functionality for additional robot axes or external axis applications requiring precise synchronized motion. As part of the ABB robotics drive architecture, the DSQC 664 contributes to accurate positioning, stable servo performance and reliable industrial automation.

Industrial robotic systems frequently require more than the standard six robot axes. Positioners, linear tracks, rotary tables and external handling equipment must operate in perfect synchronization with the robot. The ABB DSQC 664 provides the additional drive resources required to control these auxiliary axes while maintaining coordinated motion through the IRC5 controller.

Designed according to ABB’s modular controller philosophy, the DSQC 664 integrates directly with the IRC5 drive system. The modular architecture simplifies controller expansion while maintaining high system reliability, efficient maintenance and consistent motion performance throughout complex robotic production environments. :contentReference[oaicite:2]{index=2}

Product Features

• Manufacturer: ABB
• Product Number: 3HAC030923-001
• Model: DSQC 664
• ABB Designation: ADU HV
• Product Type: Additional Drive Unit
• Designed for ABB IRC5 Robot Controllers
• Supports additional servo axis control
• High-performance digital drive technology
• Integrated with IRC5 motion control architecture
• Modular installation design
• Suitable for external axis applications
• Designed for industrial robotic automation

Technical Specifications

Drive Architecture Overview

The ABB DSQC 664 functions as an expansion drive within the IRC5 control platform. Rather than operating independently, it works together with the main drive system to deliver synchronized servo control for additional mechanical axes. This architecture enables robots to coordinate movement with external positioning devices while maintaining accurate trajectory planning.

Typical applications include robot positioners, servo turntables, transfer systems, indexing mechanisms and synchronized production equipment. Through coordinated motion algorithms implemented by the IRC5 controller, all axes operate as one integrated robotic system, improving productivity and motion precision.

Operating Principle

The DSQC 664 receives motion commands from the IRC5 controller through the internal control network. It converts these commands into precisely regulated power output for servo motors controlling additional robot axes. Closed-loop feedback continuously monitors motor position and speed, allowing accurate synchronization with the primary robot arm.

By continuously adjusting motor current and torque according to motion requirements, the drive unit maintains smooth acceleration, accurate positioning and stable operation during demanding robotic production cycles. This architecture helps improve path accuracy, repeatability and coordinated movement across the complete automation cell.

Installation and System Integration

The ABB 3HAC030923-001 DSQC 664 is designed for installation within compatible ABB IRC5 controller cabinets as part of the modular drive system architecture. Its standardized mechanical design allows it to integrate seamlessly with other IRC5 drive modules, enabling system expansion without significant modifications to the existing controller structure.

During installation, the drive unit is connected to the controller backplane, power distribution system and servo motor interfaces according to the recommended ABB configuration. Correct installation practices, including secure electrical connections, proper grounding and adequate cabinet ventilation, are essential for achieving reliable long-term operation.

One of the key advantages of the IRC5 platform is its modular scalability. As production requirements evolve, additional external axes such as rotary positioners, linear tracks and handling devices can be integrated using compatible drive units like the DSQC 664. This flexible architecture simplifies future system upgrades while maintaining consistent controller performance.

The drive unit communicates continuously with the IRC5 controller, allowing centralized diagnostics, parameter management and motion coordination. This integrated communication architecture supports efficient commissioning and simplifies maintenance throughout the operational life of the robotic system.

Industrial Applications

The ABB 3HAC030923-001 is widely used in advanced robotic manufacturing environments requiring coordinated motion between industrial robots and auxiliary equipment. It provides the additional servo drive capability necessary for applications where multiple mechanical axes must operate together with high precision.

In automotive manufacturing, the DSQC 664 is commonly applied to robotic welding cells, body assembly systems and automated material handling equipment. External positioners and rotary tables controlled by the additional drive unit allow workpieces to be accurately positioned while the robot performs welding, sealing or assembly operations.

In metal fabrication and machining industries, synchronized external axes improve accessibility to complex components while reducing manual repositioning. The drive unit also supports palletizing systems, packaging equipment, laser processing cells and robotic machining applications where coordinated movement contributes to higher productivity and consistent process quality.

Other industries including electronics manufacturing, food processing, logistics automation and heavy industrial production benefit from the flexibility provided by the ABB DSQC 664. Its ability to extend the motion capability of the IRC5 controller makes it an important component in high-performance robotic automation systems.

Advantages of ABB 3HAC030923-001

• Designed specifically for ABB IRC5 robotic controller systems.
• Provides additional servo drive capability for external robot axes.
• Supports synchronized multi-axis robotic motion.
• Modular architecture simplifies controller expansion.
• High positioning accuracy and stable servo performance.
• Integrated diagnostics through the IRC5 controller platform.
• Supports automated production with improved flexibility.
• Reliable communication with the robotic control system.
• Suitable for demanding industrial automation environments.
• Engineered according to ABB robotics quality standards.

Maintenance and Operational Reliability

The ABB DSQC 664 is designed for continuous operation in industrial robotic environments where reliability is essential. Preventive maintenance should include inspection of electrical connectors, cooling airflow, cabinet cleanliness and mechanical mounting to ensure stable operating conditions.

The IRC5 controller continuously monitors the status of installed drive modules, allowing maintenance personnel to identify abnormal operating conditions through built-in diagnostic functions. This centralized monitoring capability supports predictive maintenance strategies and reduces unexpected production interruptions.

Maintaining proper cabinet temperature, verifying power supply stability and following recommended service procedures help maximize the operational life of the drive unit. Periodic inspection of communication connections and servo system parameters further contributes to dependable long-term robotic performance.

Frequently Asked Questions

What is ABB 3HAC030923-001 used for?

ABB 3HAC030923-001 DSQC 664 is an additional drive unit used with ABB IRC5 robot controllers to provide servo drive control for external robot axes and coordinated motion applications.

Is the DSQC 664 a robot controller?

No. The DSQC 664 is not a standalone controller. It is a drive unit that operates together with the ABB IRC5 controller to expand the number of controllable servo axes.

Which systems are compatible with the ABB DSQC 664?

The ABB 3HAC030923-001 is designed for compatible ABB IRC5 robotic controller systems that require additional drive capacity for external axes or auxiliary motion equipment.

What are typical applications for the DSQC 664?

Typical applications include robotic positioners, servo rotary tables, linear tracks, transfer mechanisms, automated welding cells, material handling systems and coordinated robotic manufacturing processes.

Conclusion

The ABB 3HAC030923-001 DSQC 664 ADU HV Drive Unit is an essential component within the ABB IRC5 robotic control platform. By extending servo drive capability for additional mechanical axes, it enables complex robotic systems to achieve highly coordinated motion, improved positioning accuracy and greater manufacturing flexibility.

With its modular architecture, seamless integration with IRC5 controllers, reliable servo performance and support for advanced industrial automation, the ABB DSQC 664 provides an efficient solution for robotic production systems requiring synchronized external axis control. Whether applied in automotive manufacturing, machine tending, material handling or precision assembly, this drive unit contributes to higher productivity, enhanced system reliability and long-term operational efficiency.
