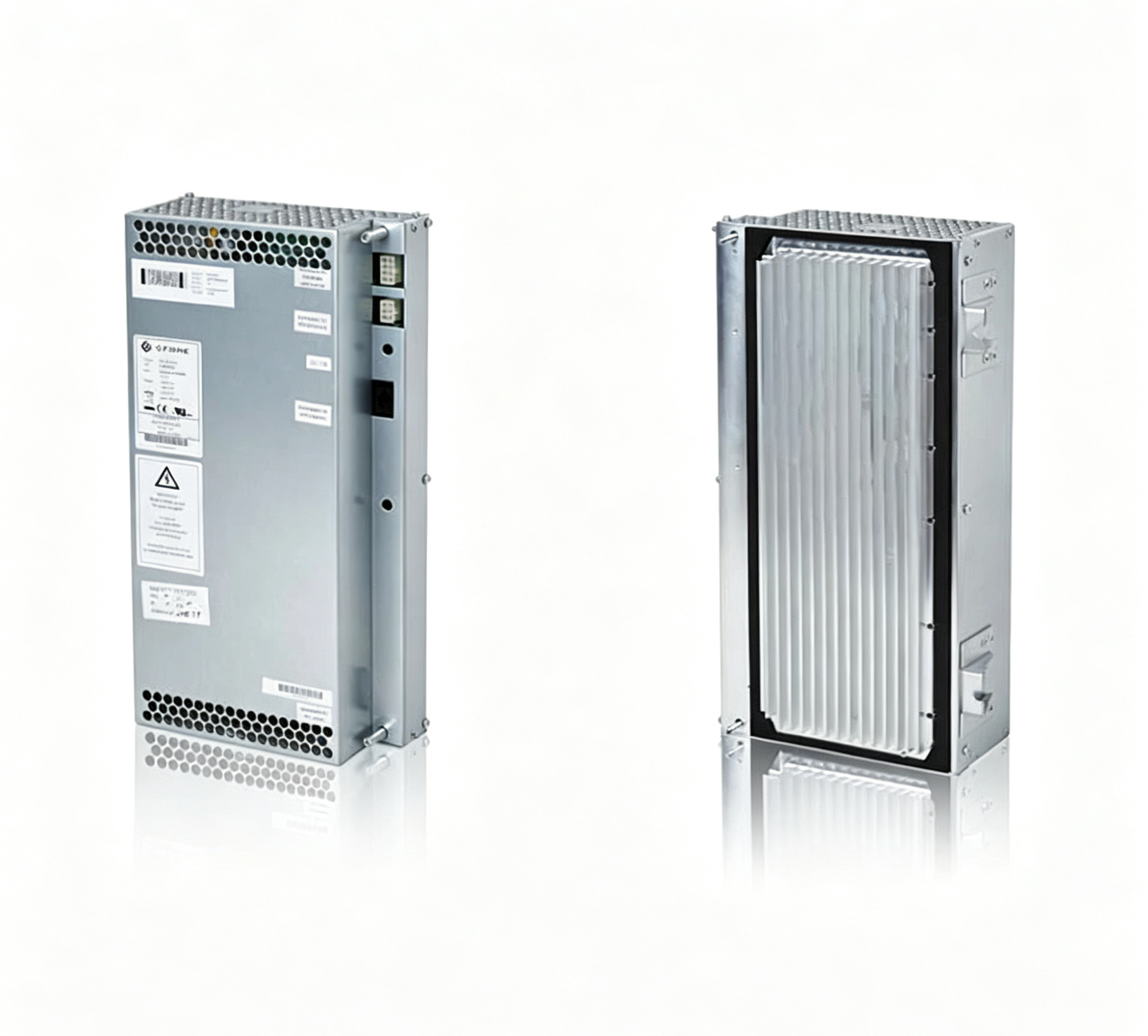

ABB 3HAC020466-001 DSQC 627 Power Supply

The ABB 3HAC020466-001 is the DSQC 627 Power Supply developed for ABB IRC5 robot drive systems. As a critical component of the controller and drive architecture, it converts incoming AC power into regulated DC power required by drive electronics, controller modules and communication systems. Stable power conversion is essential for maintaining precise robot motion, dependable communication and reliable industrial automation performance.

Designed specifically for ABB Robotics applications, the DSQC 627 Power Supply supports continuous operation in demanding manufacturing environments. Its industrial-grade construction and reliable electrical performance make it suitable for robotic production lines operating around the clock in automotive manufacturing, electronics assembly, metal fabrication, material handling and logistics automation. :contentReference[oaicite:2]{index=2}

The module is engineered to provide dependable voltage regulation while protecting sensitive controller electronics from electrical disturbances. By maintaining a stable DC power supply, the ABB 3HAC020466-001 contributes to improved controller reliability, reduced downtime and consistent robot productivity throughout the equipment lifecycle.

Product Features

• Manufacturer: ABB
• Part Number: 3HAC020466-001
• ABB Type Designation: DSQC 627
• Product Type: Power Supply
• Designed for ABB IRC5 Drive Systems
• 230 VAC Input
• Regulated 24 VDC Output
• Industrial Power Conversion Module
• Reliable Voltage Regulation
• Suitable for Continuous Industrial Operation

Technical Specifications

Role within the IRC5 Drive System

The DSQC 627 Power Supply provides regulated electrical power for the internal controller architecture and drive system electronics. It supports processor units, communication interfaces, motion control hardware and auxiliary circuits, helping ensure reliable robot operation under continuous industrial workloads.

High-quality voltage regulation contributes to stable controller startup, consistent communication between system modules and accurate robot motion control. Reliable power conversion is one of the key factors influencing the operational stability and long-term reliability of ABB IRC5 robotic systems.

Installation and Configuration

The ABB 3HAC020466-001 DSQC 627 Power Supply should be installed only by qualified service personnel who are experienced with ABB IRC5 robot controllers and industrial electrical systems. Before beginning any installation or replacement work, the robot controller must be completely disconnected from the incoming power supply and verified to be in a safe de-energized condition. Lockout and tagout procedures should always be followed to ensure personnel safety.

The power supply is designed for installation inside the IRC5 controller cabinet and should be mounted securely using the designated mounting points. Proper mechanical installation helps minimize vibration while ensuring reliable electrical connections throughout long-term industrial operation. All connectors should be inspected for cleanliness and securely fastened before energizing the controller.

Adequate ventilation is essential for maintaining stable operating temperatures. Air passages inside the controller cabinet should remain unobstructed, and cooling fans should be inspected regularly to ensure efficient airflow. Maintaining appropriate environmental conditions contributes significantly to the long-term reliability of the power supply.

After installation, technicians should perform a complete startup procedure to verify that the output voltage is within specification, controller diagnostics report normal operation and all communication modules initialize correctly. Any abnormal alarm or fault indication should be investigated before returning the robot system to production.

Correct installation and commissioning help maximize controller reliability, reduce unexpected downtime and improve the operational efficiency of ABB robotic automation systems.

Industrial Applications

The ABB 3HAC020466-001 DSQC 627 Power Supply is widely used in ABB IRC5 robotic systems operating across numerous industrial sectors. Stable electrical power is essential for maintaining controller performance, precise robot motion and reliable communication throughout automated manufacturing processes.

Automotive manufacturing plants utilize ABB robots for spot welding, arc welding, painting, sealing and assembly operations. The DSQC 627 provides dependable power for controller electronics, enabling continuous robot operation in high-volume production environments.

Electronics manufacturing facilities depend on ABB robotic systems for precision assembly, testing and material handling. Consistent DC power supports accurate positioning, repeatable motion and uninterrupted production cycles.

The module is also widely applied in logistics automation, palletizing, packaging, plastics processing, machine tending, food and beverage production, pharmaceutical manufacturing, metal fabrication and warehouse automation where continuous controller availability is required.

Its robust design makes it suitable for replacement during preventive maintenance programs as well as integration into newly commissioned IRC5 robotic systems.

Advantages of ABB 3HAC020466-001

• Designed specifically for ABB IRC5 drive systems.
• Stable regulated 24 VDC output.
• Reliable AC-to-DC power conversion.
• Supports controller, drive and communication modules.
• Industrial-grade electrical reliability.
• High operating efficiency.
• Compact design for controller cabinet installation.
• Long operational service life.
• Suitable for continuous industrial operation.
• Manufactured according to ABB robotics quality standards.

Maintenance and Diagnostics

Routine preventive maintenance is essential for maintaining the performance of the ABB 3HAC020466-001 DSQC 627 Power Supply. Periodic inspections help detect potential issues before they develop into equipment failures, reducing maintenance costs and improving production availability.

Technicians should inspect electrical terminals, cable assemblies, mounting hardware and cooling components at scheduled intervals. Any signs of overheating, loose connections or physical damage should be corrected immediately to maintain reliable operation.

Controller diagnostic software should be used to monitor system status, voltage conditions and alarm history. Continuous monitoring allows maintenance personnel to identify abnormal operating conditions and implement corrective actions before controller performance is affected.

When troubleshooting power-related faults, engineers should inspect the complete electrical distribution system, including the incoming power supply, distribution modules, controller electronics and external equipment. A systematic diagnostic approach helps minimize repair time and ensures accurate fault identification.

Maintaining detailed maintenance records supports predictive maintenance strategies and contributes to extended service life for both the power supply and the overall IRC5 robotic control system.

Frequently Asked Questions

What is ABB 3HAC020466-001?

ABB 3HAC020466-001 is the DSQC 627 Power Supply designed for ABB IRC5 robot drive systems and industrial robot controllers.

What is the primary function of the DSQC 627?

The module converts AC input power into regulated 24 VDC output, supplying stable electrical power to controller electronics, drive modules and communication systems.

Which controller platform uses this power supply?

The ABB 3HAC020466-001 is designed for compatible ABB IRC5 robotic controller and drive system configurations.

Which industries commonly use this module?

Typical applications include automotive manufacturing, electronics assembly, logistics automation, packaging, machine tending, pharmaceutical production, food processing, metal fabrication and other industrial robotic automation systems.

Conclusion

The ABB 3HAC020466-001 DSQC 627 Power Supply is an essential component within the ABB IRC5 robot drive system, delivering reliable regulated DC power for controller electronics, communication modules and motion control hardware. Its industrial-grade construction and dependable electrical performance help maintain stable robot operation in demanding manufacturing environments.

Whether installed in automotive production lines, electronics manufacturing facilities, logistics automation systems or other industrial robotic applications, the ABB 3HAC020466-001 provides the reliability and performance required for continuous operation. As part of the ABB IRC5 platform, it supports efficient production, reduced downtime and long-term operational stability, making it an important solution for modern industrial automation systems.
