Product Overview

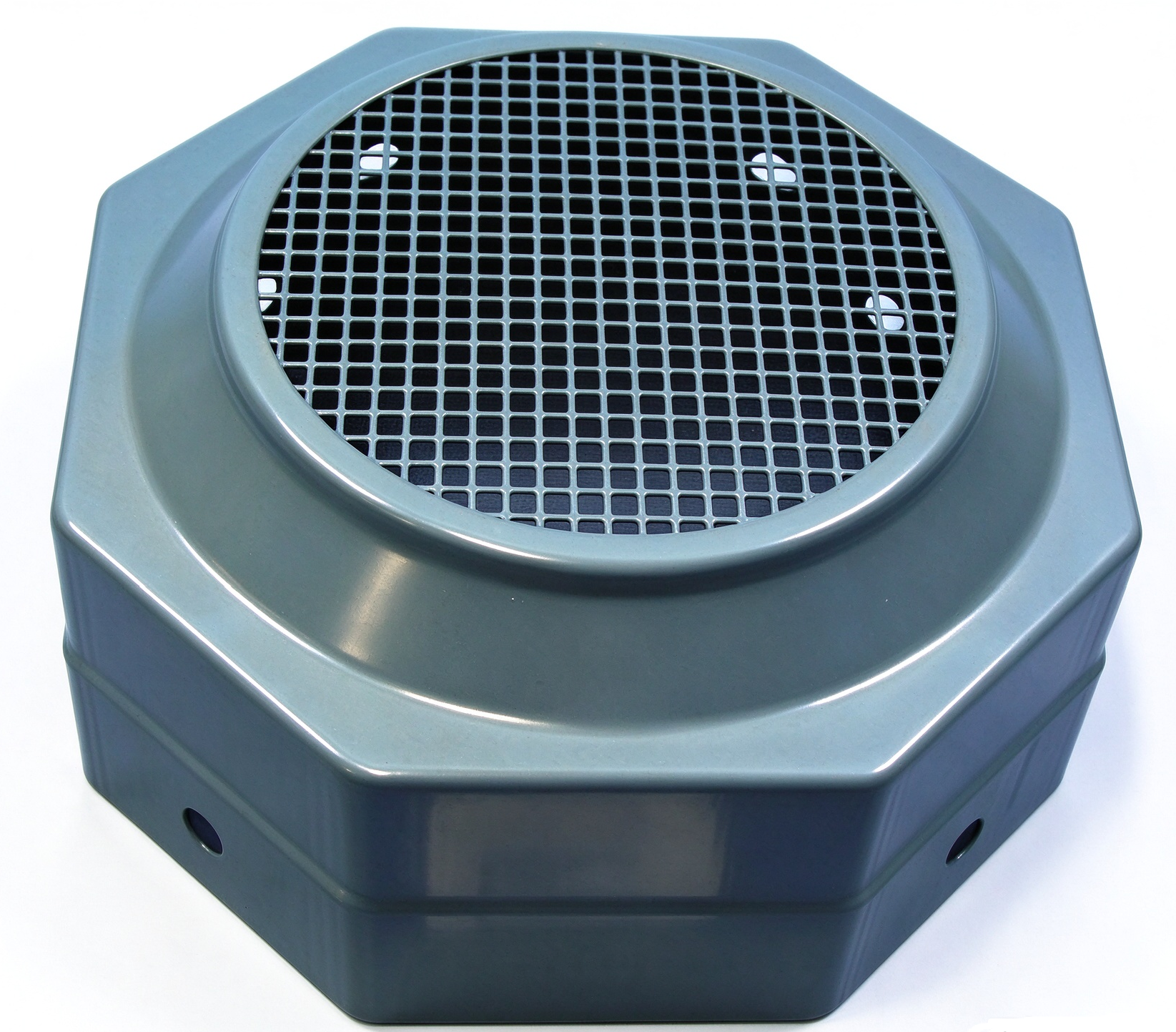

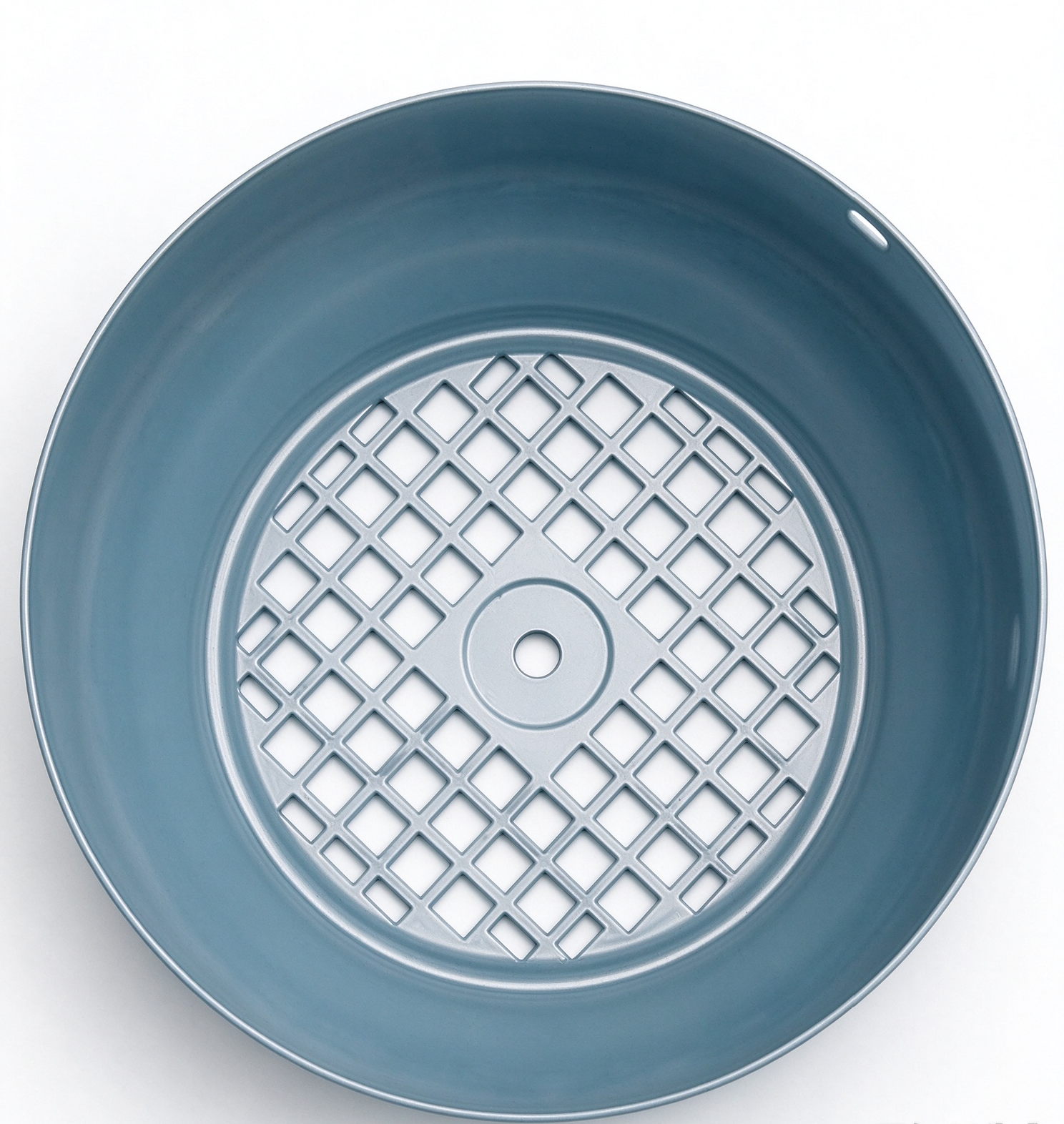

The ABB 3GZF314718-30 is a motor fan hood associated with ABB low-voltage electric motor assemblies. It is identified in ABB spare-parts documentation as a component used for motor frame size 180 configurations in the M3GP, M3HP, M3JP, and M3KP motor families. The component belongs to the mechanical cooling arrangement of the motor and is positioned around the fan area at the rear of the motor assembly.

A motor fan hood is an important mechanical element in an air-cooled electric motor. It provides a defined enclosure around the external cooling fan and helps guide the airflow generated by the fan along the motor housing. The arrangement supports heat dissipation from the motor surface and contributes to the intended thermal performance of the complete motor assembly.

The product number 3GZF314718-30 is particularly useful when identifying a specific ABB motor component because ABB uses different part numbers for fan hoods associated with different motor frame sizes and construction variants. Selecting the correct component therefore requires attention to the motor family, frame size, pole configuration, and the applicable ABB spare-parts documentation.

Motor Fan Hood Function

The primary function of the fan hood is to surround and protect the motor cooling fan while establishing the intended airflow path. During motor operation, the fan rotates together with the motor shaft and produces an air stream over the external motor surface. The fan hood helps control this airflow and maintains the physical arrangement required for the motor’s cooling system.

The fan hood also serves as a mechanical protective structure around the rotating fan. Its position separates the rotating fan from the surrounding installation environment while maintaining suitable air circulation. Because the fan hood is part of the motor’s mechanical construction, its dimensions and mounting arrangement must correspond to the motor frame for which it is specified.

In an industrial motor installation, effective cooling is directly related to the motor’s ability to operate within its designed thermal conditions. A correctly matched fan hood supports the original cooling arrangement by maintaining the relationship between the fan, hood, motor housing, and surrounding airflow. It should therefore be considered a functional part of the complete motor assembly rather than simply an external cover.

Compatibility and Motor Frame

ABB spare-parts information associates the 3GZF314718-30 with motor size 180 and configurations with two or more poles in the relevant M3GP/HP/JP/KP motor families. In ABB documentation, the component is listed as a fan hood or motor fan enclosure component within the spare-parts structure.

The motor frame size is an important identification parameter because fan hoods are mechanically matched to the dimensions of the corresponding motor. A fan hood designed for one frame size should not automatically be assumed to fit another frame size, even when the motors belong to the same general product family. The mounting geometry, fan dimensions, enclosure dimensions, and airflow arrangement can vary between motor sizes.

For this reason, the complete ABB motor designation and the motor’s identification information should be considered when selecting 3GZF314718-30. The part number provides the most direct reference for identifying the specific ABB component, while the motor frame and construction information provide additional confirmation of compatibility.

Application in ABB Electric Motors

The ABB 3GZF314718-30 is intended for applications involving compatible ABB electric motor assemblies where the specified fan hood forms part of the external cooling system. ABB M3GP motors are industrial low-voltage motor products designed for a wide range of machinery and process applications. Their mechanical cooling arrangement allows heat generated during operation to be transferred from the motor housing to the surrounding air.

In equipment such as pumps, fans, compressors, conveyors, machine tools, and industrial processing machinery, the electric motor may operate for extended periods under varying loads. The cooling fan and fan hood work together to maintain airflow around the motor body. The condition and correct mechanical fit of the fan hood are consequently relevant to the overall motor cooling arrangement.

The 3GZF314718-30 can also be relevant when maintaining an existing ABB motor installation. When a motor fan hood needs to be identified, the ABB part number allows engineers and maintenance personnel to distinguish the required component from visually similar parts used on other frame sizes or motor families.

Mechanical Design Considerations

Because the fan hood is a mechanical component, correct installation depends on the physical configuration of the corresponding motor. The hood must align with the motor’s fan and mounting arrangement and provide sufficient clearance for the rotating components. The surrounding ventilation path should remain unobstructed so that the cooling fan can produce the intended airflow.

The fan hood should also remain securely positioned during normal motor operation. Electric motors can generate vibration as a result of rotation, load conditions, and installation characteristics. A correctly matched mechanical component helps maintain the intended relationship between the fan, hood, and motor housing throughout operation.

When working with an existing motor, the original motor identification plate and mechanical configuration can provide useful information for confirming the appropriate spare part. Comparing the ABB part number with the applicable spare-parts list is recommended before installation, particularly when several motor generations or frame sizes are present within the same facility.

Maintenance and Component Identification

Motor cooling components are important during routine inspection because the cooling system directly influences the motor’s thermal operating conditions. Maintenance personnel may inspect the fan hood for mechanical deformation, obstruction, loose mounting, or other conditions that could interfere with airflow or the safe operation of the cooling fan.

The ABB 3GZF314718-30 should be identified by its complete part number rather than by appearance alone. Components used on different ABB motors can have similar external characteristics while having different mounting dimensions or application ranges. The part number, motor size, motor type, and pole configuration provide a more reliable basis for component identification.

ABB documentation lists related fan and motor components separately within its spare-parts structure. This distinction is useful because a fan hood, cooling fan, mounting element, and other motor components perform different functions even though they are installed in the same general area. Accurate identification helps maintain the intended mechanical configuration of the motor.

Technical Reference

Selection Guidelines

When selecting ABB 3GZF314718-30, the first reference should be the complete ABB part number. The associated motor should then be checked for its frame size and motor family. For the documented application, the part number is associated with size 180 motors in the relevant M3GP/HP/JP/KP series. This provides a useful starting point for confirming mechanical compatibility.

Engineers should also consider the complete motor construction when replacing or specifying a fan hood. Differences in motor generation, enclosure design, fan arrangement, and mounting configuration may affect component compatibility. Where an installation contains several ABB motor types, checking the exact motor identification against the corresponding spare-parts documentation helps prevent incorrect component selection.

The 3GZF314718-30 designation can therefore be used as a precise reference in equipment records, maintenance documentation, technical inquiries, and spare-parts identification. Combining the ABB part number with the motor frame size and motor type gives a clear description of the component’s intended application.

Conclusion

ABB 3GZF314718-30 is a dedicated motor fan hood associated with ABB electric motor assemblies, particularly the documented size 180 configurations within the M3GP, M3HP, M3JP, and M3KP motor families. Its role is closely related to the motor’s external cooling arrangement, where the fan hood surrounds the cooling fan and supports the intended airflow path around the motor housing.

Correct identification of this component is important because ABB uses different spare-part numbers for different motor sizes and configurations. The complete 3GZF314718-30 part number, together with the motor frame size and applicable motor documentation, provides a reliable reference for determining the intended application. For industrial motor maintenance and component identification, this information helps ensure that the mechanical cooling arrangement remains consistent with the corresponding ABB motor design.
