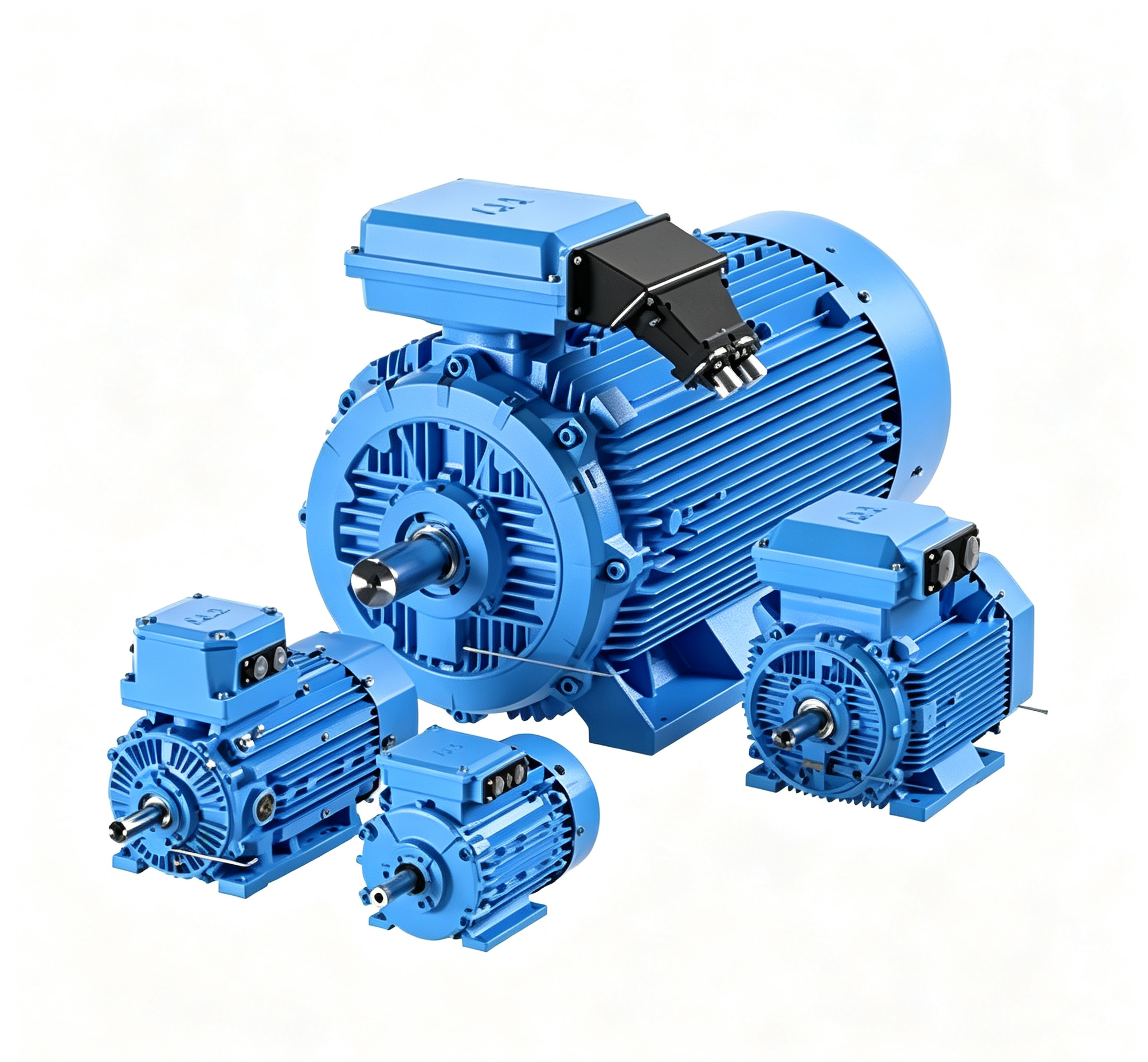

ABB 3GKP202420-ADG M3KP 200MLB 4 Flameproof IE2 Motor

The ABB 3GKP202420-ADG is a flameproof industrial motor designed for applications requiring reliable power transmission, high operational stability and enhanced protection in hazardous industrial environments. It belongs to the ABB M3KP series of cast iron motors and is developed for demanding industrial applications where safety and efficiency are important requirements.

Industrial motors installed in hazardous areas must provide excellent mechanical strength, dependable electrical performance and protection against potentially explosive atmospheres. The ABB 3GKP202420-ADG combines ABB motor technology with a flameproof enclosure design to deliver reliable performance in continuous industrial operation.

The motor provides a rated output of 30kW and uses the M3KP 200MLB 4 configuration. According to ABB motor specifications, this model belongs to the flameproof motor range designed for industrial applications with 1500 rpm class operation and 400V three phase power supply requirements. :contentReference[oaicite:2]{index=2}

With its IE2 high efficiency design, the ABB 3GKP202420-ADG helps reduce electrical losses and improve energy utilization. The motor is suitable for applications where reliable operation, long service life and efficient energy consumption are required.

Product Features

• Manufacturer: ABB
• Model: 3GKP202420-ADG
• Motor Series: M3KP
• Motor Type: Flameproof Three Phase Motor
• Efficiency Class: IE2 High Efficiency
• Rated Power: 30kW
• Frame Size: 200MLB
• Number of Poles: 4 Pole
• Construction: Cast Iron Housing
• Designed for Hazardous Industrial Areas

Technical Specifications

Working Principle

The ABB 3GKP202420-ADG operates based on the electromagnetic induction principle of three phase asynchronous motors. When electrical power is supplied to the stator winding, a rotating magnetic field is generated.

This magnetic field interacts with the rotor and creates electromagnetic torque, allowing the rotor shaft to produce mechanical rotation. The generated mechanical energy can then be transferred to industrial equipment such as pumps, fans, compressors and processing machinery.

The flameproof enclosure is designed to provide additional safety protection in hazardous environments. It helps prevent internal electrical ignition sources from affecting the surrounding atmosphere, making the motor suitable for industrial areas with strict safety requirements.

The IE2 efficiency design improves motor energy performance by reducing operating losses. This allows industrial facilities to achieve reliable mechanical output while improving overall energy management.

Industrial Application Areas

The ABB 3GKP202420-ADG is widely used in industries requiring reliable flameproof motor solutions. Typical applications include oil and gas facilities, chemical processing plants, mining operations, power generation systems and heavy industrial production equipment.

In oil and gas applications, flameproof motors are commonly used for driving pumps, compressors and ventilation equipment. Reliable motor operation is essential for maintaining safe and continuous production processes.

Chemical industries require motors capable of operating safely under demanding conditions. The ABB M3KP series provides dependable performance for mixers, pumps, fans and other process equipment.

The motor is also suitable for industrial automation systems, material handling equipment and mechanical drive applications requiring strong torque output and long-term stability.

Safety and Efficiency Advantages

The ABB 3GKP202420-ADG combines hazardous area protection with efficient motor technology. Its flameproof construction improves operational safety, while IE2 efficiency helps reduce energy consumption during continuous operation.

The robust cast iron design provides mechanical durability, allowing the motor to perform reliably in demanding industrial environments.

Installation and Configuration

The ABB 3GKP202420-ADG flameproof motor should be installed by qualified electrical engineers and industrial maintenance technicians who are familiar with hazardous area motor applications. Proper installation ensures safe operation, stable performance and extended equipment service life.

Before installation, technicians should verify that the motor specifications correspond with the actual application requirements. Important parameters such as rated power, voltage, frequency, rotation speed, mounting arrangement and environmental conditions should be carefully checked before commissioning.

The motor should be installed on a rigid and stable foundation to withstand mechanical forces generated during operation. Correct alignment between the motor shaft and connected equipment is essential because improper alignment may increase vibration, mechanical stress and bearing wear.

Electrical wiring must be completed according to the motor nameplate information and applicable industrial electrical regulations. Correct cable selection, grounding and protection device configuration are necessary to ensure safe and reliable operation.

When operating with variable frequency drives, the ABB 3GKP202420-ADG should be configured according to the motor parameters. Proper drive settings help maintain efficient operation, prevent overload conditions and optimize speed control performance.

After mechanical and electrical installation, commissioning tests should be performed. Technicians should check rotation direction, insulation condition, current balance, vibration level and operating temperature to confirm that the motor system is functioning correctly.

Industrial Applications

The ABB 3GKP202420-ADG is designed for industrial applications where flameproof protection, reliable power output and continuous operation are required. Its robust M3KP construction allows it to perform effectively in challenging industrial environments.

In oil and gas facilities, motors are essential for driving pumps, compressors, fans and auxiliary process equipment. The flameproof design of the ABB 3GKP202420-ADG provides additional protection for areas where combustible gases or vapors may exist.

Chemical processing plants require electrical equipment that can maintain stable operation while meeting strict safety requirements. This ABB motor provides reliable mechanical power for mixers, pumps and other production machinery.

Mining and heavy industry applications require motors with strong mechanical durability and resistance to demanding operating conditions. The cast iron housing design provides excellent structural strength for long-term industrial service.

The motor is also suitable for power plants, water treatment systems, industrial ventilation equipment, material handling systems and other automation applications requiring dependable three phase motor performance.

Advantages of ABB 3GKP202420-ADG

• Flameproof design suitable for hazardous industrial environments.
• High efficiency IE2 motor technology.
• Reliable 30kW industrial power output.
• Strong M3KP cast iron construction.
• Suitable for continuous industrial operation.
• Stable torque performance for demanding applications.
• Excellent mechanical durability and vibration resistance.
• Compatible with industrial drive and automation systems.
• Reduced energy losses during operation.
• Manufactured according to ABB engineering standards.

Maintenance and Diagnostics

Regular maintenance of the ABB 3GKP202420-ADG is important for maintaining safe operation and ensuring long-term reliability. Preventive maintenance programs help reduce unexpected downtime and improve industrial system availability.

Maintenance personnel should regularly inspect the motor housing, cooling system and external surfaces. Dust accumulation, blocked ventilation paths or excessive contamination may increase operating temperature and reduce motor efficiency.

Electrical connections should be checked during scheduled maintenance inspections. Loose terminals may cause overheating, voltage imbalance and unstable motor operation.

The condition of bearings should be monitored regularly. Abnormal vibration, unusual noise or increased operating temperature may indicate mechanical problems requiring inspection.

Operating parameters including current, temperature and vibration should be recorded during maintenance activities. Historical operating data can help identify performance changes and support predictive maintenance planning.

Because the ABB 3GKP202420-ADG is designed for hazardous area applications, all maintenance procedures must follow appropriate industrial safety requirements. Any repair or inspection work should be completed using approved methods.

Frequently Asked Questions

What is ABB 3GKP202420-ADG?

ABB 3GKP202420-ADG is a flameproof IE2 high efficiency industrial motor from the ABB M3KP series designed for hazardous area applications.

What is the rated power of ABB 3GKP202420-ADG?

The motor has a rated power of 30kW and is designed for three phase industrial electrical systems.

Where is ABB 3GKP202420-ADG used?

It is commonly used in oil and gas, chemical processing, mining, power generation and industrial automation applications requiring flameproof motor protection.

What are the benefits of ABB flameproof motors?

ABB flameproof motors provide reliable operation, enhanced safety protection and efficient performance in industrial environments with hazardous conditions.

Conclusion

The ABB 3GKP202420-ADG is a reliable flameproof industrial motor designed for applications requiring safe operation, efficient performance and long-term durability. With its 30kW power rating, IE2 efficiency class and M3KP series construction, it provides dependable mechanical power for industrial drive systems.

Suitable for oil and gas, chemical, mining and heavy industrial applications, the ABB 3GKP202420-ADG combines robust mechanical design with advanced motor technology. Its flameproof protection, energy efficiency and ABB engineering quality make it an effective solution for modern industrial automation and process equipment.
