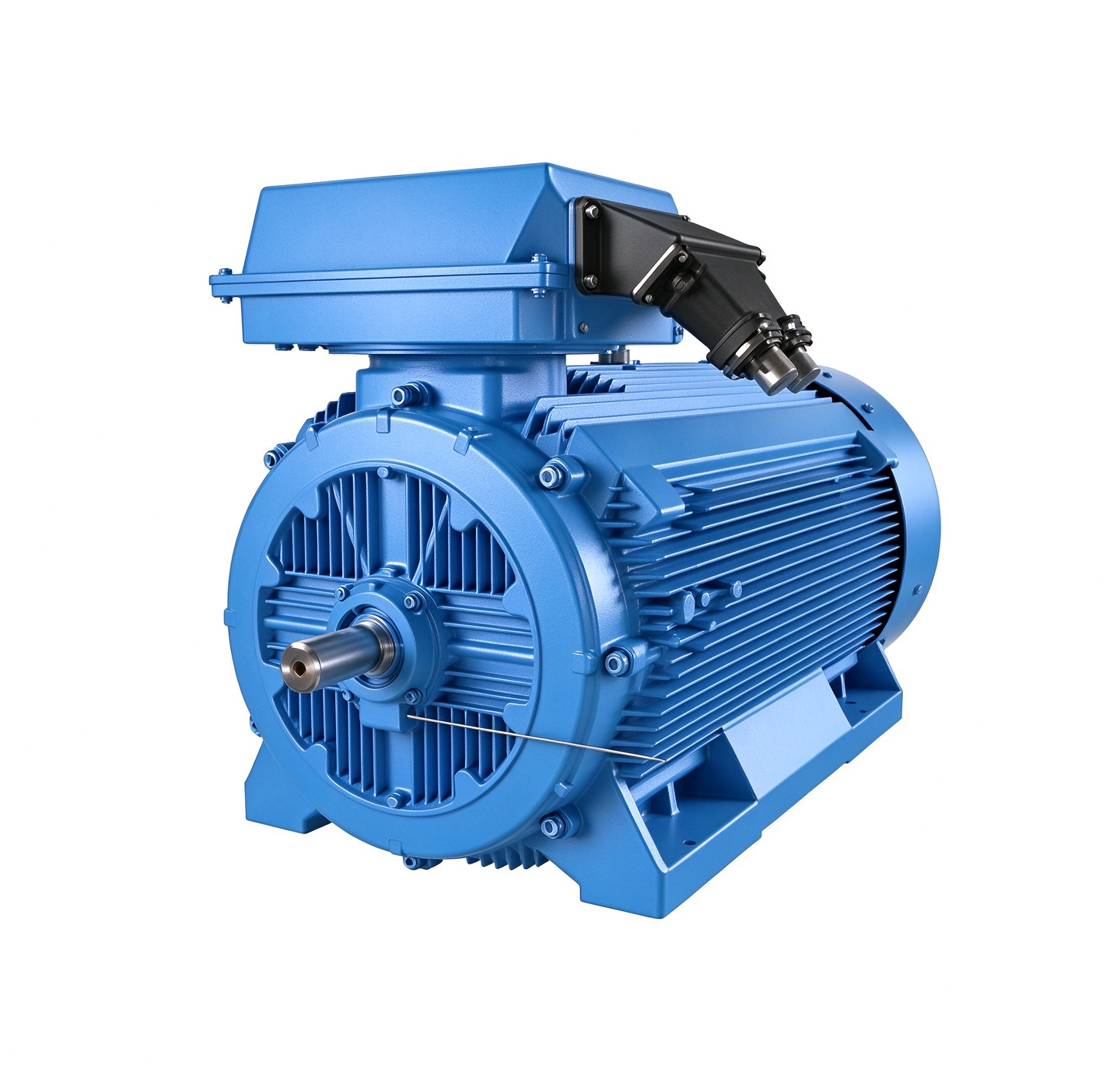

ABB 3GBP452520-ADG Cast Iron Three-Phase Motor

Product Overview

The ABB 3GBP452520-ADG is an M3BP 450LB 4 industrial three-phase squirrel cage motor designed for applications that require substantial mechanical output and reliable continuous operation. It belongs to the ABB M3BP family of cast iron motors developed for industrial process environments. With a rated output of 900 kW, a four-pole configuration and a frame size of 450, this motor is intended for integration into large machinery and process equipment where drive performance, mechanical stability and electrical compatibility are essential.

The motor combines a cast iron frame with an IP55 enclosure rating and IC411 cooling. These characteristics support its use in industrial areas where equipment may be exposed to dust, moisture and demanding operating conditions. The specified IE2 efficiency class identifies its efficiency classification, while the final suitability for a particular installation depends on the complete motor specification, supply conditions and applicable efficiency regulations.

For equipment engineers, maintenance teams and system integrators, the model designation 3GBP452520-ADG provides a specific reference for identifying the intended motor configuration. The nameplate and the applicable ABB technical documentation should always be used to confirm electrical ratings, mechanical dimensions and ordering details before installation or replacement.

Technical Specifications

The principal published characteristics associated with the ABB 3GBP452520-ADG are summarized below. Electrical values can vary with voltage and connection configuration, so the actual nameplate remains the controlling reference for commissioning.

Motor Design and Construction

The cast iron housing provides a rigid mechanical structure for a large industrial motor. In heavy-duty installations, structural rigidity helps maintain the alignment of the motor assembly and its driven equipment when the foundation, coupling and operating loads are correctly engineered. Cast iron construction is widely used in process machinery because it offers useful mechanical strength and supports stable mounting in industrial environments.

The frame size 450 identifies the motor’s dimensional class and is an important consideration when planning installation space, foundation design and replacement work. However, matching the frame size alone is insufficient to establish interchangeability. Overall dimensions, shaft geometry, mounting-hole positions, terminal-box arrangement and driven-machine requirements must also be checked against the relevant drawings.

The four-pole design is suited to applications requiring a medium-speed industrial drive. At 50 Hz, a four-pole induction motor has a synchronous speed of 1,500 rpm. Its actual operating speed is lower because of induction-motor slip and depends on the load and electrical conditions. The expected operating speed should therefore be confirmed from the motor nameplate rather than inferred solely from the pole count.

Electrical Performance and Efficiency

With a rated output of 900 kW, the ABB 3GBP452520-ADG is intended for high-power industrial drive duties. Correct electrical integration requires verification of the rated voltage, frequency, connection arrangement, current, power factor, starting characteristics and available supply capacity. These factors influence the selection of switchgear, protective devices, cables and starting equipment.

The 400 V and 690 V configurations are associated with delta and star connections respectively in the published specification. The permitted connection and starting method must be established from the motor’s actual terminal diagram and nameplate. A star-delta starting arrangement must not be assumed suitable without checking the winding ratings, supply voltage and required starting torque.

The IE2 classification describes the motor’s efficiency category rather than guaranteeing a fixed efficiency under every operating condition. Actual energy consumption depends on mechanical load, operating hours, supply quality and the overall drive system. Engineers evaluating a replacement should compare rated output, efficiency class and operating duty, while also considering local energy-efficiency requirements.

Protection and Cooling

The IP55 enclosure rating indicates protection against harmful dust deposits and water jets from any direction under the conditions defined by the applicable ingress-protection standard. It does not mean the motor is completely dust-tight or suitable for immersion. The installation environment must still be evaluated for humidity, corrosive substances, conductive dust and other site-specific hazards.

The IC411 cooling designation refers to a totally enclosed, fan-cooled arrangement in which heat is dissipated through the motor surface by an external fan mounted on the shaft. Adequate airflow and sufficient clearance around the enclosure are necessary to support effective heat removal. Blocked ventilation paths, excessive ambient temperature or operation beyond the specified duty can increase winding and bearing temperatures.

Published reference conditions include an ambient temperature of 40 degrees Celsius and an altitude of 1,000 metres. Installations outside the applicable limits may require a rating assessment. Cooling performance, allowable loading and insulation life should be evaluated in accordance with the relevant technical documentation.

Industrial Applications

The ABB 3GBP452520-ADG can be considered for large industrial process drives where its rated power, speed and mechanical arrangement meet the equipment requirements. Potential applications include centrifugal pumps, industrial fans, compressors, process machinery and auxiliary equipment used in manufacturing, energy and infrastructure facilities.

For pumping systems, engineers should evaluate the required flow, head, operating curve and starting torque. Fan applications require attention to airflow, pressure and load variation. Compressor installations may impose different acceleration and torque requirements, making the driven machine’s operating profile an important part of motor selection.

These examples describe possible application areas, not an unconditional suitability statement. Hazardous-area classification, variable-speed operation, special environmental conditions and application-specific certification must be checked separately where relevant.

Installation and Maintenance Considerations

The IMB3 / IM1001 mounting arrangement uses feet to secure the motor to a suitable foundation. The supporting base must be sufficiently rigid and level, and the motor must be aligned accurately with the driven equipment. Incorrect alignment, soft foot, excessive vibration or unsuitable coupling arrangements can contribute to premature bearing wear and mechanical stress.

Before commissioning, qualified personnel should verify the electrical connections, protective earthing, insulation condition, protection settings and mechanical installation. The shaft should rotate freely where the installation procedure permits this check. The direction of rotation must be confirmed before the driven machine is placed into normal service. Electrical isolation and applicable safety procedures are essential during inspection and maintenance.

Routine maintenance should consider vibration trends, bearing condition, operating temperature, cooling-air passages, foundation fasteners and coupling alignment. Inspection intervals should reflect the operating environment, duty cycle and maintenance policy of the facility. Bearing replacement and lubrication procedures must follow the applicable manufacturer instructions rather than relying on assumptions based on frame size alone.

Model Identification and Replacement Selection

When specifying the ABB 3GBP452520-ADG for a new installation or replacement project, record the complete model code and compare it with the existing motor documentation. Confirm rated power, voltage, frequency, rated current, speed, efficiency class, mounting dimensions, shaft dimensions, enclosure protection and cooling arrangement. These checks help prevent problems caused by selecting a motor with similar power but incompatible electrical or mechanical characteristics.

Additional verification may be necessary when the motor is operated through a variable-frequency drive, connected to a specialized starter or installed in a regulated environment. The drive system must be compatible with the motor’s electrical design and thermal limits. Any deviation from the standard operating conditions should be reviewed by qualified engineering personnel.

Product Summary

The ABB 3GBP452520-ADG M3BP 450LB 4 is a 900 kW, four-pole cast iron three-phase motor with an IE2 efficiency classification, IP55 protection, IC411 cooling and IMB3 foot mounting. Its design characteristics make it a candidate for high-power industrial process applications where the specified ratings match the system requirements. Accurate model identification, nameplate verification, correct installation and planned maintenance are central to achieving dependable operation throughout the motor’s service life.
