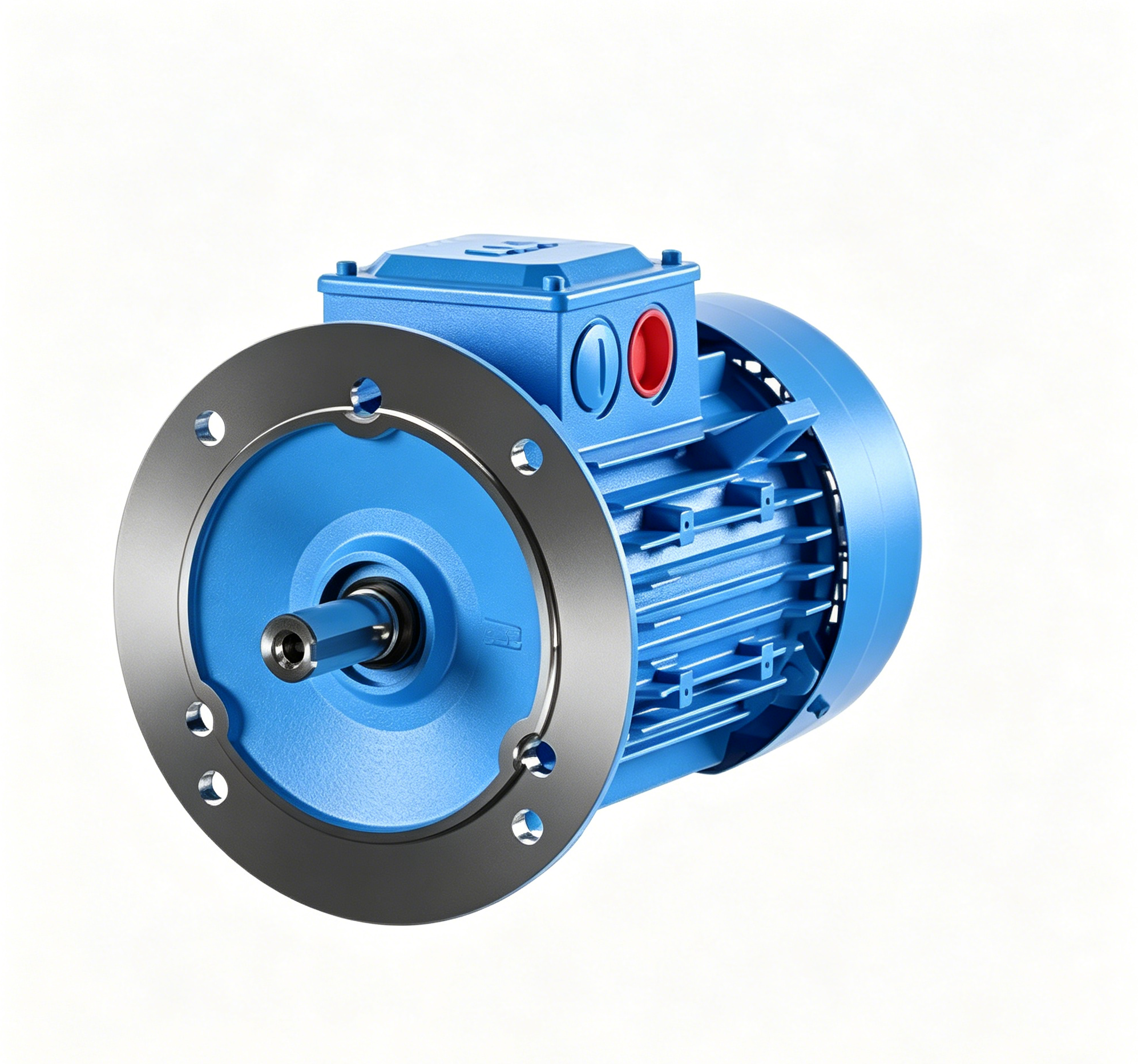

ABB 3GBA102520-BDC IE2 High Efficiency Cast Iron Three-Phase Induction Motor

The ABB 3GBA102520-BDC is a high-performance three-phase squirrel cage induction motor engineered for industrial applications requiring dependable operation, energy efficiency, and long service life. As part of ABB’s widely recognized M2BAX low-voltage motor family, this motor combines robust cast iron construction with proven electrical performance to meet the demanding requirements of modern industrial facilities. Designed according to international IEC standards, the motor delivers consistent operation across a broad range of applications including pumps, fans, conveyors, compressors, material handling equipment, and general-purpose machinery. :contentReference[oaicite:2]{index=2}

Industrial operations increasingly demand energy-efficient motor solutions capable of reducing operating costs while maintaining high levels of reliability. The ABB 3GBA102520-BDC addresses these requirements through its IE2 efficiency classification, optimized electromagnetic design, and durable mechanical construction. The motor is designed to operate continuously in challenging environments where equipment uptime, process stability, and maintenance reduction are critical operational objectives. :contentReference[oaicite:3]{index=3}

Product Overview

The ABB 3GBA102520-BDC belongs to the M2BAX series of low-voltage cast iron motors developed for industrial duty applications. This model features a 3kW power rating, 400V operating voltage, four-pole configuration, and IE2 energy efficiency classification. The motor is built with a rugged cast iron housing that provides excellent mechanical strength and protection against harsh industrial conditions.

The M2BAX motor range has been developed to satisfy the requirements of original equipment manufacturers, system integrators, and industrial operators seeking dependable motor technology. Its design emphasizes operational efficiency, mechanical durability, and compatibility with a wide variety of industrial drive systems. ABB’s engineering approach focuses on maximizing motor reliability while minimizing lifecycle costs, making the 3GBA102520-BDC a practical solution for long-term industrial use. :contentReference[oaicite:4]{index=4}

Key Technical Features

• ABB Product Number: 3GBA102520-BDC
• M2BAX Series Low Voltage Motor
• 3kW Rated Output Power
• 400V Three-Phase Operation
• IE2 High Efficiency Classification
• Four-Pole Motor Design
• Cast Iron Frame Construction
• IP55 Protection Rating
• Class F Insulation System
• Totally Enclosed Fan Cooled (TEFC) Design
• Squirrel Cage Rotor Technology
• Designed According to IEC Standards
• Suitable for Continuous Industrial Operation

Energy Efficiency and Performance

Energy consumption remains one of the largest operational costs associated with industrial motor systems. The ABB 3GBA102520-BDC is designed to provide high efficiency while maintaining reliable performance under varying load conditions. Its IE2 efficiency classification reflects ABB’s commitment to reducing energy losses through optimized electromagnetic design and precision manufacturing processes.

By reducing electrical losses and improving power conversion efficiency, the motor contributes to lower operating costs over its service life. This makes it an attractive choice for industrial facilities focused on improving energy management and reducing overall electricity consumption. Efficient motor technology also supports sustainability initiatives by reducing the environmental impact associated with industrial energy use. :contentReference[oaicite:5]{index=5}

Mechanical Construction

The cast iron housing used in the ABB 3GBA102520-BDC provides exceptional durability and structural integrity. Cast iron construction offers superior resistance to vibration, mechanical stress, and environmental influences commonly encountered in industrial settings. This robust design helps ensure stable motor performance even in demanding applications where continuous operation is required.

The motor incorporates a Totally Enclosed Fan Cooled (TEFC) design that protects internal components from dust, moisture, and contaminants. Combined with the IP55 enclosure rating, this construction enhances operational reliability and reduces maintenance requirements. The durable housing also contributes to longer equipment lifespan and improved operational safety. :contentReference[oaicite:6]{index=6}

Insulation and Thermal Performance

The ABB 3GBA102520-BDC utilizes a Class F insulation system designed to withstand elevated operating temperatures while maintaining long-term electrical reliability. ABB’s insulation technology provides additional thermal margin, helping protect the motor against temperature fluctuations and demanding load conditions.

Effective thermal management is critical for maintaining motor efficiency and extending service life. The integrated cooling system ensures efficient heat dissipation during operation, reducing thermal stress on critical electrical components. This design approach helps improve reliability and minimizes the likelihood of premature insulation aging. :contentReference[oaicite:7]{index=7}

Industrial Applications

The ABB 3GBA102520-BDC is suitable for a wide variety of industrial applications requiring dependable three-phase motor performance. Common installations include centrifugal pumps, process pumps, ventilation systems, cooling fans, air handling equipment, conveyor systems, packaging machinery, compressors, mixers, and material handling equipment.

The motor is particularly well suited for OEM applications where reliability, energy efficiency, and compliance with international standards are important design considerations. Its versatility allows integration into manufacturing plants, water treatment facilities, food processing operations, mining installations, HVAC systems, and general industrial automation projects. :contentReference[oaicite:8]{index=8}

Reliability and Maintenance Benefits

Industrial facilities depend on reliable motor operation to maintain production continuity and minimize unplanned downtime. The ABB 3GBA102520-BDC has been designed with long-term reliability as a primary objective. High-quality bearings, durable mechanical components, and proven motor technology contribute to stable performance throughout the motor’s operating life.

The enclosed construction reduces exposure to contaminants and environmental factors, helping decrease maintenance requirements. The motor’s robust design also supports predictive maintenance strategies, enabling operators to maximize equipment availability while controlling maintenance costs.

Compliance and Standards

ABB motors are manufactured according to internationally recognized standards and quality management systems. The 3GBA102520-BDC is designed to comply with IEC motor standards and is produced using processes that support consistent quality and performance. These standards ensure compatibility with global industrial requirements and provide confidence for system designers and end users. :contentReference[oaicite:9]{index=9}

Conclusion

The ABB 3GBA102520-BDC IE2 High Efficiency Cast Iron Three-Phase Induction Motor delivers a combination of energy efficiency, durability, and industrial-grade reliability. With its 3kW power rating, 400V operation, cast iron construction, IP55 protection, and Class F insulation system, it is well suited for a wide range of industrial automation and machinery applications. As part of ABB’s proven M2BAX motor series, this motor provides dependable performance and long-term operational value for industrial facilities seeking efficient and reliable electric motor solutions. :contentReference[oaicite:10]{index=10}
