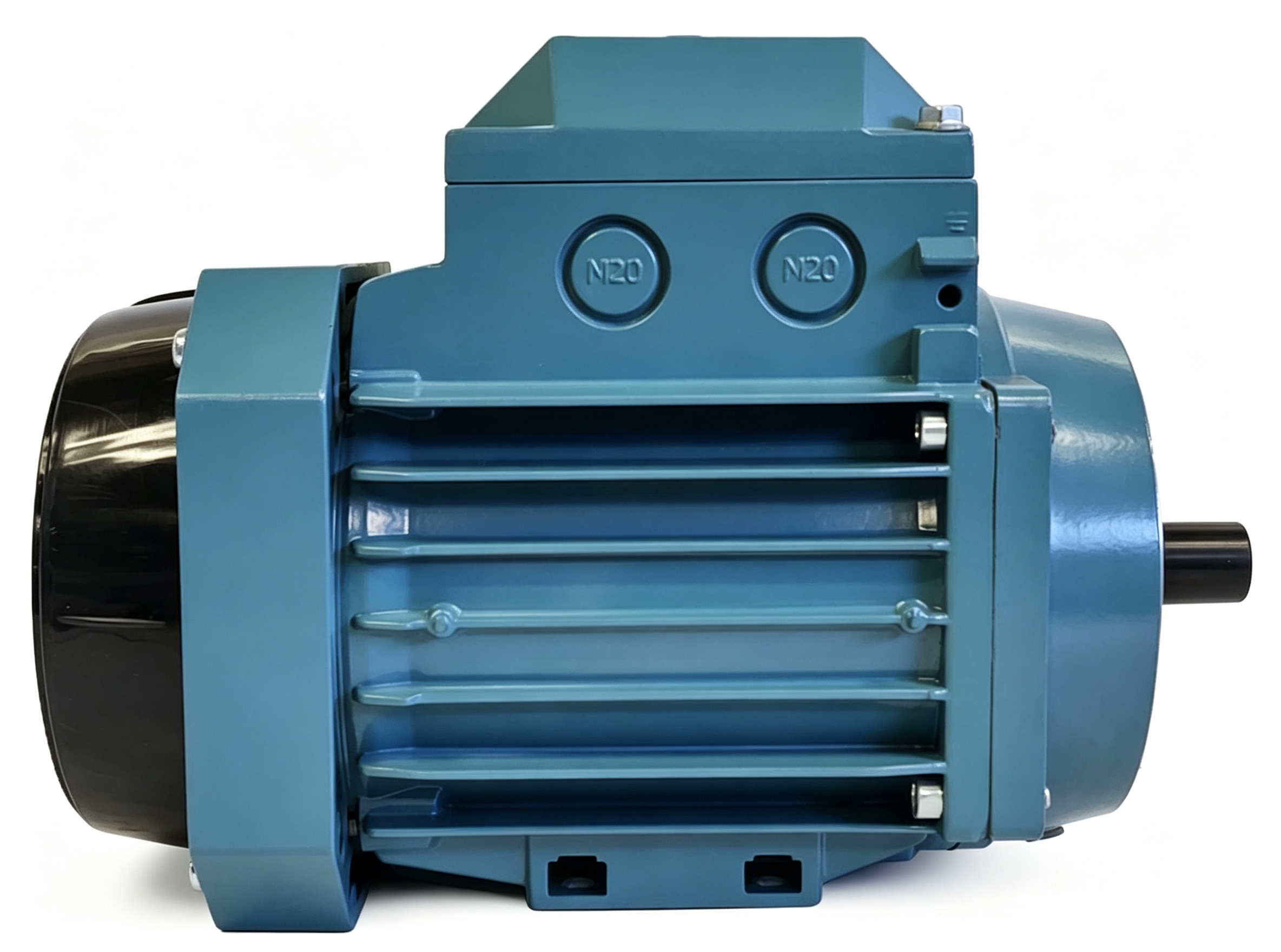

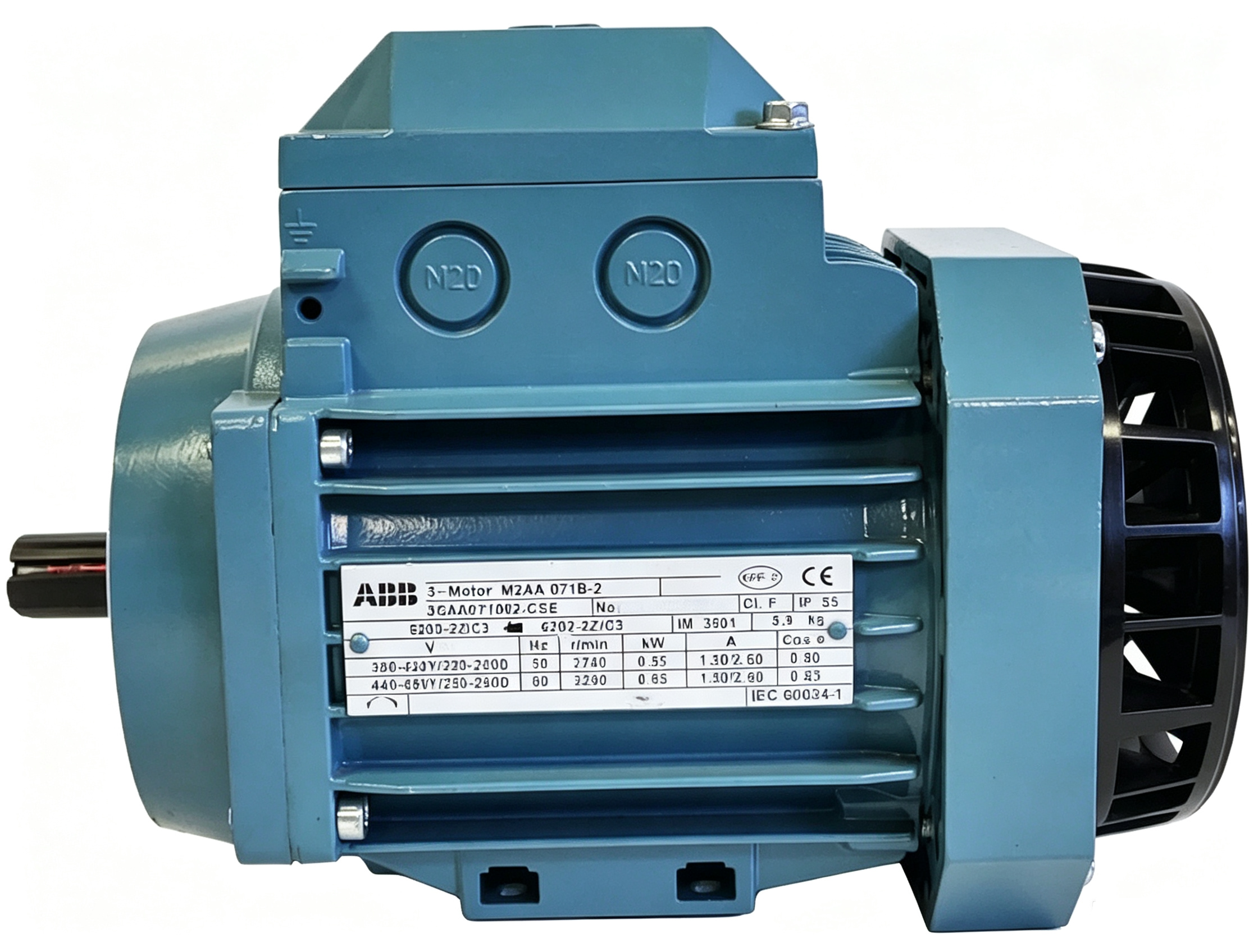

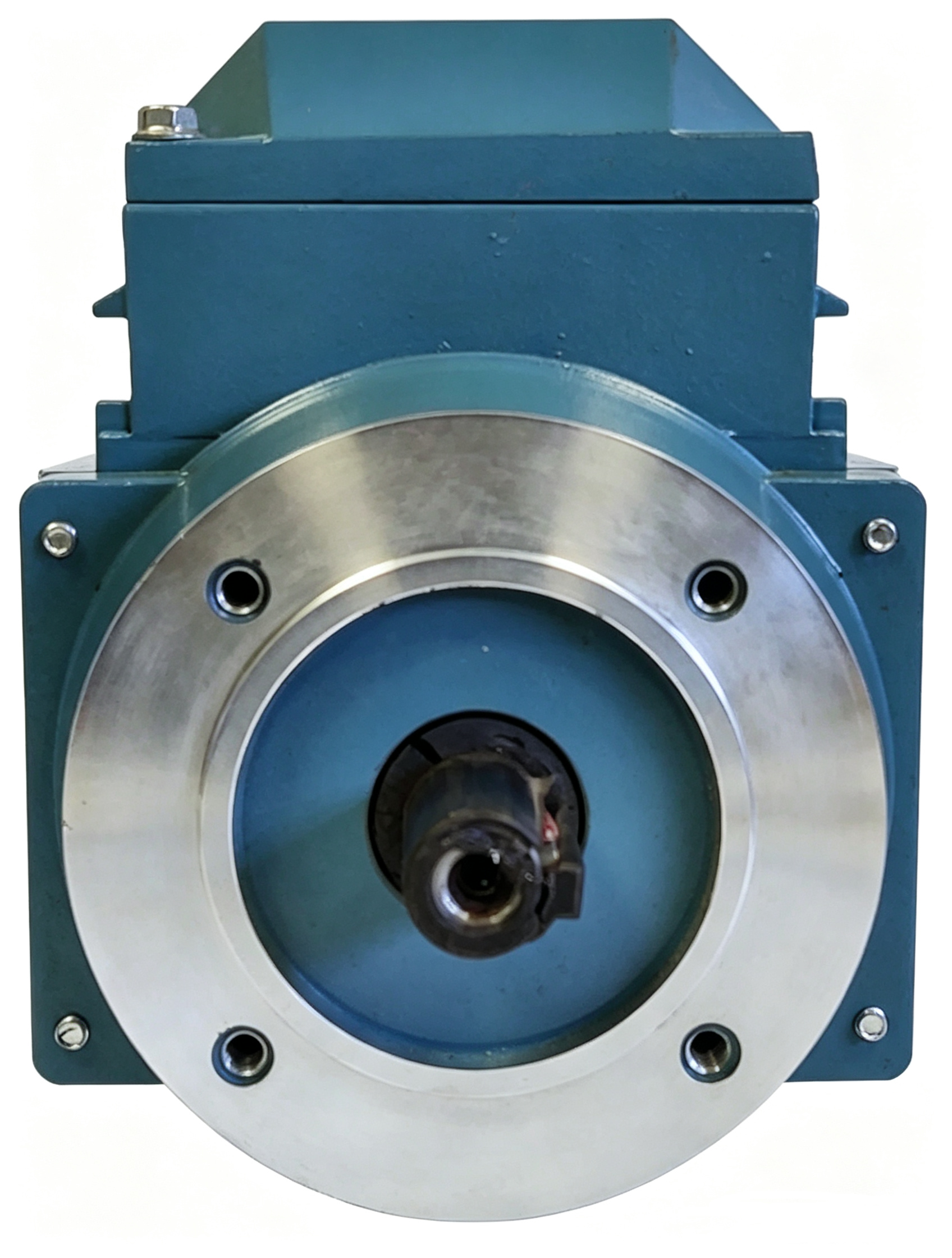

ABB 3GAA071002-CSE.002 M2AA 71B 2 Three-Phase Squirrel Cage Motor

The ABB 3GAA071002-CSE.002 is associated with the ABB M2AA 71B 2 three-phase squirrel cage motor product family. The 3GAA071002 product code identifies a compact industrial motor designed for applications requiring a three-phase asynchronous motor with a 0.55 kW rated output. ABB technical documentation identifies the M2AA 71B 2 as a two-pole motor with a nominal speed of approximately 2790 r/min at 50 Hz, while the corresponding electrical data specifies 230 V delta and 400 V star connections for the 50 Hz configuration.

The M2AA motor architecture is based on a squirrel cage rotor and a three-phase stator winding. This is one of the most widely used motor principles in industrial equipment because it provides a straightforward electromechanical drive solution for rotating machinery. The ABB 3GAA071002 family is therefore suitable for applications where a compact low-power motor is required to drive mechanical equipment under a continuous operating duty.

ABB 3GAA071002-CSE.002 Product Identification

The principal identification supplied for this product is 3GAA071002-CSE.002. The underlying ABB product code is 3GAA071002, and ABB technical documentation associates this code with the type designation M2AA 71B 2. The M2AA 71B 2 designation is used throughout ABB motor documentation to identify this particular motor frame and electrical configuration.

When identifying the motor for an industrial installation, the complete product number should be retained because ABB motor product codes can contain configuration information related to electrical and mechanical options. The base code establishes the motor family and rating, while the suffix can distinguish a particular configuration. Therefore, 3GAA071002-CSE.002 should not be reduced to a generic description such as “0.55 kW motor” when maintaining equipment records.

M2AA 71B 2 Motor Design

The ABB M2AA 71B 2 is a three-phase squirrel cage motor with a two-pole rotor configuration. The two-pole arrangement results in a relatively high rotational speed compared with motors having four or more poles. ABB test documentation records a rated speed of approximately 2790 r/min at 50 Hz for the 0.55 kW configuration.

The squirrel cage induction motor principle is based on a rotating magnetic field generated by the stator winding. When the motor is connected to a suitable three-phase supply, the magnetic field induces current in the rotor cage, producing electromagnetic torque. The rotor operates slightly below synchronous speed under load, which explains the rated speed of approximately 2790 r/min for a two-pole motor supplied at 50 Hz.

This design is particularly suitable for applications requiring continuous rotational operation. The absence of brushes or a commutator in a conventional squirrel cage induction motor also contributes to a relatively straightforward mechanical construction.

Rated Power and Electrical Characteristics

The relevant ABB 3GAA071002 configuration has a rated output of 0.55 kW. At 50 Hz, ABB documentation specifies a rated voltage of 230 V in delta connection and 400 V in star connection. The corresponding rated current is approximately 2.20 A at 230 V delta and 1.29 A at 400 V star.

The rated power factor for the 50 Hz configuration is approximately 0.78. ABB motor data also identifies a nominal torque of approximately 1.88 Nm. These values provide important reference points when evaluating the motor against the requirements of a driven machine, coupling or mechanical transmission.

For a 50 Hz supply, the motor is designed around continuous S1 duty. This means the motor can operate under the defined rated conditions for continuous operation, subject to the applicable environmental, thermal and electrical limitations. Actual system operation should always remain within the motor’s specified operating conditions.

60 Hz Electrical Operation

ABB technical test information also provides data for operation at 460 V and 60 Hz. Under this condition, the corresponding configuration is listed at approximately 3420 r/min, with a rated current of about 1.12 A and a power factor of approximately 0.75.

The difference between 50 Hz and 60 Hz operating conditions is important because motor speed is directly related to supply frequency. A two-pole induction motor has a synchronous speed of approximately 3000 r/min at 50 Hz and approximately 3600 r/min at 60 Hz. The actual rotor speed remains slightly lower because of slip. This explains the approximately 2790 r/min and 3420 r/min values specified for the corresponding operating conditions.

Protection and Insulation

The ABB M2AA 71B 2 configuration is specified with an IP55 protection rating. The IP rating describes the enclosure’s protection against the ingress of solid particles and water. IP55 is commonly used for industrial motor applications where the motor may operate in an environment containing dust or exposure to water jets within the conditions defined by the applicable standard.

The motor uses Class F insulation. Insulation class defines the thermal capability of the motor winding insulation system. This characteristic is important when evaluating the motor’s permissible thermal operating conditions and the effects of ambient temperature and load on winding temperature.

ABB’s official test documentation records that the motor was evaluated according to the applicable requirements of IEC 60034-1 and IEC 60034-2-1. These standards provide the framework for important electrical and performance characteristics of rotating electrical machines.

Motor Performance Characteristics

For the 400 V, 50 Hz configuration, ABB test data records an input current of approximately 1.26 A at rated load, an output power of 0.55 kW and a speed of approximately 2778 r/min during the thermal test. The measured power factor in this test was approximately 0.81, with an efficiency of approximately 77.3 percent under the documented test conditions.

ABB motor data for the corresponding product configuration also lists a starting current ratio of approximately 5.3 times the rated current. The nominal torque is approximately 1.88 Nm, while the locked-rotor torque and maximum torque ratios are specified in the relevant motor data. These parameters can be useful when determining whether the motor is suitable for a mechanical load with a particular starting characteristic.

Motor selection should not be based solely on rated power. Starting torque, load inertia, acceleration time, supply conditions and the mechanical transmission all influence whether a particular motor configuration is appropriate for an application.

Mechanical Construction

The M2AA 71B 2 belongs to the IEC frame-size family associated with the 71 frame. The compact frame is suitable for machinery where the available installation space is limited. ABB product information for the related M2AA 71B 2 configuration identifies bearings including 6203-2Z/C3 on the drive end and 6202-2Z/C3 on the non-drive end.

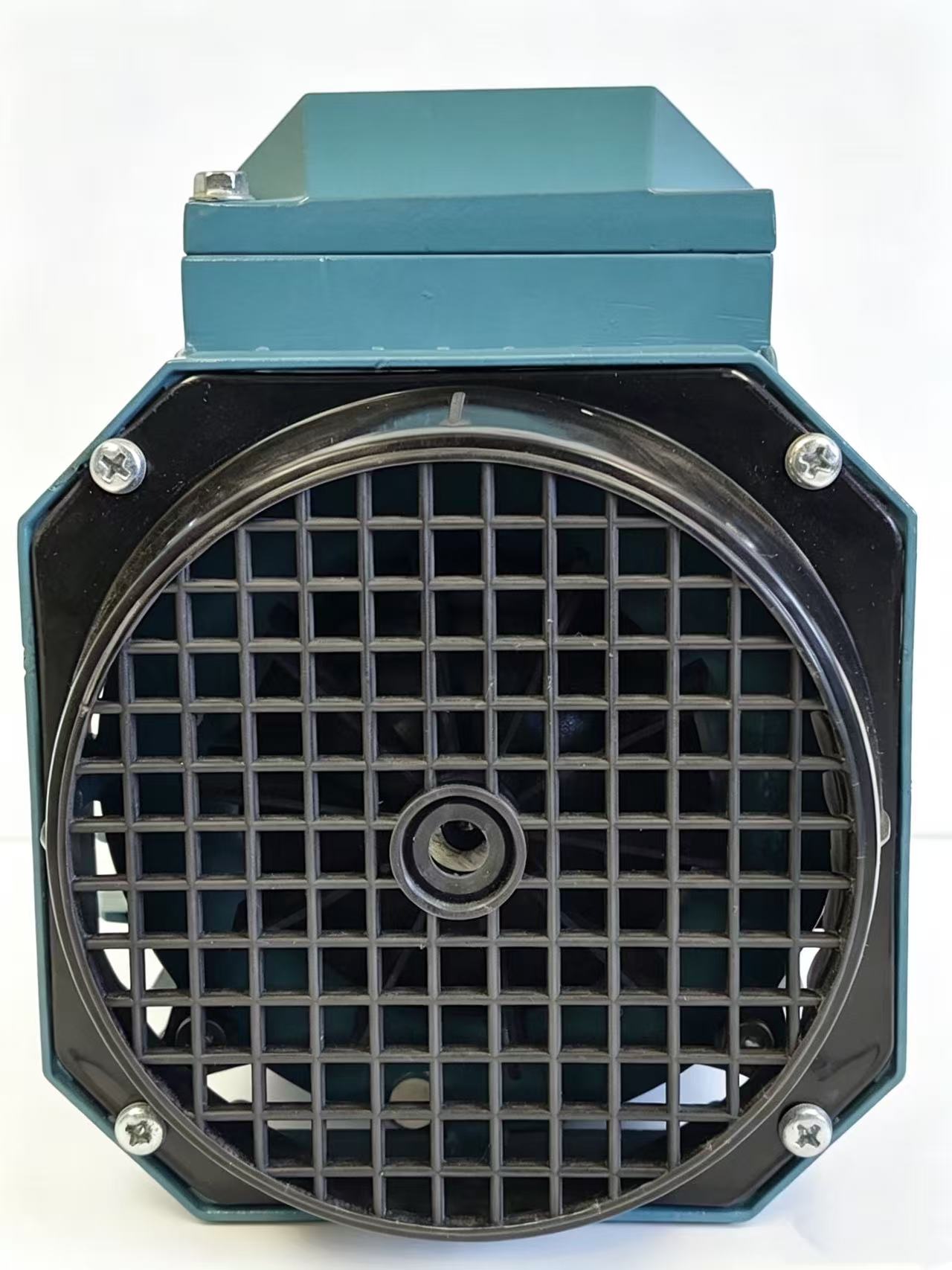

The motor uses an IC411 cooling classification in the documented configuration. This corresponds to a self-ventilated cooling arrangement in which the motor’s own fan contributes to the movement of cooling air. Proper ventilation around the motor is therefore important when designing the installation.

Mechanical installation should also take into account the shaft connection, mounting arrangement, coupling alignment and load characteristics. The motor should be mechanically aligned with the driven equipment so that excessive radial or axial forces are not introduced into the shaft and bearings.

Industrial Applications

The ABB 3GAA071002-CSE.002 can be considered for industrial equipment requiring a compact three-phase induction motor with a 0.55 kW output. Typical applications for motors of this type can include pumps, fans, small conveyors, auxiliary machinery, ventilation equipment and other rotating industrial mechanisms.

The suitability of the motor depends on the characteristics of the driven machine. A fan, pump or conveyor can impose different starting and running requirements, even when the final mechanical power requirement appears similar. Engineers should therefore compare rated torque, starting characteristics, operating speed and duty requirements before integrating the motor into a machine.

For applications using a variable frequency drive, the motor’s rated voltage, frequency, current and insulation characteristics should be considered together with the drive configuration. The motor and drive should be configured according to their respective technical documentation.

Technical Specifications

Selection and Replacement Considerations

When identifying an ABB 3GAA071002-CSE.002 motor for an existing machine, the complete product number should be compared with the motor nameplate and applicable equipment documentation. The basic M2AA 71B 2 designation establishes the motor family, but the complete product code is important for determining the exact configuration.

Electrical compatibility should be checked first. The supply voltage, frequency, connection method, rated current and starting characteristics must correspond to the motor and the connected electrical system. Mechanical compatibility is equally important, including the frame arrangement, shaft dimensions, mounting configuration and coupling requirements.

The operating environment should also be considered. The IP55 enclosure rating, Class F insulation and IC411 cooling arrangement define important characteristics of the motor, but actual application conditions can vary significantly. Ambient temperature, altitude, ventilation, load profile and duty cycle should be evaluated according to the relevant ABB motor documentation.

Conclusion

The ABB 3GAA071002-CSE.002 is associated with the M2AA 71B 2 three-phase squirrel cage motor, a compact two-pole induction motor with a rated output of 0.55 kW. The documented 50 Hz configuration provides approximately 2790 r/min at rated conditions, with 230 V delta and 400 V star connection options. The motor is specified with S1 continuous duty, IP55 protection and Class F insulation.

Its combination of compact construction, three-phase induction technology and 0.55 kW rated output makes the M2AA 71B 2 suitable for various industrial rotating equipment applications. For maintenance, engineering and equipment identification, the complete designation 3GAA071002-CSE.002 should be retained rather than relying only on the general M2AA 71B 2 description.

Before integrating the motor into an existing machine, engineers should verify the exact electrical and mechanical configuration against the motor nameplate and system documentation. In particular, rated voltage, frequency, connection, speed, current, mounting arrangement, load torque and environmental conditions should all be considered to ensure that the motor corresponds to the intended industrial application.
