ABB 3BSE069449R1 CI854BK01 PROFIBUS-DP/V1 Communication Interface for AC 800M Systems

ABB 3BSE069449R1

ABB 3BSE069449R1 belongs to the AC 800M communication interface family and is
associated with the CI854B PROFIBUS-DP/V1 interface. The corresponding CI854BK01
package includes the CI854 communication interface and TP854 baseplate. This
configuration provides the physical hardware required for installing the
communication interface within the AC 800M platform.

The primary communication protocol is PROFIBUS DP-V1, with the CI854B operating
as a PROFIBUS master interface. This makes the module suitable for communication
architectures in which an AC 800M controller needs to exchange process and
diagnostic information with distributed field-level equipment. The interface can
therefore form an important connection between the controller layer and decentralized
automation components.

The ABB 3BSE069449R1 is particularly relevant to automation installations that use
PROFIBUS as a field communication standard. By providing a dedicated communication
interface for the AC 800M platform, the module supports organized data exchange
between the control system and connected PROFIBUS devices while maintaining the
architecture expected from an industrial distributed control environment.

PROFIBUS-DP/V1 Communication

PROFIBUS DP is widely used for communication between controllers, remote I/O,
drives, instruments, and other field-level equipment. The ABB CI854B extends the
AC 800M architecture with a dedicated PROFIBUS-DP/V1 communication function.
Its specified transmission range is from 9.6 kbit/s to 12,000 kbit/s, allowing the
interface to operate across different PROFIBUS network configurations and
communication requirements.

DP-V1 capability is important for automation applications that require more than
cyclic process data exchange. It enables communication structures that can also
support parameterization and diagnostic information from compatible field devices.
In an AC 800M installation, this can provide the control system with a more
comprehensive view of connected field-level equipment and its communication status.

The CI854B is specified as a master interface, making it suitable for centralized
control of PROFIBUS field networks. The interface can be used to connect remote
I/O and fieldbus instruments and can also provide access to PROFIBUS PA networks
through an appropriate PROFIBUS linking device.

Redundancy and System Integration

A significant feature of ABB 3BSE069449R1 is its support for redundancy. The
CI854B provides line redundancy as well as module redundancy, features that are
valuable in automation systems where communication continuity is an important
part of overall system availability. Redundant communication arrangements can
help reduce the impact of a communication path or interface failure on the
connected automation architecture.

The module can be integrated into AC 800M architectures using the CEX-bus system
and is designed to operate as part of ABB control and communication hardware.
The communication interface is mounted on a DIN rail and interfaces with the
broader automation architecture used by AC 800M systems. Its design allows the
communication function to remain clearly separated from the main controller
processing function while maintaining system-level integration.

ABB documentation also identifies compatibility with distributed I/O environments,
including PROFIBUS DP and DP-V1 field systems. This makes the CI854B relevant to
applications where a central AC 800M controller must communicate with equipment
located across different sections of a plant or process installation.

Hardware Configuration

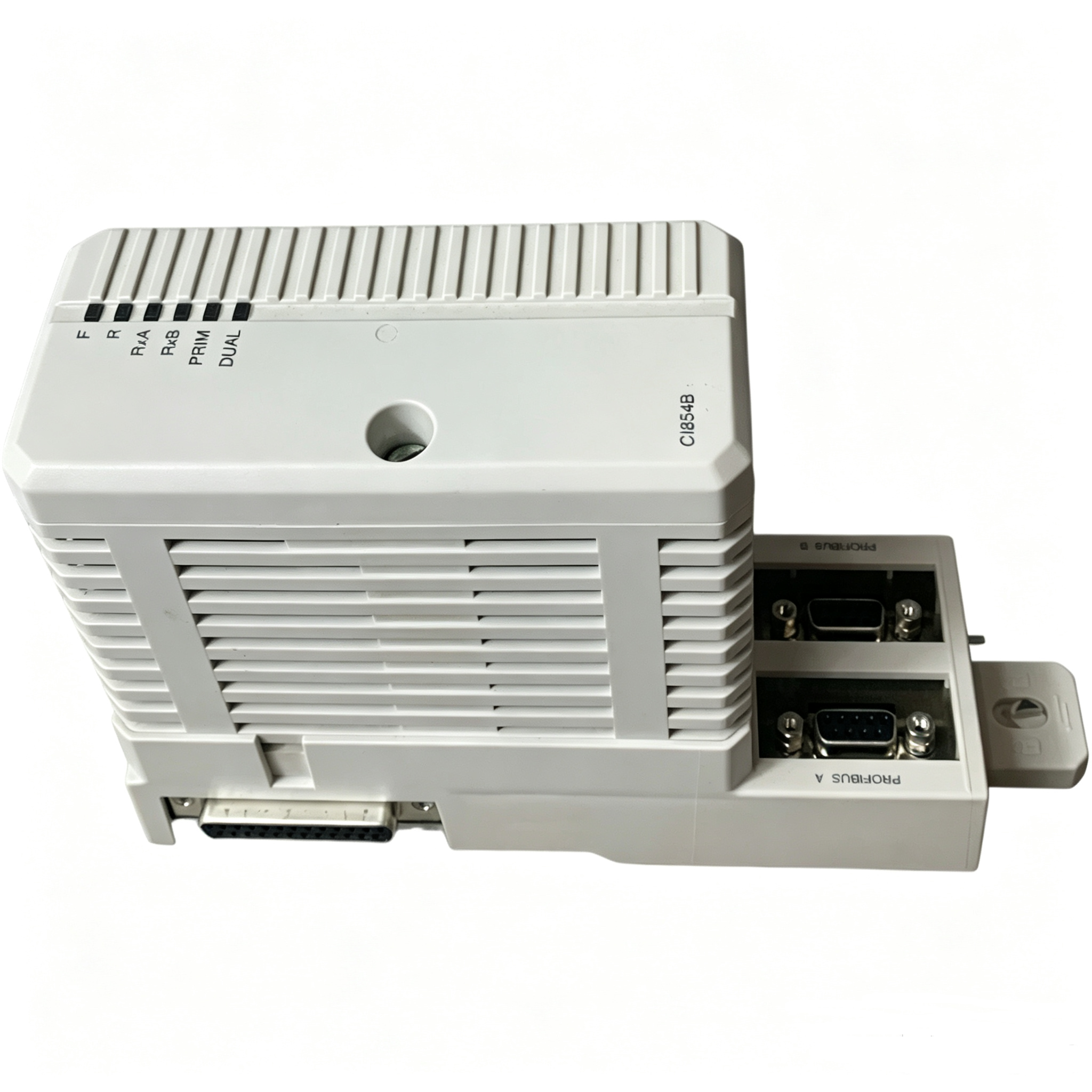

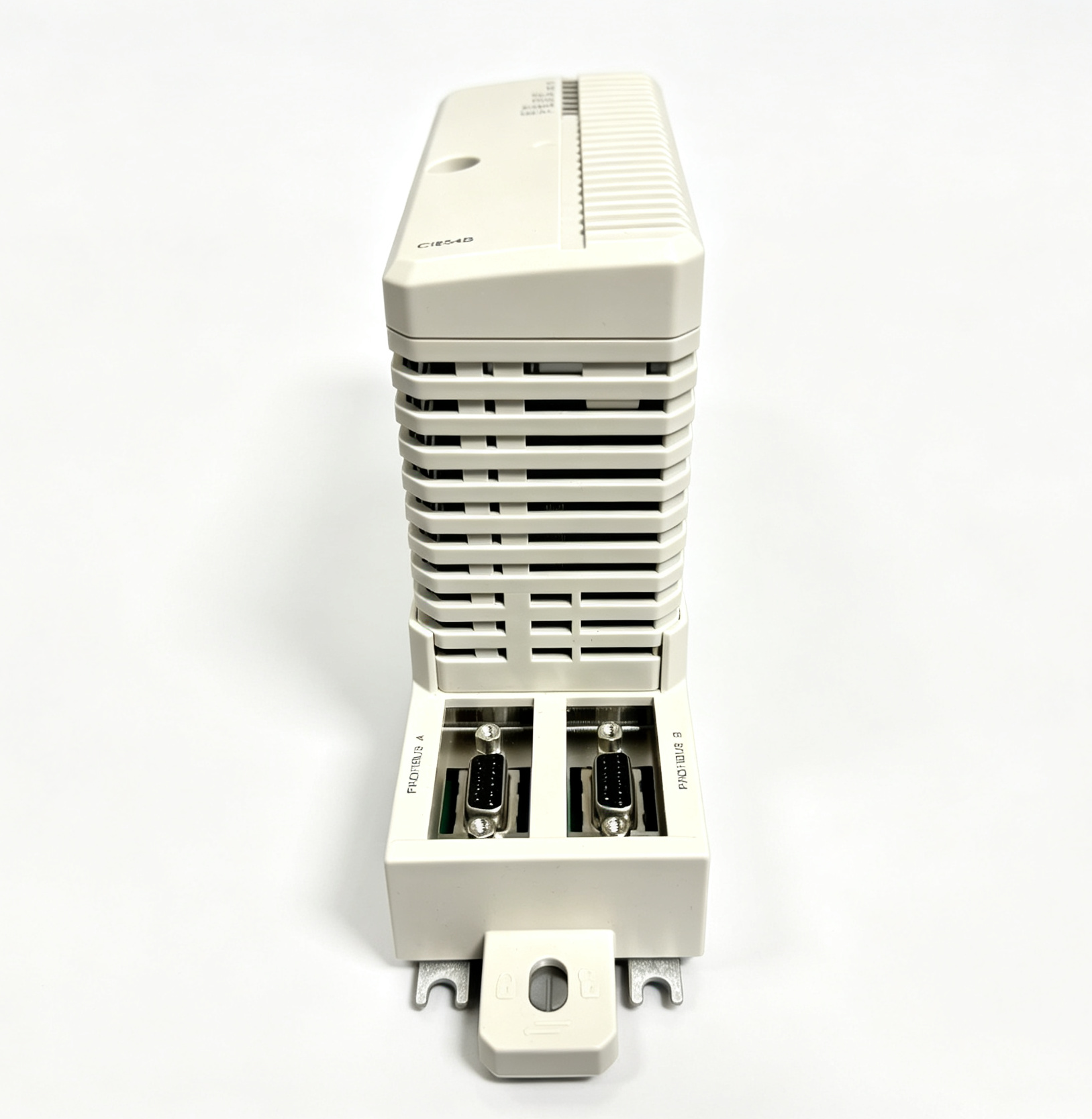

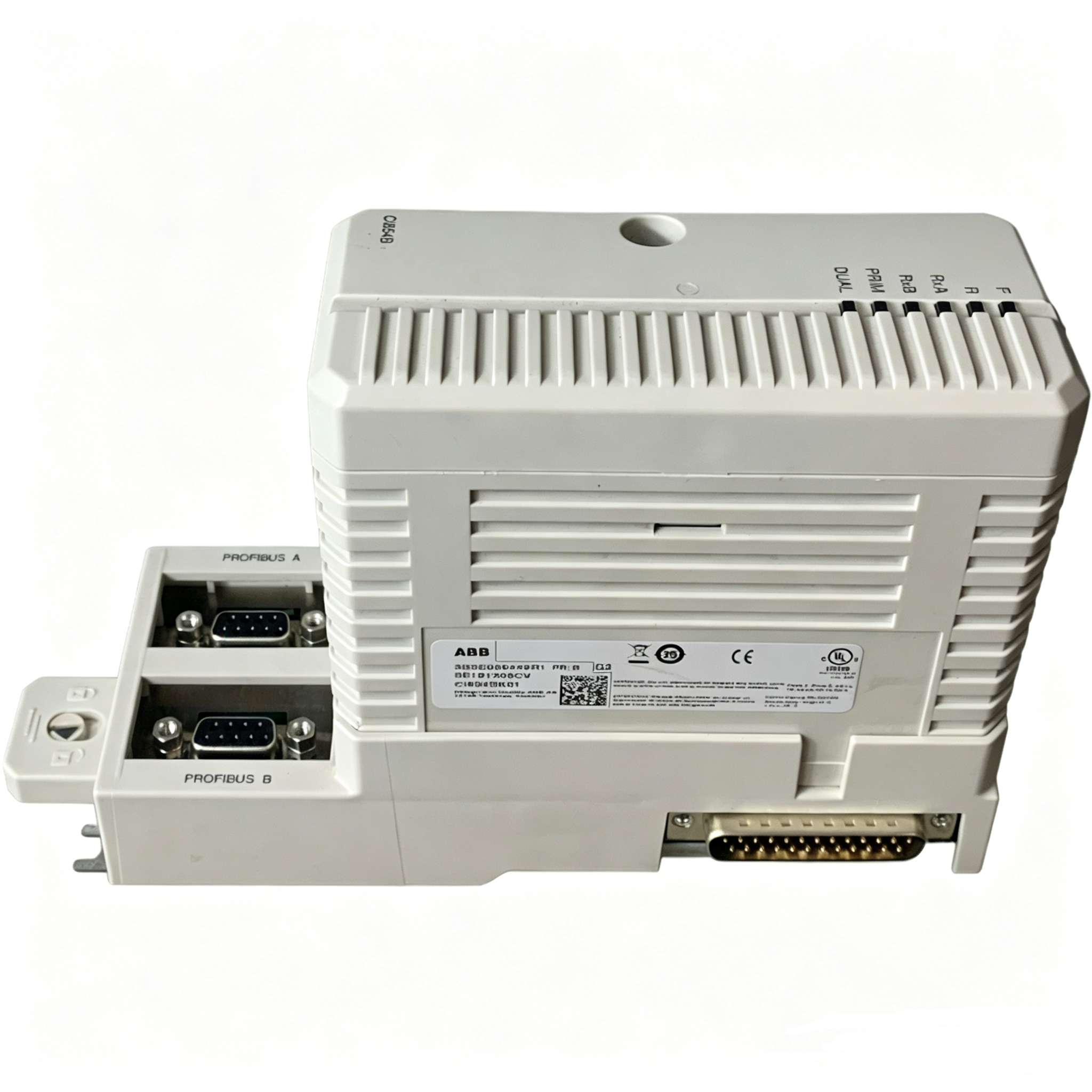

The ABB 3BSE069449R1 product reference corresponds to the CI854BK01 configuration.
The package consists of a CI854 communication interface and a TP854 baseplate.
The baseplate provides the mounting and system connection structure required for
the communication interface within the AC 800M hardware arrangement.

The specified dimensions for the communication interface assembly are approximately
59 mm in width, 185 to 186 mm in height, and 127.5 mm in depth, with a documented
weight of approximately 700 g including the base. The communication connection uses
a 9-pin female DB connector for the PROFIBUS interface. The typical 24 V power
consumption is specified at approximately 190 mA.

The hardware is designed for industrial environments and has an operating
temperature range of 0 °C to +55 °C. The specified storage temperature range is
-40 °C to +70 °C. The module also has an IP20 protection classification and
environmental characteristics intended for industrial automation installations.

AC 800M Automation Applications

ABB 3BSE069449R1 can be applied in industrial control systems where PROFIBUS
communication is required between an AC 800M controller and distributed field
equipment. Typical system architectures may include remote I/O stations, field
instruments, motor-related devices, and other PROFIBUS-compatible equipment.

The communication interface is also suitable for automation environments in which
network structure and availability are important design considerations. Support
for line redundancy and module redundancy gives system designers additional
options when developing communication architectures for process plants and
continuous-operation applications.

Because the CI854B is part of the AC 800M communication interface family, it can
be considered when maintaining or expanding established AC 800M control
architectures that rely on PROFIBUS-DP/V1. Correct hardware identification is
important when selecting a communication module, particularly where an existing
system has defined hardware revisions, communication requirements, and controller
compatibility conditions.

Technical Specifications

Product Identification

When identifying this ABB communication interface, the article number
3BSE069449R1 and the type designation CI854BK01
are the primary references. The CI854B designation identifies the PROFIBUS-DP/V1
communication interface, while the K01 configuration identifies the package that
includes the associated TP854 baseplate.

For system planning and component replacement, these identification references
should be matched with the existing AC 800M architecture and applicable system
documentation. This helps ensure that the communication interface corresponds
to the required PROFIBUS function, hardware configuration, and system generation.

ABB 3BSE069449R1 CI854BK01

ABB 3BSE069449R1 CI854BK01 is a dedicated PROFIBUS-DP/V1 communication interface
for AC 800M automation systems. Its combination of PROFIBUS master communication,
high transmission speed, line redundancy, module redundancy, and compatibility
with distributed field devices makes it an important communication component for
industrial control architectures. With its CI854 communication interface and TP854
baseplate configuration, the product provides a defined hardware solution for
integrating PROFIBUS networks into ABB AC 800M systems.
