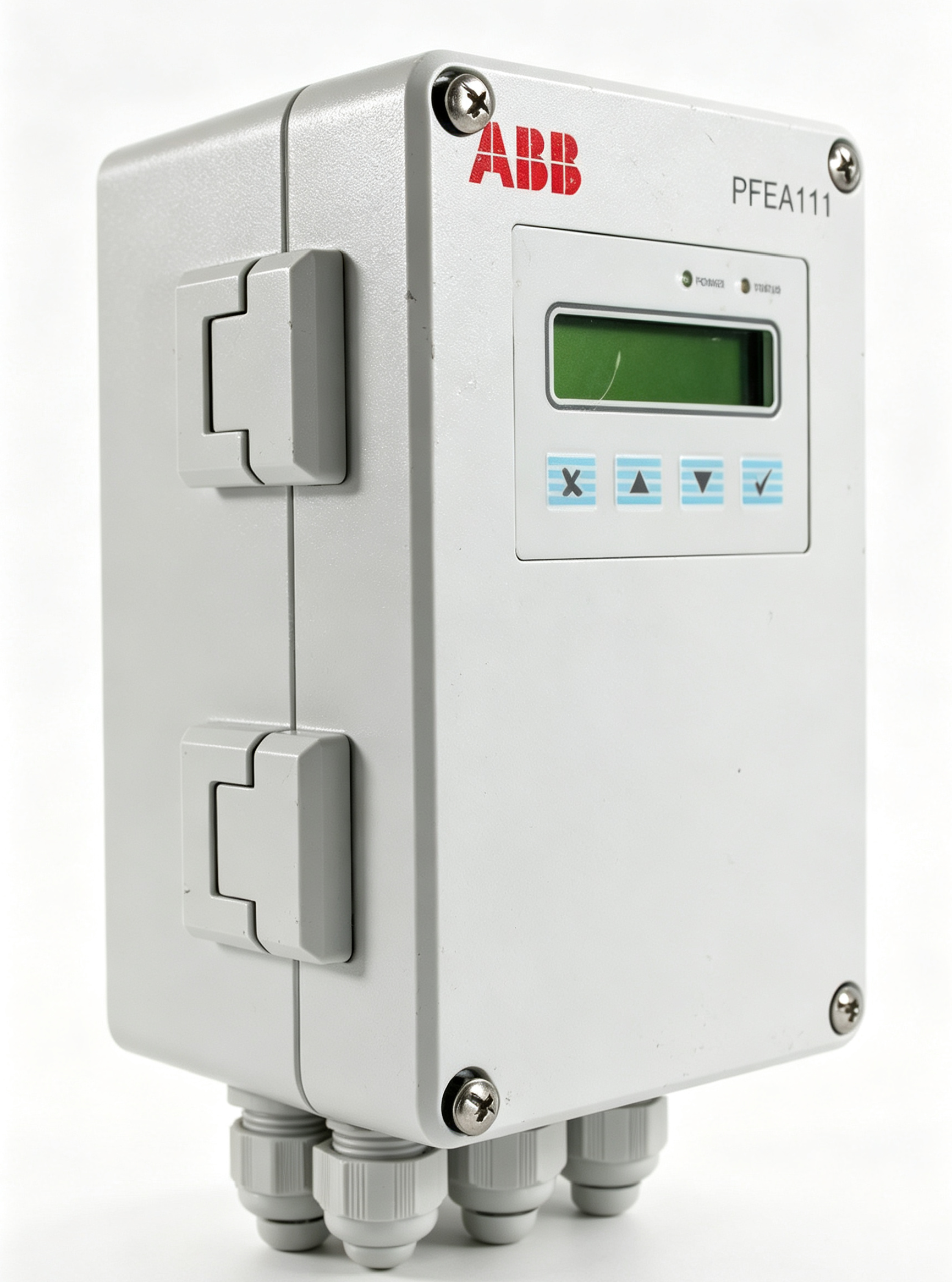

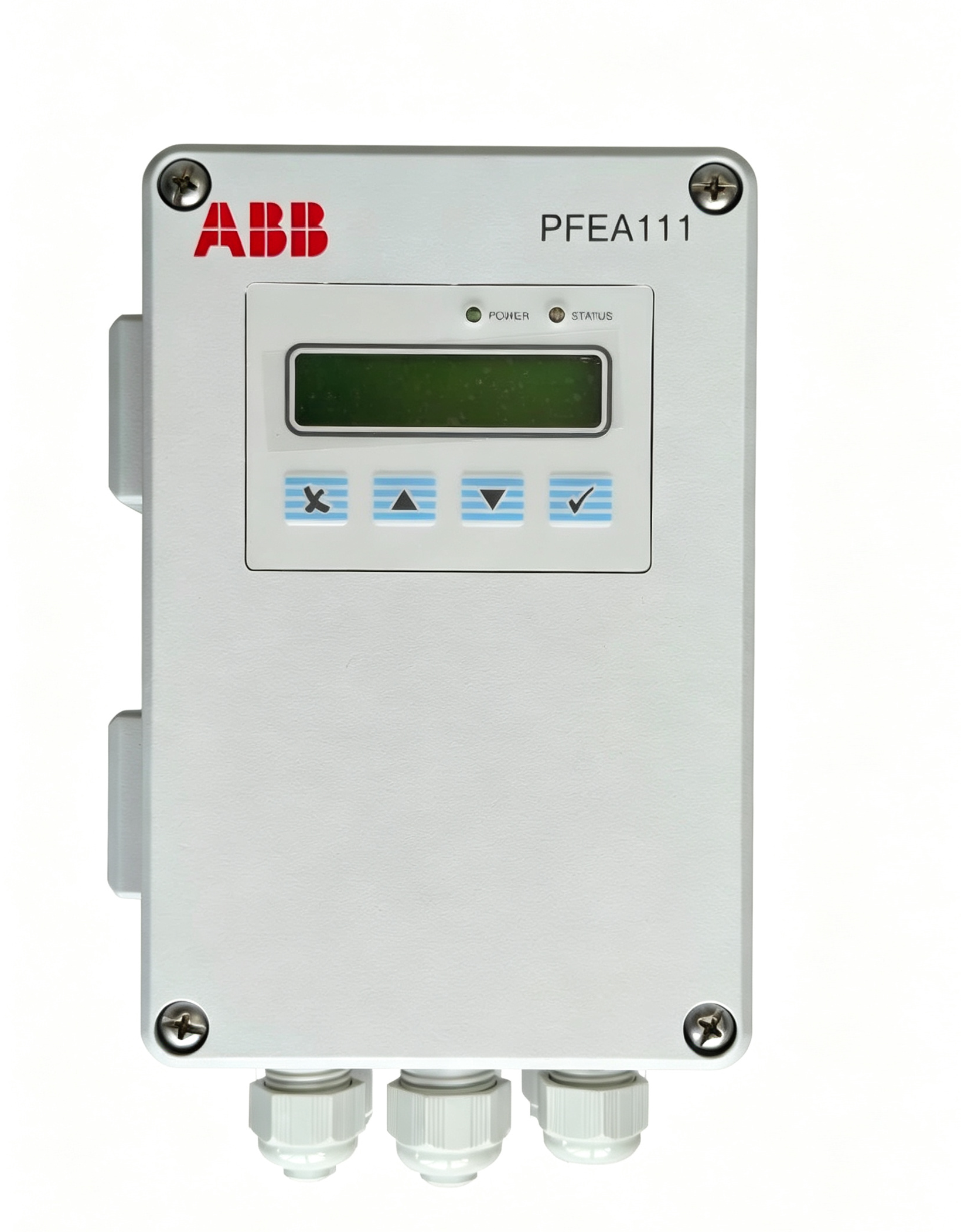

ABB 3BSE050090R65 PFEA111-65 Tension Electronics Module
The ABB 3BSE050090R65 PFEA111-65 is an industrial tension electronics module designed for accurate web tension measurement and control applications. As part of ABB force measurement solutions, this module provides reliable signal processing between tension sensors and industrial control systems, helping production equipment maintain stable material handling performance.
In continuous manufacturing processes, precise tension control is essential for maintaining product quality and improving production efficiency. Industries that process paper, plastic film, metal strips, textiles and other flexible materials require accurate monitoring of mechanical tension to prevent material deformation and ensure consistent operation.
The ABB PFEA111-65 receives measurement signals from connected load cells and processes these signals into usable tension information. Through advanced electronic signal processing and adjustable filtering functions, the module helps reduce the influence of vibration and process disturbances while maintaining reliable measurement results. :contentReference[oaicite:2]{index=2}
Compared with standard enclosure versions, the ABB 3BSE050090R65 features an IP65 protection design, making it suitable for industrial environments where additional protection against dust and water exposure is required. The module is designed for reliable operation in demanding production areas. :contentReference[oaicite:3]{index=3}
Product Features
- Manufacturer: ABB
- Product Number: 3BSE050090R65
- ABB Type Designation: PFEA111-65
- Product Type: Tension Electronics Module
- Designed for Web Tension Measurement Systems
- Supports Two Load Cell Inputs
- Voltage and Current Output Functions
- Adjustable Signal Filtering Capability
- A+B and A-B Measurement Display Functions
- IP65 Industrial Protection Design
Technical Specifications
| Manufacturer | ABB |
|---|---|
| Product Number | 3BSE050090R65 |
| Model | PFEA111-65 |
| Product Type | Tension Electronics Module |
| Application | Web Tension Measurement and Control |
| Input | Two Load Cell Inputs |
| Output | Voltage and Current Output |
| Protection Class | IP65 Enclosure |
| Power Supply | 24 V DC |
Tension Measurement System Overview
Industrial tension control systems consist of mechanical sensing components, load cells, electronic processing units and automation controllers. Together, these components measure material force and maintain stable tension throughout production processes.
The ABB 3BSE050090R65 acts as the electronic processing center of the measurement system. Signals generated by load cells are transferred to the PFEA111-65 module, where they are evaluated, filtered and converted into accurate tension values.
The processed information can be used by automation systems for monitoring and closed-loop control. This allows production machinery to automatically adjust operating conditions and maintain consistent material tension during different production stages.
Signal Processing Function
The primary function of the ABB PFEA111-65 is to provide stable processing of tension measurement signals. The module supports two load cell inputs and allows users to display individual measurement values or combined calculations such as A+B and A-B. :contentReference[oaicite:4]{index=4}
Adjustable filtering functions help improve measurement stability by reducing the influence of mechanical vibration and electrical interference. This is especially important in high-speed production lines where accurate tension information directly affects product quality.
Installation and Configuration
The ABB 3BSE050090R65 PFEA111-65 tension electronics module is designed for installation in industrial environments where reliable tension measurement and process control are required. Correct installation and configuration are important factors for achieving accurate measurement performance and stable system operation.
Before installation, engineers should verify the system requirements, including load cell specifications, signal connections and control system interfaces. Proper wiring and configuration ensure that measurement signals are transmitted correctly between field sensors and the automation system.
The IP65 protection design allows the ABB PFEA111-65 to be used in environments where protection against dust and water exposure is required. However, suitable installation practices should still be followed to maintain long-term reliability and prevent unnecessary environmental stress on electronic components.
During commissioning, technicians configure measurement parameters according to the mechanical structure and production requirements. Calibration of the tension measurement system ensures that the displayed values accurately represent the actual material tension conditions.
The module configuration process includes checking sensor input signals, output settings and filtering parameters. Proper adjustment improves measurement stability and helps the control system respond effectively to changes in production conditions.
Industrial Applications
The ABB 3BSE050090R65 PFEA111-65 is widely used in industrial applications that require accurate web tension measurement and reliable force control. It is especially suitable for continuous production processes where material movement must be carefully controlled.
In paper manufacturing and converting industries, tension control is critical for maintaining smooth material transportation during production. The ABB tension electronics module helps monitor web tension and supports stable operation of coating, winding and converting equipment.
Plastic film and packaging production lines require precise tension management to prevent stretching, wrinkles and material defects. Accurate tension feedback allows machines to maintain consistent processing conditions and improve final product quality.
Metal processing industries use tension measurement systems during strip handling, rolling and finishing operations. Stable tension control reduces mechanical stress and supports better control of production parameters.
Printing, textile and composite material industries also depend on reliable tension monitoring. The ABB PFEA111-65 provides measurement support for applications where consistent material movement and accurate force control are required.
Advantages of ABB 3BSE050090R65 PFEA111-65
- Provides accurate industrial tension measurement.
- Designed for web handling and force control applications.
- Supports two load cell input channels.
- Provides stable signal processing performance.
- Includes adjustable filtering functions for improved measurement quality.
- Supports A+B and A-B tension calculation functions.
- IP65 protection design suitable for demanding environments.
- Improves process control accuracy and production stability.
- Compatible with ABB industrial automation solutions.
- Designed for continuous industrial operation.
Maintenance and Diagnostics
Regular maintenance of the ABB 3BSE050090R65 PFEA111-65 helps ensure reliable operation of the complete tension measurement system. Preventive inspection allows engineers to identify possible problems before they influence production performance.
Maintenance activities should include checking electrical connections, inspecting load cell wiring, verifying output signals and confirming that measurement values remain within expected operating ranges.
If incorrect tension values appear, technicians should inspect the complete measurement chain. Possible causes may include sensor installation problems, signal connection issues, incorrect configuration parameters or mechanical conditions affecting measurement accuracy.
The diagnostic capabilities of the tension measurement system provide useful information for troubleshooting. By analyzing signal conditions and system behavior, maintenance personnel can quickly locate potential problems and restore normal operation.
Maintaining a clean installation environment and ensuring correct operating conditions helps improve equipment reliability and extends the service life of the electronic module.
Frequently Asked Questions
What is ABB 3BSE050090R65 used for?
ABB 3BSE050090R65 is a PFEA111-65 tension electronics module used for industrial web tension measurement and force control applications.
What is the difference between PFEA111-20 and PFEA111-65?
Both models belong to the ABB PFEA111 tension electronics family. The PFEA111-65 version features an IP65 protection design suitable for applications requiring enhanced environmental protection.
What sensors can be connected to ABB PFEA111-65?
The module is designed to process signals from compatible load cells used in ABB tension measurement systems.
Why is tension control important in industrial production?
Accurate tension control helps maintain product quality, reduce material defects and improve production efficiency in continuous web processing applications.
Conclusion
The ABB 3BSE050090R65 PFEA111-65 tension electronics module is a reliable industrial measurement solution designed for precise web tension monitoring and control. With support for load cell signal processing, adjustable filtering functions and IP65 protection, it provides dependable performance in demanding production environments.
By integrating accurate tension measurement technology with ABB automation systems, the PFEA111-65 helps industries improve process stability, maintain product quality and optimize production efficiency. Its robust design and flexible application capability make it an important component for modern web handling and industrial force measurement systems.
