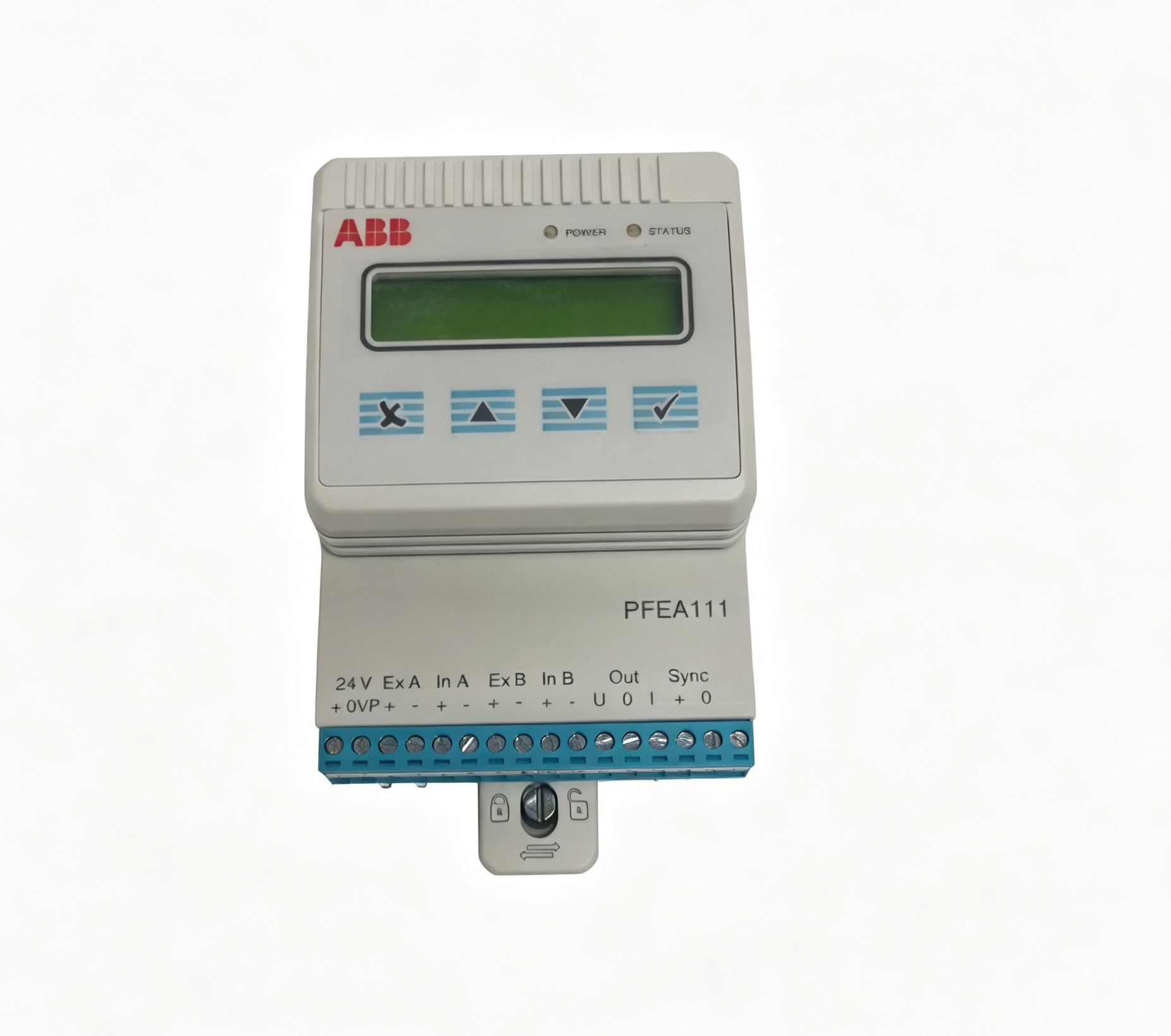

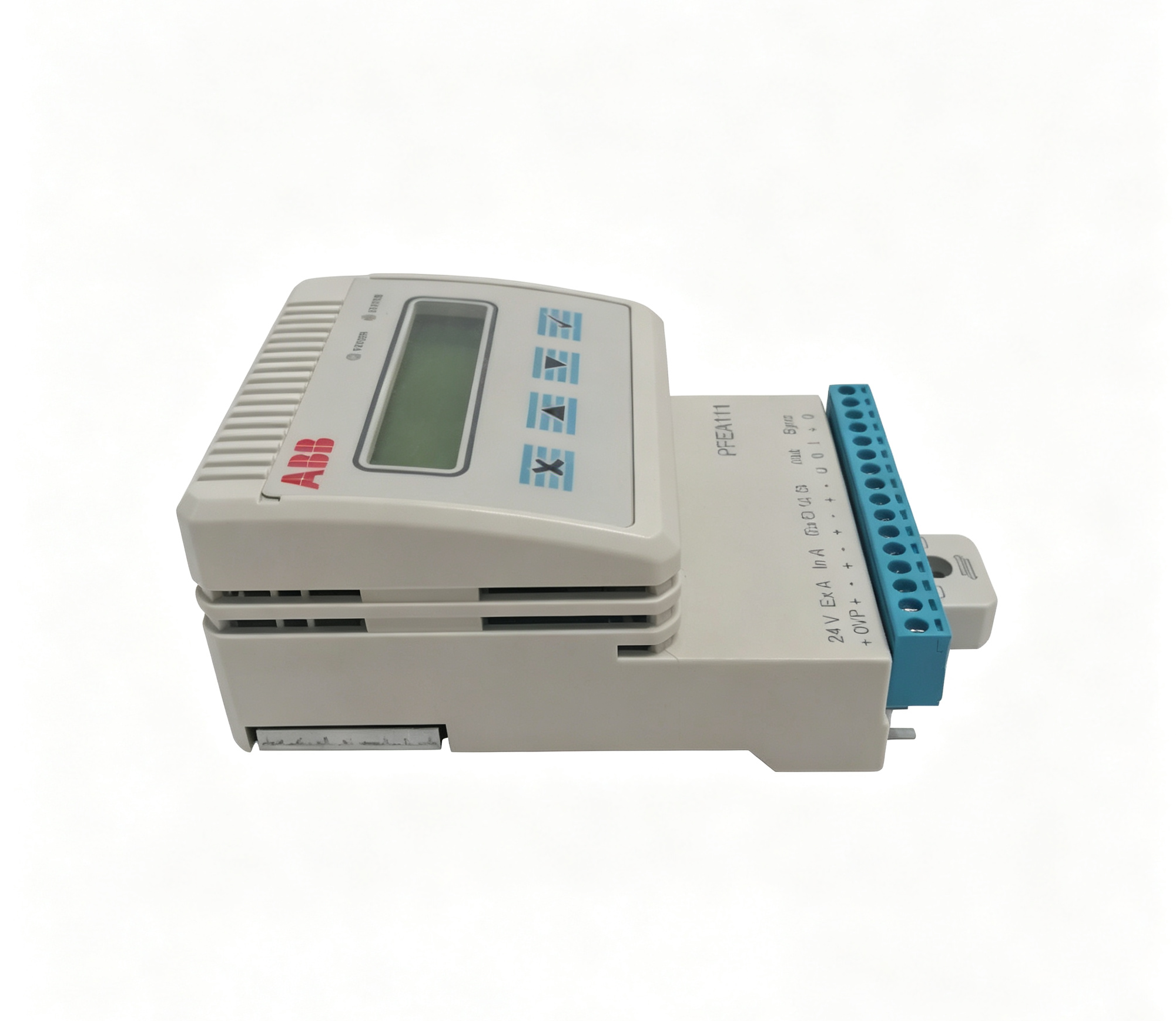

ABB 3BSE050090R20 PFEA111-20 Tension Electronics Module
The ABB 3BSE050090R20 PFEA111-20 is a professional tension electronics module designed for accurate web tension measurement and control applications in industrial production systems. As part of ABB Measurement and Analytics force measurement solutions, the module provides reliable signal processing between load cells and automation systems, helping manufacturers maintain stable material tension throughout continuous production processes.
In industries that process flexible materials, maintaining accurate tension control is essential for product quality and production efficiency. Paper manufacturing, plastic film production, metal processing, printing and textile industries all require precise control of material tension to prevent stretching, wrinkles, deformation and production defects.
The ABB PFEA111-20 tension electronics module receives measurement signals from connected load cells and converts these signals into useful tension information for monitoring and control systems. The module provides stable measurement performance through advanced signal processing technology and adjustable filtering functions. :contentReference[oaicite:2]{index=2}
The 3BSE050090R20 model is designed for ABB web tension control systems and belongs to the PFEA111 series of tension electronics products. It supports industrial applications where accurate force measurement and reliable process control are required. :contentReference[oaicite:3]{index=3}
Product Features
- Manufacturer: ABB
- Product Number: 3BSE050090R20
- ABB Type Designation: PFEA111-20
- Product Type: Tension Electronics Module
- Designed for Web Tension Measurement Applications
- Supports Two Load Cell Inputs
- Provides Voltage and Current Outputs
- Adjustable Signal Filtering Function
- Supports A+B and A-B Measurement Display
- Suitable for Industrial Process Control Systems
Technical Specifications
| Manufacturer | ABB |
|---|---|
| Product Number | 3BSE050090R20 |
| Model | PFEA111-20 |
| Product Type | Tension Electronics Module |
| Application | Web Tension Measurement and Control |
| Input | Two Load Cell Inputs |
| Output | Voltage and Current Output |
| Signal Function | A+B, A-B Measurement Processing |
| Installation Type | IP20 Industrial Installation |
Tension Measurement System Architecture
The ABB PFEA111-20 operates as an important signal processing component inside industrial web tension control systems. A typical tension measurement system consists of load cells, mechanical sensing elements, electronic processing modules and automation controllers working together to maintain consistent material handling performance.
Load cells installed in the production line detect mechanical forces generated by the moving material. These low-level signals are transferred to the PFEA111-20 module, where they are processed, filtered and converted into usable measurement values.
The processed tension information can then be integrated into automation systems for monitoring and closed-loop control. This allows production equipment to automatically maintain stable tension conditions during different operating speeds and production stages.
Signal Processing Function
The primary function of the ABB 3BSE050090R20 is to provide accurate electronic processing of tension measurement signals. The module evaluates input signals from load cells and applies adjustable filtering to improve measurement stability in industrial environments.
Industrial production lines often experience mechanical vibration, speed changes and external disturbances. Proper signal processing helps ensure that the control system receives reliable tension information and can respond correctly to process changes.
Installation and Configuration
The ABB 3BSE050090R20 PFEA111-20 tension electronics module is designed for installation within industrial control cabinets and automation systems where accurate tension measurement is required. Correct installation and configuration are essential for achieving reliable measurement performance and stable communication with connected control equipment.
Before installation, engineers should confirm that the module configuration matches the requirements of the tension measurement system. Proper selection of load cell connections, signal wiring and output configuration ensures that measurement signals are processed accurately.
The module should be installed in a suitable industrial environment with appropriate protection against dust, moisture, excessive temperature and electromagnetic interference. Correct grounding and cable installation practices help maintain measurement stability and reduce the influence of electrical noise.
During commissioning, technicians configure the tension measurement parameters according to the connected mechanical system and load cell characteristics. Calibration procedures ensure that the measured tension values correspond accurately with the actual mechanical force applied in the production process.
The ABB PFEA111-20 provides flexible configuration options that allow engineers to adapt the module to different web handling applications. Proper setup improves system response, measurement accuracy and overall production reliability.
Industrial Applications
The ABB 3BSE050090R20 PFEA111-20 tension electronics module is widely used in industrial applications where continuous material movement requires accurate tension monitoring and control. Its measurement technology supports industries that rely on stable web handling processes.
In the paper industry, accurate web tension control is essential during paper production, coating and converting processes. Stable tension helps prevent material damage, improves product consistency and supports efficient production operation.
Plastic film and flexible packaging industries use tension measurement systems to maintain correct material handling conditions. The ABB tension electronics module helps control the force applied to moving materials during manufacturing and processing.
Metal processing applications such as strip processing, rolling and finishing operations also require precise tension monitoring. Stable tension control improves product quality and reduces mechanical stress on production equipment.
Printing, textile and converting industries depend on reliable tension control to maintain accurate material positioning and consistent processing results. The PFEA111-20 provides measurement support for these demanding production environments.
Advantages of ABB 3BSE050090R20 PFEA111-20
- Provides accurate tension measurement signal processing.
- Designed for industrial web handling applications.
- Supports connection with ABB tension measurement systems.
- Processes load cell signals with high reliability.
- Provides adjustable filtering for improved signal stability.
- Supports A+B and A-B measurement calculations.
- Suitable for continuous production environments.
- Improves process control accuracy.
- Helps maintain consistent material tension.
- Designed according to ABB industrial automation standards.
Maintenance and Diagnostics
Regular maintenance of the ABB 3BSE050090R20 PFEA111-20 module helps ensure reliable operation of the complete tension measurement system. Preventive inspection allows engineers to identify possible issues before they affect production performance.
Maintenance procedures should include checking electrical connections, verifying load cell wiring, inspecting communication signals and confirming that measurement values remain within expected ranges.
If abnormal tension values occur, technicians should check the complete measurement chain including mechanical installation, load cell condition, signal wiring and module configuration parameters.
The diagnostic functions of the tension electronics system assist engineers in identifying signal problems and configuration errors. Proper troubleshooting methods help reduce downtime and maintain stable production operation.
Keeping the control cabinet environment clean and maintaining proper operating conditions improves the reliability and service life of the electronic module.
Frequently Asked Questions
What is ABB 3BSE050090R20 used for?
ABB 3BSE050090R20 is a PFEA111-20 tension electronics module used for web tension measurement and control applications in industrial production systems.
What signals does ABB PFEA111-20 process?
The PFEA111-20 processes signals from connected load cells and converts them into measurement information suitable for industrial tension monitoring and control systems.
Which industries use ABB tension control systems?
ABB tension control systems are commonly used in paper, film, metal, textile, printing and converting industries where accurate material tension is required.
Why is tension measurement important in industrial production?
Accurate tension measurement helps maintain material quality, reduce production defects and improve the stability of continuous manufacturing processes.
Conclusion
The ABB 3BSE050090R20 PFEA111-20 tension electronics module is a professional industrial measurement component designed for accurate web tension monitoring and control applications. By processing load cell signals and providing reliable measurement data, it supports stable operation of modern production lines.
With flexible configuration capabilities, dependable signal processing functions and compatibility with ABB industrial automation solutions, the PFEA111-20 helps industries improve process control, maintain product quality and achieve efficient production performance. It is an important component for applications requiring precise tension management and reliable automation control.
