ABB 3BSE008516R0001 AI810 8-Channel Analog Input Module for S800 I/O Systems

ABB 3BSE008516R0001 is identified with the ABB AI810 analog input module and belongs
to the ABB S800 I/O product family. The corresponding ABB product identification is
also commonly shown as 3BSE008516R1. The AI810 is designed to acquire standard
analog current and voltage signals for industrial automation and process control
applications.

As an analog input module, the AI810 provides an interface between field-level
instruments and an ABB control system. Signals generated by transmitters, sensors,
and other analog devices can be collected through the module and made available
to the control system for monitoring, calculation, alarm handling, and process
control functions.

Product Identification

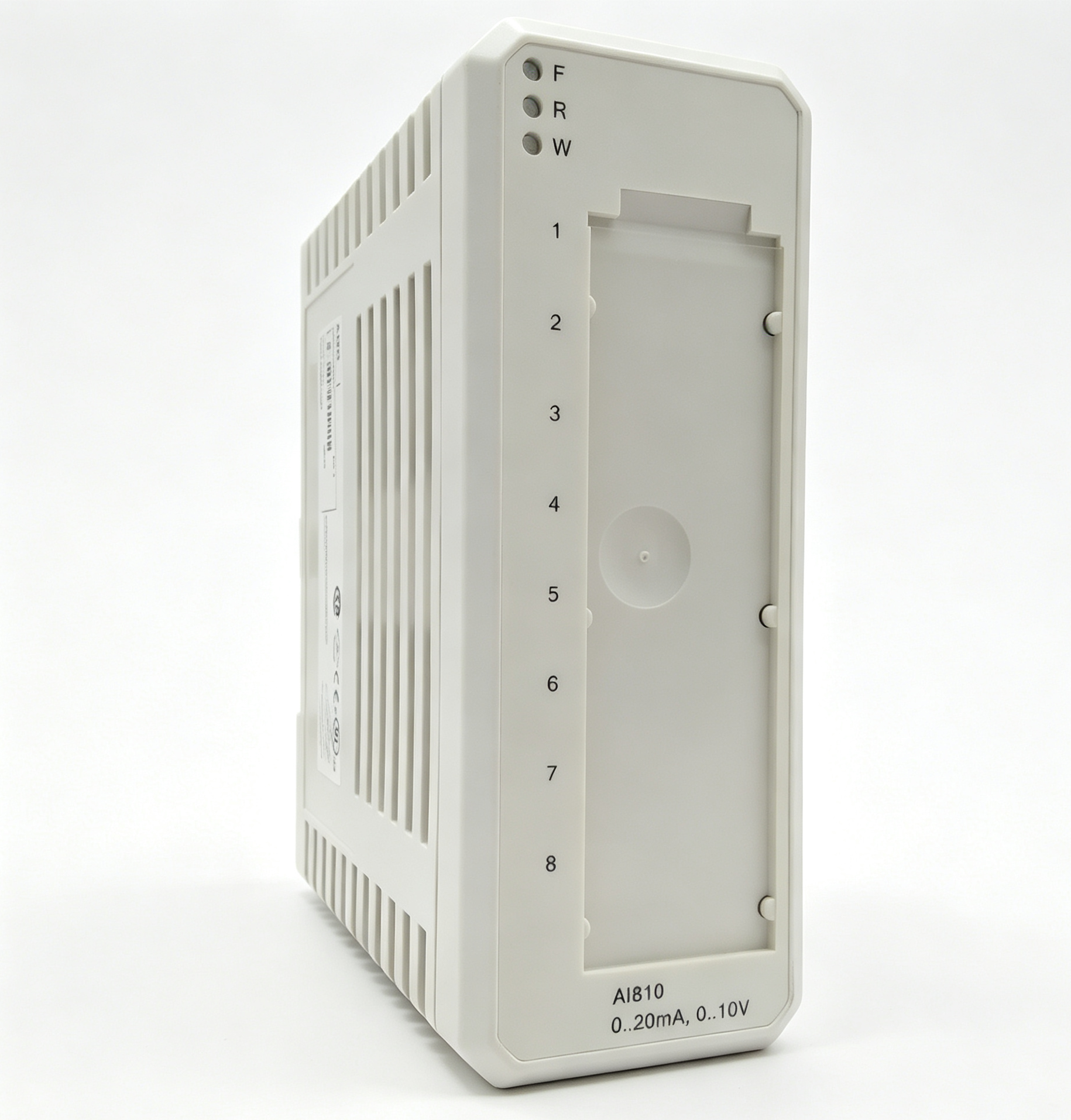

AI810 Analog Input Module Overview

The ABB AI810 is an eight-channel analog input module intended for acquisition of
process signals. ABB documentation identifies the module as an analog input device
supporting 0(4) to 20 mA and 0 to 10 V signal ranges with 12-bit resolution.
The inputs are single-ended, making the module suitable for standard industrial
measurement signals used in many automation systems.

Analog input modules are an important part of distributed control architectures.
Field instruments normally measure physical process conditions such as pressure,
temperature, flow, level, position, or other continuously varying variables.
The AI810 provides the interface through which these analog signals can enter the
automation system.

Input Signal Characteristics

The AI810 supports standard analog signal ranges used in industrial instrumentation.
According to ABB product information, the module supports 0(4) to 20 mA and 0 to
10 V inputs with 12-bit resolution.

Application in Industrial Automation

ABB 3BSE008516R0001 can be used in automation systems where multiple analog process
signals need to be acquired by an ABB control platform. Eight input channels allow
several field signals to be collected through one I/O module, helping organize
distributed instrumentation within the control architecture.

Typical signals connected to an analog input system can originate from pressure
transmitters, flow transmitters, level instruments, temperature transmitters,
position sensors, and other measurement devices. The actual application depends
on the field instrument, signal range, engineering configuration, and control
strategy of the installation.

S800 I/O System Integration

The AI810 belongs to the ABB S800 I/O family. S800 I/O provides modular field
interface functions for ABB automation systems and can be used to connect field
signals with higher-level control equipment.

The AI810 is used together with a compatible Module Termination Unit. ABB
documentation lists several compatible termination units, including TU810,
TU812, TU814, TU818, TU830, TU833, TU835, TU838, and TU850.

The exact termination unit and system arrangement should be selected according to
the installation design. The field wiring, channel assignment, signal range,
controller configuration, and I/O addressing should all correspond to the
engineering documentation of the automation system.

Signal Acquisition and Process Monitoring

Analog signals provide continuously variable information from industrial processes.
After a field signal is connected to the AI810, the input value can be acquired by
the control system and used for process visualization, control loops, alarm
functions, historical recording, and other automation tasks.

The 12-bit resolution provides discrete digital representation of the measured
analog signal. The engineering system can then scale the acquired value according
to the characteristics of the connected field instrument and the process variable
being measured.

Installation Considerations

Correct installation of an analog input module requires attention to both the
electrical wiring and the software configuration. Before connecting field
instruments, the complete part number and AI810 type designation should be
confirmed.

Field wiring should be checked against the project drawings to ensure that each
instrument is connected to the intended input channel. The signal type and range
should also correspond to the configured channel.

Recommended Installation Checks

• Confirm the ABB part number 3BSE008516R0001.
• Verify the AI810 type designation.
• Check the compatible Module Termination Unit.
• Confirm the number and assignment of analog input channels.
• Verify whether each field signal is current or voltage based.
• Check the configured signal range.
• Compare field wiring with the system electrical drawings.
• Verify the corresponding I/O configuration in the control system.

Maintenance and Troubleshooting

Troubleshooting an analog input channel should begin with identification of the
affected channel and the connected field instrument. The wiring, termination
arrangement, signal source, and software configuration should then be checked
systematically.

If an expected analog value is not displayed correctly, maintenance personnel
should first verify that the field instrument is generating the intended signal.
The signal wiring and termination should then be inspected before checking the
AI810 channel configuration.

Incorrect signal range selection can also produce unexpected process values.
For example, a field device configured for a current signal should not be treated
as a voltage input in the engineering configuration. The physical signal and
software scaling should therefore be reviewed together.

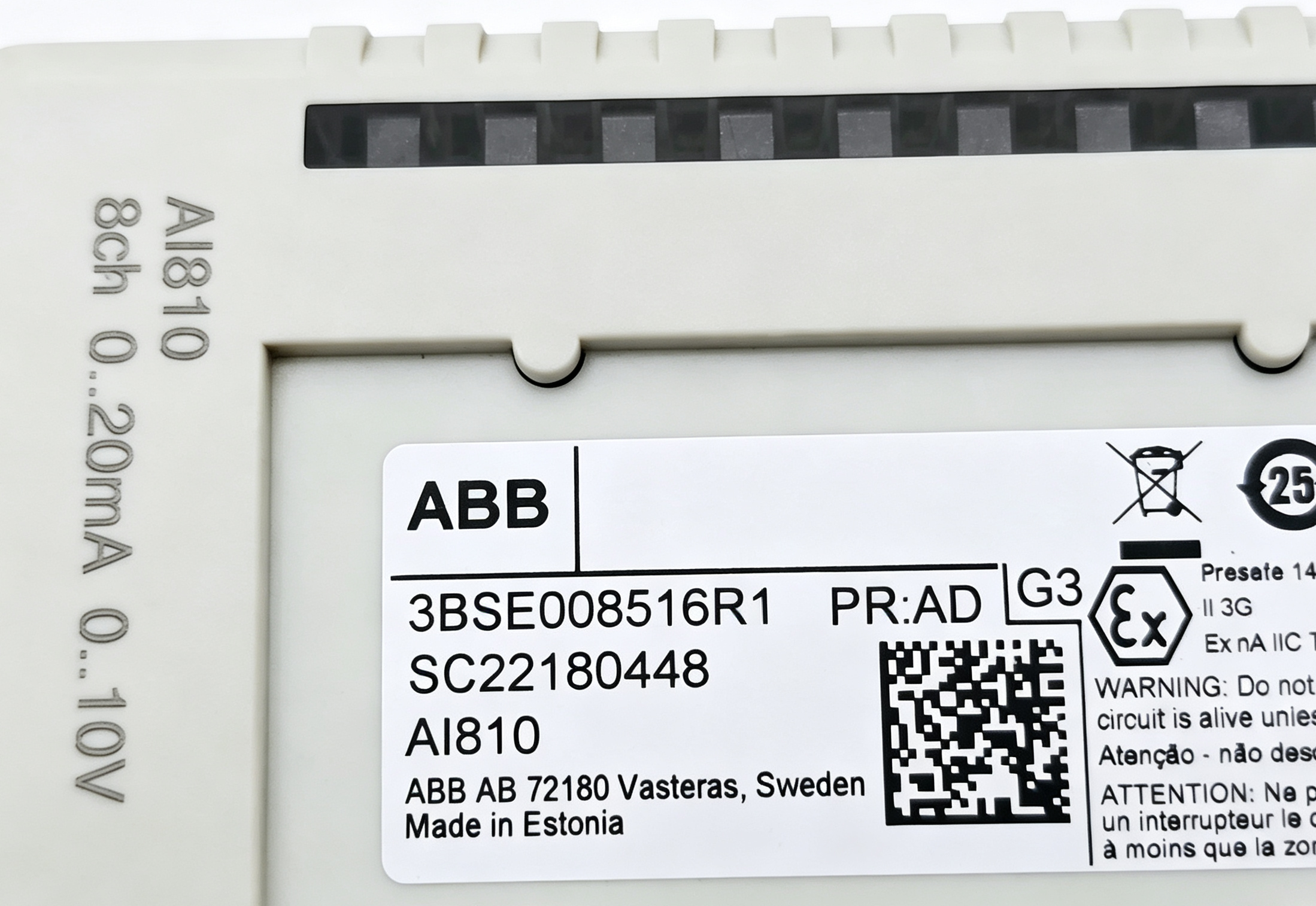

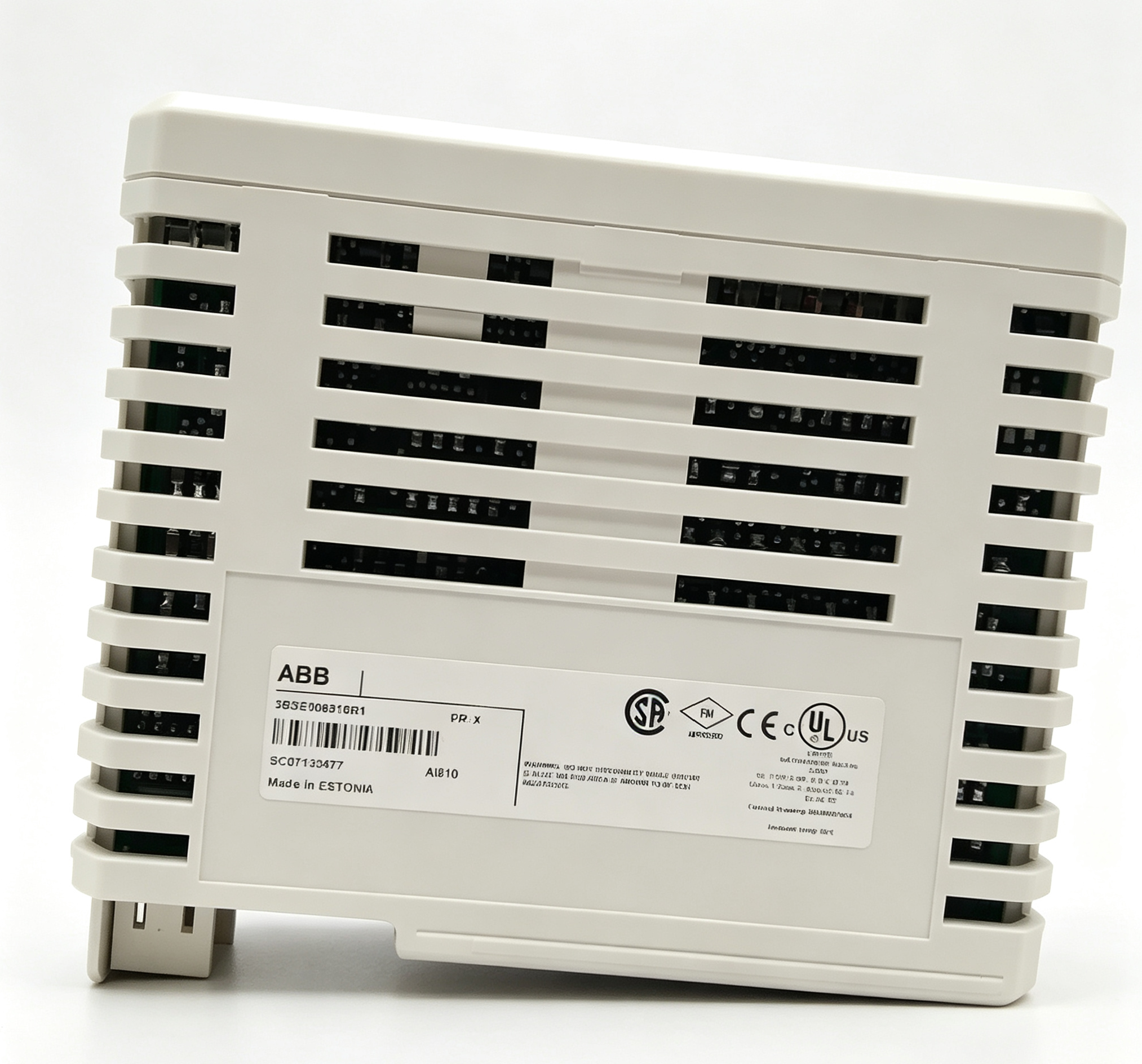

Replacement and Part Number Verification

Accurate part number identification is important when maintaining ABB S800 I/O
installations. The designation 3BSE008516R0001 is associated with the AI810 module,
while ABB product documentation also identifies the product as 3BSE008516R1.

When checking a replacement component, maintenance personnel should compare the
complete product number, type designation, hardware configuration, and system
documentation. This is particularly important when an installation contains
multiple S800 I/O modules with similar physical characteristics.

Related ABB System Components

The AI810 operates as part of a larger I/O architecture rather than as an
independent control system. Depending on the installation, the complete arrangement
can include controllers, communication interfaces, ModuleBus connections, termination
units, field wiring, and engineering software.

The compatible termination unit provides the field connection interface, while the
AI810 performs the analog input function. Proper coordination between these
components is necessary for the complete I/O channel to operate according to the
system design.

Technical Advantages of an Eight-Channel Analog Input Architecture

An eight-channel input configuration allows multiple analog measurement points to
be grouped within a single S800 I/O module. This can simplify the organization of
field instrumentation and provide a consistent structure for process signal
acquisition.

The use of standard current and voltage signal ranges also allows the module to
interface with a broad range of industrial instruments. In a distributed control
environment, analog input modules such as the AI810 form an important link between
field instrumentation and the supervisory or control layer.
