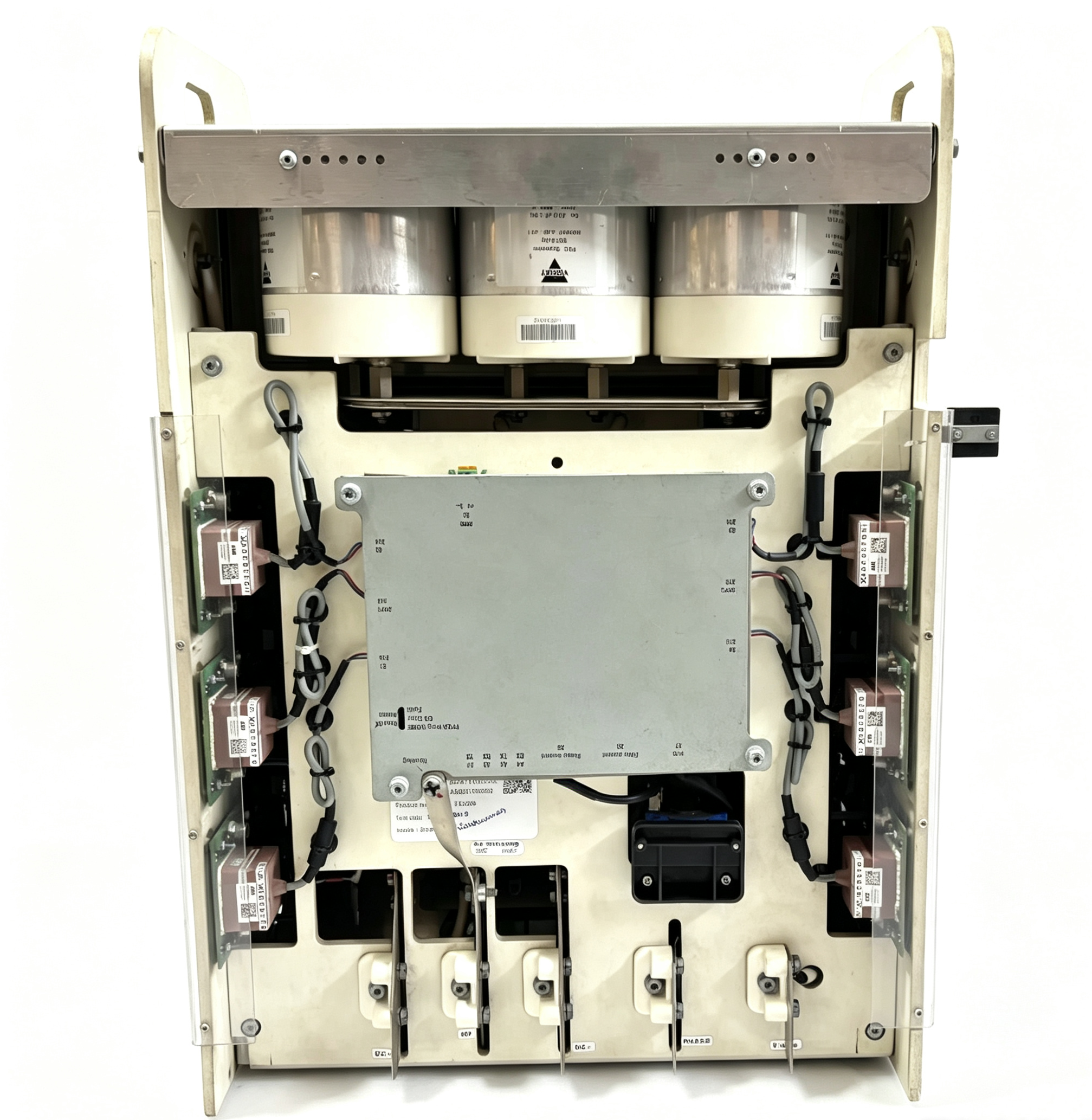

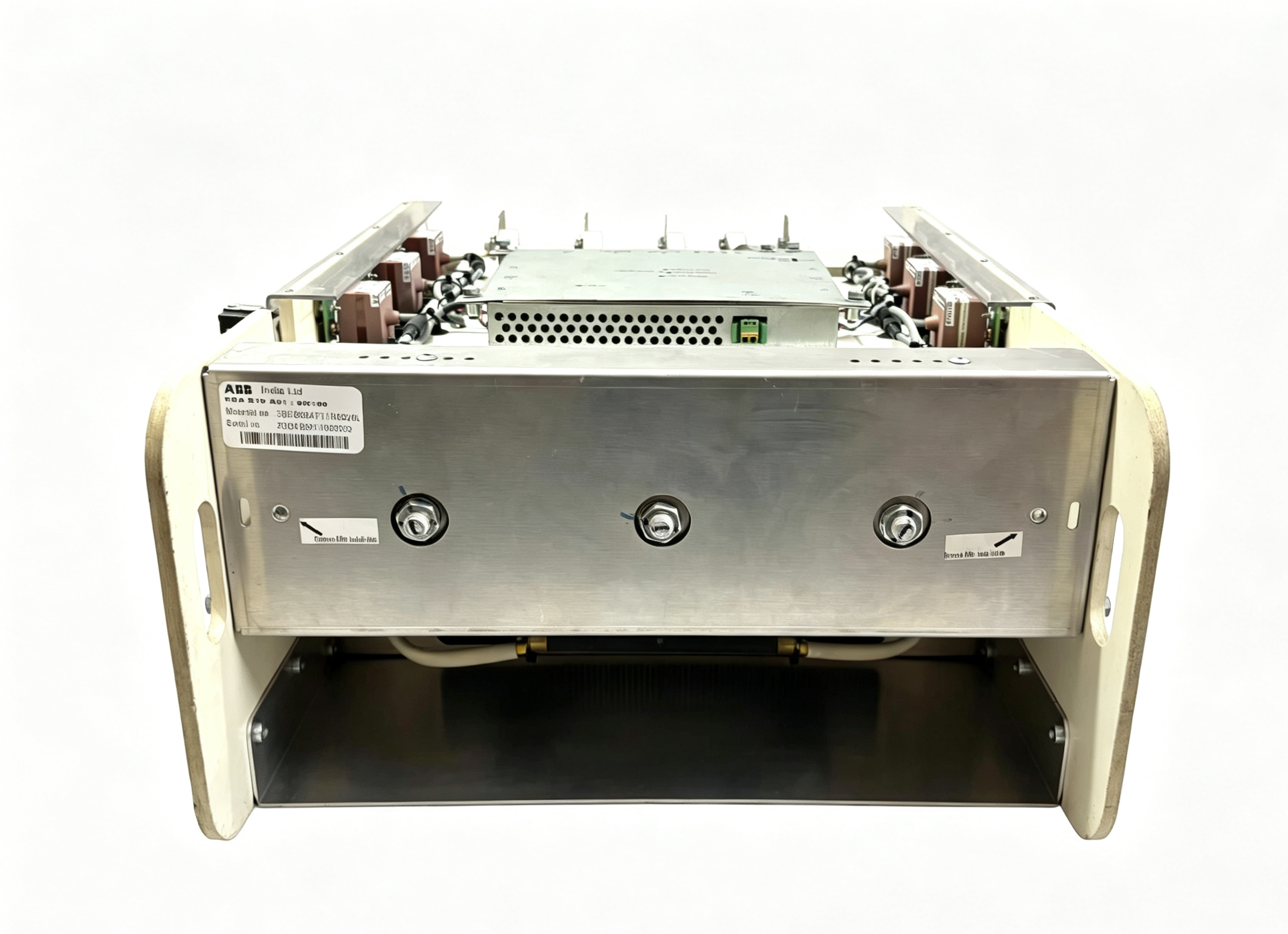

ABB 3BHB028673R0010 PBA F10 A01 6k200 Phase Module Frame 2 R0

ABB 3BHB028673R0010 is identified as PBA F10 A01 : 6k200, with the catalog description “PHASE MODULE FRAME 2 R0.” The component is associated with the ABB ACS2000 medium voltage AC drive platform and forms part of the phase module assembly used within the drive architecture. Product records identify the complete ABB article number as 3BHB028673R0010 and associate the component with the ACS2000 drive family.

The phase module frame is an important mechanical element within a medium voltage drive because it provides the structural arrangement for the corresponding phase module and associated power-electronic assemblies. Unlike a standalone control board or conventional low-voltage drive accessory, this component belongs to a larger medium voltage power-conversion structure. Correct identification therefore requires attention to the complete article number, ABB type designation and associated drive configuration.

Product Identification

• Manufacturer: ABB
• Article number: 3BHB028673R0010
• ABB type designation: PBA F10 A01 : 6k200
• Catalog description: PHASE MODULE FRAME 2 R0
• Product name: Phase Module Frame 2 R0
• Associated drive platform: ABB ACS2000
• Drive category: Medium voltage AC drive
• Voltage class designation: 6k200
• Product category: Phase module assembly component
• Product net weight: Approximately 139 kg
• Country of origin listed in product records: Switzerland

ABB ACS2000 Medium Voltage Drive

The ABB ACS2000 is a medium voltage AC drive platform designed as part of ABB’s industrial power-conversion portfolio. A medium voltage drive uses a coordinated arrangement of power modules, phase assemblies, control electronics, measurement systems and mechanical structures to regulate electrical energy supplied to an industrial motor.

Within such an architecture, the phase module assembly represents a major part of the power-conversion section. The frame provides the physical structure required for the associated phase module arrangement and supports the integration of the relevant power-electronic components.

ABB 3BHB028673R0010 is therefore best identified as a phase module frame component rather than as a general-purpose controller or input/output board.

PBA F10 A01 : 6k200 Designation

The ABB type designation for 3BHB028673R0010 is PBA F10 A01 : 6k200. This designation is an important part of the technical identification because it distinguishes the component from other ABB phase-module assemblies and industrial drive parts.

The “6k200” designation appears as part of the official product identification in available product records. It should be retained exactly when entering the component into equipment databases, technical drawings or spare-parts documentation.

The complete article number and type designation should be used together when matching this component to an ACS2000 installation.

Phase Module Frame Function

A phase module frame provides the mechanical framework for a phase module within the drive’s power-conversion architecture. The frame allows the relevant power components and associated assemblies to be arranged in a defined mechanical structure.

The mechanical configuration is particularly important in medium voltage equipment because power-conversion assemblies must maintain appropriate physical relationships between electrical components, cooling arrangements, insulation structures and connection points.

The phase module frame should therefore be considered an integral mechanical component of the complete power module assembly. Its function cannot be separated from the corresponding ACS2000 drive architecture.

ACS2000 Phase Module Architecture

The ACS2000 uses phase-specific power-conversion assemblies as part of its medium voltage drive structure. The phase module architecture allows the power conversion system to be organized into defined assemblies that can be integrated with the drive’s other electrical and mechanical systems.

Available product records specifically associate ABB 3BHB028673R0010 with the ACS2000 and identify it as “PHASE MODULE FRAME 2 R0.” This provides a clear distinction from nearby ABB article numbers in the same product family, which may represent inductors, capacitors, thyristors, filters or other power-electronic components. :contentReference[oaicite:1]{index=1}

The exact electrical components installed within a particular phase module should be determined from the corresponding ACS2000 configuration documentation.

Mechanical Structure

The frame designation indicates that 3BHB028673R0010 primarily belongs to the mechanical structure of the phase module assembly. Mechanical accuracy is important because the frame must correspond with the physical arrangement of the associated power components.

The mechanical dimensions, mounting points and component arrangement should therefore be checked against the relevant ACS2000 engineering documentation before any installation or replacement activity.

A frame from a different ACS2000 configuration should not be assumed to be interchangeable simply because it belongs to the same general phase-module family.

Technical Specification Table

The available product record lists a net weight of 139 kg, identifies Switzerland as the country of origin and places the component within the ACS2000 medium voltage AC drive category. :contentReference[oaicite:2]{index=2}

Relationship with ACS2000 Power Electronics

The phase module frame forms part of the physical environment in which the ACS2000 power-electronic assemblies operate. Medium voltage power conversion requires carefully arranged power components, electrical connections, insulation structures and cooling provisions.

The frame provides the mechanical foundation for this arrangement. It therefore contributes to the physical integrity and organization of the power-conversion assembly even though it is not itself the primary semiconductor switching device.

The distinction is useful when creating equipment documentation because the frame should not be classified as a control board, thyristor, capacitor or filter component.

Distinction from Other ABB 3BHB Components

The 3BHB article-number family contains a wide range of ABB industrial drive components. Nearby product records show examples including medium voltage thyristors, EMC filter inductors, filter capacitors, resistors, common-mode inductors and other ACS2000 components. :contentReference[oaicite:3]{index=3}

ABB 3BHB028673R0010 is specifically identified as the PBA F10 A01 : 6k200 phase module frame. This distinction is important because article numbers in the same numerical family can represent completely different mechanical or electrical functions.

When documenting the component, the complete article number should therefore be used instead of relying on the shared 3BHB prefix.

Replacement Identification

Replacement identification should begin with the ABB article number 3BHB028673R0010. The PBA F10 A01 : 6k200 type designation should also be retained because it provides an additional identification reference.

Available product documentation states that replacement modules are mechanically identical with 3BHB028673R0010. This information is relevant when evaluating the mechanical compatibility of corresponding replacement phase-module assemblies. :contentReference[oaicite:4]{index=4}

Even when mechanical compatibility is established, the associated ACS2000 configuration should still be checked to confirm the correct complete assembly and electrical arrangement.

Medium Voltage Application

Medium voltage AC drives are used in industrial applications where large motors require controlled speed, torque and process operation. Such systems can be applied to pumps, fans, compressors, conveyors and other high-power machinery.

The ACS2000 architecture uses specialized power-conversion assemblies to manage the electrical energy supplied to the motor. The phase module frame provides the mechanical structure associated with one of these power-conversion assemblies.

The exact application of a particular 3BHB028673R0010 installation depends on the ACS2000 drive rating, system configuration and motor application.

Mechanical Compatibility

Mechanical compatibility is particularly important for a phase module frame. The mounting geometry, physical dimensions, internal component arrangement and connection locations must correspond with the target drive configuration.

The product designation “PHASE MODULE FRAME 2 R0” should therefore be retained when comparing engineering documentation. The frame number and revision information can help distinguish it from other phase-module mechanical assemblies.

Visual similarity alone is not sufficient to establish compatibility in a medium voltage drive.

Electrical System Integration

Although 3BHB028673R0010 is identified primarily as a phase module frame, it exists within an electrical power-conversion assembly. The mechanical structure must accommodate the electrical components and connections required by the ACS2000 configuration.

The complete assembly can include semiconductor power components, capacitors, inductors, measurement circuits, connection systems and cooling arrangements. Each component must correspond to the intended drive configuration.

For this reason, technical evaluation should consider the frame and its associated phase module as part of the complete ACS2000 power-conversion system.

Maintenance Considerations

Maintenance of a medium voltage drive requires appropriate electrical safety procedures. The ACS2000 power section can contain hazardous voltage levels, and stored electrical energy may remain present after the main input supply has been disconnected.

Before inspection or service, the applicable ABB safety and maintenance procedures should be followed. The phase module assembly, frame, mounting points, electrical connections and associated power components should be inspected according to the relevant service documentation.

Mechanical damage to the frame can affect the positioning of associated power components and should therefore be evaluated as part of the complete assembly.

Engineering Documentation

For an engineering database, an appropriate identification format is “ABB 3BHB028673R0010 — PBA F10 A01 : 6k200 — Phase Module Frame 2 R0.”

This format retains the complete article number, official type designation and catalog description in one technical reference. It can be used in equipment lists, maintenance records, engineering documentation and component identification systems.

Where additional information is available, the ACS2000 drive model, cabinet reference, phase position and hardware revision can be recorded as separate fields.

Product Weight and Physical Handling

Available product records specify a product net weight of approximately 139 kg for ABB 3BHB028673R0010. :contentReference[oaicite:5]{index=5}

This substantial weight is consistent with the component’s role within a medium voltage phase-module assembly. Mechanical handling therefore needs to consider suitable lifting equipment, mounting support and cabinet access requirements.

The actual handling procedure should be determined by the installation environment and the applicable ACS2000 service documentation.

ACS2000 System Documentation

The most appropriate documentation for evaluating 3BHB028673R0010 is the technical documentation associated with the relevant ACS2000 configuration. The component should be identified using both the article number and the PBA F10 A01 : 6k200 designation.

Available product records place this article number within the ACS2000 product category and identify it as the PHASE MODULE FRAME 2 R0. :contentReference[oaicite:6]{index=6}

This provides a reliable basis for describing the component without assigning unsupported electrical ratings or internal component specifications.

Identification in Spare-Part Records

For spare-part management, the exact article number is more useful than a shortened description. The reference 3BHB028673R0010 should be recorded exactly, including every letter and number.

The type designation PBA F10 A01 : 6k200 should be stored as an additional identification field. The catalog description PHASE MODULE FRAME 2 R0 can be used as the functional description.

These three identifiers provide a clear method for distinguishing this component from other ABB 3BHB products used in ACS2000 systems.

Technical Application Summary

ABB 3BHB028673R0010 is associated with the phase module section of the ACS2000 medium voltage AC drive. Its role is primarily structural, providing the frame arrangement identified by ABB as PHASE MODULE FRAME 2 R0.

The component’s PBA F10 A01 : 6k200 designation identifies its specific product configuration. The complete article number should be used when matching the frame with the appropriate ACS2000 equipment and phase-module assembly.

The available documentation also indicates that replacement modules are mechanically identical with 3BHB028673R0010, which can be relevant during engineering evaluation of corresponding assemblies. :contentReference[oaicite:7]{index=7}

Why Exact Identification Matters

Medium voltage drive systems contain components with highly specific mechanical and electrical functions. A phase module frame cannot be selected solely by approximate dimensions or a general product-family name.

Using ABB 3BHB028673R0010 together with PBA F10 A01 : 6k200 and PHASE MODULE FRAME 2 R0 creates a precise identification record. This reduces the possibility of confusing the component with adjacent 3BHB parts used for filtering, energy storage, semiconductor switching or other drive functions.

Conclusion

ABB 3BHB028673R0010 is the PBA F10 A01 : 6k200 phase module frame identified by ABB-related product records as “PHASE MODULE FRAME 2 R0.” It is associated with the ABB ACS2000 medium voltage AC drive and forms part of the mechanical structure of the corresponding phase module assembly. :contentReference[oaicite:8]{index=8}

The complete article number, type designation and catalog description should be retained when documenting the component. Available product records specify a product net weight of approximately 139 kg and associate the component with the ACS2000 drive platform. :contentReference[oaicite:9]{index=9}

For technical evaluation, maintenance and compatibility verification, ABB 3BHB028673R0010 should be considered together with the complete ACS2000 configuration, phase-module assembly and applicable engineering documentation. This approach provides a more accurate basis for component identification and system integration than relying on the article number alone.
