ABB 3BHB020720R0002 IGCT Module

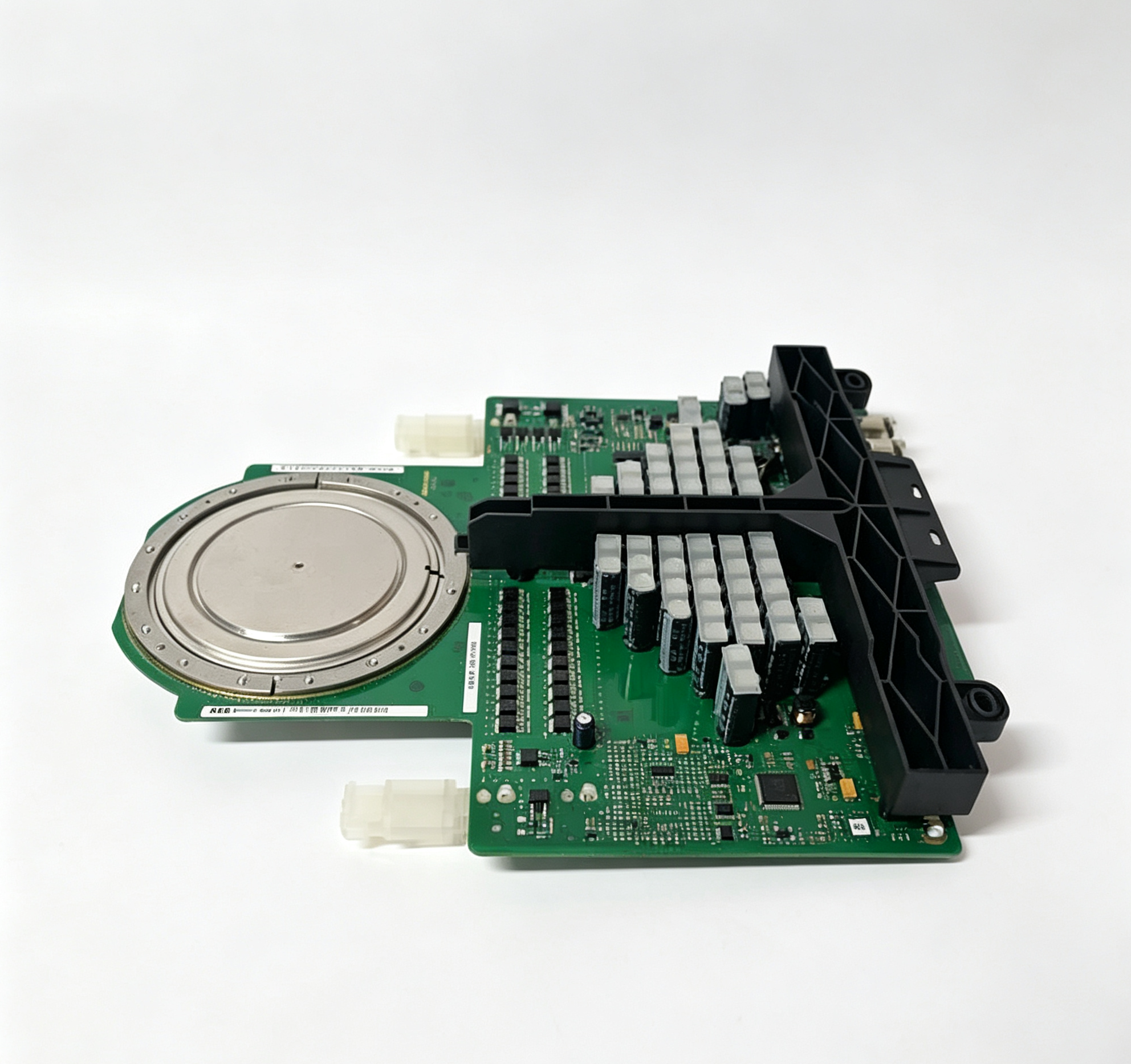

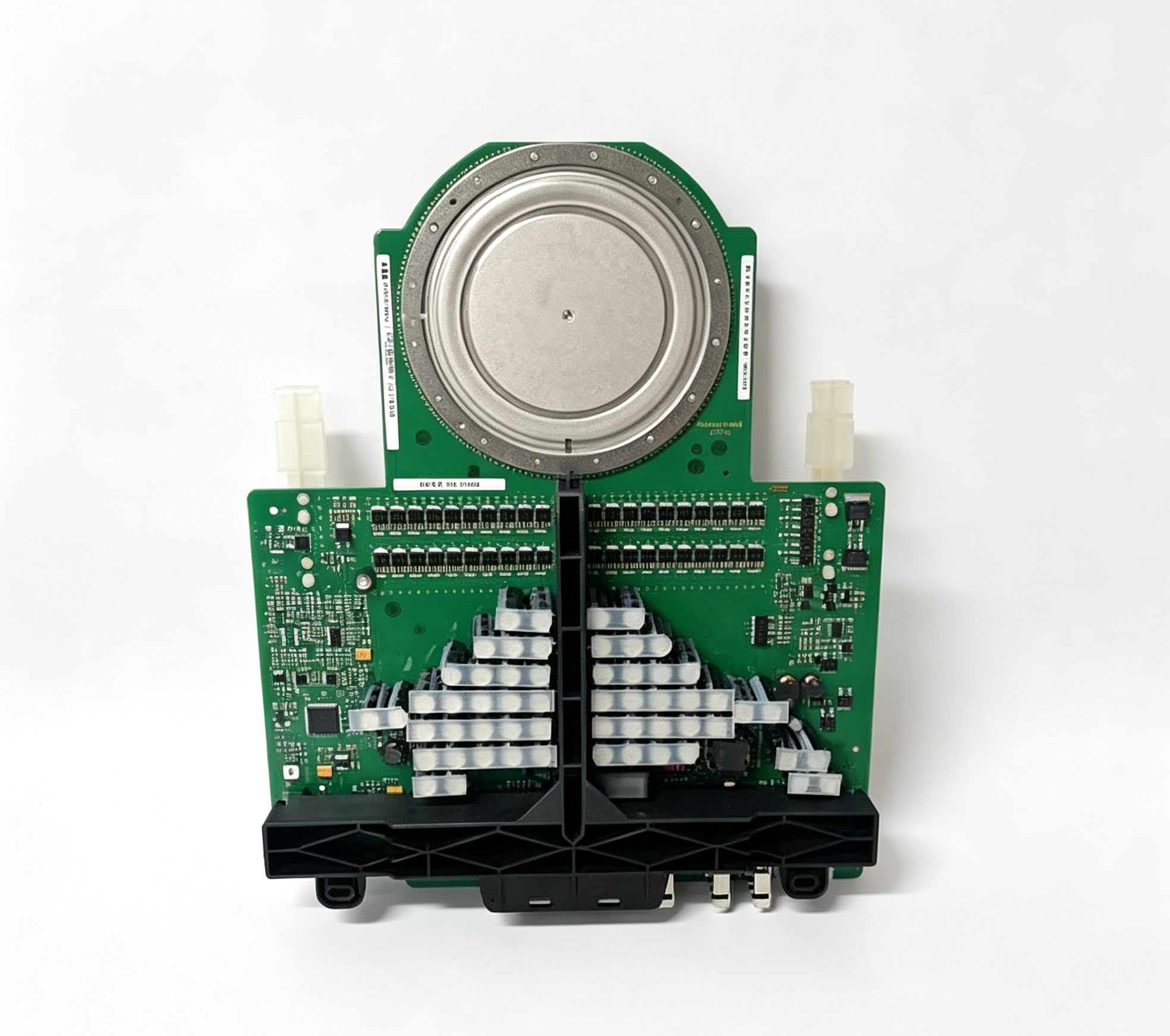

ABB 3BHB020720R0002 is a high-performance IGCT (Integrated Gate-Commutated Thyristor) power semiconductor module developed for ABB medium voltage power conversion and industrial drive applications. The module is identified with ABB 5SHY3545L0016 technology, featuring a 4500V voltage rating and 91MM semiconductor package design. It is an important power switching component used in advanced industrial converter systems where high efficiency, accurate electrical control and reliable operation are required. :contentReference[oaicite:1]{index=1}

As a key component in ABB high-power drive solutions, ABB 3BHB020720R0002 provides efficient switching performance for controlling electrical energy in medium voltage applications. IGCT technology combines high power handling capability with fast switching characteristics, allowing industrial drive systems to achieve stable motor control, improved energy conversion efficiency and reliable operation under demanding conditions. :contentReference[oaicite:2]{index=2}

Product Overview of ABB 3BHB020720R0002

ABB 3BHB020720R0002 belongs to ABB’s power semiconductor product family and is designed specifically for high-power industrial applications. The component is mainly associated with ABB medium voltage drive systems, including ACS6000 platforms, where IGCT devices are used as switching elements inside power converter units. :contentReference[oaicite:3]{index=3}

The product designation 3BHB020720R0002 identifies the ABB spare component number, while the corresponding semiconductor device model is 5SHY3545L0016. This IGCT module features a 4500V reverse blocking voltage capability and a 91MM package structure, making it suitable for high-voltage inverter applications requiring strong electrical performance and long-term stability. :contentReference[oaicite:4]{index=4}

Power semiconductor modules are essential elements in modern industrial automation systems. They control the conversion of electrical power between input sources and motor loads, enabling precise regulation of speed, torque and operating efficiency. ABB 3BHB020720R0002 supports these functions by providing dependable switching performance within complex power electronic architectures.

Technical Characteristics of ABB 3BHB020720R0002

ABB 3BHB020720R0002 is engineered for industrial power conversion environments with demanding electrical requirements. Its main technical characteristics include:

• Product type: IGCT power semiconductor module.
• Associated model: ABB 5SHY3545L0016.
• Voltage rating: 4500V.
• Package specification: 91MM.
• Application: Medium voltage drive and power conversion systems.
• Technology: Integrated Gate-Commutated Thyristor.
• Designed for high-power switching applications.

The 4500V voltage rating allows the module to operate effectively in medium voltage converter systems. The 91MM IGCT structure provides a balance between high current capability, switching performance and thermal management, making it suitable for industrial applications requiring efficient power control.

IGCT Technology Description

IGCT technology is an advanced semiconductor solution developed for high-power electrical systems. Unlike conventional switching devices, IGCT components combine the high current capability of thyristor technology with improved gate-controlled switching performance.

In industrial drive systems, IGCT modules are responsible for rapidly switching electrical power to create controlled output waveforms for motors and other equipment. This switching process allows variable frequency drives to regulate motor speed and torque according to production requirements.

ABB has developed IGCT technology for demanding industrial environments where efficiency and reliability are critical. ABB IGCT devices are available in different voltage and current configurations, supporting medium voltage inverter designs for applications ranging from industrial machinery to large-scale process systems. :contentReference[oaicite:5]{index=5}

Applications of ABB 3BHB020720R0002

ABB 3BHB020720R0002 is mainly applied in ABB medium voltage drive systems and high-power converter equipment. The module plays an important role in applications requiring precise electrical power control and stable motor operation.

Typical application areas include:

• Medium voltage AC drive systems.
• Industrial motor control equipment.
• Mining and mineral processing systems.
• Metal production equipment.
• Marine propulsion systems.
• Large pump and compressor applications.
• Power generation auxiliary systems.

In heavy industrial applications, motors often operate under large loads and variable operating conditions. Reliable semiconductor components are essential for maintaining smooth operation and preventing interruptions in production processes.

Within ABB ACS6000 drive systems, IGCT modules such as ABB 3BHB020720R0002 work together with control electronics, cooling systems and other power components to provide complete medium voltage motor control solutions. :contentReference[oaicite:6]{index=6}

Advantages of ABB 3BHB020720R0002

One of the main advantages of ABB 3BHB020720R0002 is its ability to handle high electrical stress while maintaining stable switching performance. Industrial power conversion systems require semiconductor components that can operate reliably under continuous load conditions.

The IGCT design provides excellent power density and efficient switching characteristics. By reducing switching losses and improving electrical control accuracy, the module helps enhance the overall efficiency of the drive system.

Another important advantage is compatibility with ABB medium voltage drive technology. ABB designs its power electronic components to operate as part of complete automation solutions, ensuring coordinated operation between semiconductor devices, control systems and motor equipment.

Role in ABB Medium Voltage Drive Systems

Within an ABB medium voltage drive system, ABB 3BHB020720R0002 functions as a critical switching element in the power converter section. The module receives control signals from the drive control system and regulates electrical energy flow to the motor.

Accurate switching operation enables the drive system to generate the required output voltage and frequency, allowing motors to achieve smooth acceleration, stable speed control and efficient operation.

The reliability of IGCT modules directly affects the performance of the complete drive system. Therefore, high-quality semiconductor components are essential for industries where continuous operation and equipment availability are important.

Engineering Reliability and Industrial Performance

ABB power semiconductor products are developed according to strict engineering standards for industrial environments. ABB 3BHB020720R0002 reflects ABB’s experience in power electronics, medium voltage technology and industrial automation.

The module design focuses on electrical stability, efficient heat management and reliable switching performance. These characteristics make it suitable for demanding applications where power conversion equipment must operate continuously.

Conclusion

ABB 3BHB020720R0002 is a high-voltage IGCT power semiconductor module designed for ABB medium voltage drive systems. With ABB 5SHY3545L0016 technology, 4500V voltage capability and 91MM package design, it provides reliable switching performance for industrial power conversion applications. :contentReference[oaicite:7]{index=7}

Through advanced IGCT technology and ABB engineering standards, ABB 3BHB020720R0002 supports efficient motor control, stable operation and reliable performance in demanding industrial automation environments.
