ABB 3BHB016295R0001 MINI-PS-12-24DC/24DC/1 Power Supply

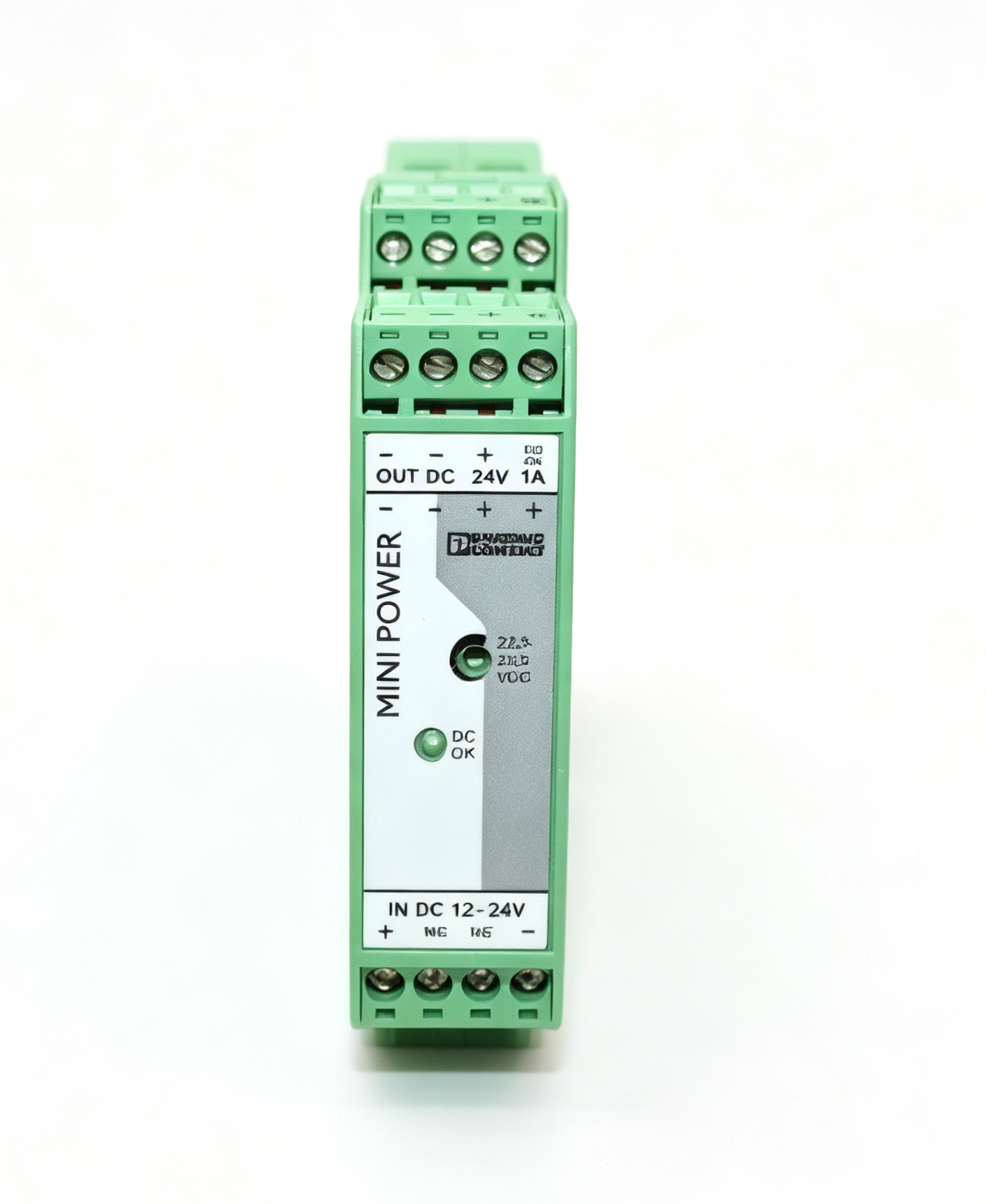

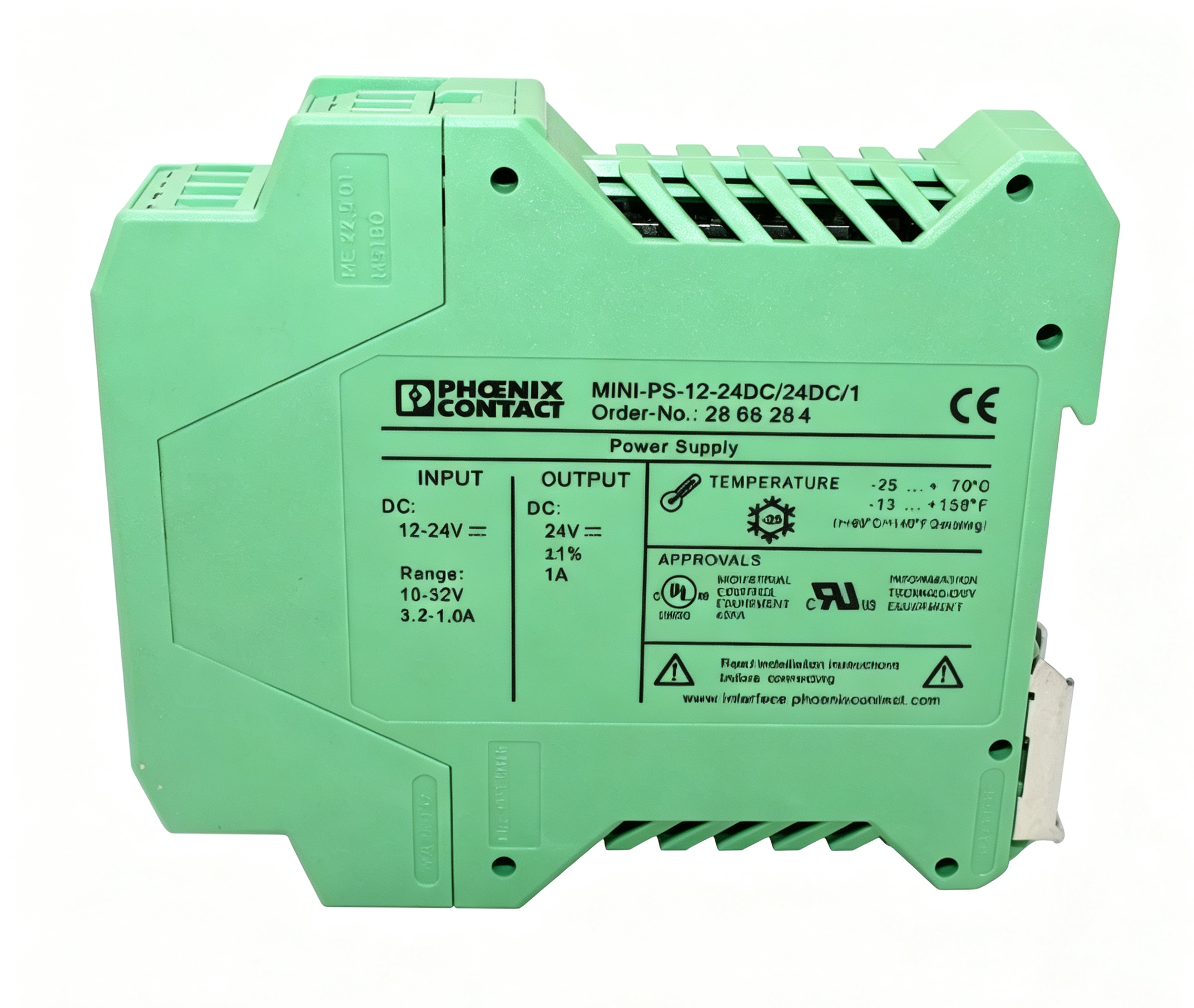

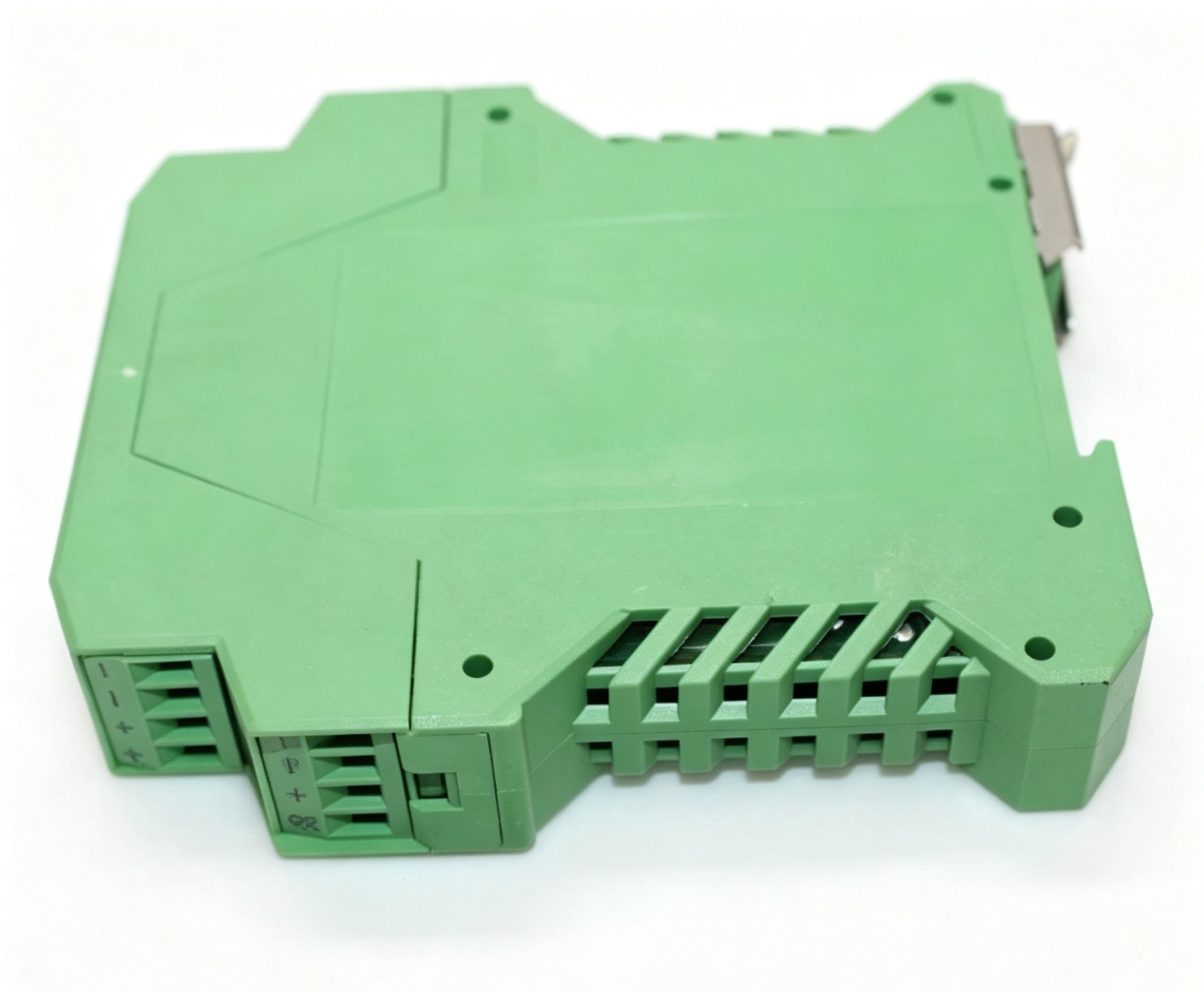

ABB 3BHB016295R0001 is identified as the MINI-PS-12-24DC/24DC/1 power supply. The complete ABB article number and type designation are important references for identifying this component within industrial automation and drive systems. The unit is listed as a power supply and is associated with ABB ACS1000 and ACS2000 drive applications.

The MINI-PS-12-24DC/24DC/1 designation describes a compact DC/DC power-supply configuration intended to provide a defined DC output from a DC input source. This type of power conversion is useful inside industrial equipment where control electronics and auxiliary circuits require a stable DC supply that is separated from the characteristics of the primary DC source.

Because ABB industrial drive systems contain multiple power-supply configurations, the complete article number 3BHB016295R0001 should be used when documenting the component. The article number provides a more precise identification than the general term “ABB power supply.”

Product Identification

• Manufacturer: ABB
• Article number: 3BHB016295R0001
• ABB Type Designation: MINI-PS-12-24DC/24DC/1
• Catalog Description: MINI-PS-12-24DC/24DC/1; POWER SUPPLY
• Product Name: Power Supply
• Power Supply Type: DC/DC power supply
• Input Range: 12–24 V DC
• Output Voltage: 24 V DC
• Output Current Class: 1 A
• Associated ABB Systems: ACS1000 and ACS2000
• Product Net Weight: Approximately 0.23 kg

MINI-PS-12-24DC/24DC/1 Configuration

The ABB MINI-PS-12-24DC/24DC/1 is designed around DC/DC conversion. Its purpose is to receive an appropriate DC input and provide a controlled 24 V DC output for connected equipment. The configuration is particularly relevant to industrial systems where auxiliary electronics require a defined control voltage.

The 12–24 V DC input range provides flexibility for DC supply architectures in which the available source voltage can vary within the specified operating range. The 24 V DC output corresponds to a common control voltage used by industrial automation equipment.

The 1 A output class defines the intended current capacity of the configuration. The actual connected load should remain within the applicable technical limits of the power supply and the surrounding system design.

ABB Drive System Application

Product records associate ABB 3BHB016295R0001 with ACS1000 and ACS2000 drive systems. These drive platforms use multiple electronic and power-conversion assemblies to control industrial motors and coordinate auxiliary functions.

A dedicated power supply can provide the required DC voltage for control circuits, interface electronics or other auxiliary equipment within the drive architecture. The exact circuit supplied by the MINI-PS unit depends on the specific equipment configuration and electrical design.

The power supply should therefore be evaluated as one part of the complete drive system rather than as an independent controller.

DC/DC Power Conversion

DC/DC conversion allows one DC voltage level to be converted into another regulated DC output. In the MINI-PS-12-24DC/24DC/1 configuration, the documented input range is 12–24 V DC while the output is 24 V DC.

This arrangement can help provide a stable supply for electronics when the available DC source does not directly provide the required control voltage. It also allows the power-supply function to be separated from other power-conversion stages within the equipment.

The DC/DC converter should be selected and operated according to its specified voltage and current limits.

24 V DC Output

24 V DC is widely used in industrial automation systems for control and auxiliary circuits. Devices such as relays, interface circuits, sensors, communication equipment and control electronics may use 24 V DC as an operating supply.

The 24 V DC output of the MINI-PS configuration provides a suitable supply level for applications designed around this control voltage. The connected load must be compatible with the output characteristics and must remain within the specified current capability.

The power supply’s role is to maintain the required DC output for the circuits connected to it, while the complete drive system manages the broader power and control functions.

Technical Specification Table

ABB product information identifies 3BHB016295R0001 as MINI-PS-12-24DC/24DC/1 and lists it as a power supply. Product records also associate the component with ABB ACS1000 and ACS2000 systems. :contentReference[oaicite:2]{index=2}

Compact Industrial Power Supply

The MINI-PS designation indicates a compact power-supply format suitable for industrial control environments. Compact DC/DC power supplies are useful when cabinet space is limited and a dedicated auxiliary voltage is required.

In an ABB drive installation, the power supply can be integrated into the control and auxiliary power architecture without replacing the main drive power-conversion system. Its function is focused on providing the required DC supply to designated circuits.

The physical installation and wiring arrangement should always correspond to the relevant equipment drawings and electrical documentation.

Input Voltage Characteristics

The documented 12–24 V DC input range allows the power supply to operate from different DC source conditions within the specified range. This is useful in industrial systems where auxiliary DC supplies can be derived from different control-power arrangements.

The input should remain within the permitted operating range. Applying a voltage outside the specified limits can affect the operation of the converter and connected equipment.

When troubleshooting the unit, the input voltage should therefore be checked before evaluating the output circuit.

Output Current Considerations

The MINI-PS-12-24DC/24DC/1 configuration has a 1 A output class. This rating defines the intended output-current capability and should be considered when determining the connected load.

The total current requirement of connected devices should be evaluated under normal operating conditions. If multiple devices are supplied from the same output, their combined current demand must remain compatible with the power supply specification.

Load behavior during startup or transient conditions should also be considered when designing or troubleshooting the circuit.

ACS1000 and ACS2000 Integration

Available ABB-related product records list 3BHB016295R0001 as a spare-part power supply for both ACS1000 and ACS2000 drive systems. This makes the article number relevant to technical documentation for ABB medium voltage drive installations.

The actual location and function of the power supply within a particular drive cabinet can vary according to the system configuration. The drive-specific electrical drawings should therefore be used to identify its exact connection points and supplied circuits.

Using the complete article number helps distinguish this power supply from other ABB auxiliary power components.

Maintenance Considerations

Maintenance of ABB 3BHB016295R0001 should include inspection of the input wiring, output wiring, connectors and surrounding electrical components. The input voltage should be measured according to the applicable safety procedure before diagnosing an output problem.

If the input voltage is correct but the expected 24 V DC output is unavailable, the power supply and its connected load should be evaluated systematically. An excessive load, short circuit or wiring problem can influence the output condition.

Because the unit can be installed inside an industrial drive cabinet, appropriate electrical isolation and discharge procedures must be followed before physical inspection.

Compatibility Verification

Compatibility should be established using the complete ABB article number, type designation and associated drive model. ABB 3BHB016295R0001 should not be identified solely by the general description “24 V power supply,” because ABB offers multiple power-supply configurations with different input and output characteristics.

The target equipment documentation should be checked to confirm that MINI-PS-12-24DC/24DC/1 corresponds to the intended circuit. This is particularly important when working with ACS1000 or ACS2000 equipment that contains multiple auxiliary power assemblies.

The article number 3BHB016295R0001 provides the most precise reference for component identification.

Engineering Documentation

For engineering databases, an appropriate identification format is “ABB 3BHB016295R0001 — MINI-PS-12-24DC/24DC/1 — Power Supply.”

Additional fields can include the associated drive model, cabinet position, input voltage, output voltage, output current and equipment reference. Recording these details provides a structured technical record for maintenance and system documentation.

The complete ABB article number should remain unchanged when transferred between equipment lists, maintenance databases and technical correspondence.

Role in Industrial Automation

Stable auxiliary DC power is an important part of industrial automation systems. Control electronics depend on appropriate supply voltage to maintain communication, monitoring and process-control functions.

A DC/DC power supply such as the MINI-PS-12-24DC/24DC/1 can provide the required 24 V DC level from an applicable DC input source. Within an ABB drive system, this function complements the main power-conversion and motor-control sections.

The power supply itself does not replace the drive controller or power converter. Its purpose is to provide the defined auxiliary DC supply required by the circuit in which it is installed.

Product Identification and Records

The ABB article number 3BHB016295R0001 is associated with the MINI-PS-12-24DC/24DC/1 designation in ABB product information. The catalog description is listed as “MINI-PS-12-24DC/24DC/1; POWER SUPPLY.” :contentReference[oaicite:3]{index=3}

The same product identification is associated with ACS1000 and ACS2000 applications in component records. This cross-reference is useful when researching the component in the context of an existing ABB medium voltage drive. :contentReference[oaicite:4]{index=4}

For technical records, the article number and type designation should be stored together to provide an unambiguous component reference.

Conclusion

ABB 3BHB016295R0001 is the MINI-PS-12-24DC/24DC/1 power supply used within ABB industrial drive-related applications. ABB product information identifies the component as a power supply, while product records associate it with ACS1000 and ACS2000 drive systems.

The documented configuration uses a 12–24 V DC input and provides a 24 V DC output with a 1 A current class. Its function is based on DC/DC power conversion, making it suitable for defined auxiliary power requirements within industrial automation and drive architectures.

For accurate identification, the complete ABB article number 3BHB016295R0001 should always be retained together with the MINI-PS-12-24DC/24DC/1 type designation. When evaluating compatibility, installation or maintenance requirements, the associated ACS1000 or ACS2000 system documentation should be used to confirm the exact circuit, connections and operating conditions.
