Overview of ABB 3AXD50000009705

ABB 3AXD50000009705 is an ABB product identification number associated with the 2MBI1400VXB-170E-54 power semiconductor module. The corresponding semiconductor is a Fuji Electric V Series IGBT module designed for high-power switching and power conversion applications. The device uses a two-device package configuration and is specified in the 1700 V and 1400 A class.

The 2MBI1400VXB-170E-54 is part of Fuji Electric’s V Series IGBT product family. According to the manufacturer’s technical information, the module is intended for applications including motor-drive inverters, AC and DC servo drive amplifiers, uninterruptible power supplies, welding equipment, and other industrial machines. This makes the component relevant to high-power industrial drive and converter architectures.

For industrial automation engineers, the ABB product number is important when identifying the component within an ABB system. The semiconductor manufacturer’s model number provides additional technical information about the actual power module, including its voltage class, current capability, package family, and electrical characteristics.

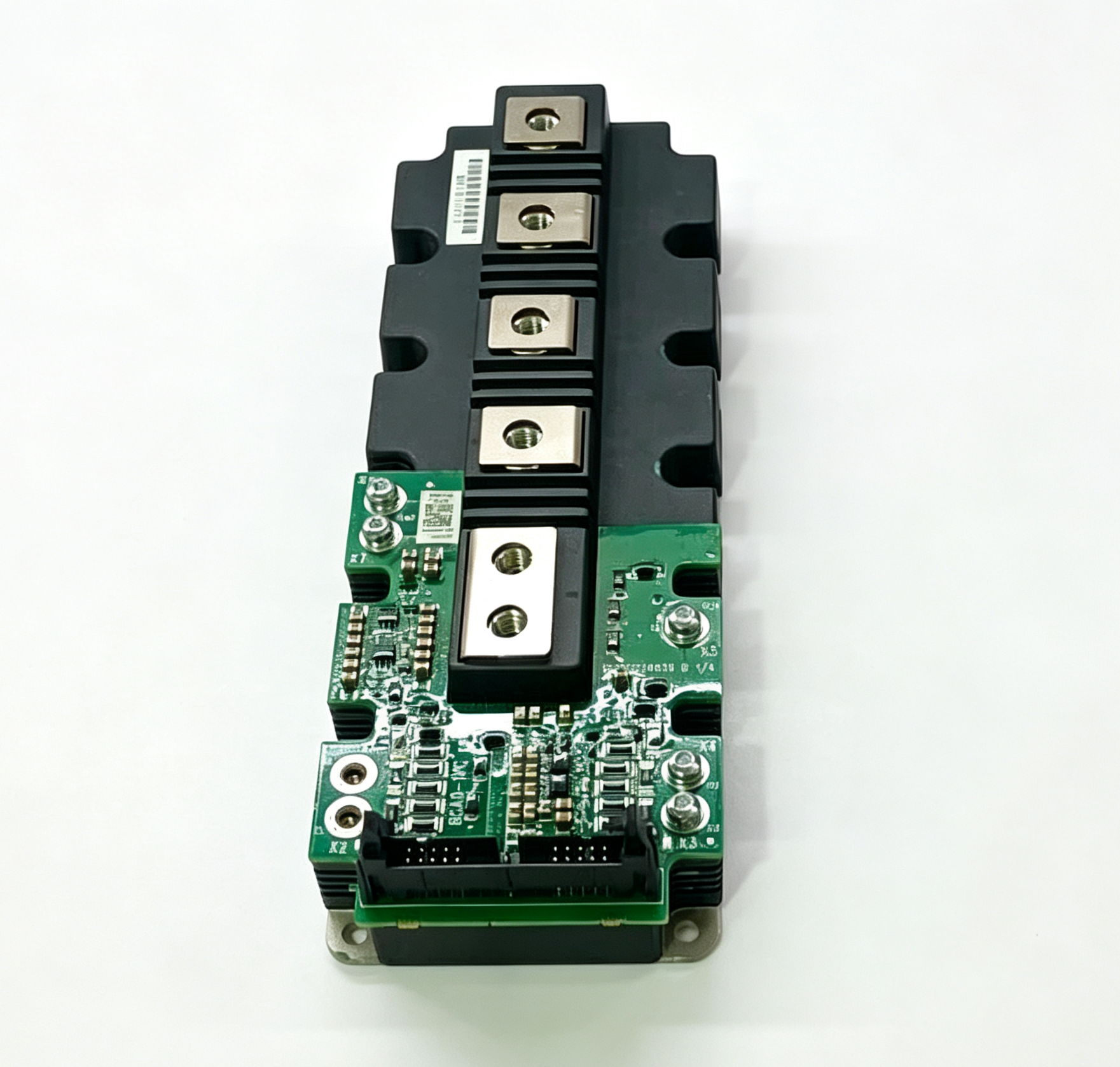

2MBI1400VXB-170E-54 IGBT Module

The 2MBI1400VXB-170E-54 is a V Series IGBT module manufactured by Fuji Electric. It is configured as a two-device package and belongs to the PrimePACK family of power semiconductor modules. The device is designed for high-power switching applications where high current handling, controlled switching characteristics, and electrical isolation are required.

The product designation provides useful information about the module. The 170 designation corresponds to the 1700 V class, while the 1400 designation identifies the 1400 A current class. The E designation identifies the relevant V Series configuration, and the -54 suffix represents a specific product variant with its associated electrical characteristics and ranking information.

Fuji Electric’s current product information lists the 2MBI1400VXB-170E-54 within the V Series 2-Pack family. The manufacturer’s semiconductor search information identifies the module as a 1700 V, 1400 A device with a PrimePACK package and screw-terminal construction.

Electrical Characteristics

The 2MBI1400VXB-170E-54 has a collector-emitter voltage rating of 1700 V. This voltage class makes the module suitable for high-voltage industrial inverter and converter architectures where the switching devices must withstand substantial DC-link voltage.

The manufacturer’s data sheet specifies a continuous collector current of up to 1800 A at a case temperature of 25°C and 1400 A at a case temperature of 100°C. The specified pulse collector current reaches 2800 A for a 1 ms condition. These ratings demonstrate the high-current capability of the semiconductor package, while actual operating current depends on thermal conditions, switching frequency, electrical topology, cooling arrangement, and application design.

The module also has a gate-emitter voltage rating of ±20 V. The maximum collector power dissipation is specified at 8820 W for one device under the manufacturer’s stated conditions. These values should always be interpreted together with the complete Fuji Electric data sheet rather than used independently for system design.

High-Power Switching Architecture

IGBT modules are widely used as controlled semiconductor switches in power conversion equipment. In an industrial inverter, a group of IGBT devices can be arranged into switching legs that convert DC power into controlled AC output. The switching pattern determines the output voltage, frequency, and motor-control characteristics of the complete converter.

The 2MBI1400VXB-170E-54 provides a high-current switching element for this type of architecture. Its two-device package simplifies integration into equipment designed around modular high-power semiconductor components.

Because the module is designed for high-current operation, mechanical mounting, electrical connections, thermal management, and gate-drive design are all important. The module cannot be evaluated solely from its voltage and current ratings. The complete inverter design must also account for switching losses, conduction losses, junction temperature, cooling performance, busbar layout, and protection circuits.

Thermal and Mechanical Considerations

Thermal management is an important consideration when using high-power IGBT modules. The 2MBI1400VXB-170E-54 has a maximum junction temperature rating of 175°C, while the manufacturer’s specified operating junction temperature under switching conditions is limited to 150°C. The case temperature is specified up to 150°C.

The module uses an isolated copper-base construction. Fuji Electric specifies an isolation voltage of 4000 VAC for the relevant insulation test conditions. This electrical isolation is an important characteristic when the power semiconductor is installed on a heatsink or other mechanically conductive structure.

The manufacturer’s data sheet also provides mounting and terminal torque information. M5 mounting hardware has a specified torque range, while the main M8 terminals and M4 sense terminals have their own recommended torque values. Correct mechanical installation is important because insufficient or excessive torque can affect electrical contact, thermal transfer, or mechanical reliability.

Applications in Industrial Power Electronics

The 2MBI1400VXB-170E-54 is suitable for high-power industrial power conversion applications. Fuji Electric identifies inverter systems for motor drives as one of the intended application areas. The module can also be used in AC and DC servo drive amplifiers, UPS equipment, welding machines, and other industrial machinery.

In motor-drive applications, IGBT modules are used to control the electrical energy supplied to the motor. The semiconductor switching devices operate at controlled frequencies and duty cycles to generate the required output waveform. In high-power systems, multiple modules can be combined to achieve the required power level.

The device family is also listed by Fuji Electric for renewable-energy-related converter applications. The manufacturer’s wind-power and solar-power application information includes the 2MBI1400VXB-170E-54 among V Series modules used in high-power converter architectures.

Identification and Replacement

When identifying ABB 3AXD50000009705, both the ABB product number and the semiconductor manufacturer’s model number should be considered. The ABB number provides the system-level identification, while 2MBI1400VXB-170E-54 identifies the specific Fuji Electric IGBT module.

Before replacing a module in an industrial drive or converter, technicians should compare the complete part number, package type, terminal configuration, mounting arrangement, electrical ratings, and associated drive documentation. Similar-looking IGBT modules may have different electrical characteristics and are not necessarily interchangeable.

The -54 suffix should also be retained when identifying this component. Fuji Electric lists multiple closely related 2MBI1400VXB modules, including 170E-50, 170E-54, 170P-50, and 170P-54 versions. These variants should not be treated as identical without confirming the applicable electrical specifications.

Maintenance Considerations

Maintenance work involving high-power IGBT modules should be performed only after the associated equipment has been properly isolated according to the applicable drive or converter safety procedures. DC-link capacitors and other energy-storage components can remain hazardous after the main power supply has been disconnected.

During inspection, technicians can examine the module for abnormal discoloration, physical damage, loose terminals, damaged insulation, signs of overheating, or mechanical problems around the mounting surface. The surrounding gate-drive circuitry and cooling system should also be considered when investigating an IGBT-related fault.

When a semiconductor module is replaced, the complete electrical and thermal installation should follow the manufacturer’s specified procedures. Correct mounting pressure, terminal torque, thermal interface conditions, gate-drive connections, and electrical clearances are important elements of the installation.

Technical Identification Summary

ABB 3AXD50000009705 can be identified with the following core information: ABB product number 3AXD50000009705, semiconductor model 2MBI1400VXB-170E-54, Fuji Electric V Series, 2-Pack configuration, 1700 V voltage class, and 1400 A current class.

The manufacturer’s technical data also specifies a maximum collector-emitter voltage of 1700 V, continuous collector current of 1800 A at a case temperature of 25°C, 1400 A at 100°C, and a 2800 A pulse current for the specified 1 ms condition. The module has a ±20 V gate-emitter voltage rating and a maximum junction temperature of 175°C.

Conclusion

ABB 3AXD50000009705 is associated with the 2MBI1400VXB-170E-54 IGBT module from Fuji Electric. This high-power V Series semiconductor uses a two-device package and belongs to the 1700 V, 1400 A class of IGBT modules.

The module is designed for demanding power-conversion applications including industrial motor drives, servo amplifiers, UPS equipment, welding machines, and other high-power industrial systems. Its high voltage and current capability makes correct electrical, thermal, and mechanical integration particularly important.

For equipment maintenance and component identification, the ABB product number 3AXD50000009705 should be checked together with the 2MBI1400VXB-170E-54 model designation. Verification of the complete drive configuration and applicable technical documentation is recommended before installation or replacement.
