ABB 3AUA0000077626 R4 Main Fan
The ABB 3AUA0000077626 is identified as an R4 MAIN FAN and FAN, AXIAL within ABB drive spare-parts documentation. The corresponding fan model is identified as 3615RL-05W-B76, with technical documentation also referencing the 3615RL-05W-B76-EQ3 configuration. The fan uses a 24 V DC supply and has a rated current of 1.47 A. Its four-wire connection provides power together with control and monitoring functions.
ABB 3AUA0000077626 for ACS880 R4 Drives
The ACS880 family is designed for demanding industrial motor control applications, where power electronics operate under varying load conditions. During operation, the drive’s semiconductor devices and associated power components produce thermal energy. The cooling system is therefore an essential part of the complete drive architecture. ABB 3AUA0000077626 serves as the main axial fan associated with the R4 configuration and is intended to provide the airflow required for effective internal thermal management.
The fan operates as part of the drive’s cooling arrangement rather than as an independent process fan. Its mechanical dimensions, electrical characteristics and connection configuration are therefore important when identifying a suitable component. Using the correct fan specification helps maintain compatibility with the drive’s mechanical mounting arrangement, electrical supply and control interface.
Axial Fan Design and Airflow
ABB 3AUA0000077626 uses an axial fan design. In an axial fan, air moves substantially parallel to the rotating shaft of the impeller. This configuration is widely used in electrical cabinets and power conversion equipment because it can provide continuous airflow through a relatively compact mechanical package.
The fan assembly is based on a compact frame with an approximate overall dimension of 92 × 92 mm and a thickness of approximately 38.4 mm according to the associated manufacturer drawing. The drawing also specifies mounting-hole dimensions and the flange configuration, allowing the fan to be integrated into the designated drive cooling arrangement.
The associated technical information identifies a DC brushless fan construction. Brushless fan technology eliminates mechanical brushes and uses electronic commutation to drive the motor. This type of design is widely used for industrial cooling applications where continuous rotation, compact construction and electronic control are required.
24 V DC and 1.47 A Electrical Characteristics
The ABB 3AUA0000077626 fan is specified for a 24 V DC supply and a rated current of 1.47 A. These electrical characteristics are important when replacing or integrating the fan because the cooling assembly must match the voltage supplied by the associated drive system.
The four-wire configuration provides additional functionality beyond simple power delivery. The documented wire arrangement identifies the positive and negative supply connections together with tachometer and PWM connections. The tachometer signal can provide rotational-speed feedback, while PWM allows the fan operating condition to be controlled electronically.
This arrangement allows the cooling fan to operate as an actively managed component within the drive rather than simply running as a continuously powered motor. The drive can use the available feedback and control functions as part of its thermal-management strategy.
Fan Model 3615RL-05W-B76

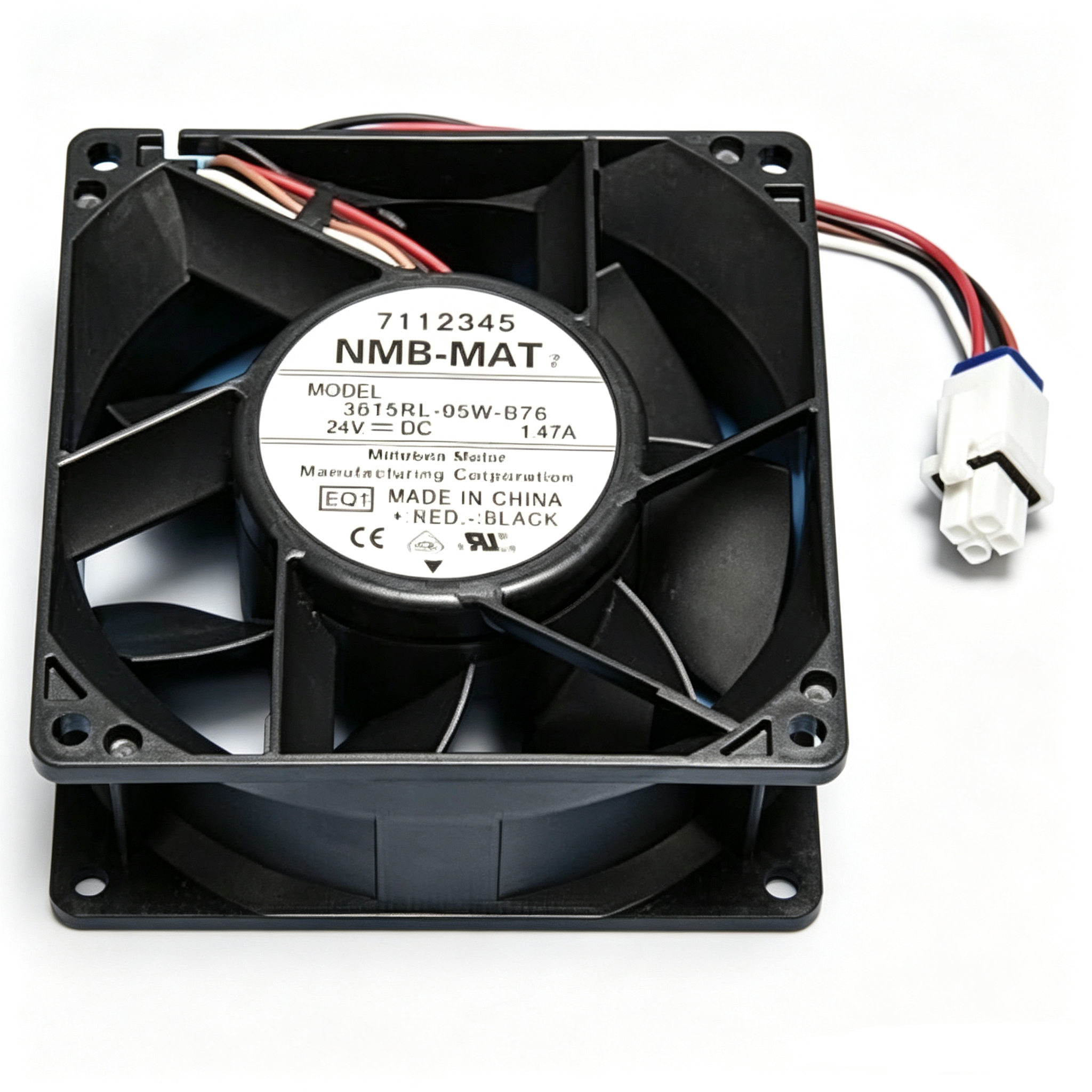

The fan associated with ABB part number 3AUA0000077626 is identified as Minebea 3615RL-05W-B76, with the detailed manufacturer drawing specifying 3615RL-05W-B76-EQ3. The component uses a four-wire lead arrangement and an industrial-style connector assembly. The technical drawing identifies the lead functions as positive supply, negative supply, tachometer and PWM.
The documented fan construction includes a plastic casing and impeller, while the bearing arrangement uses two ceramic ball bearings. The fan drawing identifies the casing material as black UL94 V-0 plastic. These characteristics are relevant to the mechanical and electrical construction of the cooling component and distinguish the fan from general-purpose axial fans with different interfaces or mounting arrangements.
Cooling Function in ABB ACS880 Systems
Thermal management directly affects the operating environment of a variable frequency drive. Power semiconductors, rectifier components, switching devices and other electrical assemblies generate heat as electrical energy is converted and controlled. If the available cooling airflow is insufficient, component temperatures can increase and the drive may need to reduce its operating capability or activate thermal protection functions.
The main fan therefore performs an important supporting function within the ACS880 R4 drive. By maintaining the intended airflow path, the fan assists the drive’s cooling structure in transferring heat away from internal components. Its operation should be considered together with the surrounding enclosure design, ambient temperature, ventilation path, heat-sink condition and overall drive loading.
Technical Characteristics of ABB 3AUA0000077626
- Manufacturer: ABB
- Part number: 3AUA0000077626
- Product designation: R4 Main Fan
- Fan type: Axial fan
- Application: ABB ACS880 R4 drive cooling
- Associated fan model: 3615RL-05W-B76
- Detailed model reference: 3615RL-05W-B76-EQ3
- Supply voltage: 24 V DC
- Rated current: 1.47 A
- Connection: Four-wire configuration
- Functions: Power, tachometer feedback and PWM control
- Approximate fan dimensions: 92 × 92 × 38.4 mm
- Fan construction: DC brushless fan
- Bearing arrangement: Two ceramic ball bearings
- Application category: ACS880 drive cooling component
Fan Monitoring and PWM Control
The tachometer and PWM connections are important features of the 3AUA0000077626 configuration. A tachometer output can provide information about fan rotational speed, allowing the associated drive electronics to monitor whether the cooling fan is operating within the expected range. This type of feedback can help identify abnormal fan behavior and support maintenance decisions.
PWM control provides another layer of functionality by allowing the fan speed to be managed through a pulse-width modulation signal. Instead of operating only at a fixed condition, a PWM-controlled fan can respond to the cooling requirements of the equipment. This is particularly useful in drive systems where the thermal load varies with motor load and operating conditions.
Installation and Identification Considerations
When identifying ABB 3AUA0000077626 for an ACS880 R4 application, the complete part number should be checked against the drive documentation and the existing cooling assembly. Mechanical dimensions alone are not sufficient for component identification because electrical voltage, current, connector arrangement, tachometer output and PWM control characteristics also determine compatibility.
The mounting pattern and fan orientation should also be considered during installation. The associated manufacturer drawing provides the dimensional information required to identify the fan’s mounting arrangement. The airflow direction should correspond to the intended cooling path of the ACS880 drive so that the fan performs its designed thermal-management function.
ABB 3AUA0000077626 in Industrial Automation
ABB 3AUA0000077626 is a specialized cooling component within the ACS880 drive platform. Although it is a relatively small mechanical component compared with the complete drive, its function is directly related to the thermal operating environment of the power electronics. Reliable airflow is necessary for maintaining appropriate temperatures around heat-generating components during drive operation.
The combination of 24 V DC operation, 1.47 A rated current, four-wire electrical interface, tachometer feedback and PWM control makes the component more specialized than a basic two-wire axial fan. These characteristics should be retained when selecting a corresponding fan for an ACS880 R4 drive because the control electronics may depend on the additional signal connections.
ABB ACS880 R4 Main Fan Summary
ABB 3AUA0000077626 is the R4 main axial fan associated with ABB ACS880 drive applications. Its 24 V DC electrical design, 1.47 A rated current, compact 92 × 92 × 38.4 mm construction and four-wire interface are configured for the cooling requirements of the designated drive platform. The associated 3615RL-05W-B76 fan incorporates tachometer feedback and PWM control, allowing both monitoring and electronic management of fan operation.
For maintenance, engineering and industrial automation applications, accurate identification of ABB 3AUA0000077626 is important because the fan is designed around a specific mechanical and electrical interface. The correct fan configuration helps preserve the intended cooling airflow and supports the thermal-management architecture of the ACS880 R4 drive. As a dedicated ABB drive cooling component, the 3AUA0000077626 provides the airflow, monitoring and control characteristics required by its associated industrial drive application.
