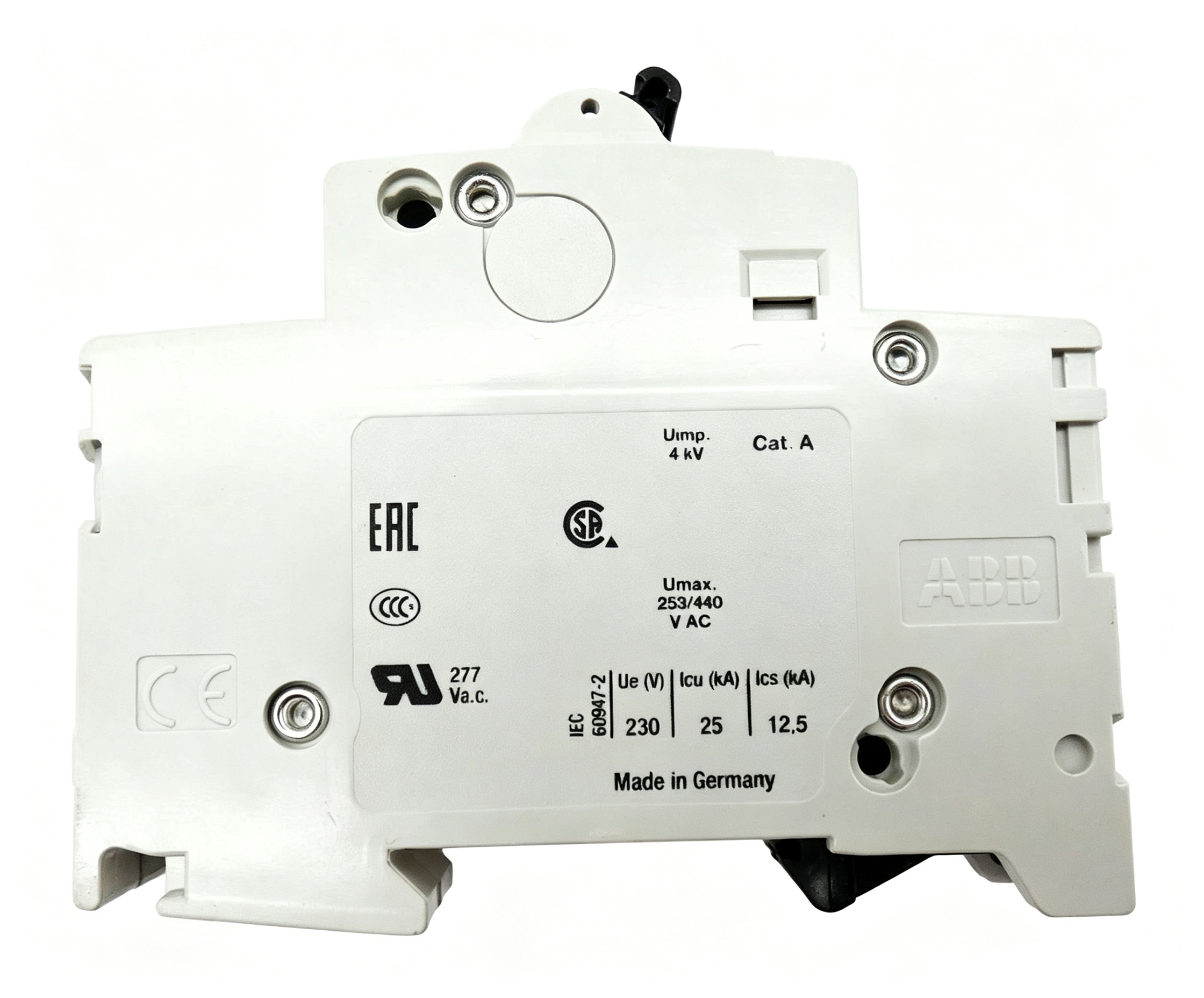

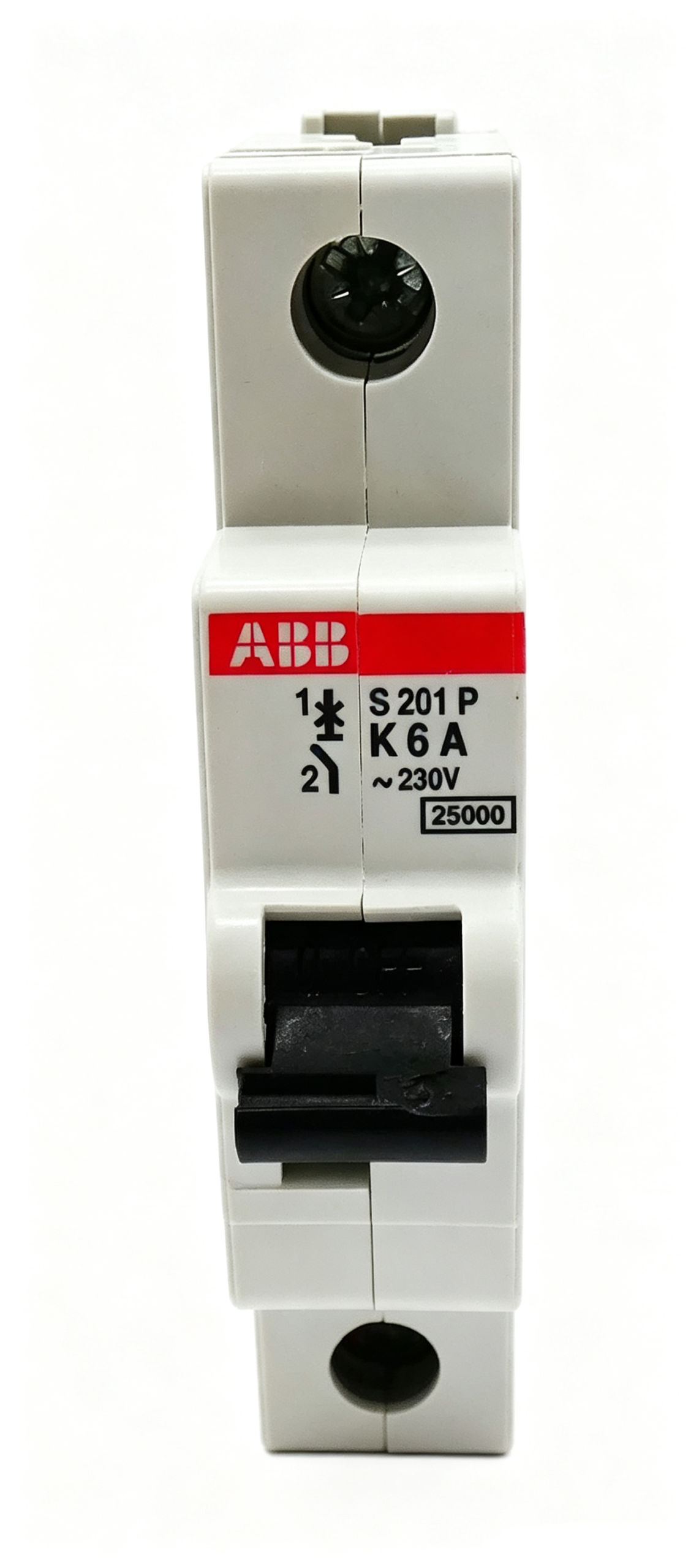

ABB 2CDS281001R0377 S201P-K6 Miniature Circuit Breaker

The ABB 2CDS281001R0377 is an S201P-K6 miniature circuit breaker designed for electrical protection applications in industrial control systems, automation equipment and low voltage distribution installations. As part of ABB’s System pro M compact product family, this circuit breaker provides dependable protection against overload currents and short-circuit faults while maintaining efficient operation in professional electrical environments.

Electrical protection devices are essential components in modern industrial systems because they protect cables, control equipment and electrical loads from damage caused by abnormal current conditions. The ABB S201P-K6 provides a reliable protection solution by automatically disconnecting affected circuits when current exceeds safe operating limits.

The ABB 2CDS281001R0377 combines ABB’s compact circuit breaker design with a K characteristic tripping curve, making it suitable for applications where higher inrush currents may occur during equipment startup. This characteristic allows the breaker to provide reliable protection while avoiding unnecessary interruptions caused by temporary starting currents from electrical devices.

According to ABB product documentation, the 2CDS281001R0377 corresponds to the S201P-K6 model with a rated current of 6A and one pole configuration. It belongs to ABB’s miniature circuit breaker range developed for industrial and commercial electrical protection systems. :contentReference[oaicite:2]{index=2}

Product Overview

ABB 2CDS281001R0377 is a single-pole miniature circuit breaker designed for protecting electrical circuits in low voltage applications. The product belongs to ABB System pro M compact series, which is widely used in professional electrical installations requiring compact dimensions and reliable protection performance.

The S201P-K6 model provides a rated current of 6 amperes and uses a K-type tripping characteristic. This makes the breaker suitable for circuits containing equipment with moderate starting currents, including industrial control devices, transformers, motors and automation components.

Unlike simple switching devices, miniature circuit breakers provide automatic protection by monitoring electrical current conditions. When an overload or short circuit occurs, the internal protection mechanism responds quickly to disconnect the circuit and reduce the risk of equipment damage.

The compact design of ABB 2CDS281001R0377 allows efficient installation inside electrical cabinets, distribution boards and industrial control panels. Its standardized mounting design supports convenient integration into modern electrical systems.

Main Functions and Features

The primary function of ABB 2CDS281001R0377 is circuit protection. The breaker continuously monitors current flow and disconnects the protected circuit when abnormal electrical conditions exceed predefined limits.

The K characteristic curve is an important feature of this model. Compared with standard characteristics, K curve breakers allow higher temporary current peaks while maintaining reliable protection. This makes them suitable for electrical loads that require additional starting current during operation.

The ABB S201P-K6 provides both overload protection and short-circuit protection. Overload protection prevents excessive continuous current from overheating cables and equipment, while short-circuit protection provides rapid disconnection during severe fault conditions.

The device is designed according to ABB’s professional electrical protection standards, providing stable mechanical operation and reliable electrical performance for industrial applications.

Technical Characteristics

The main technical characteristics of ABB 2CDS281001R0377 include:

• Product family: ABB System pro M compact
• Model: S201P-K6
• Number of poles: 1 pole
• Rated current: 6A
• Tripping characteristic: K curve
• Application: Overload and short-circuit protection
• Mounting type: DIN rail installation
• Product weight: approximately 0.140 kg

The ABB product catalog identifies the 2CDS281001R0377 as the S201P-K6 miniature circuit breaker with a rated current of 6A and a single-pole configuration. :contentReference[oaicite:3]{index=3}

The DIN rail mounting structure allows the circuit breaker to be easily installed together with other modular electrical components, including contactors, relays, terminal blocks and automation devices.

Industrial Application Areas

ABB 2CDS281001R0377 is widely used in industrial electrical systems where reliable protection of control circuits and equipment is required. Typical applications include automation cabinets, machine control systems, industrial distribution panels and electrical installations.

In industrial automation systems, many control devices require stable power protection. PLC systems, sensors, communication modules and control relays can be protected by miniature circuit breakers to prevent damage caused by electrical faults.

For machine manufacturing applications, electrical control cabinets often contain multiple independent circuits. Using dedicated miniature circuit breakers allows engineers to separate protection zones, simplify maintenance and improve troubleshooting efficiency.

The ABB S201P-K6 is also suitable for commercial and infrastructure electrical systems where compact protection devices with reliable performance are required.

Advantages of ABB 2CDS281001R0377

One of the main advantages of ABB 2CDS281001R0377 is its compact modular design. The small installation footprint allows more electrical components to be integrated into limited cabinet space.

Another advantage is the K characteristic tripping curve, which provides flexibility for circuits with higher temporary startup currents. This helps improve system availability by reducing unnecessary circuit interruptions.

The breaker also provides clear protection coordination. By installing appropriate miniature circuit breakers for different circuits, engineers can create organized and reliable electrical protection systems.

ABB’s extensive experience in electrical protection technology ensures that System pro M compact products meet the requirements of industrial applications where safety and reliability are important.

Importance in Electrical Protection Systems

Electrical faults can cause equipment damage, production interruptions and safety risks. Proper circuit protection is therefore a critical part of industrial system design.

The ABB 2CDS281001R0377 helps protect sensitive electrical components by isolating abnormal circuits quickly. This improves system reliability and reduces the impact of electrical failures.

In modern automation environments, protection devices must work together with other electrical components to maintain stable operation. Miniature circuit breakers provide a simple and effective protection layer between power sources and connected equipment.

Design Reliability

ABB develops low voltage protection products based on industrial requirements for durability, safety and efficient operation. The System pro M compact series combines compact construction with reliable protection functions.

The ABB 2CDS281001R0377 reflects this design philosophy by providing dependable overcurrent protection in a space-saving modular format. Its standardized installation method and stable electrical performance make it suitable for various professional applications.

Conclusion

The ABB 2CDS281001R0377 S201P-K6 Miniature Circuit Breaker is a reliable electrical protection component designed for industrial control systems, automation equipment and low voltage distribution applications. With a 6A rated current, one-pole configuration and K characteristic protection curve, it provides effective overload and short-circuit protection.

For applications requiring compact installation, dependable circuit protection and compatibility with industrial electrical systems, the ABB S201P-K6 offers an efficient solution for modern electrical protection requirements.
