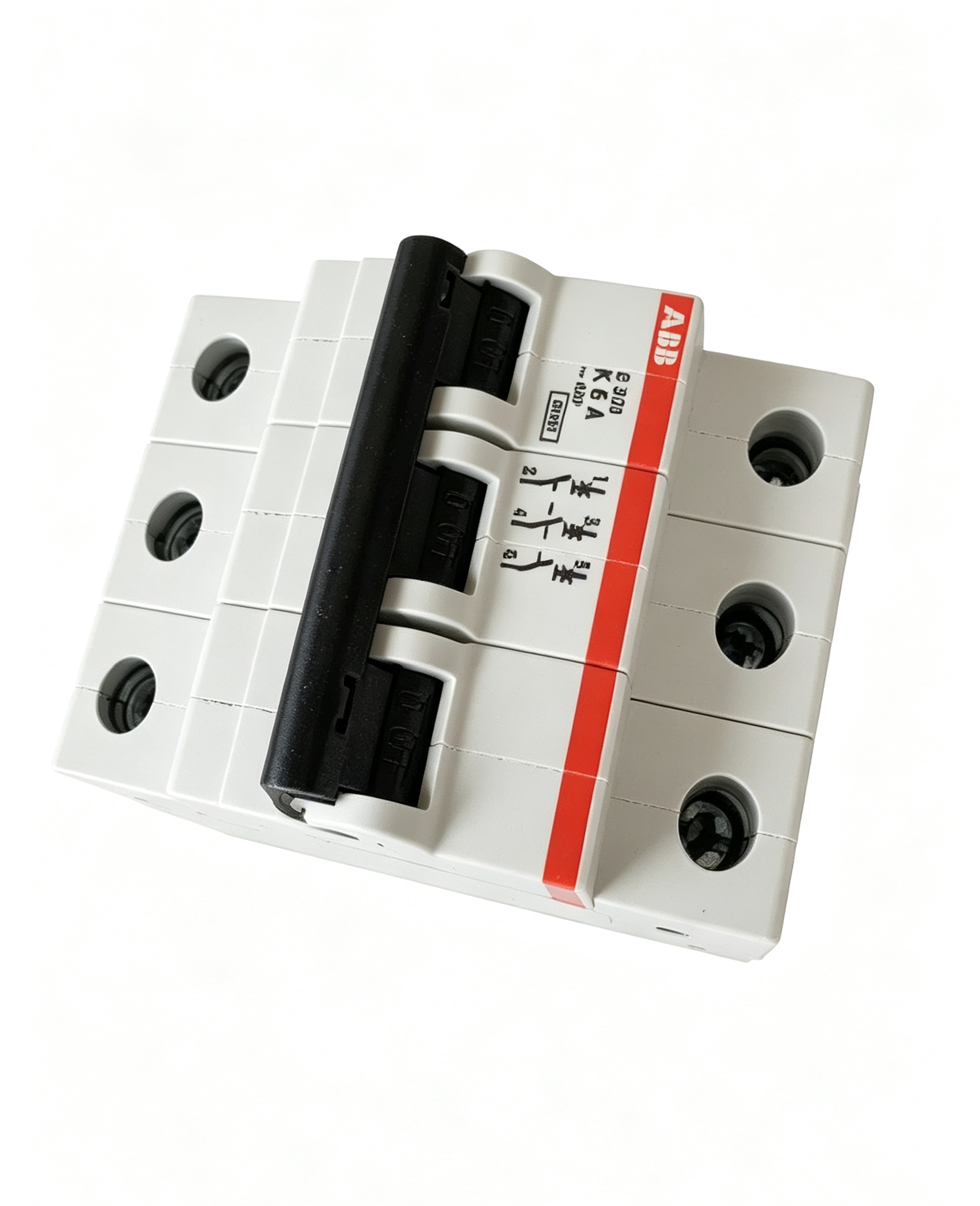

ABB 2CDS253001R0377 S203-K6 Miniature Circuit Breaker
The ABB 2CDS253001R0377 is a high-quality miniature circuit breaker belonging to the ABB System pro M compact S200 Series. Designed for dependable protection of low-voltage electrical distribution systems, this three-pole circuit breaker provides effective protection against overload and short-circuit conditions. With its 6 A rated current and K tripping characteristic, the device is suitable for applications requiring reliable protection combined with enhanced tolerance against higher temporary starting currents.
Modern industrial and commercial electrical systems require protection components that can maintain stable operation while responding accurately to abnormal electrical conditions. The ABB S203-K6 has been engineered to achieve this balance through advanced thermal and magnetic protection technology. It helps protect cables, control equipment, automation devices and electrical circuits from excessive current conditions while supporting efficient operation of connected systems.
The ABB S200 Series represents one of ABB’s widely applied modular protection product families. The series is developed for electrical installations where safety, reliability and installation efficiency are essential. The ABB 2CDS253001R0377 combines compact dimensions, reliable switching performance and standardized DIN rail mounting, making it suitable for integration into distribution boards, control cabinets and industrial automation panels.
Product Features
- Manufacturer: ABB
- Product code: 2CDS253001R0377
- Model designation: S203-K6
- Product type: Miniature Circuit Breaker
- Three-pole circuit breaker configuration
- Rated current: 6 A
- K tripping characteristic
- Thermal overload protection
- Magnetic short-circuit protection
- DIN rail mounting design
- Compact modular construction
- Suitable for industrial and commercial electrical installations
Technical Specifications
| Manufacturer | ABB |
|---|---|
| Model | 2CDS253001R0377 |
| Series | System pro M compact S200 |
| Product Type | Miniature Circuit Breaker |
| Number of Poles | 3 Pole |
| Rated Current | 6 A |
| Tripping Characteristic | K Curve |
| Mounting Type | 35 mm DIN Rail |
| Protection Function | Overload and Short Circuit Protection |
Reliable Circuit Protection Technology
The ABB 2CDS253001R0377 uses a combination of thermal and magnetic release mechanisms to provide comprehensive electrical protection. During prolonged overload situations, the thermal release responds according to the current level and disconnects the circuit when excessive heating conditions occur. This prevents damage caused by continuous overcurrent and helps protect connected conductors and equipment.
For sudden short-circuit events, the magnetic release operates rapidly to interrupt fault currents and isolate the affected circuit. This fast response capability reduces the possibility of damage spreading throughout the electrical installation. By combining these two protection methods, the ABB S203-K6 provides dependable performance for applications where electrical safety and system stability are critical.
K Characteristic Performance
The K tripping characteristic of the ABB 2CDS253001R0377 makes it especially suitable for circuits that experience higher startup currents during normal operation. Compared with standard characteristics, K curve protection allows greater tolerance for temporary current peaks while still providing reliable protection against overload and short-circuit faults.
This characteristic makes the breaker suitable for applications involving motors, transformers, power supplies and other electrical equipment where temporary inrush currents may occur. By reducing unnecessary interruptions while maintaining protection performance, the K characteristic contributes to improved operational continuity in industrial environments.
Installation and System Integration
The ABB 2CDS253001R0377 is designed for simple and efficient installation within modern electrical distribution systems. The standardized DIN rail mounting structure allows the circuit breaker to be installed easily inside control cabinets, distribution boards and automation panels. This modular design helps electrical engineers and system integrators optimize cabinet space while maintaining convenient access for inspection and maintenance.
During installation, proper conductor selection and correct terminal connection are essential to achieve reliable electrical performance. The compact design of the ABB S203-K6 supports organized wiring layouts and allows multiple protection devices to be arranged efficiently within the same enclosure. Clear identification markings on the device assist technicians during installation, troubleshooting and routine maintenance procedures.
The ABB System pro M compact S200 Series is widely recognized for its compatibility with modern low-voltage distribution solutions. Its modular dimensions allow integration with various electrical accessories and support flexible system configurations according to different application requirements.
Industrial Applications
The ABB 2CDS253001R0377 miniature circuit breaker is suitable for a wide range of industrial and commercial applications where dependable circuit protection is required. It is commonly installed in manufacturing equipment, automation control panels, electrical distribution cabinets, machinery systems and infrastructure projects.
In industrial automation environments, electrical components such as controllers, sensors, communication modules and power supplies require stable protection against abnormal current conditions. The ABB S203-K6 helps protect these sensitive devices by quickly disconnecting faulty circuits and reducing the risk of electrical damage.
The breaker is also suitable for commercial facilities, building electrical systems and technical installations where reliable protection of auxiliary circuits is necessary. Its compact size and standardized mounting method make it a practical solution for applications where space efficiency and dependable performance are both important.
Benefits of ABB 2CDS253001R0377
- Reliable overload and short-circuit protection for low-voltage circuits.
- K characteristic design suitable for applications with higher startup currents.
- Compact modular structure for efficient electrical cabinet installation.
- Stable mechanical and electrical performance during repeated operation.
- Suitable for industrial automation and commercial distribution systems.
- DIN rail mounting simplifies installation and replacement procedures.
- Designed according to internationally recognized electrical standards.
- Helps improve equipment safety and operational reliability.
Maintenance and Operational Considerations
Although miniature circuit breakers are designed for long-term reliable operation, regular inspection of electrical distribution systems remains important. Maintenance personnel should periodically check terminal connections, operating conditions and the physical condition of the circuit breaker to ensure continued protection performance.
Electrical panels should remain clean, properly ventilated and protected from excessive environmental conditions. Stable operating temperatures and correct installation practices contribute to longer service life and improved reliability of the ABB 2CDS253001R0377.
When abnormal electrical events occur, the breaker provides a clear indication through its switching position, helping maintenance personnel identify affected circuits more efficiently. This simplifies troubleshooting processes and supports faster restoration of electrical systems.
Frequently Asked Questions
What is ABB 2CDS253001R0377 used for?
ABB 2CDS253001R0377 is a miniature circuit breaker designed to provide overload and short-circuit protection for low-voltage electrical circuits. It is commonly used in industrial automation systems, electrical panels, commercial installations and distribution equipment.
What does the S203-K6 designation mean?
The S203-K6 designation identifies the breaker configuration within the ABB S200 Series. S203 indicates a three-pole device, K represents the tripping characteristic, and 6 refers to the rated current of 6 amperes.
Why is the K curve characteristic important?
The K curve characteristic allows the circuit breaker to tolerate higher temporary current peaks that may occur during startup of certain electrical equipment while still providing dependable protection against overload and short-circuit conditions.
Where can this breaker be installed?
The ABB 2CDS253001R0377 can be installed in DIN rail mounted electrical cabinets, distribution boards, industrial control panels and other low-voltage electrical systems requiring reliable circuit protection.
Conclusion
The ABB 2CDS253001R0377 S203-K6 miniature circuit breaker is a dependable protection component designed for modern electrical distribution and automation applications. With its three-pole configuration, 6 A rated current, K tripping characteristic and reliable thermal-magnetic protection technology, it provides effective protection against overload and short-circuit conditions.
Combining ABB engineering quality, compact DIN rail installation and flexible application capability, the ABB S203-K6 is suitable for industrial facilities, commercial buildings, machinery systems and electrical control applications. Its stable operating characteristics and efficient protection performance make it a valuable solution for engineers and technicians seeking reliable low-voltage circuit protection.
