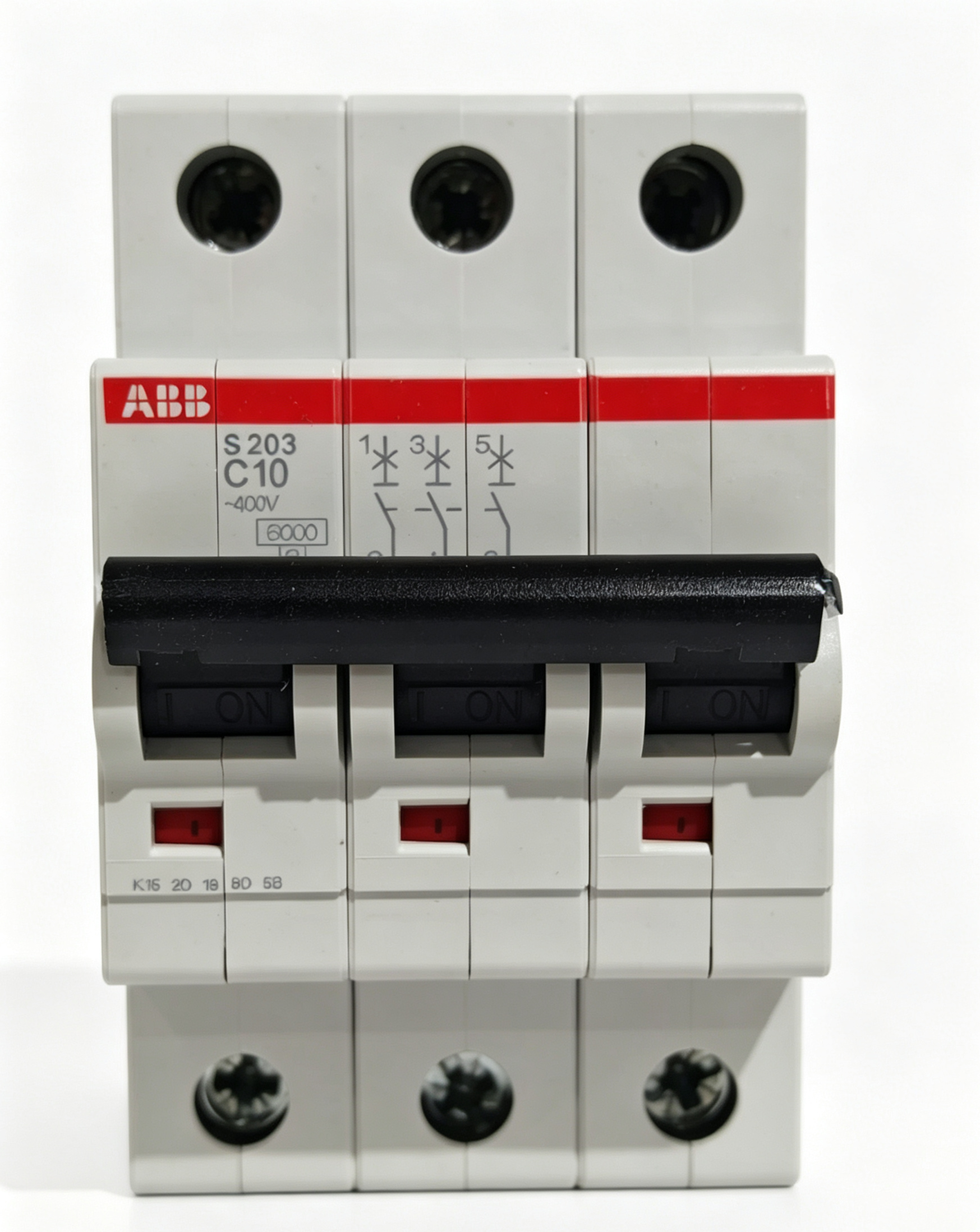

ABB 2CDS253001R0104 S203-C10 Miniature Circuit Breaker
The ABB 2CDS253001R0104 miniature circuit breaker is part of the globally recognized System pro M compact S200 Series, developed to deliver dependable protection for modern low-voltage electrical installations. Designed with ABB’s advanced current-limiting technology, this three-pole circuit breaker provides reliable protection against overloads and short circuits while supporting stable operation of electrical distribution systems used in industrial, commercial and infrastructure environments.
As electrical networks become increasingly complex, reliable circuit protection plays a critical role in maintaining equipment safety and operational continuity. The ABB S203-C10 has been engineered to interrupt abnormal current conditions quickly while allowing normal operating currents to flow without unnecessary interruptions. This balanced performance makes it suitable for a wide variety of distribution panels, automation cabinets, machinery and building electrical systems.
Product Features
- ABB System pro M compact S200 Series.
- Product ID: 2CDS253001R0104.
- Model: S203-C10.
- Three-pole miniature circuit breaker.
- Rated current: 10 A.
- C tripping characteristic.
- Rated short-circuit breaking capacity: 6 kA.
- DIN rail mounting design.
- Thermal overload protection.
- Electromagnetic short-circuit protection.
- Compact modular construction.
- Suitable for residential, commercial and industrial applications.
Technical Specifications
| Manufacturer | ABB |
|---|---|
| Product Number | 2CDS253001R0104 |
| Model | S203-C10 |
| Series | S200 System pro M compact |
| Product Type | Miniature Circuit Breaker |
| Number of Poles | 3 Pole |
| Rated Current | 10 A |
| Tripping Characteristic | C Curve |
| Breaking Capacity | 6 kA |
| Installation | 35 mm DIN Rail |
| Main Function | Overload and Short-Circuit Protection |
Advanced Protection Principle
The ABB 2CDS253001R0104 incorporates two independent tripping mechanisms that work together to provide comprehensive circuit protection. A delayed thermal release responds to sustained overload conditions, helping prevent overheating of conductors and connected equipment. An electromechanical magnetic release reacts almost instantaneously to high fault currents caused by short circuits, disconnecting the circuit before significant damage can occur. This current-limiting design improves the protection of downstream electrical devices while supporting longer service life for the overall distribution system.
Installation and Integration
The ABB 2CDS253001R0104 is designed for fast and efficient installation on a standard 35 mm DIN rail, making it compatible with most modern low-voltage distribution boards and electrical control panels. The compact housing helps optimize panel space while maintaining sufficient clearance for wiring and maintenance. Clearly identified terminals simplify conductor connection and reduce installation errors, allowing electrical professionals to complete commissioning efficiently.
Before installation, the electrical system should be isolated from the power supply and verified to be de-energized. Conductors should be selected according to the rated current and applicable electrical standards, while terminal screws should be tightened using the recommended torque to ensure reliable electrical contact. Proper installation practices help minimize heat generation, improve connection stability and contribute to long-term operational reliability.
Industrial Applications
The ABB S203-C10 miniature circuit breaker is suitable for a broad range of electrical distribution applications where dependable protection is required. Manufacturing facilities use this breaker to protect production equipment, machine tools, conveyor systems and industrial automation cabinets. Commercial buildings rely on it for lighting circuits, HVAC systems, power distribution boards and building electrical infrastructure. Engineering contractors also integrate the breaker into switchboards, OEM machinery and control panels because of its consistent protection characteristics and compact modular design.
Within industrial automation systems, electrical continuity is essential for maintaining production efficiency. The ABB 2CDS253001R0104 helps protect PLC controllers, industrial power supplies, sensors, relays, motor control circuits and auxiliary equipment against electrical faults. By rapidly interrupting abnormal current conditions, the breaker reduces the possibility of damage to valuable electrical components and minimizes unexpected production downtime.
Operational Advantages
One of the primary advantages of the ABB S200 Series is its combination of compact dimensions and dependable protection performance. The modular construction allows multiple breakers to be installed within limited enclosure space while maintaining convenient access for inspection and maintenance. High-quality insulating materials and precision-engineered internal components contribute to stable switching performance during repeated operating cycles.
The C tripping characteristic makes the breaker suitable for circuits that experience moderate inrush currents during equipment startup. This operating characteristic helps reduce unnecessary tripping while continuing to provide effective protection against overload and short-circuit conditions. Such balanced performance is particularly beneficial in industrial environments where motors, transformers and electronic equipment may generate temporary current peaks during normal operation.
Maintenance Recommendations
Routine inspection helps ensure continued protection performance throughout the service life of the breaker. Maintenance personnel should periodically verify that terminals remain securely tightened, inspect the housing for signs of physical damage and confirm that the operating handle moves smoothly between the ON and OFF positions. Any indication of overheating, discoloration or mechanical damage should be investigated before the circuit is returned to service.
Electrical panels should be kept clean and adequately ventilated to prevent excessive dust accumulation and elevated operating temperatures. Maintaining suitable environmental conditions contributes to reliable performance and supports the long operational life expected from ABB low-voltage protection products.
Why Choose ABB 2CDS253001R0104
- Reliable thermal and magnetic protection technology.
- Compact DIN rail design for efficient panel installation.
- High-quality engineering for dependable long-term operation.
- Suitable for industrial, commercial and infrastructure applications.
- Current-limiting design to improve downstream equipment protection.
- Compatible with modern electrical distribution systems.
- Easy integration into switchboards and automation control panels.
- Designed in accordance with internationally recognized standards.
Frequently Asked Questions
What is the primary function of the ABB 2CDS253001R0104?
Its primary function is to protect low-voltage electrical circuits from overloads and short circuits while helping maintain the safety and reliability of connected electrical equipment.
Where is this miniature circuit breaker commonly installed?
The breaker is commonly installed in industrial automation panels, commercial distribution boards, electrical switchboards, machinery, infrastructure projects and building electrical systems requiring dependable circuit protection.
What type of mounting does this breaker use?
The ABB 2CDS253001R0104 is designed for installation on a standard 35 mm DIN rail, allowing quick integration into most electrical enclosures and distribution cabinets.
Why is the C tripping characteristic widely used?
The C characteristic provides reliable protection for circuits with moderate inrush currents, making it suitable for many industrial and commercial electrical applications where equipment startup currents are higher than normal operating currents.
Conclusion
The ABB 2CDS253001R0104 S203-C10 Miniature Circuit Breaker represents a dependable solution for protecting modern low-voltage electrical systems against overload and short-circuit faults. Combining thermal and magnetic tripping technology, compact DIN rail installation, durable construction and current-limiting performance, it supports the safe operation of industrial automation systems, commercial facilities and electrical distribution networks.
With its proven engineering design, stable operating characteristics and compatibility with a wide range of electrical applications, the ABB 2CDS253001R0104 continues to be an excellent choice for engineers, panel builders and maintenance professionals seeking reliable circuit protection and long-term operational performance. Its combination of safety, installation efficiency and dependable electrical protection makes it a valuable component in modern power distribution and automation systems.
