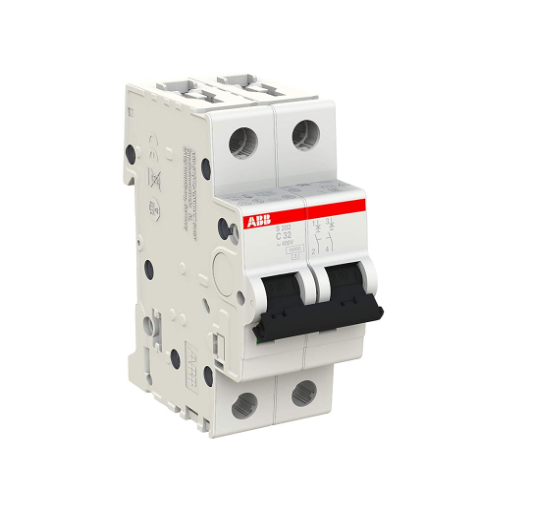

ABB 2CDS252001R0324 S202-C32 Miniature Circuit Breaker
The ABB 2CDS252001R0324, also known as S202-C32, is a miniature circuit breaker (MCB) from the ABB S200 series designed for reliable protection of low-voltage electrical systems. It is widely used in industrial, commercial, and residential power distribution systems to ensure safe operation of electrical circuits under overload and short-circuit conditions. :contentReference[oaicite:1]{index=1}
This device is engineered for DIN rail mounting and provides stable performance in control panels and distribution boards. It meets international standards such as IEC 60898-1 and IEC 60947-2, ensuring safe and consistent circuit protection performance in various electrical environments. :contentReference[oaicite:2]{index=2}
Key Features of ABB 2CDS252001R0324
- 2-pole miniature circuit breaker (MCB)
- Rated current: 32A
- C-curve tripping characteristic
- Rated voltage: 230/400V AC
- Short-circuit breaking capacity: 6kA
- DIN rail mounting design
- Compact S200 series structure
- Thermal and magnetic trip protection system
Industrial Application Areas
The ABB S202-C32 circuit breaker is widely used in electrical distribution systems where reliable protection and stable power delivery are required. It ensures automatic disconnection of faulty circuits to protect equipment and electrical infrastructure.
- Industrial power distribution systems
- Commercial building electrical panels
- Automation control cabinets
- HVAC electrical systems
- Lighting distribution circuits
- Machinery and equipment protection
- Residential and commercial installations
- General low-voltage electrical networks
Operating Principle
The ABB 2CDS252001R0324 uses a combination of thermal and magnetic protection mechanisms. The thermal element responds to overload conditions by tripping after sustained excessive current, while the magnetic element provides instantaneous protection against short-circuit faults.
This dual protection system ensures that electrical circuits are safely disconnected under abnormal conditions, preventing damage to equipment and reducing fire risk in electrical installations.
Technical Advantages
| Feature | Benefit |
|---|---|
| 32A Rated Current | Suitable for medium-load electrical applications |
| C-Characteristic Curve | Stable performance for general-purpose use |
| 6kA Breaking Capacity | Reliable short-circuit protection |
| Compact Design | Easy installation in DIN rail systems |
| Dual Protection System | Thermal and magnetic trip safety |
| ABB Engineering Quality | Ensures long-term reliability and safety |
Designed for Electrical Safety
Electrical protection is essential in modern power distribution systems. The ABB 2CDS252001R0324 provides fast and reliable circuit interruption during fault conditions, helping protect both equipment and personnel.
Its fast response time and stable operation make it suitable for continuous industrial use where electrical reliability is critical.
ABB S200 Series Reliability
ABB is a globally recognized leader in electrical protection and automation technologies. The S200 series miniature circuit breakers are designed for precision, durability, and compliance with international safety standards.
The ABB 2CDS252001R0324 reflects this engineering excellence by providing consistent protection performance and long service life in demanding electrical environments.
Conclusion
The ABB 2CDS252001R0324 S202-C32 miniature circuit breaker is a reliable solution for industrial and commercial electrical protection systems. It provides effective overload and short-circuit protection with stable performance and compact design.
Widely used in distribution boards, control panels, and electrical infrastructure, this ABB MCB ensures safe and stable operation in modern low-voltage power systems.
