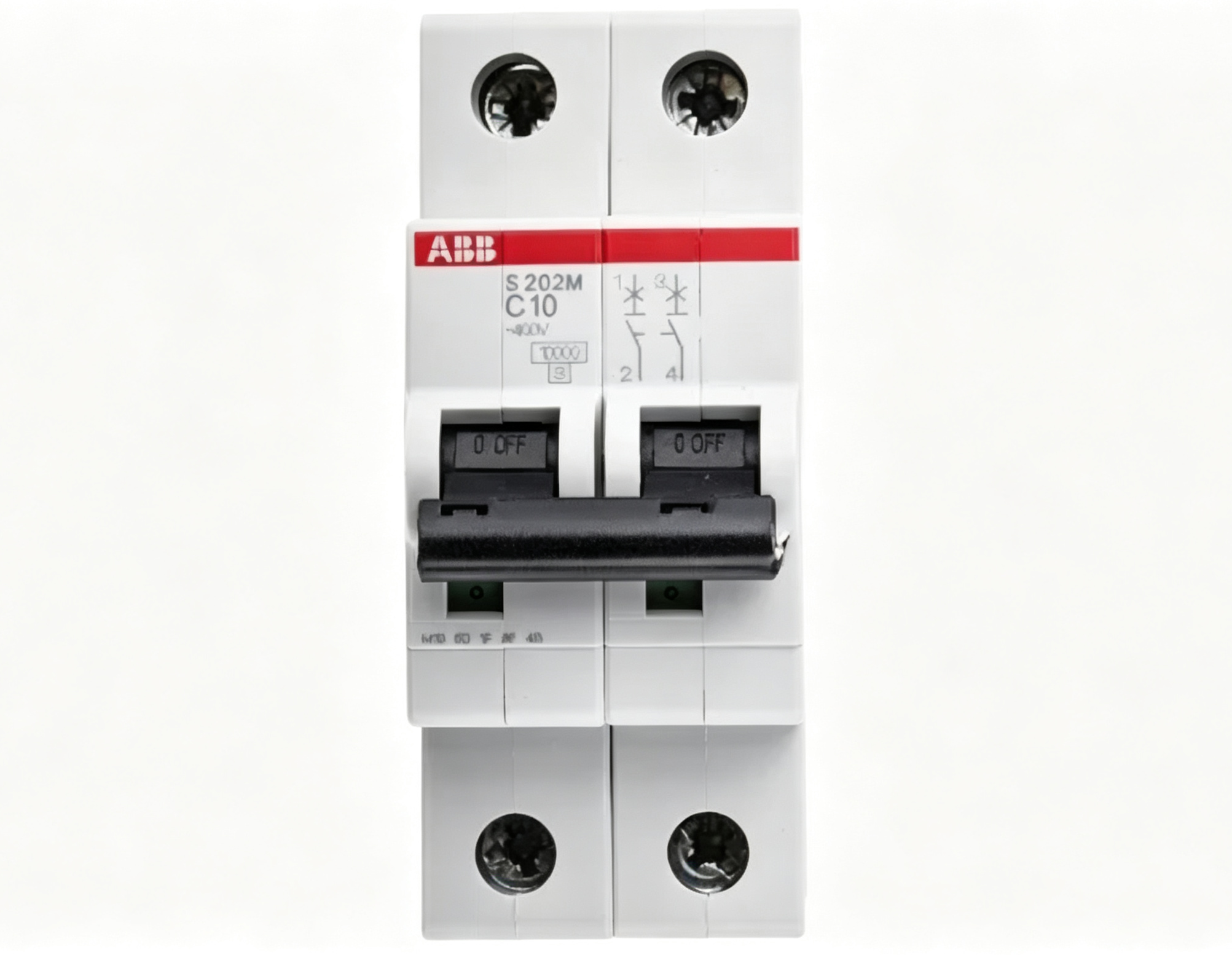

ABB 2CDS252001R0104 S202-C10 Miniature Circuit Breaker 2 Pole 10A C Curve Low Voltage Circuit Protection Technical Guide

The ABB 2CDS252001R0104 is a miniature circuit breaker belonging to the ABB System pro M compact S200 Series, developed to provide dependable protection for modern low-voltage electrical installations. This two-pole circuit breaker is designed for applications where reliable overload and short-circuit protection is required to maintain electrical safety and system stability.

With a rated current of 10A and a C tripping characteristic, the ABB S202-C10 provides balanced protection performance for electrical circuits containing equipment with moderate startup currents. The breaker combines ABB’s proven thermal and magnetic release technology to detect abnormal electrical conditions and disconnect affected circuits efficiently.

Electrical distribution systems require protective devices that can operate accurately under different load conditions. Excessive current caused by overloads or short circuits may damage cables, power supplies, control equipment and connected devices. The ABB 2CDS252001R0104 helps prevent such risks by providing fast and reliable circuit interruption while supporting continuous operation during normal conditions.

Product Features

• Manufacturer: ABB
• Product ID: 2CDS252001R0104
• Model: S202-C10
• Product type: Miniature Circuit Breaker
• Two-pole configuration
• Rated current: 10A
• C tripping characteristic
• Rated voltage: 230/400V AC
• Short circuit breaking capacity: 6kA
• DIN rail mounting design
• Thermal overload protection
• Electromagnetic short circuit protection

Technical Specifications

Advanced Protection Technology

The ABB 2CDS252001R0104 uses two independent protection mechanisms to achieve reliable circuit protection. The thermal release mechanism provides delayed response during overload conditions, allowing temporary current variations while preventing excessive heating of electrical conductors. This function protects wiring systems and connected equipment from damage caused by continuous overcurrent.

The electromagnetic release mechanism provides rapid response during short-circuit conditions. When a sudden fault current occurs, the magnetic tripping system activates quickly to isolate the affected circuit. This combination of thermal and magnetic protection allows the ABB S202-C10 to provide dependable performance in a wide range of electrical applications.

C Curve Tripping Characteristic

The C tripping characteristic of the ABB 2CDS252001R0104 is designed for circuits where moderate inrush currents may occur during normal operation. Compared with lower sensitivity characteristics, the C curve allows temporary startup currents generated by certain electrical loads while still maintaining effective protection against overload and short-circuit conditions.

This characteristic makes the ABB S202-C10 suitable for a variety of applications including lighting distribution systems, control circuits, small motors, power supplies and general industrial equipment. By providing a balanced response between operational continuity and fault protection, the breaker helps reduce unnecessary interruptions while maintaining electrical safety.

Installation and Integration

The ABB 2CDS252001R0104 is designed for convenient installation on standard 35 mm DIN rails, allowing it to be easily integrated into electrical distribution boards, control cabinets and automation panels. The compact modular structure helps optimize available installation space while maintaining accessibility for wiring and maintenance activities.

During installation, correct conductor selection and secure terminal connection are essential for reliable operation. Proper installation ensures stable electrical contact, reduces potential heat generation and improves the overall performance of the protection system. The standardized design of the ABB S200 Series allows efficient integration into modern electrical assemblies.

The breaker can be combined with other modular protection and control devices to create flexible electrical distribution solutions. This makes it suitable for engineers, panel builders and system integrators who require reliable components for customized low-voltage applications.

Industrial and Commercial Applications

The ABB 2CDS252001R0104 is widely applied in industrial, commercial and infrastructure electrical systems where dependable circuit protection is required. It can be installed in machine control panels, electrical cabinets, building distribution systems, automation equipment and auxiliary power circuits.

In industrial automation environments, reliable protection is essential for preventing damage to sensitive electrical components such as controllers, sensors, communication modules and power supplies. The ABB S202-C10 provides an effective protection layer by isolating abnormal circuits and helping prevent electrical faults from affecting other parts of the system.

Commercial buildings and technical facilities also benefit from the compact design and stable performance of this miniature circuit breaker. Applications include lighting circuits, equipment power supplies, control systems and general low-voltage distribution networks where safety and reliability are important considerations.

Advantages of ABB 2CDS252001R0104

• Reliable overload protection for electrical circuits.
• Fast electromagnetic response during short-circuit conditions.
• Compact two-pole modular design.
• Suitable for DIN rail mounted electrical assemblies.
• Stable switching performance during repeated operation.
• Compatible with ABB modular low-voltage protection systems.
• Suitable for industrial, commercial and infrastructure applications.
• Designed according to international electrical standards.

Maintenance and Operational Reliability

The ABB 2CDS252001R0104 is designed for long-term reliable operation with minimal maintenance requirements. However, periodic inspection of electrical distribution equipment is recommended to ensure continued performance and safety.

Maintenance personnel should regularly check terminal connections, verify the mechanical operation of the switching handle and inspect the surrounding installation environment. Keeping electrical panels clean and properly ventilated helps maintain stable operating conditions and extends the service life of electrical components.

When a protection event occurs, the clear switching position of the circuit breaker allows technicians to quickly identify the affected circuit. This improves troubleshooting efficiency and helps reduce downtime during electrical maintenance activities.

Frequently Asked Questions

What is ABB 2CDS252001R0104 used for?

ABB 2CDS252001R0104 is a two-pole miniature circuit breaker designed to provide overload and short-circuit protection for low-voltage electrical circuits. It is commonly used in distribution boards, automation panels and industrial electrical systems.

What does S202-C10 mean?

S202-C10 identifies the product configuration within the ABB S200 Series. S202 indicates a two-pole miniature circuit breaker, C represents the tripping characteristic and 10 indicates the rated current of 10 amperes.

Why is the C curve characteristic suitable for many applications?

The C curve allows moderate temporary current peaks during equipment startup while maintaining reliable protection against overload and short-circuit faults. This makes it suitable for many commercial and industrial electrical circuits.

How is ABB 2CDS252001R0104 installed?

The circuit breaker is installed on a standard 35 mm DIN rail inside electrical distribution boards, control cabinets and automation panels. Proper wiring and installation practices are required to ensure safe and reliable operation.

Conclusion

The ABB 2CDS252001R0104 S202-C10 miniature circuit breaker is a reliable solution for low-voltage electrical protection applications. With its two-pole configuration, 10A rated current, C tripping characteristic and thermal-magnetic protection technology, it provides effective protection against overload and short-circuit conditions.

Combining ABB engineering quality, compact installation design and dependable electrical performance, the ABB S202-C10 is suitable for a wide range of industrial, commercial and infrastructure applications. Its reliable protection capability, flexible installation method and long-term operational stability make it an important component for modern electrical distribution systems.
