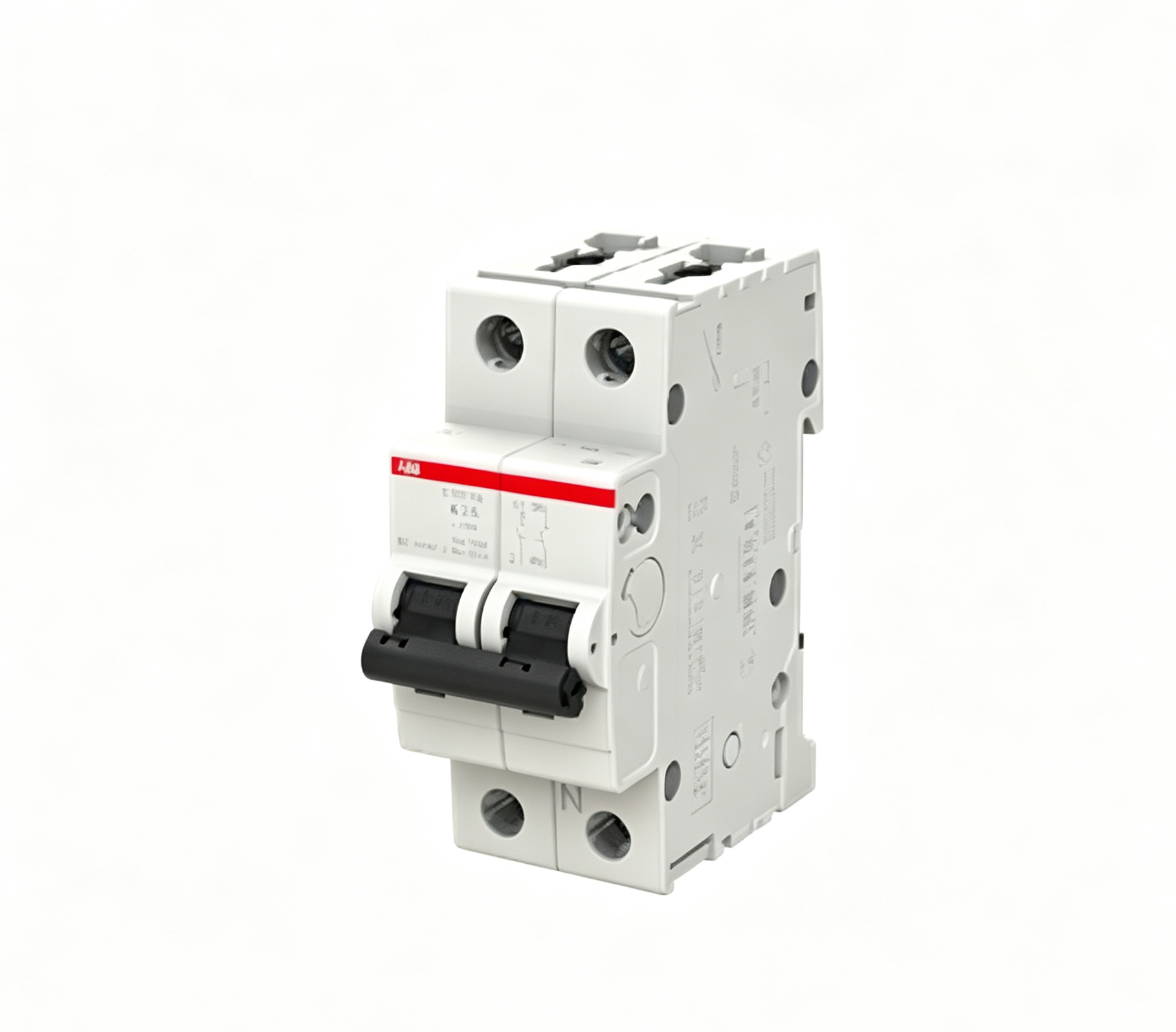

ABB 2CDS251103R0277 S201-K2NA Miniature Circuit Breaker

The ABB 2CDS251103R0277 is an S201-K2NA miniature circuit breaker designed for reliable protection of electrical circuits in industrial automation systems, control cabinets and low voltage distribution applications. As part of ABB’s S200 series miniature circuit breaker family, this device provides effective protection against overload currents and short-circuit faults while maintaining a compact modular design suitable for professional electrical installations.

Electrical protection devices are essential components in modern industrial systems because they protect cables, equipment and control circuits from abnormal current conditions. When excessive current occurs, a reliable circuit breaker disconnects the affected circuit and prevents damage to connected electrical components. The ABB 2CDS251103R0277 provides a practical protection solution for applications where stable operation and accurate fault response are required.

The ABB S201-K2NA combines a single protected pole with a switched neutral pole configuration. This design allows both phase and neutral conductors to be managed within one compact device, making it suitable for applications where complete circuit isolation is required. The K characteristic tripping curve provides additional flexibility for circuits with higher temporary starting currents. :contentReference[oaicite:2]{index=2}

Product Overview

ABB 2CDS251103R0277 belongs to the ABB S200 miniature circuit breaker product family. The product model is S201-K2NA, featuring one protected pole plus neutral pole, a rated current of 2A and a K-type tripping characteristic. It is designed for professional electrical installations requiring reliable protection and convenient DIN rail mounting.

The S200 series represents ABB’s modular protection solution for residential, commercial and industrial electrical applications. These miniature circuit breakers are designed with advanced thermal and electromagnetic protection mechanisms to provide dependable response during overload and short-circuit conditions. :contentReference[oaicite:3]{index=3}

The ABB 1P+N configuration provides an efficient solution for compact electrical panels where space optimization is important. By combining phase protection and neutral switching in one device, the breaker simplifies panel organization and improves installation efficiency.

With a rated current of 2A, the ABB 2CDS251103R0277 is suitable for protecting low-current electrical circuits, including control circuits, automation devices, measurement equipment and auxiliary electrical systems.

Main Functions and Features

The main function of ABB 2CDS251103R0277 is protecting electrical circuits from overload and short-circuit conditions. The device uses two independent protection mechanisms: a thermal release for overload protection and an electromagnetic release for short-circuit protection.

The thermal protection mechanism responds to continuous overcurrent conditions. When current exceeds the rated value for a certain period, the breaker automatically disconnects the circuit to prevent overheating of wires and connected devices.

The electromagnetic protection mechanism provides rapid disconnection during short-circuit events. This fast response helps reduce the possibility of electrical damage and improves overall system safety.

The K characteristic curve is an important feature of the ABB S201-K2NA. Compared with standard B or C characteristics, K curve breakers allow higher short-duration startup currents, making them suitable for circuits containing equipment with increased initial current demand. :contentReference[oaicite:4]{index=4}

Technical Characteristics

The main technical characteristics of ABB 2CDS251103R0277 include:

• Product series: ABB S200
• Model: S201-K2NA
• Device type: Miniature circuit breaker
• Number of poles: 1P+N
• Rated current: 2A
• Tripping characteristic: K curve
• Rated voltage: 230V AC
• Rated frequency: 50/60Hz
• Breaking capacity: 6kA
• Mounting type: DIN rail installation
• Protection function: Overload and short-circuit protection

According to ABB product information, the S201-K2NA model provides K characteristic protection, 2A rated current, 1P+N configuration and 6kA breaking capacity for low voltage electrical protection applications. :contentReference[oaicite:5]{index=5}

Industrial Application Areas

ABB 2CDS251103R0277 is widely used in industrial electrical control systems, automation cabinets and low voltage distribution equipment. Its compact design and reliable protection functions make it suitable for various professional applications.

In industrial automation systems, many devices require dedicated protection circuits. PLC modules, sensors, communication equipment and control relays often operate with relatively low current requirements. The ABB S201-K2NA provides suitable protection for these sensitive circuits.

In machine control cabinets, multiple electrical circuits are installed together. Using miniature circuit breakers allows engineers to separate different protection zones, simplify maintenance procedures and improve troubleshooting efficiency.

The breaker is also suitable for auxiliary power circuits, control panels and electrical distribution systems where reliable circuit isolation and protection are necessary.

Advantages of ABB 2CDS251103R0277

One major advantage of ABB 2CDS251103R0277 is its compact modular structure. The DIN rail mounting design allows efficient installation alongside other electrical components such as contactors, relays and terminal blocks.

Another advantage is the combination of phase protection and neutral switching. The 1P+N configuration saves installation space while providing convenient circuit management.

The K characteristic curve improves application flexibility by allowing circuits with temporary high startup currents to operate normally while maintaining effective protection against faults.

ABB’s S200 series is designed according to international electrical standards, providing reliable performance for industrial and commercial protection applications. :contentReference[oaicite:6]{index=6}

Role in Electrical Protection Systems

Reliable circuit protection is an essential part of industrial electrical design. Without appropriate protection devices, abnormal current conditions may damage equipment, interrupt production processes and create safety risks.

The ABB 2CDS251103R0277 provides a protective layer between the power source and connected equipment. By disconnecting faulty circuits quickly, it helps maintain the stability of the overall electrical system.

In modern automation environments, protection components must provide both reliability and flexibility. Miniature circuit breakers such as the ABB S201-K2NA allow engineers to create organized and efficient electrical systems.

Design Reliability

ABB develops low voltage protection products with emphasis on safety, reliability and compatibility with modern electrical installations. The S200 series combines compact construction with advanced protection technology.

The ABB 2CDS251103R0277 reflects ABB’s engineering approach by providing accurate fault protection, convenient installation and stable operation in industrial environments.

Its standardized modular design allows easy integration into different electrical systems while supporting efficient maintenance and system expansion.

Conclusion

The ABB 2CDS251103R0277 S201-K2NA Miniature Circuit Breaker is a compact and reliable protection device designed for industrial automation systems, electrical control cabinets and low voltage distribution applications. With 1P+N configuration, 2A rated current, K characteristic protection and 6kA breaking capacity, it provides effective overload and short-circuit protection.

For applications requiring dependable circuit protection, efficient installation and compatibility with professional electrical systems, the ABB S201-K2NA offers a reliable solution for modern industrial protection requirements.
