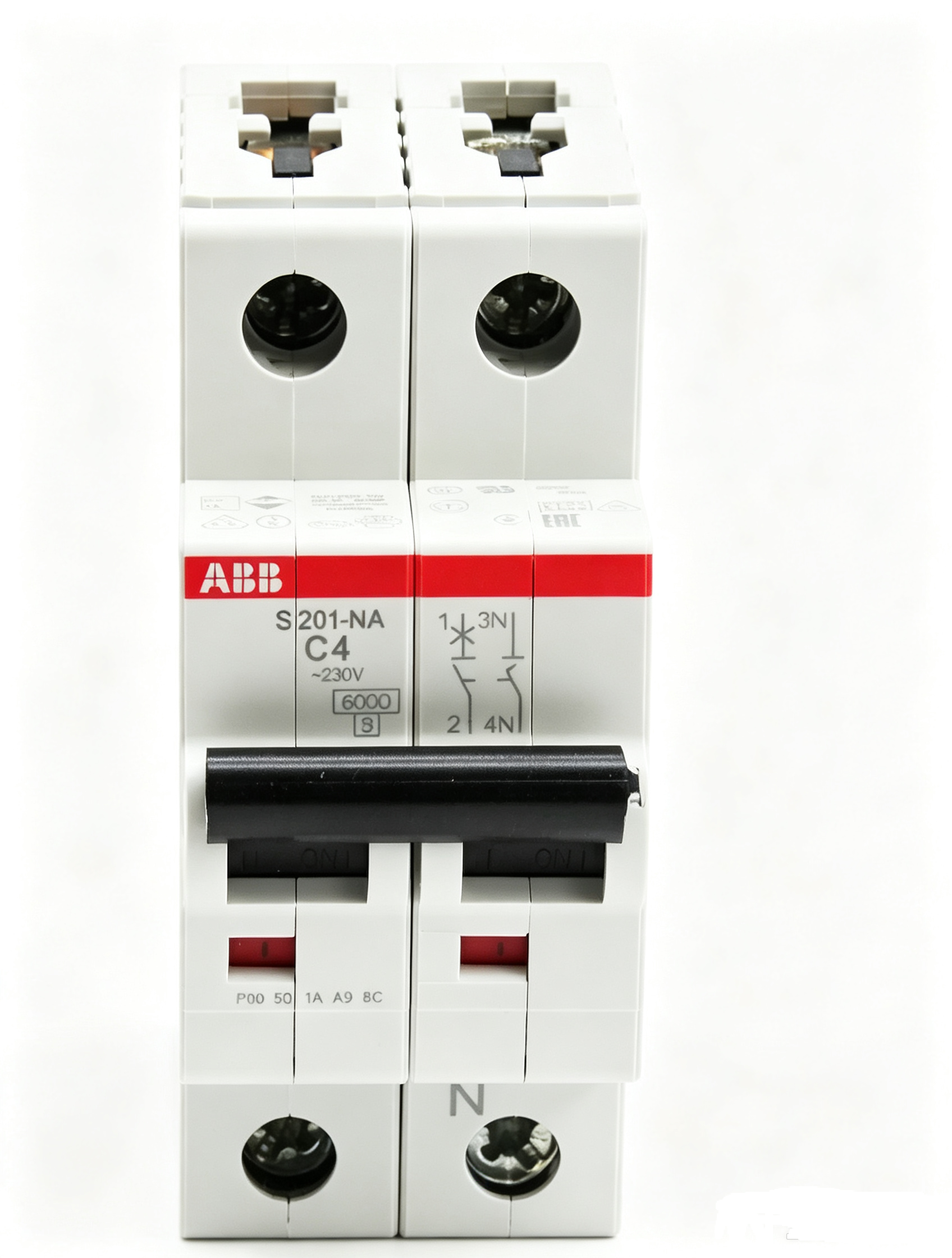

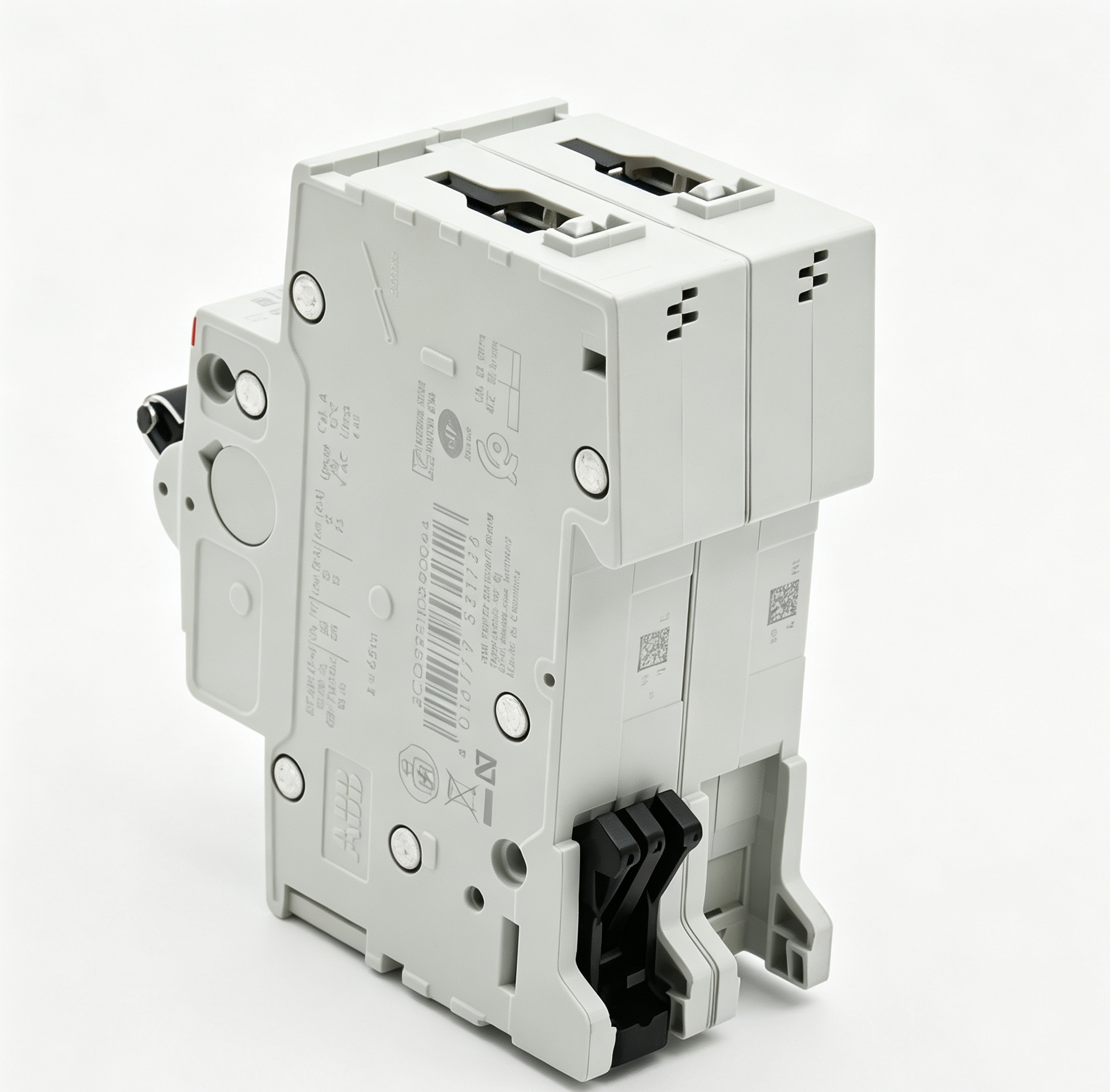

ABB 2CDS251103R0044 S201-C4NA Miniature Circuit Breaker Overview

ABB 2CDS251103R0044 is an S201-C4NA miniature circuit breaker designed for low voltage electrical protection applications. It belongs to the ABB System pro M compact S200 series, a modular protection product family developed for residential, commercial, and industrial electrical installations.

The main purpose of ABB S201-C4NA is to protect electrical circuits against overload and short circuit conditions. By combining thermal and electromagnetic protection mechanisms, this miniature circuit breaker provides reliable interruption performance and helps protect connected electrical equipment from abnormal current conditions.

ABB 2CDS251103R0044 features a C tripping characteristic and a rated current of 4 A. The device uses a two-pole configuration and is designed for DIN rail installation, making it suitable for integration into electrical distribution panels and industrial control cabinets. :contentReference[oaicite:2]{index=2}

ABB S201-C4NA Design and Operating Principle

ABB 2CDS251103R0044 is designed with ABB’s modular System pro M compact architecture, providing a compact and efficient solution for circuit protection requirements. The standardized housing allows the breaker to be installed easily together with other ABB modular electrical components.

The circuit breaker uses two independent protection mechanisms. The thermal release mechanism provides delayed protection against overload conditions, while the electromagnetic release mechanism provides rapid protection during short circuit events. This combination allows the device to respond effectively to different electrical fault situations. :contentReference[oaicite:3]{index=3}

The C characteristic curve means the breaker is suitable for circuits where connected equipment may generate moderate starting currents. This makes ABB S201-C4NA suitable for many automation and electrical control applications where reliable protection and operational stability are required.

Technical Characteristics of ABB 2CDS251103R0044

ABB 2CDS251103R0044 belongs to the ABB S200 miniature circuit breaker family. The product is designed according to ABB engineering standards and provides reliable low voltage protection performance for different electrical systems. :contentReference[oaicite:4]{index=4}

• Product type: Miniature Circuit Breaker
• Model: S201-C4NA
• Product ID: 2CDS251103R0044
• Rated current: 4 A
• Tripping characteristic: C curve
• Number of poles: 2 poles
• Rated voltage: Up to 440 V AC
• Breaking capacity: 6 kA
• Mounting type: DIN rail mounting
• Width: 35 mm
• Terminal type: Bi-directional cylinder lift terminal

The compact dimensions and standardized connection system allow ABB 2CDS251103R0044 to be installed efficiently in electrical panels while maintaining reliable protection performance. :contentReference[oaicite:5]{index=5}

Protection Functions of ABB 2CDS251103R0044

Electrical protection devices play an important role in maintaining the safety and reliability of industrial power systems. ABB 2CDS251103R0044 provides automatic circuit interruption when abnormal current conditions occur.

During overload conditions, the thermal release mechanism gradually responds according to the current level and disconnects the circuit when the current exceeds safe operating limits. During short circuit conditions, the electromagnetic mechanism provides fast interruption to minimize equipment damage.

This dual protection technology enables ABB S201-C4NA to protect wiring systems, control circuits, and electrical devices from excessive current stress.

Industrial Applications of ABB 2CDS251103R0044

ABB 2CDS251103R0044 is widely used in industrial automation and electrical distribution systems where compact and reliable circuit protection is required.

Typical application areas include:

• Industrial control cabinets
• Automation equipment
• Machine control circuits
• Electrical distribution panels
• Instrumentation systems
• Building electrical installations
• Control power protection systems

In automation systems, many sensitive components such as PLC systems, control modules, sensors, and relays require dedicated circuit protection. ABB S201-C4NA provides a dependable protection solution that helps improve system stability and operational safety.

Advantages of ABB 2CDS251103R0044

ABB 2CDS251103R0044 provides several advantages for engineers and system integrators requiring dependable low voltage protection components.

• Reliable ABB protection technology
• Compact modular design
• C curve tripping characteristic
• Two-pole circuit protection
• Fast fault interruption capability
• Easy DIN rail installation
• Compatible with ABB System pro M compact accessories

The combination of compact structure, flexible installation, and reliable electrical performance makes ABB S201-C4NA suitable for a wide range of industrial and commercial applications.

ABB System pro M Compact Integration

ABB System pro M compact is a modular electrical protection platform designed for flexible installation and efficient system integration. ABB 2CDS251103R0044 can be combined with various ABB accessories to expand monitoring and control functions.

Additional accessories such as auxiliary contacts and signal contacts allow users to obtain circuit breaker status information and integrate protection devices into larger automation systems.

This modular approach helps simplify electrical cabinet design and improves the management capability of modern industrial power distribution systems.

Installation and Maintenance Considerations

Correct installation is essential for achieving reliable performance from ABB 2CDS251103R0044. The breaker should be installed on a compatible DIN rail and connected according to electrical design requirements.

During operation, regular inspection of terminal connections, operating conditions, and circuit loading helps maintain stable protection performance. Proper selection of rated current and protection characteristics ensures effective circuit protection.

The modular structure of ABB S201-C4NA allows convenient installation, replacement, and integration within industrial electrical systems.

Conclusion

ABB 2CDS251103R0044 S201-C4NA is a reliable miniature circuit breaker designed for low voltage electrical protection applications. With a 4 A rated current, C characteristic curve, two-pole configuration, and ABB System pro M compact compatibility, it provides effective protection for industrial automation and electrical distribution systems.

Combining ABB’s experience in low voltage protection technology with a compact modular design, ABB 2CDS251103R0044 delivers dependable circuit protection, flexible installation, and stable operation for modern electrical systems.
