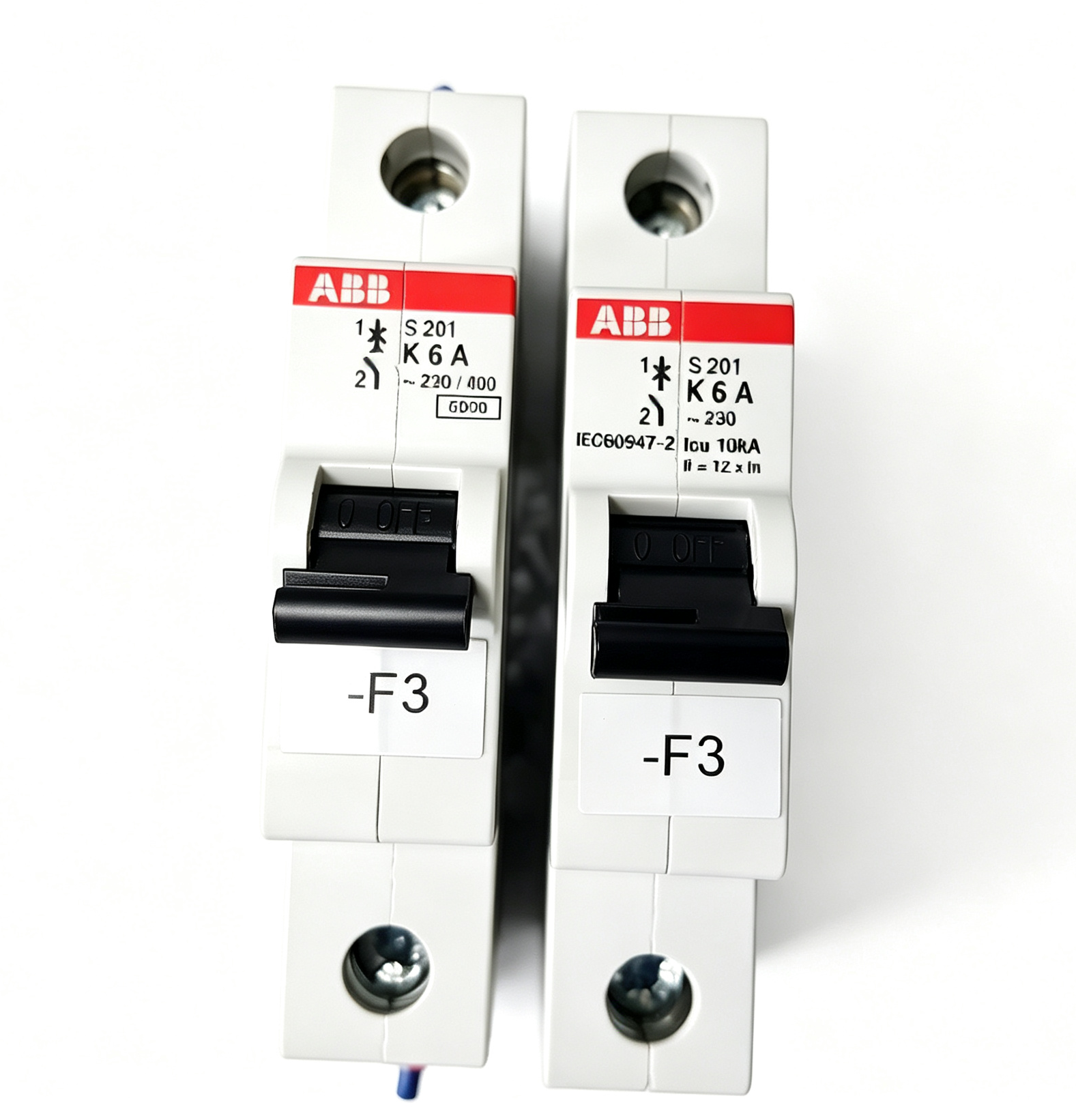

ABB 2CDS251001R0377 S201-K6 Miniature Circuit Breaker
The ABB 2CDS251001R0377 is a miniature circuit breaker from the ABB System pro M compact S200 Series, designed to provide dependable protection for modern low-voltage electrical installations. With a single-pole configuration, 6A rated current and K tripping characteristic, this circuit breaker delivers reliable protection against overload and short-circuit conditions while supporting stable operation of electrical equipment.
Electrical protection components play an important role in maintaining system safety and operational reliability. Abnormal current conditions caused by overloads or short circuits may result in excessive heating, equipment damage and unexpected interruptions. The ABB S201-K6 is engineered to detect these conditions quickly and disconnect affected circuits, helping protect electrical infrastructure and connected devices.
The ABB S200 Series is widely recognized for its compact modular structure, dependable performance and flexible installation capability. The ABB 2CDS251001R0377 combines ABB engineering quality with advanced protection technology, making it suitable for control panels, distribution boards, automation systems and auxiliary electrical circuits requiring accurate low-current protection. :contentReference[oaicite:1]{index=1}
Product Features
- Manufacturer: ABB
- Product code: 2CDS251001R0377
- Model: S201-K6
- Product type: Miniature Circuit Breaker
- Single-pole configuration
- Rated current: 6A
- K tripping characteristic
- Thermal overload protection
- Electromagnetic short-circuit protection
- DIN rail mounting design
- Current-limiting protection technology
- Suitable for industrial and commercial electrical systems
Technical Specifications
| Manufacturer | ABB |
|---|---|
| Product Number | 2CDS251001R0377 |
| Extended Product Type | S201-K6 |
| Series | System pro M compact S200 |
| Number of Poles | 1 Pole |
| Rated Current | 6A |
| Tripping Characteristic | K Curve |
| Rated Voltage | 230/400V AC |
| Breaking Capacity | 6kA |
| Mounting Type | 35mm DIN Rail |
| Protection Function | Overload and Short Circuit Protection |
Thermal and Magnetic Protection Technology
The ABB 2CDS251001R0377 uses two independent protection mechanisms to achieve reliable circuit protection. The thermal release mechanism provides delayed response during overload situations, allowing normal temporary current variations while preventing excessive heating caused by prolonged overcurrent conditions.
The electromagnetic release mechanism provides rapid interruption during short-circuit events. When a high fault current occurs, the magnetic tripping system activates quickly to isolate the affected circuit and reduce the possibility of damage to connected equipment. This combination of thermal and magnetic protection allows the ABB S201-K6 to deliver dependable performance in demanding electrical environments. :contentReference[oaicite:2]{index=2}
K Curve Tripping Characteristic
The K tripping characteristic of the ABB 2CDS251001R0377 is designed for electrical circuits where connected equipment may produce higher temporary startup currents during normal operation. This characteristic allows the breaker to tolerate short-duration current peaks while maintaining reliable protection against overload and short-circuit faults.
The K curve design makes the ABB S201-K6 suitable for applications involving transformers, power supplies, motors and electronic equipment that may require additional starting current during energization. By providing a balanced response between operational flexibility and fault protection, the breaker helps reduce unnecessary interruptions while maintaining electrical safety.
This protection characteristic is especially valuable in industrial control systems where stable operation is required and temporary current variations are a normal part of equipment operation. The ABB 2CDS251001R0377 helps ensure that circuits remain protected without affecting normal system performance.
Installation and System Integration
The ABB 2CDS251001R0377 is designed for installation on a standard 35 mm DIN rail, allowing simple integration into electrical distribution boards, automation cabinets and industrial control panels. Its compact modular structure helps save installation space while maintaining convenient access for wiring and maintenance.
The ABB S200 Series uses a standardized modular design that allows easy combination with other protection and control components. This flexibility enables engineers and panel builders to create customized low-voltage distribution systems according to specific application requirements.
Proper installation procedures, including correct conductor selection, secure terminal connections and suitable environmental conditions, are important for ensuring stable long-term performance. A correctly installed miniature circuit breaker improves electrical safety and contributes to reliable operation of the complete power distribution system.
Industrial and Commercial Applications
The ABB 2CDS251001R0377 is widely used in industrial automation systems, electrical control panels, commercial facilities and low-voltage distribution equipment. Its single-pole design and reliable protection characteristics make it suitable for individual circuit protection where accurate current interruption is required.
In automation applications, sensitive electrical components such as PLC systems, sensors, communication modules, control relays and power supplies require effective protection against electrical faults. The ABB S201-K6 provides an additional protection layer by disconnecting abnormal circuits and helping prevent damage to connected equipment.
The breaker is also suitable for auxiliary circuits, lighting systems, instrumentation equipment and technical installations. Its compact size allows efficient integration into electrical cabinets where space optimization and dependable protection are important considerations.
Advantages of ABB 2CDS251001R0377
- Reliable overload and short-circuit protection for low-voltage circuits.
- K curve characteristic suitable for equipment with temporary startup currents.
- Compact single-pole design for efficient panel installation.
- DIN rail mounting simplifies electrical system integration.
- Thermal and magnetic protection combined in one device.
- Stable switching performance during repeated operation.
- Suitable for industrial automation and commercial applications.
- Designed according to internationally recognized electrical standards.
Maintenance and Operational Reliability
The ABB 2CDS251001R0377 is designed to provide long-term reliable operation with minimal maintenance requirements. However, regular inspection of electrical distribution systems is recommended to ensure continued safety and dependable performance.
Maintenance personnel should periodically inspect terminal connections, check the operating mechanism and verify that the circuit breaker remains free from mechanical damage or environmental contamination. Proper ventilation and clean electrical cabinets help maintain suitable operating conditions.
When a fault occurs, the clear switching position of the miniature circuit breaker allows technicians to quickly identify the affected circuit. This improves troubleshooting efficiency and reduces maintenance time during electrical system recovery.
Frequently Asked Questions
What is ABB 2CDS251001R0377 used for?
ABB 2CDS251001R0377 is a single-pole miniature circuit breaker designed to provide overload and short-circuit protection for low-voltage electrical circuits. It is commonly used in automation systems, control panels, distribution boards and auxiliary electrical circuits.
What does S201-K6 mean?
S201-K6 identifies the product configuration within the ABB S200 Series. S201 represents a single-pole circuit breaker, K indicates the tripping characteristic and 6 represents the rated current of 6 amperes.
Why choose a K curve miniature circuit breaker?
A K curve circuit breaker provides improved tolerance against temporary startup currents generated by certain electrical loads while maintaining reliable protection against overload and short-circuit conditions.
How is ABB S201-K6 installed?
The ABB S201-K6 is installed on a standard 35 mm DIN rail inside electrical distribution panels, automation cabinets and control systems. Correct wiring and installation practices ensure safe and reliable operation.
Conclusion
The ABB 2CDS251001R0377 S201-K6 miniature circuit breaker is a reliable protection solution designed for modern low-voltage electrical systems. With its single-pole configuration, 6A rated current, K tripping characteristic and thermal-magnetic protection technology, it provides effective protection against overload and short-circuit conditions.
Combining ABB engineering quality, compact modular construction and flexible DIN rail installation, the ABB S201-K6 is suitable for industrial automation, commercial electrical systems and technical installations requiring dependable circuit protection. Its stable operating performance, efficient protection technology and practical design make it an excellent choice for engineers and technicians seeking reliable low-voltage protection solutions.
