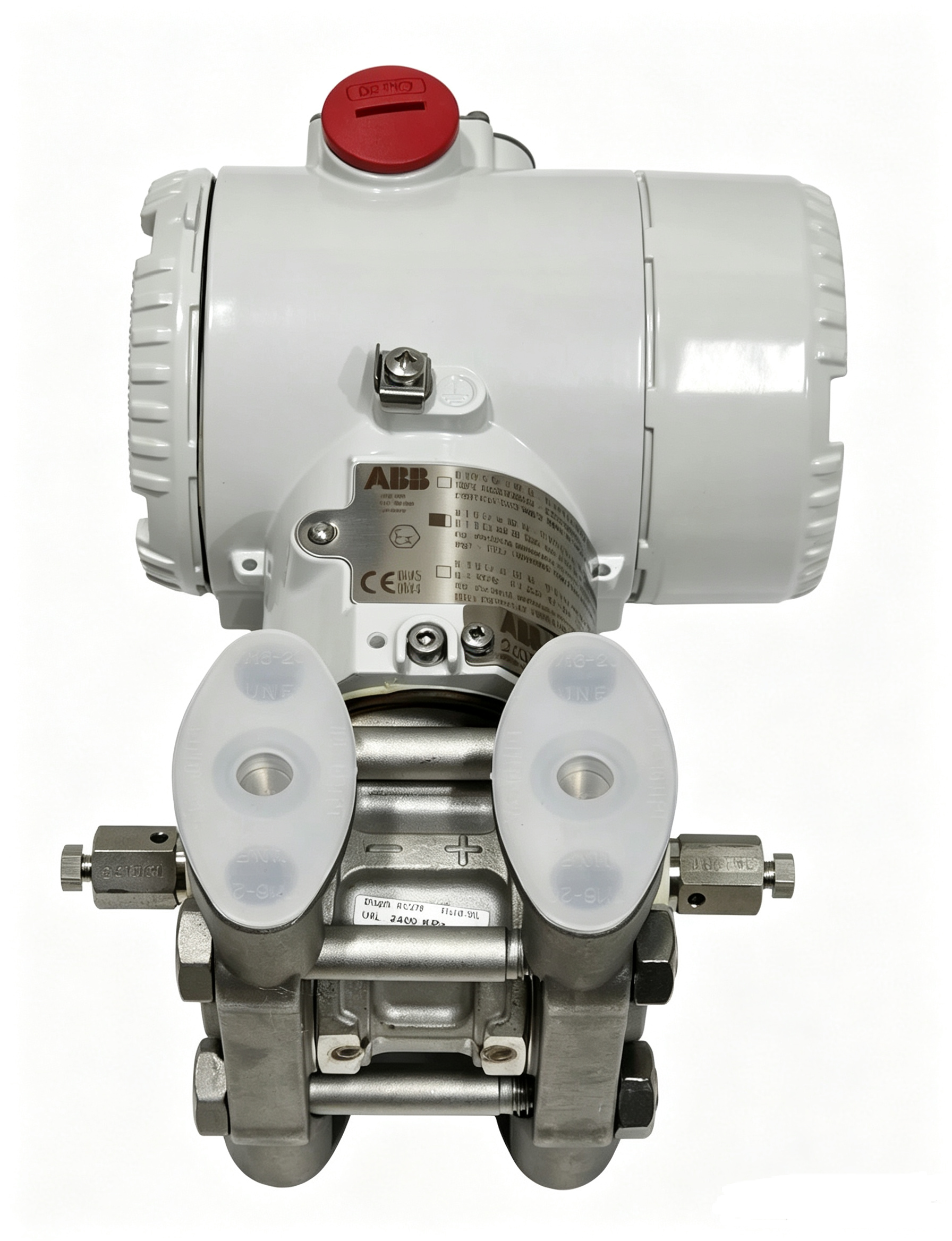

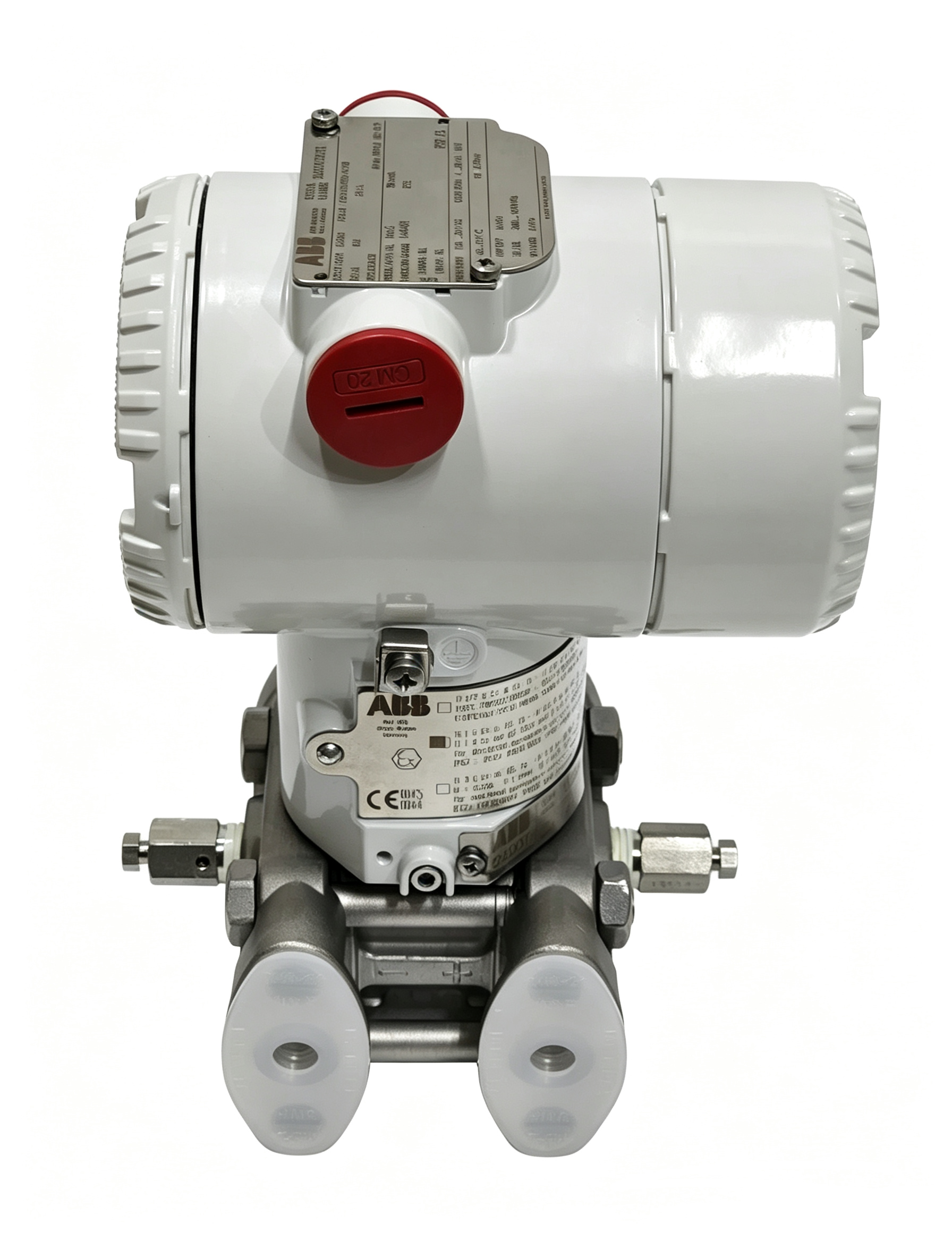

ABB 266DSH Differential Pressure Transmitter for Advanced Industrial Pressure Measurement Applications

Differential pressure measurement is widely used in industrial processes for monitoring flow, pressure relationships and process conditions. A differential pressure transmitter compares the pressure applied to its two sensing connections and converts the measured differential pressure into a usable measurement signal. The ABB 266DSH is designed around this principle and can be applied to process measurement tasks involving liquids, gases and steam, as well as level measurement applications where differential pressure is used to determine process conditions.

ABB 266DSH Differential Pressure Measurement

The 266DSH belongs to ABB’s 2600T pressure transmitter family and uses a standard DP-style configuration. This configuration makes the transmitter suitable for a broad range of conventional differential pressure installations. The transmitter is intended to provide consistent measurement performance across industrial operating conditions, making it relevant to process plants where pressure information is required for monitoring, control, optimization and equipment protection.

According to ABB technical information, the 266DSH offers a base accuracy starting from ±0.06 percent and a span limit covering 0.05 to 16000 kPa. This measurement capability gives the transmitter a broad operating range for different industrial pressure measurement requirements. The actual measuring range, process connection, materials, output configuration and other characteristics depend on the specific transmitter configuration and ordering code.

Field Configuration and Electronics

One important characteristic of the ABB 266DSH is its field-oriented electronics design. The electronics module can be replaced in the field and incorporates automatic configuration functionality. This approach is intended to simplify maintenance activities by allowing the instrument electronics to retain or restore the appropriate configuration without requiring unnecessary complexity during service procedures.

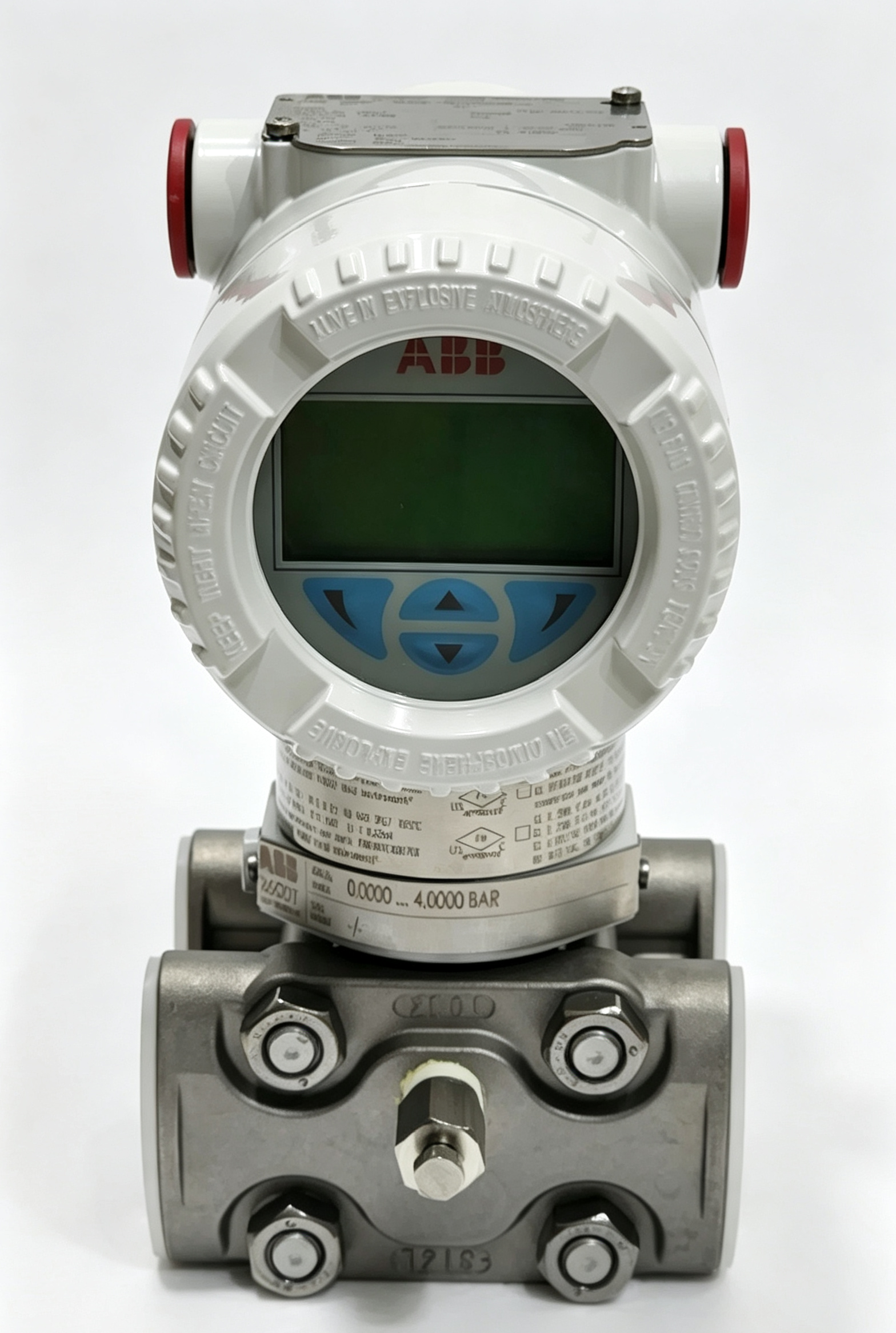

The transmitter can also be equipped with an integral digital display. ABB provides display configurations including conventional keypad operation and Through-The-Glass technology on applicable versions. The TTG concept allows configuration activities to be performed through the transmitter’s windowed front cover without removing the cover. This can be particularly useful when instrument access needs to be minimized during field adjustment or configuration.

The field configuration concept of the 266DSH is designed to make common instrument setup activities more straightforward. Depending on the selected configuration, users can work with transmitter parameters through the local interface or through supported communication and configuration tools. This provides flexibility for both local instrument management and integration into larger automation systems.

Communication and System Integration

ABB designed the 266DSH with multiple communication possibilities to accommodate different industrial automation architectures. Depending on the selected version, the transmitter can support HART, PROFIBUS PA, FOUNDATION Fieldbus and WirelessHART communication. This communication flexibility allows the 266DSH to be considered for both conventional wired process instrumentation and applications requiring digital communication or wireless measurement infrastructure.

HART communication provides a digital communication layer that can be used together with the analog measurement signal, allowing additional instrument information and configuration parameters to be accessed. PROFIBUS PA and FOUNDATION Fieldbus versions provide alternatives for process automation networks where fieldbus communication is part of the control architecture. WirelessHART versions extend the measurement concept to installations where conventional cabling may be difficult or impractical.

WirelessHART Capability

The WirelessHART version of the 266DSH provides an alternative approach to process pressure monitoring. Wireless communication can be useful for measurement points located in areas where long cable runs, complex installation work or difficult physical access can increase project complexity. ABB states that its WirelessHART 266 pressure transmitter family can support battery-powered operation and remote monitoring applications.

For the 266 WirelessHART pressure transmitter family, ABB specifies battery life of approximately ten years under a 32-second update rate for applicable configurations. Actual battery performance depends on operating conditions, communication settings, network environment and transmitter configuration. WirelessHART therefore provides an additional option for process measurement architectures where reduced wiring requirements and flexible measurement-point deployment are important considerations.

Plugged Impulse Line Detection

Another significant feature of the ABB 266DSH is Plugged Impulse Line Detection, commonly referred to as PILD. The function is designed to help identify conditions associated with an impulse line becoming obstructed. Impulse lines play an important role in conventional differential pressure measurement because they transfer process pressure from the measurement point to the transmitter.

An obstruction in an impulse line can influence pressure transmission and may eventually affect the reliability of the measurement. By incorporating plugged impulse line detection, the 266DSH provides additional diagnostic information that can support predictive maintenance practices. Instead of relying only on the measured pressure value, maintenance personnel can use available diagnostic information to identify potential measurement-path problems earlier.

Safety and Industrial Applications

The ABB 266DSH is also associated with safety-related process instrumentation applications. ABB documentation identifies certification according to IEC 61508 through TÜV Nord, with the product portfolio supporting SIL2 applications in a single-transmitter configuration and SIL3 applications in a redundant configuration where the applicable safety requirements are satisfied. The exact suitability of a transmitter for a safety loop must always be determined from the applicable safety manual, configuration and system design.

Typical applications for differential pressure transmitters include process flow measurement, pressure monitoring and liquid level measurement. The 266DSH can therefore be considered for process systems where differential pressure provides important information about operating conditions. Its combination of measurement accuracy, communication flexibility and diagnostic functions makes it suitable for industrial instrumentation architectures that require more than a basic pressure signal.

Technical Characteristics of ABB 266DSH

• Product type: Differential pressure transmitter
• Design: Standard DP-style configuration
• Base accuracy: From ±0.06 percent
• Span limits: 0.05 to 16000 kPa
• Communication options: HART, PROFIBUS PA, FOUNDATION Fieldbus and WirelessHART
• Field-replaceable electronics module with automatic configuration capability
• Integral digital display options available for applicable configurations
• Through-The-Glass configuration technology available on applicable versions
• Plugged Impulse Line Detection for diagnostic support
• IEC 61508-related safety certification for applicable safety configurations
• PED Category III compliance according to applicable ABB product information

ABB 266DSH for Process Instrumentation

The ABB 266DSH represents a combination of differential pressure measurement, digital communication and field-oriented instrument management. Rather than focusing only on the pressure sensing function, its architecture incorporates configuration flexibility, diagnostic capabilities and communication choices that can support different levels of process automation. This makes the transmitter relevant to applications where measurement data must be integrated into an instrumentation or control system.

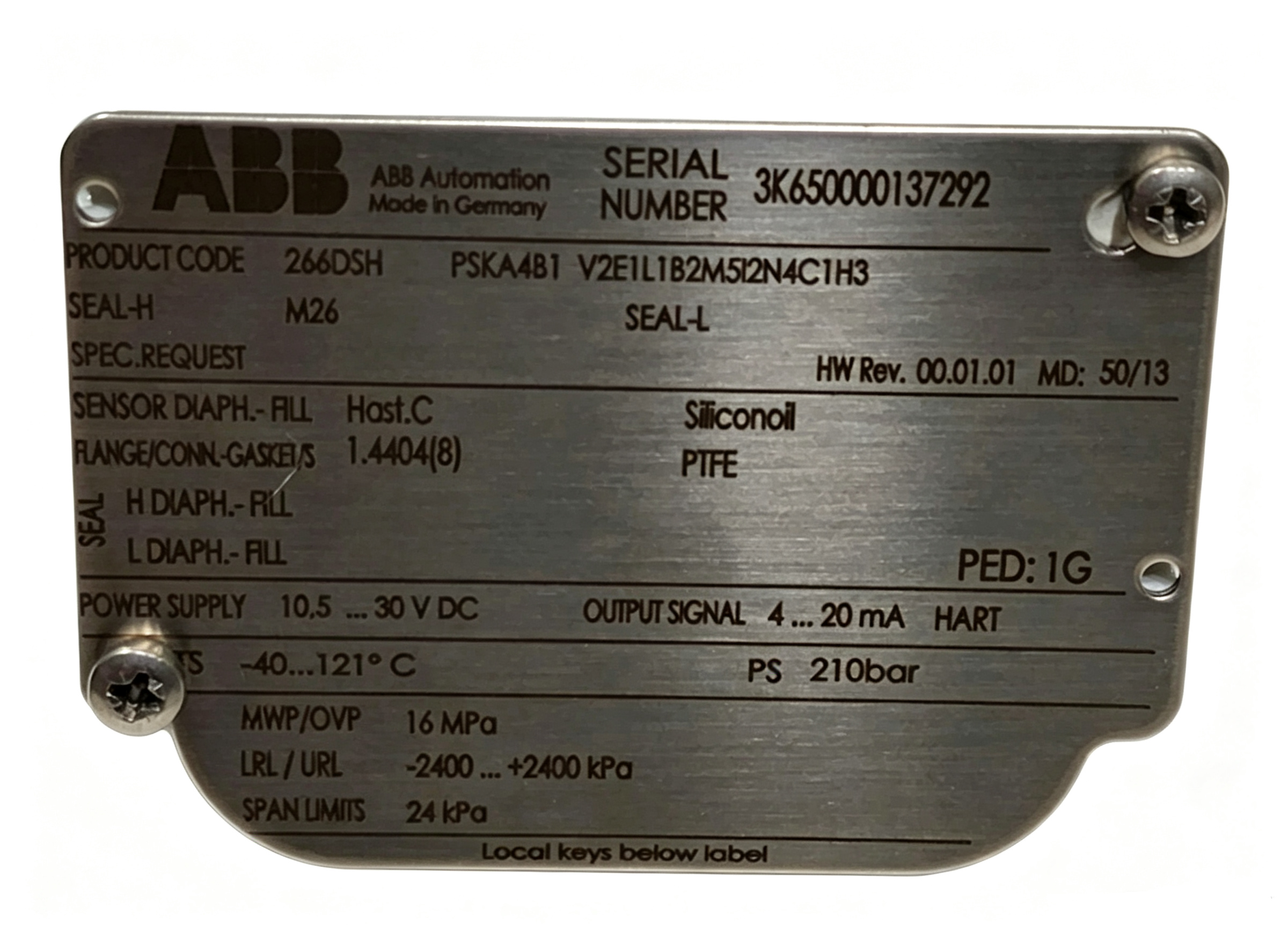

For engineering and maintenance teams, the model number ABB 266DSH identifies the transmitter family, while the complete ordering code determines the exact configuration. When selecting or replacing an instrument, users should verify the full product code, measurement range, output protocol, process connection, diaphragm and wetted-material configuration, display option and hazardous-area requirements against the project documentation.

Overall, the ABB 266DSH is a versatile differential pressure transmitter for industrial process measurement. Its standard DP-style construction, measurement accuracy, broad span capability, multiple communication technologies, field-replaceable electronics, TTG configuration option, PILD diagnostics and WirelessHART capability provide a comprehensive platform for pressure measurement and process monitoring. These characteristics make ABB 266DSH a suitable product family for modern industrial instrumentation systems where measurement reliability, configuration flexibility and diagnostic visibility are important.
