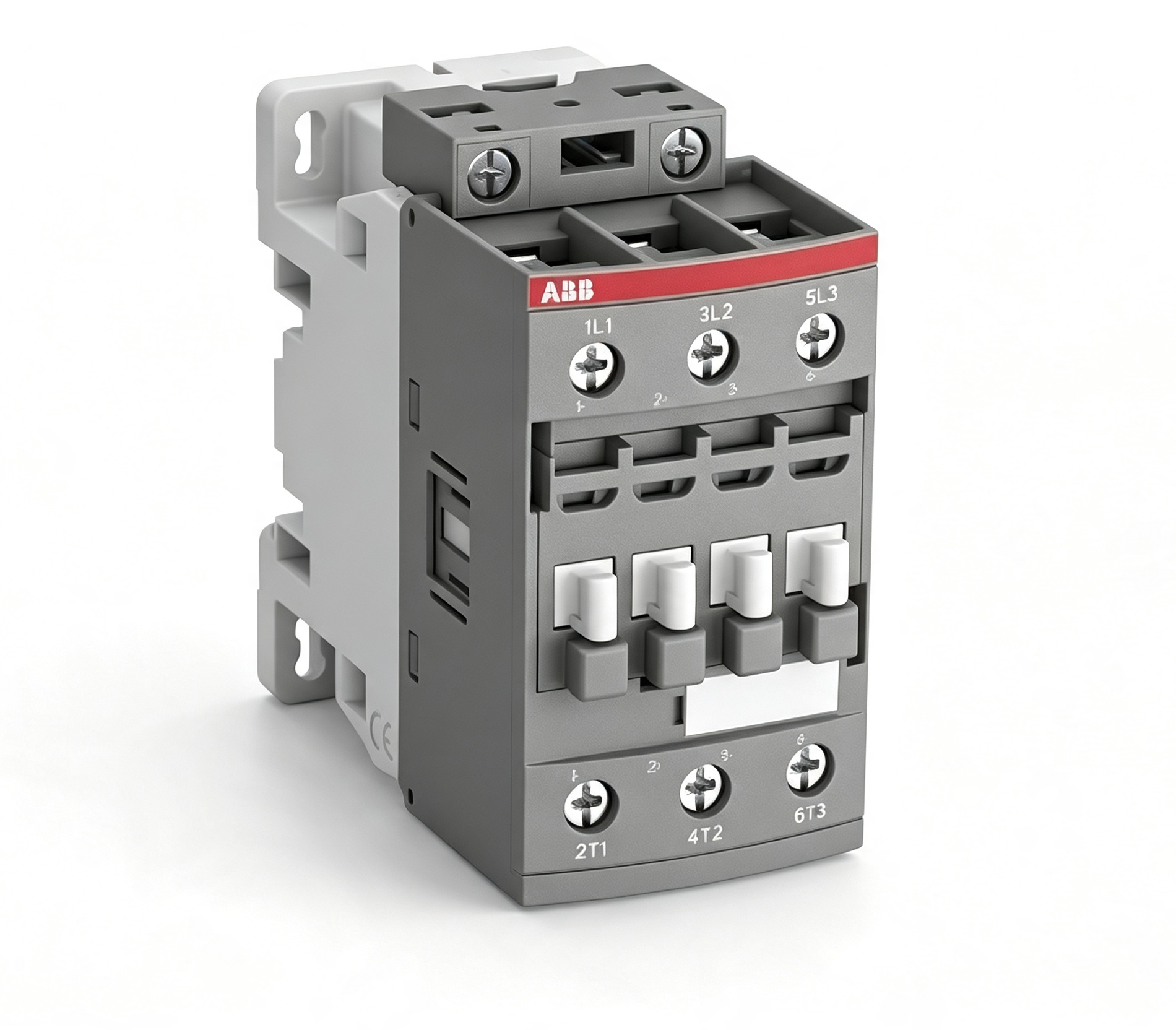

ABB 1TCH110861CF018 AF3-30-10 Contactor

Product Overview

The ABB 1TCH110861CF018 is an AF3-30-10 low voltage contactor designed for industrial electrical control and motor switching applications. It belongs to ABB’s contactor product family, which is developed to provide reliable switching solutions for automation systems, industrial machinery, power control panels, and electrical distribution equipment.

Contactors are essential components in industrial electrical systems because they allow remote control of power circuits through low-power control signals. The ABB 1TCH110861CF018 provides a dependable switching interface between control systems and electrical loads, enabling efficient management of motors, heating equipment, and other industrial devices.

The AF series contactor technology from ABB combines compact mechanical construction with advanced electrical design. These devices are engineered for reliable operation in industrial environments where frequent switching cycles, space efficiency, and stable electrical performance are required.

The ABB 1TCH110861CF018 AF3-30-10 contactor is suitable for applications requiring dependable control of three-phase electrical loads. Its standardized design allows integration into various control cabinets and automation systems while maintaining ABB’s typical engineering quality.

Technical Characteristics

The ABB 1TCH110861CF018 is identified as an AF3-30-10 contactor configuration. The AF series contactors are designed with electronic coil technology, providing stable operation across a wide range of control voltage conditions and improving application flexibility.

The contactor includes three main power contacts for switching three-phase loads and one auxiliary normally open contact for control circuit functions. This configuration allows the device to perform both power switching and auxiliary signal functions within industrial control systems.

The AF contactor series incorporates modern coil control technology that helps reduce energy consumption and improve operational stability compared with traditional electromagnetic contactors. The electronic coil system allows reliable operation in applications with varying control voltage conditions.

The ABB 1TCH110861CF018 is designed for installation in industrial electrical panels and automation cabinets. Its compact dimensions allow efficient use of cabinet space while maintaining sufficient electrical separation and mechanical strength.

Design and Construction

The ABB 1TCH110861CF018 features a modular contactor design optimized for industrial installation. The compact housing structure allows easy mounting on DIN rails or panel surfaces depending on system requirements.

The contactor construction includes a robust electromagnetic switching mechanism, power terminals, auxiliary contact interface, and electronic coil control components. These elements work together to provide stable switching performance during continuous industrial operation.

ABB designs its low voltage contactors with consideration for electrical safety, mechanical durability, and installation convenience. The AF3-30-10 structure supports efficient wiring and simplifies integration into control panels.

The standardized terminal arrangement makes connection easier for electrical engineers and maintenance personnel. Clear identification of terminals helps reduce installation errors and improves system service efficiency.

Electrical Switching Function

The primary function of the ABB 1TCH110861CF018 is to control the connection and disconnection of electrical power circuits. When the contactor coil receives a control signal, the internal contacts change state and allow electrical current to flow to the connected load.

This switching method allows industrial automation systems to control high-power equipment using low-power control signals from PLC systems, relay modules, or other controllers.

The ABB AF3-30-10 contactor is commonly used for motor starting, stopping, reversing control systems, and general electrical load switching. Its reliable contact operation helps maintain stable machine performance.

The auxiliary contact provides additional feedback or control functions, allowing the contactor status to be monitored within automation systems. This improves system visibility and supports more advanced control strategies.

Industrial Applications

The ABB 1TCH110861CF018 is widely used in industrial automation and electrical control applications. It is suitable for machinery, production equipment, HVAC systems, pump control systems, and industrial power distribution applications.

In manufacturing facilities, contactors are used to control motors that drive conveyors, processing equipment, and production machinery. Reliable switching performance is important for maintaining continuous production processes.

For pump and fan systems, the ABB contactor provides a practical method for automatic start and stop control. It can be integrated with sensors, controllers, and protection devices to create efficient operating systems.

In building and infrastructure applications, contactors are commonly used for controlling lighting systems, ventilation equipment, and electrical loads requiring centralized management.

The ABB 1TCH110861CF018 is also suitable for automation upgrades where older switching components need to be replaced with modern contactor technology.

Performance Advantages

One important advantage of the ABB 1TCH110861CF018 is its reliable switching capability. Industrial equipment often requires frequent electrical switching, and contactor performance directly affects system reliability.

The electronic coil technology used in ABB AF contactors provides improved efficiency and stable operation. It helps reduce control power requirements while maintaining dependable electromagnetic performance.

Another advantage is compact installation. Modern control cabinets require components that provide high functionality while occupying minimal space. The ABB AF3-30-10 design supports efficient cabinet layouts.

The contactor also benefits from ABB’s extensive experience in low voltage electrical equipment. Its design focuses on operational reliability, easy integration, and compatibility with industrial control solutions.

Integration with Automation Systems

Modern industrial automation systems require reliable connections between controllers and electrical equipment. The ABB 1TCH110861CF018 acts as an important switching element between automation commands and power circuits.

When connected with PLC systems or industrial control devices, the contactor allows automated management of motors and electrical loads. This improves production efficiency and provides better control over industrial processes.

The auxiliary contact function allows integration with monitoring circuits, providing information about contactor operation status. This supports fault diagnosis and improves maintenance efficiency.

ABB contactors are widely recognized for their compatibility with industrial electrical systems. The 1TCH110861CF018 provides a practical solution for engineers designing reliable automation and control applications.

Maintenance and Reliability Considerations

Reliable contactor operation is essential for industrial systems because unexpected switching failures can affect production efficiency. The ABB 1TCH110861CF018 is designed to provide stable operation under normal industrial working conditions.

Proper electrical installation, suitable protection devices, and regular inspection help maintain long-term contactor performance. ABB contactor designs support convenient maintenance procedures through standardized construction and accessible connection points.

The modular structure of the AF series allows easier replacement and system upgrades when required. This flexibility helps reduce downtime during electrical system maintenance.

Conclusion

The ABB 1TCH110861CF018 AF3-30-10 contactor is a reliable low voltage switching component designed for industrial motor control and automation applications. With its compact design, electronic coil technology, auxiliary contact functionality, and ABB engineering quality, it provides stable performance for various electrical control systems.

Suitable for industrial machinery, automation panels, motor control systems, and power switching applications, the ABB 1TCH110861CF018 offers an efficient and dependable solution for modern electrical control requirements.
