Product Overview

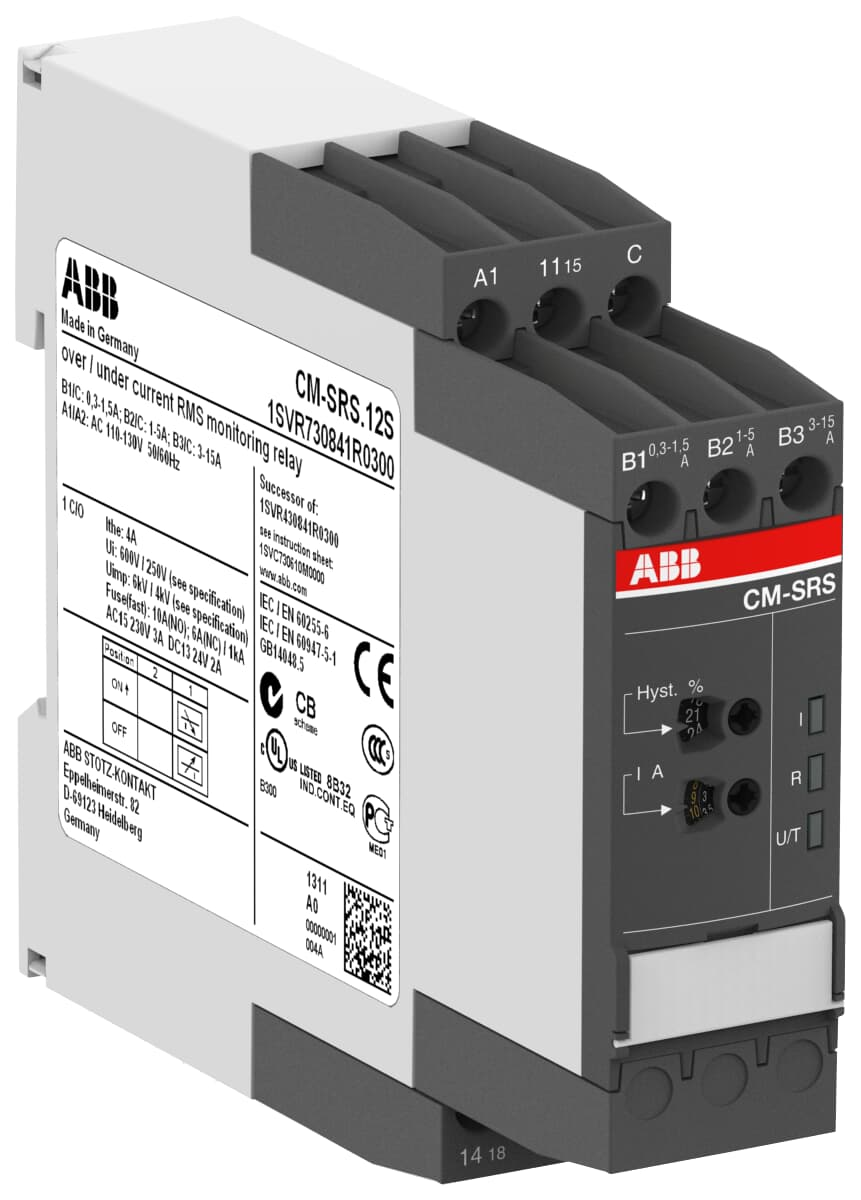

The ABB 1SVR730841R0300 is the ordering reference for the CM-SRS.12S current monitoring relay, a device designed to monitor current conditions in single-phase electrical circuits. As part of ABB’s CM range of measuring and monitoring relays, it supports overcurrent and undercurrent supervision in industrial electrical systems. Its monitoring function allows a control system to respond when the measured current moves beyond a defined threshold.

Current monitoring is an important element of electrical system supervision. Changes in current can indicate an abnormal operating condition, a change in load, a process interruption, or a problem elsewhere in the connected circuit. A monitoring relay evaluates the measured current against an established setting and changes the state of its output contact according to its configured operating function.

The CM-SRS.12S combines current measurement, threshold adjustment, and a relay output in a compact control component. Its rated control supply voltage is 110–130 V AC. The device provides three selectable current measuring ranges covering 0.3 A to 15 A, allowing it to be configured for different monitoring requirements within its specified operating limits.

With one changeover output contact, the ABB 1SVR730841R0300 can be incorporated into suitable control circuits to support alarm signaling, interlocking, and supervisory logic. The specific response of the connected equipment depends on the wiring arrangement and the control system design.

Operating Principle and Monitoring Functions

The CM-SRS.12S measures the current flowing through the monitored circuit and evaluates the measured value against an adjustable threshold. It can be configured for either overcurrent or undercurrent monitoring, depending on the requirements of the application. These functions help control systems distinguish between normal operating conditions and current levels that require a response.

In overcurrent monitoring, the relay is used to identify current values above the selected threshold. This function may be useful when a process or electrical load must operate within a defined current range. In undercurrent monitoring, the relay supervises situations in which current falls below the configured threshold. Such conditions may be relevant when a load stops operating, a process changes unexpectedly, or the current drawn by equipment becomes insufficient for the intended operation.

The CM-SRS.12S uses an RMS measuring principle for AC and DC current monitoring. Root mean square measurement provides a defined method of evaluating current magnitude and is particularly relevant when monitoring alternating current. The suitability of a particular circuit should nevertheless be assessed according to the signal characteristics, installation conditions, and the manufacturer’s specified measurement requirements.

The relay operates according to the open-circuit principle. Its switching response and output state must be interpreted using the manufacturer’s functional diagram and the actual wiring configuration. Engineers should verify the selected monitoring function before connecting the output to an alarm, contactor circuit, or other control device.

Selectable Current Measuring Ranges

A key characteristic of the ABB 1SVR730841R0300 is its three selectable measuring ranges. These ranges provide flexibility when configuring the relay for circuits with different normal operating currents. Selecting the appropriate range helps establish a useful relationship between the expected current and the configured monitoring threshold.

• 0.3–1.5 A: Intended for applications with relatively low monitored current levels within the specified range.
• 1–5 A: Suitable for circuits whose expected current falls within the intermediate measuring range.
• 3–15 A: Provides a higher measuring range for applications requiring monitoring of larger current values.

The selected range should correspond to the electrical characteristics of the monitored circuit. A threshold that is too close to normal operating fluctuations may cause unwanted switching, while an unsuitable threshold may prevent the relay from responding to the condition that the system is intended to detect.

During commissioning, the installer should confirm the measuring range, threshold setting, and intended response of the output contact. The configuration should be evaluated under representative operating conditions and documented as part of the electrical control system’s technical records.

Adjustable Hysteresis and Switching Stability

The CM-SRS.12S provides adjustable hysteresis from 3% to 30% of the threshold value. Hysteresis defines the difference between the relevant switching and return levels. This feature can help prevent repeated relay switching when the measured current fluctuates near the configured threshold.

For example, a monitored load may experience small current variations during normal operation. Without an appropriate switching differential, a monitoring relay could repeatedly change its output state as the current moves around the threshold. A suitable hysteresis setting helps establish a more stable response when the measured value approaches the switching limit.

The appropriate hysteresis setting depends on the application, normal current variation, and the response expected from the surrounding control system. A smaller differential may provide a more sensitive response, while a larger differential may reduce repeated switching caused by minor fluctuations. The final setting should be selected according to the equipment requirements and verified during commissioning.

Output Contact and Control System Integration

The ABB 1SVR730841R0300 has one changeover output contact, commonly described as one SPDT contact or one c/o contact. This arrangement provides a common terminal and two alternative contact paths, allowing the relay to interface with suitable control circuits.

Depending on the application, the output can be used to provide a monitoring signal to a controller, initiate an alarm indication, or participate in an interlocking sequence. The contact arrangement gives control-panel designers flexibility when incorporating current supervision into an existing electrical system.

The output contact has a published rating of 250 V and 4 A in the product information. Actual application suitability must be determined from the relevant utilization category, switching duty, load characteristics, and applicable electrical ratings. The output should not be treated as a substitute for a dedicated power-switching device when the connected load exceeds the relay’s specified capabilities.

Before integration, engineers should identify the correct terminals and verify the intended output behavior against the manufacturer’s connection diagram. The control logic should also account for the relay’s operating principle and the required response to normal, overcurrent, and undercurrent conditions.

Electrical Characteristics and Installation

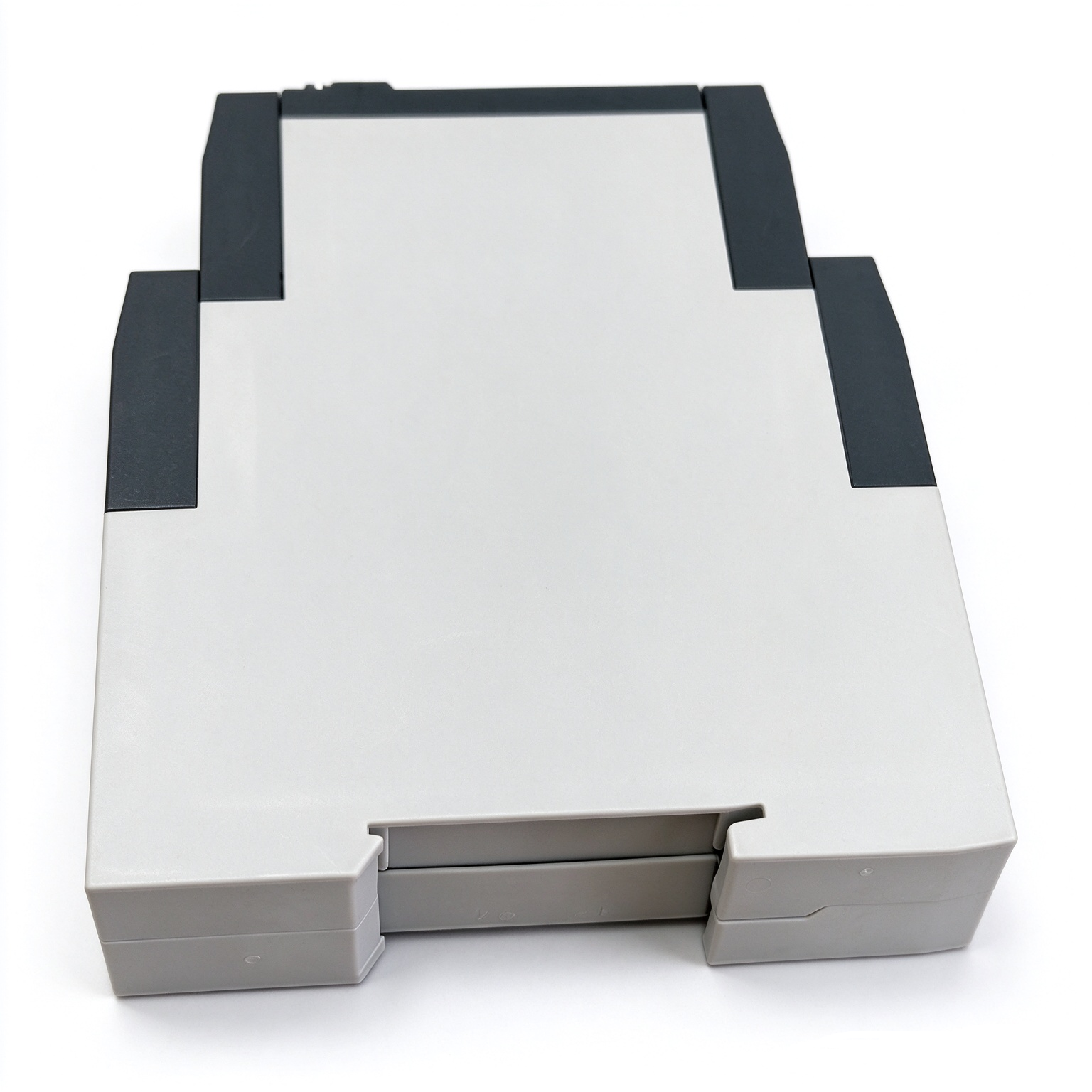

The CM-SRS.12S has a rated control supply voltage of 110–130 V AC and uses screw terminals for electrical connections. Its compact dimensions are approximately 22.5 mm wide, 85.6 mm high, and 103.7 mm deep. These dimensions are useful when planning space within an electrical enclosure or checking the suitability of an existing control-panel layout.

The published operating ambient temperature range is -20°C to +60°C, while the storage temperature range is -40°C to +85°C. These environmental limits should be considered when selecting an installation location. Enclosure conditions, ventilation, adjacent equipment, and the thermal characteristics of the panel can influence the operating environment experienced by the relay.

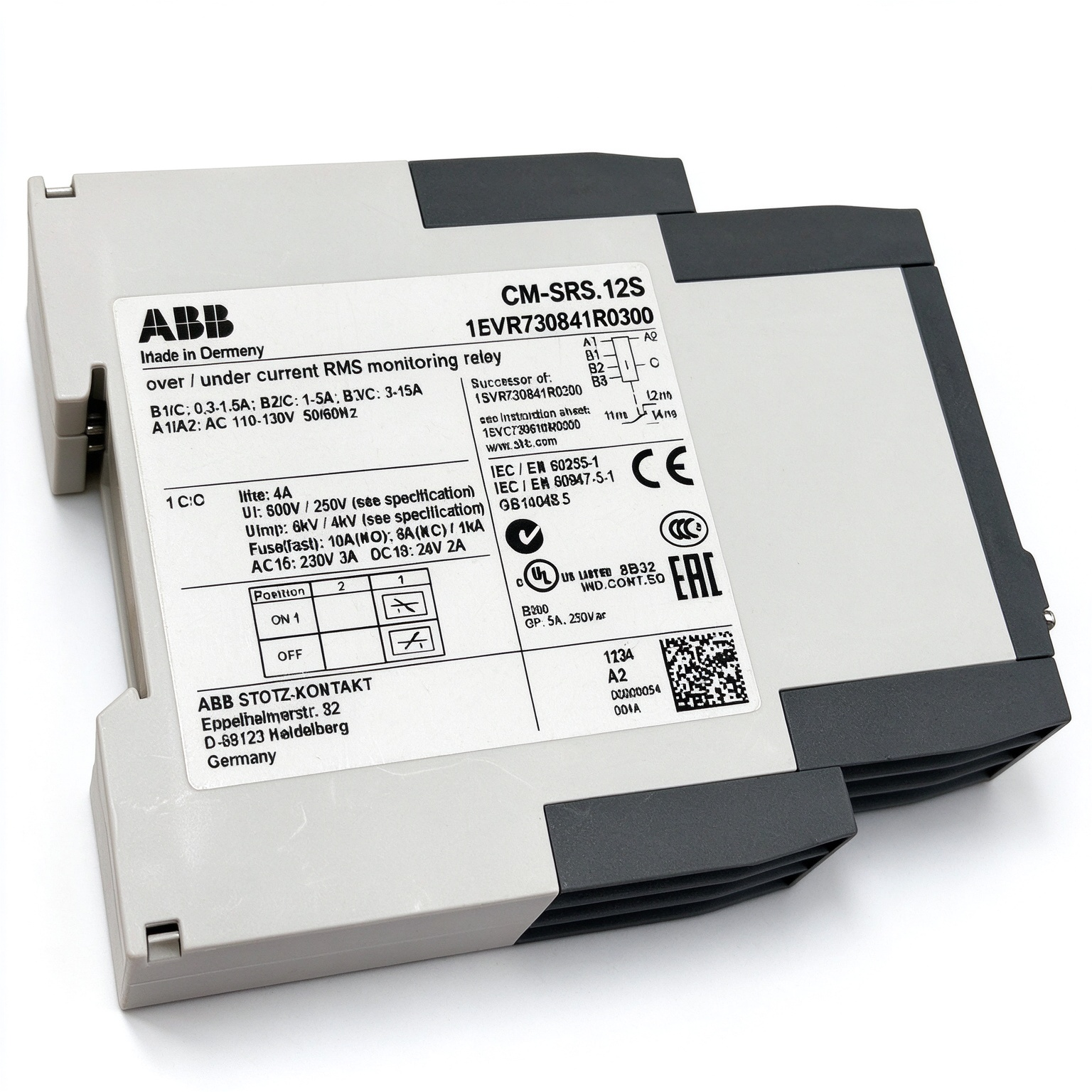

The product documentation specifies a rated insulation voltage of 600 V for the measuring circuit and output circuit, and 250 V between the output circuits and between the supply and output circuits, according to the relevant stated circuit relationships. The applicable installation standards and insulation requirements must be checked before the device is incorporated into a system.

Installation should be carried out by qualified personnel following appropriate electrical isolation and safety procedures. The supply voltage, measuring circuit connections, output wiring, and selected monitoring function should all be checked against the manufacturer’s documentation. Incorrect wiring or an unsuitable supply voltage can prevent the relay from operating as intended.

Industrial Applications

The ABB 1SVR730841R0300 can be used in industrial control panels and single-phase electrical monitoring arrangements where current supervision is required. Potential applications include monitoring electrical loads, providing current-dependent alarm signals, supervising auxiliary equipment, and supporting control sequences that depend on current conditions.

In machinery, undercurrent monitoring may help identify a loss of load or an unexpected reduction in current. Overcurrent monitoring may support the detection of operating conditions that exceed a configured threshold. In process equipment, a monitoring signal can be incorporated into a programmable controller or other control logic to initiate an appropriate response.

The relay may also be considered for maintenance and equipment modernization projects in which an existing control system requires current monitoring. Before replacement or integration, the engineer should confirm the exact product reference, supply voltage, measurement range, terminal arrangement, and functional requirements.

These examples describe potential applications rather than guaranteed protection for every installation. A current monitoring relay does not automatically replace circuit breakers, fuses, motor protection devices, or other protective equipment. The overall protection strategy must be designed according to the electrical system, connected load, applicable standards, and required safety functions.

Selection and Maintenance Considerations

Correct product identification is the first step when selecting the ABB CM-SRS.12S. The complete ordering number, 1SVR730841R0300, identifies the version with a 110–130 V AC control supply and the specified 0.3–15 A measuring range. Models within the same product family may have different supply voltages, output configurations, or measuring ranges, so similar model numbers should not be assumed to be interchangeable.

Before installation, compare the required current threshold with the available measuring ranges and determine whether overcurrent or undercurrent monitoring is needed. Confirm that the control supply is compatible with the installation and that the output contact meets the requirements of the connected circuit. The wiring diagram should be reviewed before any modification is made to an existing panel.

Routine inspection should follow the site’s maintenance procedures and applicable electrical safety requirements. Relevant checks may include terminal security, wiring condition, the configured threshold, and the expected response of the monitoring output. If the relay does not respond as expected, investigate the supply, measuring circuit, settings, and associated control logic before concluding that the device itself is faulty.

Product Summary

The ABB 1SVR730841R0300 CM-SRS.12S is a single-phase current monitoring relay designed for overcurrent and undercurrent supervision in AC and DC applications. Its 110–130 V AC control supply, three selectable measuring ranges, adjustable hysteresis, and single SPDT output make it suitable for integration into compatible industrial control systems.

By monitoring current conditions and providing a defined relay output, the CM-SRS.12S can support alarm signaling, equipment supervision, and current-dependent control sequences. Correct selection requires attention to the measured current, threshold settings, supply voltage, output ratings, and installation requirements.

For engineering, maintenance, and replacement purposes, the full ordering reference should be checked against the applicable ABB technical documentation. Verifying the electrical configuration and functional requirements helps ensure that the relay is correctly matched to its intended monitoring application.
