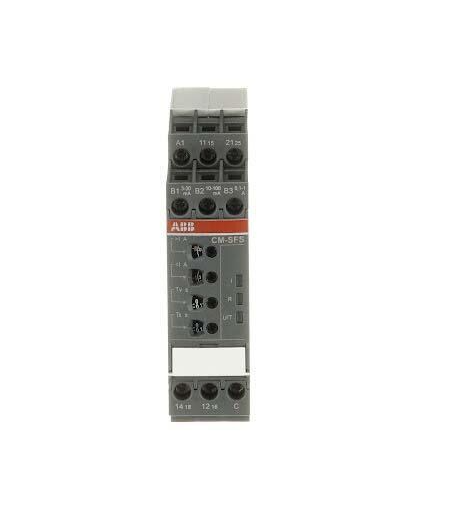

ABB 1SVR730760R0400 CM-SFS.21S Current Monitoring Relay
The ABB 1SVR730760R0400, also known as the CM-SFS.21S, is a single-phase current monitoring relay designed for industrial electrical protection and supervision systems. It is part of ABB’s CM series of monitoring relays, widely used in automation and power distribution applications where accurate current detection is required to ensure system safety and reliability. :contentReference[oaicite:1]{index=1}
This relay is designed to monitor overcurrent and undercurrent conditions in AC and DC systems. It operates with a wide control supply voltage range of 24 to 240 V AC/DC and provides configurable threshold settings, time delays, and output contact configurations. :contentReference[oaicite:2]{index=2}
Key Features of ABB 1SVR730760R0400
- Single-phase current monitoring relay (CM-SFS.21S)
- Overcurrent and undercurrent detection
- Wide measuring range: 3 mA to 1 A
- Adjustable trip delay up to 30 seconds
- 24–240 V AC/DC control supply voltage
- 2 changeover (SPDT) output contacts
- DIN rail mounting design
- LED status indication for operation monitoring
Industrial Application Areas
The ABB 1SVR730760R0400 is widely used in industrial automation and electrical systems where continuous monitoring of current levels is required. It helps prevent equipment damage by detecting abnormal current conditions and triggering protective actions.
- Motor protection systems
- Industrial automation control panels
- Power distribution monitoring systems
- HVAC system protection
- Pump and compressor monitoring
- Manufacturing machinery protection
- Energy management systems
- Electrical fault detection systems
Reliable Current Monitoring Function
Current monitoring relays play an essential role in protecting electrical systems from abnormal operating conditions. The ABB CM-SFS.21S continuously measures current levels and detects when values exceed or fall below predefined thresholds.
When abnormal conditions are detected, the relay activates its output contacts to trigger alarms or shutdown signals, helping prevent equipment failure and system downtime in industrial environments. :contentReference[oaicite:3]{index=3}
Technical Advantages
| Feature | Benefit |
|---|---|
| Wide Voltage Range | Compatible with AC/DC industrial systems |
| Adjustable Current Range | Flexible use across different applications |
| Time Delay Function | Prevents false triggering in unstable conditions |
| Dual Output Contacts | Supports multiple control signals |
| DIN Rail Design | Easy installation in control cabinets |
| ABB Engineering Quality | Ensures long-term reliability |
Designed for Industrial Safety
Industrial electrical systems require continuous supervision to avoid overload conditions that can damage equipment or disrupt production. The ABB 1SVR730760R0400 provides reliable monitoring of current flow, ensuring early detection of abnormal conditions.
By integrating this relay into control systems, operators can improve system safety, reduce maintenance costs, and extend the service life of connected electrical equipment.
ABB Monitoring Relay Technology
ABB is a global leader in electrical automation and protection technologies. Its CM series monitoring relays are designed for precision, reliability, and ease of integration into modern industrial systems.
The ABB 1SVR730760R0400 reflects this engineering approach by combining accurate measurement, flexible configuration, and stable performance in a compact industrial device.
Conclusion
The ABB 1SVR730760R0400 CM-SFS.21S current monitoring relay is a reliable solution for industrial electrical supervision and protection. It provides accurate current detection, adjustable monitoring settings, and stable operation for a wide range of industrial applications.
With its flexible configuration and robust design, this ABB relay is widely used in motor protection, automation systems, and power distribution monitoring where electrical safety and system reliability are essential.
