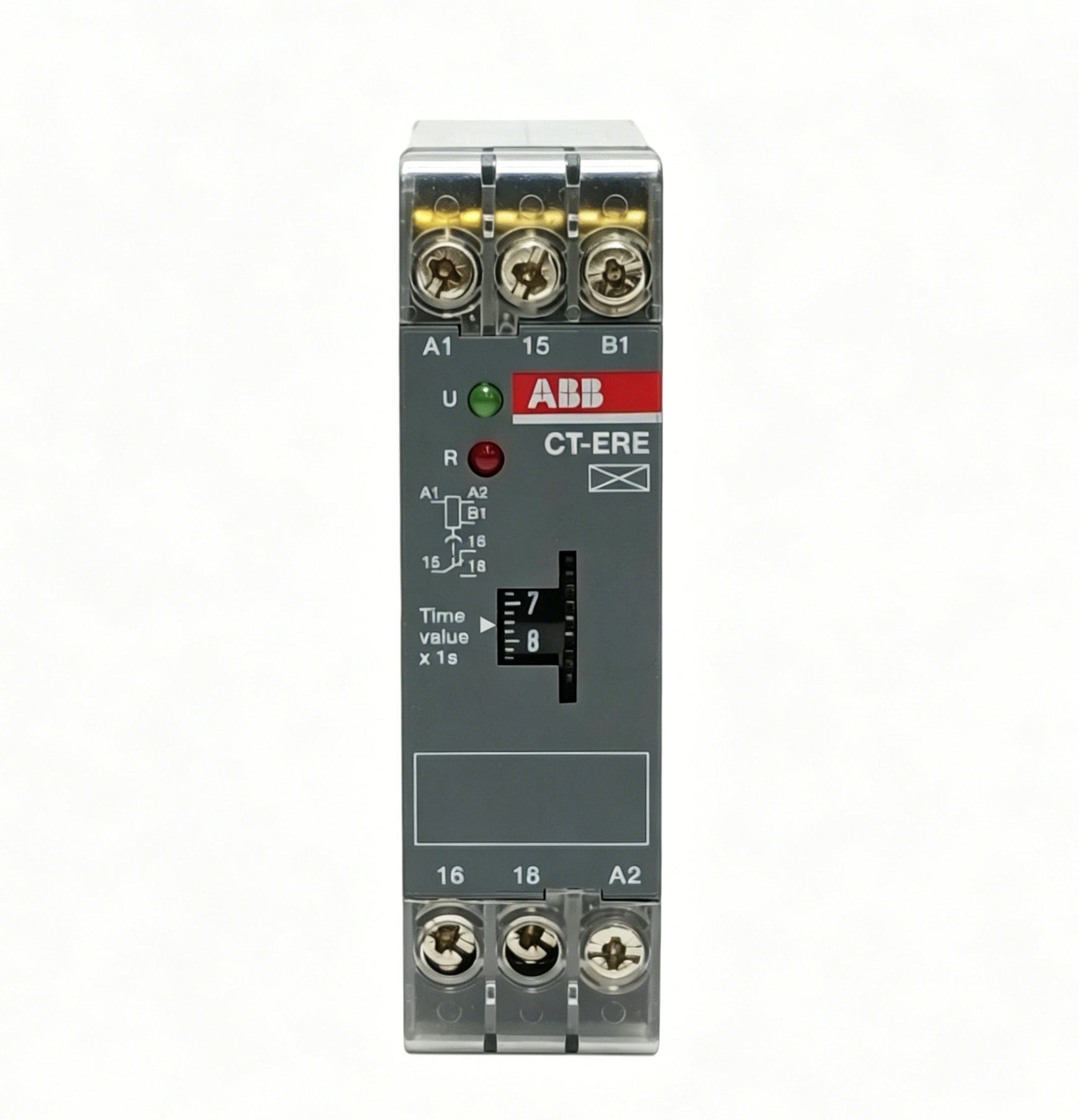

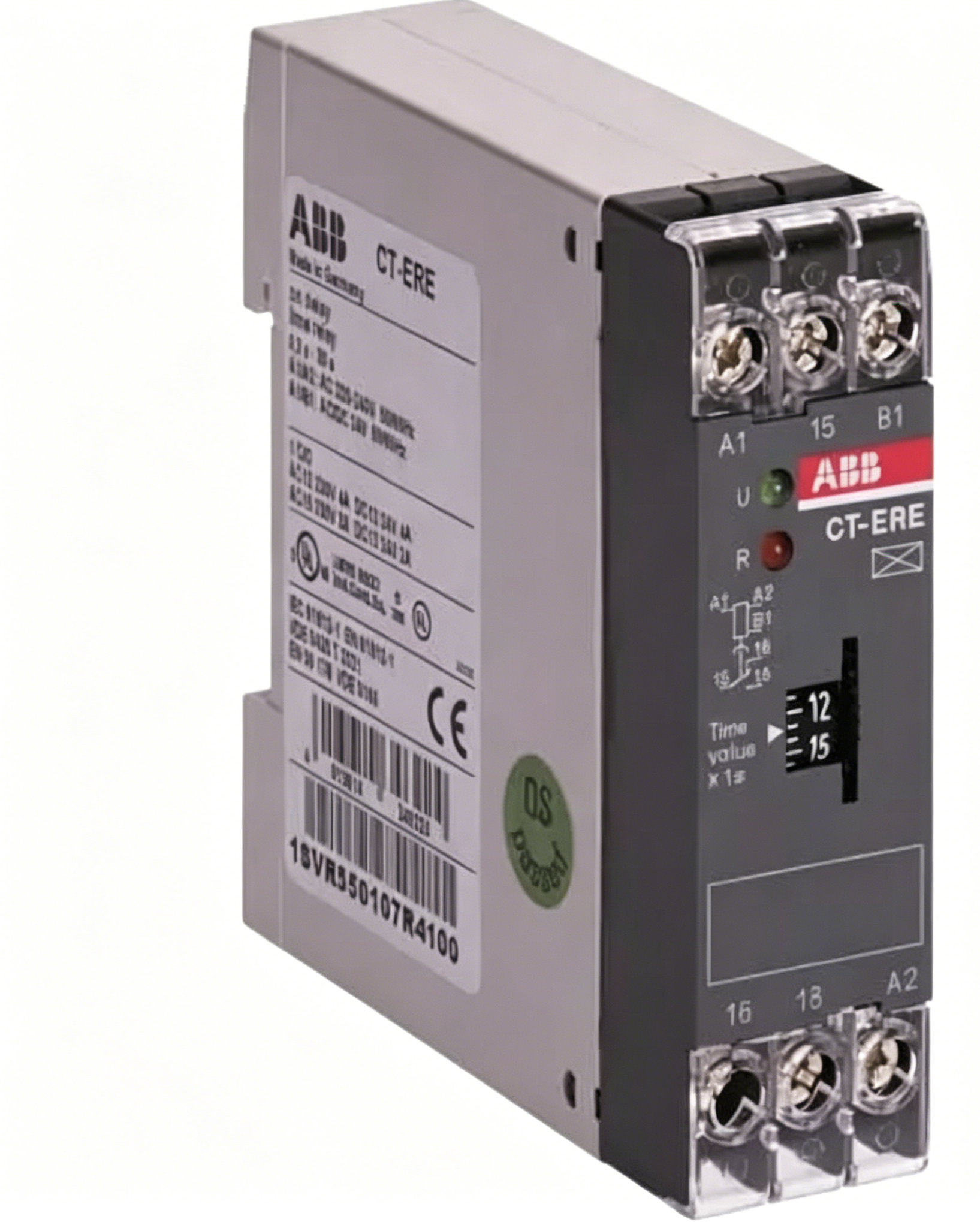

ABB 1SVR550107R1100 CT-ERE On-Delay Time Relay

The ABB 1SVR550107R1100 CT-ERE is an electronic on-delay time relay designed for industrial automation systems, electrical control panels, and motor timing applications. It is part of ABB’s well-known CT-E timer series, which is widely used in industrial environments requiring precise time control and reliable switching performance. This device plays an essential role in ensuring that electrical systems operate in a controlled and sequential manner, improving both safety and process efficiency.

In industrial automation, timing relays are essential components used to control the sequence of operations. Many processes require a delayed start or controlled activation of electrical loads, especially in motor control circuits, conveyor systems, HVAC installations, and production machinery. The ABB 1SVR550107R1100 is specifically engineered to deliver accurate timing functions while maintaining high reliability under continuous industrial use conditions.

Product Overview

The ABB 1SVR550107R1100 is a single-function on-delay time relay with a timing range from 0.1 seconds to 10 seconds. It operates using a wide control supply voltage range, typically 24 V AC/DC or 220–240 V AC, making it suitable for a broad range of industrial applications. The relay is designed for DIN rail mounting, allowing easy installation inside electrical control panels and automation cabinets.

This device features a compact 22.5 mm housing, which helps save valuable panel space while maintaining full functionality. It uses screw terminal connections for secure wiring and stable electrical contact, ensuring long-term reliability even in vibration-prone industrial environments.

Main Functional Features

• On-delay timing function (delay on energization).
• Adjustable time range from 0.1 to 10 seconds.
• Wide control voltage compatibility (24V AC/DC and 220–240V AC).
• SPDT (1 changeover contact) output relay.
• DIN rail mounting design for control panels.
• LED status indicators for operational monitoring.
• Compact 22.5 mm modular housing.
• High switching reliability for industrial environments.
• Screw terminal connections for secure wiring.
• Suitable for global industrial automation systems.

Working Principle of On-Delay Function

The ABB 1SVR550107R1100 operates using an on-delay timing principle. When control voltage is applied, the timing sequence begins immediately. After the preset delay time has elapsed, the output relay switches state, allowing current to flow to the connected load or control circuit. If the control voltage is removed before the timing cycle completes, the relay resets to its initial state.

This function is widely used in industrial systems where controlled startup sequences are required. It helps prevent sudden electrical load activation, reduces mechanical stress on motors, and ensures proper sequencing in automated processes. The on-delay function is essential for maintaining operational stability in complex control systems.

Electrical Performance and Reliability

The ABB CT-ERE series is designed to provide consistent and reliable performance in demanding electrical environments. The 1SVR550107R1100 relay is capable of operating under a wide range of voltage conditions, ensuring stable functionality even when power supply variations occur.

Its output relay contact is designed for industrial load switching applications, supporting control circuits with typical industrial current ratings. The internal design ensures minimal contact wear and long service life, making it suitable for continuous operation in automation systems.

Industrial Applications

The ABB 1SVR550107R1100 is widely used in industrial applications where timing control is essential for process coordination and electrical system sequencing. Common applications include:

• Motor start delay control circuits.
• Conveyor system sequencing.
• HVAC fan and compressor timing systems.
• Industrial automation control panels.
• Pump control systems in water treatment plants.
• Machine start-up delay protection.
• Process control and sequencing systems.
• Lighting and energy management systems.

In these applications, the relay ensures that electrical loads are activated in a controlled and safe manner, improving system stability and reducing operational risks.

Integration with Automation Systems

The ABB time relay is designed for seamless integration into PLC-based and relay-based control systems. Its SPDT output allows flexible wiring configurations for both control logic and load switching applications. Engineers can easily incorporate it into existing automation architectures without requiring complex modifications.

The relay supports both simple and advanced control logic systems, making it suitable for small standalone machines as well as large industrial automation networks.

Installation Advantages

The compact DIN rail design of the ABB 1SVR550107R1100 simplifies installation and reduces panel space requirements. Its modular structure allows multiple devices to be installed side by side in control cabinets, improving system organization and accessibility.

Screw terminal connections ensure secure and reliable wiring, reducing the risk of loose connections or electrical faults. This is especially important in industrial environments where vibration and continuous operation are common.

Operational Benefits

The use of timing relays such as the ABB 1SVR550107R1100 improves system efficiency by enabling precise control over electrical sequences. This reduces mechanical wear on equipment, enhances energy efficiency, and improves overall process reliability.

By introducing controlled delays, the relay helps prevent simultaneous startup of multiple high-load devices, reducing peak current demand and improving electrical system stability.

Conclusion

The ABB 1SVR550107R1100 CT-ERE on-delay time relay is a reliable and efficient solution for industrial timing and control applications. With its precise timing range, wide voltage compatibility, compact design, and robust construction, it is widely used in automation systems, motor control circuits, HVAC installations, and industrial process equipment.

Its ability to provide accurate delay functions and stable switching performance makes it an essential component in modern industrial electrical systems, supporting safe operation, improved sequencing, and enhanced system reliability.
