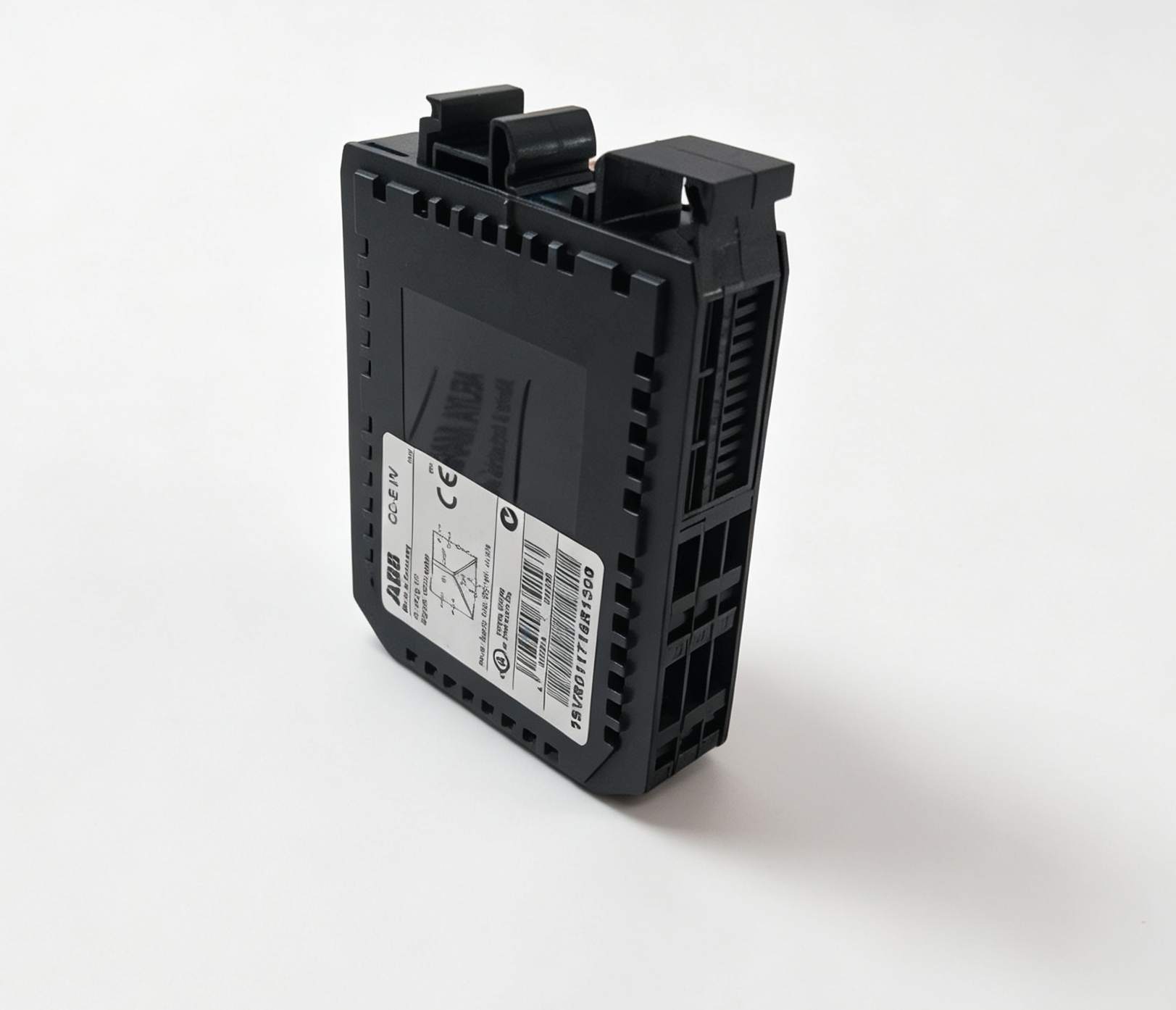

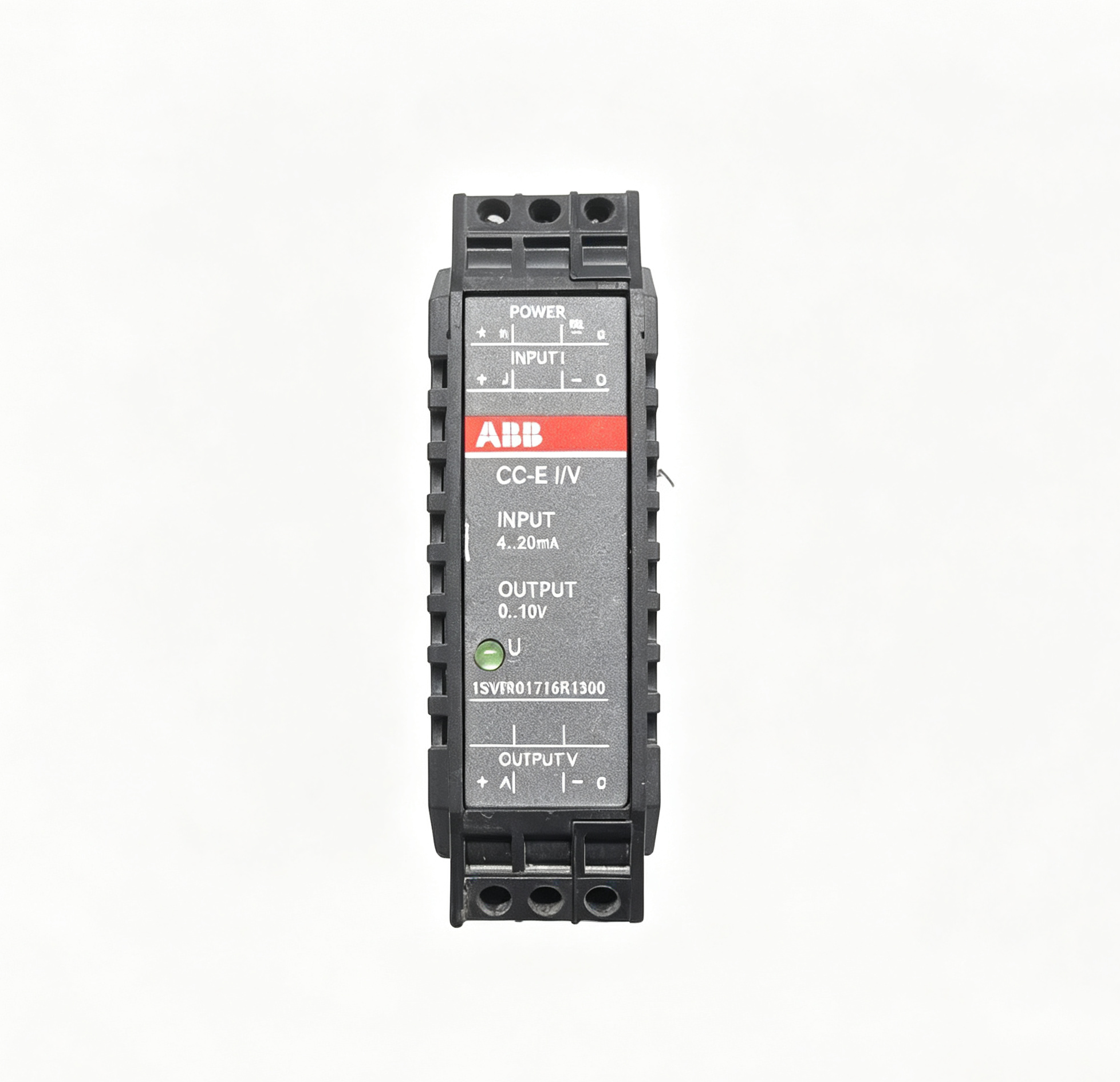

ABB 1SVR011716R1300 CC-E I/V Signal Converter

ABB 1SVR011716R1300 is an industrial analog signal converter designed for automation control systems, electrical cabinets, and process measurement applications. This product belongs to the ABB CC-E interface module family and provides reliable conversion between standard current signals and voltage signals used in industrial control environments.

In modern industrial automation systems, field devices such as sensors, transmitters, and measurement instruments often use different signal formats. Signal converters provide an important interface function by adapting these signals and ensuring that controllers, PLC systems, and monitoring equipment can receive accurate and stable process information.

The ABB 1SVR011716R1300 CC-E I/V signal converter is specifically designed for converting a 4-20mA input signal into a 0-10V output signal. It operates with a 24V DC control supply and includes three-way electrical isolation, providing improved signal reliability and protection within industrial applications. :contentReference[oaicite:2]{index=2}

Product Overview of ABB 1SVR011716R1300

ABB 1SVR011716R1300 is a single-function analog signal converter from the ABB CC-E range. The CC-E series is designed to provide compact and efficient signal conditioning solutions for industrial automation systems where reliable electrical interfaces are required.

The primary function of this module is to transform an incoming analog current signal into a corresponding voltage output signal. This conversion allows devices with different signal requirements to communicate effectively within the same automation architecture.

The device is commonly installed between field instruments and control systems. For example, a transmitter producing a 4-20mA signal can be connected to ABB 1SVR011716R1300, which converts the signal into a 0-10V format suitable for specific controller inputs or monitoring equipment.

The compact housing design allows installation inside electrical control cabinets. With DIN rail mounting capability, the module can be easily integrated into standardized industrial panels and automation systems. :contentReference[oaicite:3]{index=3}

Technical Characteristics

ABB 1SVR011716R1300 is developed according to ABB industrial interface component standards and provides stable analog signal conversion performance for professional automation applications.

• Product Brand: ABB
• Product Model: 1SVR011716R1300
• Product Series: CC-E
• Product Type: Analog Signal Converter
• Signal Function: Current Input / Voltage Output
• Input Signal: 4-20mA
• Output Signal: 0-10V
• Supply Voltage: 24V DC
• Isolation Type: Three-way Electrical Isolation
• Mounting Method: DIN Rail Mounting

The converter provides electrical separation between different circuits, helping minimize signal interference and improving the stability of industrial measurement systems. Three-way isolation is especially useful in environments where field devices, power equipment, and control systems operate together. :contentReference[oaicite:4]{index=4}

Signal Conversion Function

The main purpose of ABB 1SVR011716R1300 is analog signal conversion. Industrial sensors and transmitters frequently use 4-20mA current signals because they provide good resistance against electrical noise and are suitable for long-distance transmission.

However, some control devices require voltage-based input signals. The ABB CC-E I/V converter solves this compatibility issue by converting the current signal into a proportional voltage output.

The conversion process maintains the relationship between the input and output values, allowing automation systems to continue receiving accurate measurement information. This function is essential in applications involving temperature monitoring, pressure measurement, flow control, level detection, and other industrial processes.

Industrial Application Areas

ABB 1SVR011716R1300 is suitable for a wide range of industrial automation applications where analog signal adaptation is required. Typical application areas include manufacturing equipment, process control systems, energy management installations, and industrial electrical cabinets.

In manufacturing automation, different sensors and controllers may use different signal standards. Signal converters help integrate these devices into a unified control system, improving system flexibility and reducing design limitations.

In process industries, accurate analog signal transmission is important for monitoring parameters such as temperature, pressure, flow, and liquid level. ABB 1SVR011716R1300 provides a reliable interface between measurement devices and control platforms.

Machine builders and system integrators often use compact interface modules to simplify cabinet layouts and improve the compatibility of automation components.

Design Advantages

One of the main advantages of ABB 1SVR011716R1300 is its compact industrial design. The module occupies limited cabinet space while providing reliable signal conversion functionality.

The DIN rail mounting structure allows fast and organized installation in control panels. This standardized mounting method is widely used in industrial electrical systems because it improves cabinet organization and maintenance efficiency.

The electrical isolation function provides additional protection for connected equipment. By separating signal circuits, the module helps reduce the influence of voltage differences and electrical disturbances.

Integration with Automation Systems

ABB 1SVR011716R1300 can be integrated into various automation architectures, including PLC-based control systems, industrial monitoring platforms, and process automation solutions.

Signal converters are important components in automation networks because they allow different devices to exchange information despite using different signal standards.

By providing accurate signal adaptation, ABB 1SVR011716R1300 helps engineers create flexible control systems that can include different field instruments and automation devices.

Installation and Maintenance Considerations

Correct installation is important to ensure reliable operation of ABB 1SVR011716R1300. The module should be installed on a suitable DIN rail and connected according to electrical design requirements.

Engineers should verify that the input signal range matches the connected field device and that the output signal range corresponds with the receiving controller or monitoring equipment.

During maintenance operations, technicians should inspect wiring connections, power supply stability, and signal performance to ensure continuous system reliability.

Importance in Industrial Signal Management

Reliable signal management is a fundamental requirement in industrial automation. Control systems depend on accurate measurement information to perform regulation, monitoring, and operational decisions.

ABB 1SVR011716R1300 provides an effective solution for improving signal compatibility between field devices and control equipment. Its combination of signal conversion, electrical isolation, and compact installation design makes it suitable for many industrial applications.

As automation systems continue to become more advanced, reliable interface components remain essential for maintaining efficient communication between different parts of industrial installations.

Conclusion

ABB 1SVR011716R1300 CC-E I/V signal converter is a professional industrial interface module designed for converting 4-20mA current signals into 0-10V voltage signals. With 24V DC operation, three-way electrical isolation, and DIN rail mounting capability, it provides a reliable solution for industrial automation and control applications.

By combining ABB engineering quality with practical signal processing functions, ABB 1SVR011716R1300 supports stable system integration, accurate measurement transmission, and efficient operation of modern industrial control systems.
